Variable Frequency Drives (VFD)

EDP11S086DN1211000

STANDARD PANEL EDP11S086DN1211000

WEG

F600-06400630A10101AB103

NIDEC F600-06400630A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 380Vac-480Vac, specifically 400Vac / 415Vac, and operates on a 60 Hz supply input. It features an ambient air temperature range for operation from -20°C to +40°C. This model comes with a degree of protection rated at IP20 and has dimensions of frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). It is equipped with 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), 1 analog input (4-20mA / 0-10Vdc; single-ended), and 3 digital inputs (24Vdc) plus an additional 3 digital inputs (0-24Vdc; configurable). The F600 series drive includes a built-in brake transistor, internal line choke, and air cooling design. It supports Modbus RTU communication protocol, has a rated current of 63A (Normal duty), and delivers a rated active power of 30kW (Normal duty) or 40HP (Normal duty).

Nidec

M702-11602100E10101AB100

NIDEC M702-11602100E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It has dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 225A under normal duty and 210A under heavy-duty conditions, and it is designed for a supply voltage of 500Vac-690Vac (600Vac). The ambient air temperature range for operation is -20°C to +40°C. It features an IP20, NEMA 1, UL open degree of protection, and is suitable for a 3-phase input network with a frequency range of 45-66 Hz (supply input) and 0-599 Hz (output). The device includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 2 x digital outputs (100mA / 0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). It has a rated active power of 200kW under normal duty and 185kW under heavy-duty, with a rated power of 250HP for both conditions.

Nidec

HVW701E142T4N12-J-B

WEG HVW701E142T4N12-J-B - STANDARD PANEL HVW701E142T4N12-J-B, HVAC Enclosed Drives (HVW)

WEG

CFW700D32P0T5NBN1

WEG CFW700D32P0T5NBN1 - DRIVE CFW700D32P0T5NBN1, CFW500/700 Drives

WEG

ATV71HD90N4D

Schneider Electric ATV71HD90N4D is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series, designed for variable speed and frequency control with a U/F ratio of 2 points / 5 points. It features sensorless flux vector control, ENA System Vector control with or without speed feedback, and can deliver 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. This model comes with a built-in EMC filter, a built-in heatsink, and a coated version without a DC choke. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.), with dimensions of H920mm x W320mm x D377mm. The ATV71HD90N4D has a conformal coating for chemical resistance, an IP30 UL type 1 degree of protection, and supports wall mounting. It has a rated current of 179A at 380Vac and 460Vac (2.5kHz), with a maximum current of 295A for 2 seconds and 269A for 60 seconds. Communication is facilitated through Modbus and CANopen protocols, designed for a 3-phase network with an output frequency range of 0.1-500 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, along with 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts). The ATV71HD90N4D also features 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA), with a current consumption of 166A at 380Vac and 134A at 480Vac. It is rated for an active power of 90kW and a power capacity of 125HP.

Schneider Electric

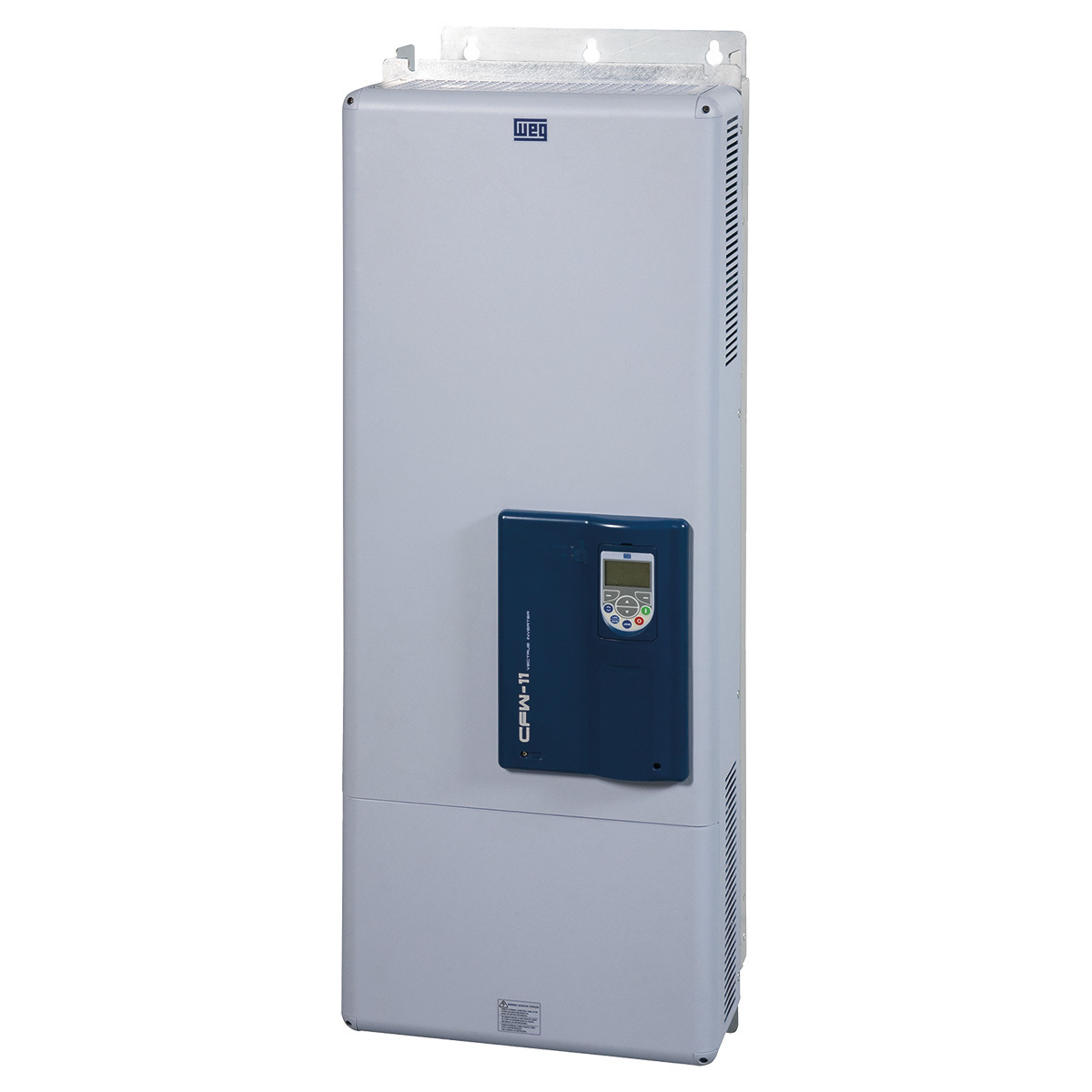

CFW110312T4SZ-PGM

DRIVE CFW110312T4SZ-PGM

WEG

M701-03400045A10101AB100

NIDEC M701-03400045A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series, designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 3, measuring H14.37" x W3.27" x D7.87" (H365mm x W83mm x D200mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 6.2A under normal duty and 4.5A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 analog inputs (0-20mA / 4-20mA / -10...+10Vdc; differential and single-ended; 11-bit conversion resolution). The rated active power is 2.2kW under normal duty and 1.5kW under heavy-duty, with a rated power of 3HP (normal duty) and 2HP (heavy-duty).

Nidec

SP1401-EZ

NIDEC SP1401-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 1, measuring H15.2" x W3.93" x D8.62" (H386mm x W100mm x D219mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The rated current is 2.8A under normal duty and 2.1A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP1401-EZ features 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). It also includes 1 x analog input (-9.8Vdc...9.8Vdc; differential) with a 16-bit conversion resolution and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, alongside 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. The rated active power is 1.1kW under normal duty and 0.75kW under heavy-duty, with rated power of 1.5HP / 1-1/2HP (Normal duty) and 1HP (Heavy-duty).

Nidec

GA80U5382AWM

GA80U5382AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 600 VAC, 382 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

I55AE411F10V1100MS

Lenze I55AE411F10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter applications, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H685mm x W258mm x D304mm. It supports Ethernet/IP communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies: 254A for light-duty at 400Vac, 216A for light-duty at 480Vac, 212A for heavy-duty at 400Vac, and 180A for heavy-duty at 480Vac. It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, 5 x digital inputs with optional uses for two of them, 2 x analog inputs with optional voltage or current input, and 1 x digital output. The rated active power is 132kW for light-duty and 110kW for heavy-duty, both at 400-480Vac, translating to a rated power of 180HP for light-duty and 150HP for heavy-duty, respectively.

Lenze

SF215

Lenze SF215 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for precise control of motor speed and frequency. It features dimensions of H146mm x W73mm x D146mm and operates on a supply voltage of 200Vac-240Vac, with rated currents of 6.9A at 200Vac and 6A at 230Vac. This unit can be mounted in a cabinet or on a DIN rail and is designed to operate within an ambient air temperature range of 0 to +50 °C, with a derating of 2.5% per °C above +50°C. It supports RS-485 communication protocol and handles a network frequency of 48-62 Hz on input and 0-240 Hz on output. The SF215 includes 2 digital outputs (open-collector outputs; 50mA at 30Vdc), 2 analog inputs (1 x 0-10Vdc and 1 x 4-20mA), and 2 analog outputs (both 0-10Vdc or adjustable within specified ranges), suitable for various control applications. It is designed for a 3-phase network and delivers a rated active power of 1.1kW and a rated power of 1-1/2HP at 208-240Vac.

Lenze

3G3MX2-A4055-V2

MX2 Series Fast-Response Inverter for Machine Control

Omron

S100-01243-0B0000

Nidec S100-01243-0B0000

Nidec

EDP11S086DN12

STANDARD PANEL EDP11S086DN12

WEG

CFW110370T4SZ-PGM

DRIVE CFW110370T4SZ-PGM

WEG

UMI-0040CU-B7

UMI-0040CU-B7 Unitronics - Unitronics VFD - B7 Series, 200-240V, 3 Phase, 4kW, 5HP, STO included

Unitronics

HVW701E105T4N12-I-B

WEG HVW701E105T4N12-I-B - STANDARD PANEL HVW701E105T4N12-I-B, HVAC Enclosed Drives (HVW)

WEG

I5DAE215D10V00000S

Lenze I5DAE215D10V00000S is a variable speed/frequency drive (VSD/VFD) or inverter within the Power units sub-range, designed without a communication interface. It features inverter power unit functionality and is equipped with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor protection. This model has a rated current of 7A for heavy-duty applications at 230-240Vac, and it supports both single-phase and three-phase networks. It is designed for mounting in a control cabinet or on a surface/wall, with a degree of protection rated at IP20. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 230-240Vac.

Lenze

HVW701A013T4N01-J-B

WEG HVW701A013T4N01-J-B - STANDARD PANEL HVW701A013T4N01-J-B, HVAC Enclosed Drives (HVW)

WEG
