Variable Frequency Drives (VFD)

EDP11S180GN1210000

STANDARD PANEL EDP11S180GN1210000

WEG

UMI-0220CU-B5

UMI-0220CU-B5 Unitronics - Limited Availability. If Not Available Use UMI-0220CU-B7

Unitronics

SP3401

NIDEC SP3401 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a single Safe Torque Off (STO) and air cooling. It features a frame size of 3, with dimensions H15.32" x W9.84" x D10.23" (H389mm x W250mm x D260mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The rated current is 35A under normal duty and 32A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP3401 includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). It also features 1 x analog input (-9.8Vdc...9.8Vdc; differential) with a 16-bit conversion resolution and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, along with 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. The rated active power is 18.5kW under normal duty and 15kW under heavy-duty, with a rated power of 25HP for both conditions.

Nidec

ACS255-01U-05A8-1+B063+F278

1.5 HP ABB ACS255 Micro Series NEMA 4X/IP66 Indoor Variable Frequency Drive | 100 – 120 VAC 1 Phase Input | 240 VAC 3 Phase Output | 5.8 Amps | Integrated Disconnect | Speed Pot | Fwd / Rev Switch | ACS255-01U-05A8-1+B063+F278

ABB Control

M400-07600240A10101AB100

NIDEC M400-07600240A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H21.9" x W10.6" x D11" (H556mm x W270mm x D280mm). This model supports a wide range of communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 30A under normal duty and 24A under heavy-duty conditions, and it is designed for a supply voltage of 500Vac-690Vac (600Vac). The ambient air temperature for operation ranges from -20°C to +55°C. It offers a degree of protection of IP20 NEMA 1 and is suitable for a 3-phase input network with a frequency of 45-66 Hz (supply input) and an output frequency range of 0-550 Hz. The device includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with an 11-bit conversion resolution. It is rated for an active power of 22kW under normal duty and 18.5kW under heavy-duty, equivalent to 30HP and 25HP respectively.

Nidec

ATV71H075M3383

Schneider Electric ATV71H075M3383 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series, designed for controlling motor speed by varying the supply frequency. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model includes a built-in EMC filter, synchronous motor control, and a built-in heatsink. It operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.) and has dimensions of H230mm x W130mm x D175mm. The drive offers a degree of protection of IP20, IP21, and UL type 1, with a rated current of 4.8A (230Vac; 4kHz; 3-phase), 3A (230Vac; 4kHz; single-phase), and maximum currents of 4.9A (single-phase; for 2s), 7.9A (3-phase; for 2s), 4.5A (single-phase; for 60s), and 7.2A (3-phase; for 60s). It supports wall mounting and uses Modbus and CANopen communication protocols. The drive is compatible with both single-phase (1P) and 3-phase (3P) networks, with an output frequency range of 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), 1 digital input (24Vdc; sink/source) programmable as discrete or PTC input, 1 digital input (24Vdc) for PWR safety, and 3 digital outputs. The analog inputs consist of 1 input (-10...+10Vdc) and 1 input (0-10Vdc / 0-20mA). The current consumption is 6.9A (200Vac; 0.37kW; single-phase), 6.1A (200Vac; 0.75kW; 3-phase), 5.8A (240Vac; 0.37kW; single-phase), and 5.3A (240Vac; 0.75kW; 3-phase), with rated active power of 750W / 0.75kW (3-phase) and 370W / 0.37kW (single-phase), corresponding to 1HP (3-phase) and 0.5HP / 1/2HP (single-phase).

Schneider Electric

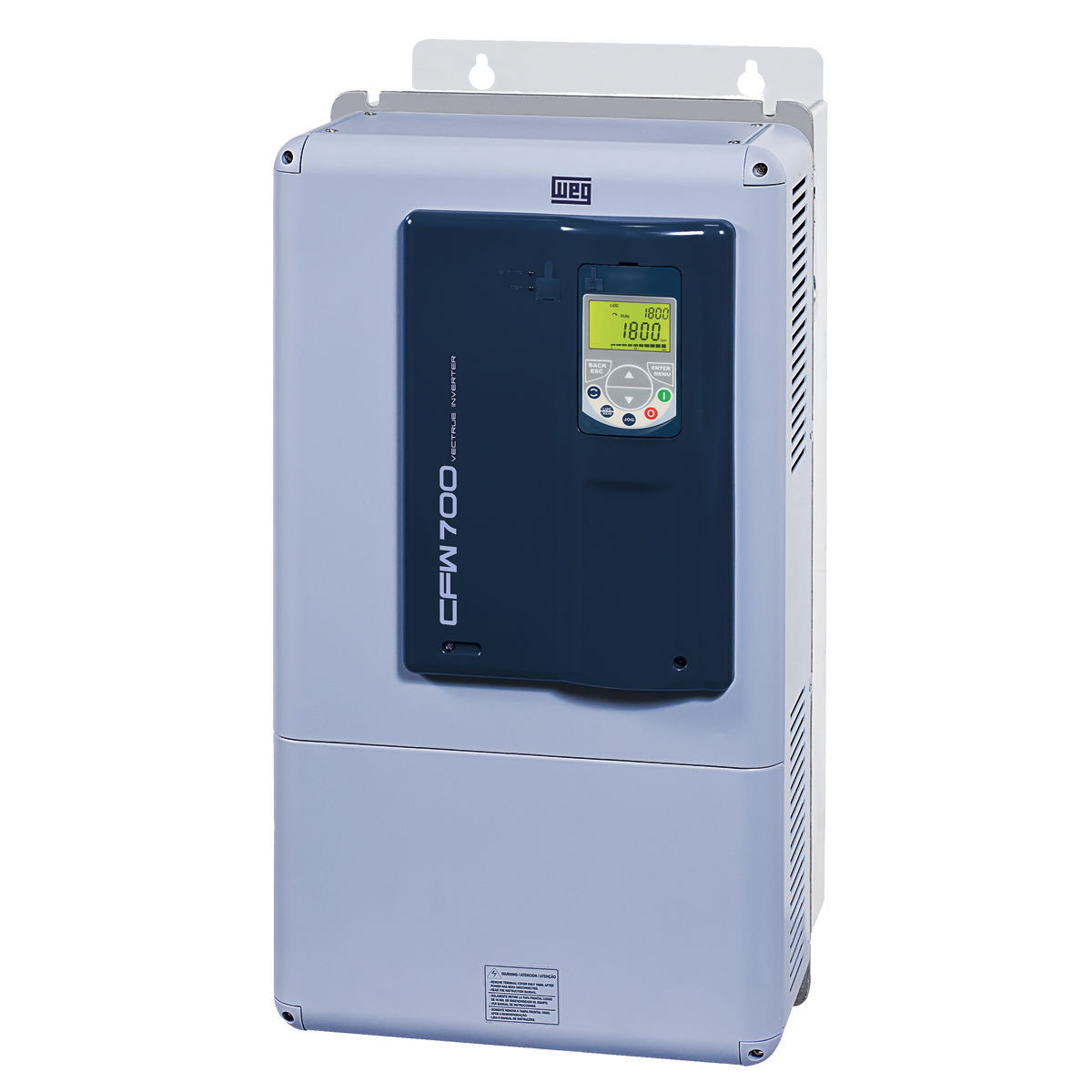

CFW700E0150T5NB20C3

DRIVE CFW700E0150T5NB20C3

WEG

I55AE330F1AV1100WS

Lenze I55AE330F1AV1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H450mm x W250mm x D230mm. This model supports Modbus TCP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 73.2A (light-duty; 400Vac), 62.4A (light-duty; 480Vac), 61A (heavy-duty; 400Vac), and 52A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 x analog output, multiple digital inputs with flexible functionality, 2 x analog inputs, and 1 x digital output. It has a rated active power of 37kW (light-duty; 400-480Vac) and 30kW (heavy-duty; 400-480Vac), equivalent to 50HP (light-duty; 400-480Vac) and 40HP (heavy-duty; 400-480Vac).

Lenze

EDP11S211GN12

STANDARD PANEL EDP11S211GN12

WEG

I55AE222F1AV1100LS

Lenze I55AE222F1AV1100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter applications, DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit, PID controller, built-in RFI filter, safe torque off (STO) safety standard, and I.O. conformal coating. The dimensions are H250mm x W60mm x D130mm, and it supports PROFINET communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 5.6A (heavy-duty; 400Vac) and 4.8A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase (3P / 3AC) network, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 2.2kW (heavy-duty; 400-480Vac) and a rated power of 3HP (heavy-duty; 400-480Vac).

Lenze

HS72-08401340A10101AB100

NIDEC HS72-08401340A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for high-speed applications. It features a built-in brake transistor and dual Safe Torque Off (STO) with air cooling. The dimensions are frame size 8, measuring H31.6" x W12.2" x D11.4" (H803mm x W310mm x D290mm). It supports Ethernet communication protocol and operates with a rated current of 155A under normal duty and 134A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it can function in ambient air temperatures ranging from -20°C to +40°C. The degree of protection is IP20 NEMA 1 UL open. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and can output frequencies from 0-3000 Hz in open loop and 0-1250 Hz in closed loop. It includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 75kW under normal duty and 55kW under heavy-duty, with a rated power of 100HP for both conditions.

Nidec

M000-10403200EU0100AN100

NIDEC M000-10403200EU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M000 series designed for heavy-duty applications. It requires an external choke for air cooling and has dimensions of frame size 10E, measuring H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). The rated current is 320A, and it operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) with a network frequency of 50 Hz. This model offers a degree of protection of IP20 NEMA 1 and supports rated active power ranging from 90kW to 250kW (125HP to 400HP) for heavy-duty operations.

Nidec

I55AE175F10V11001S

Lenze I55AE175F10V11001S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, application I.O., and conformal coating, with dimensions of H180mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 2.4A for 400Vac and 2.1A for 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 analog outputs, 7 digital inputs with flexible functionality, 2 digital outputs, and 2 analog inputs, supporting a rated active power of 0.75kW and a rated power of 1HP for heavy-duty applications at 400-480Vac.

Lenze

CFW080330TDN4A1Z

WEG CFW080330TDN4A1Z - INVERTER USCFW080330T2024EON4A1Z, CFW08 / CFW500 Washdown Drives

WEG

HVW701B031T4N01-J-A

WEG HVW701B031T4N01-J-A - STANDARD PANEL HVW701B031T4N01-J-A, HVAC Enclosed Drives (HVW)

WEG

M000-09501040AU0100AB100

NIDEC M000-09501040AU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor, internal line choke, and air cooling. It features frame size 9A with dimensions of H41.3" x W12.2" x D11.4" (H1049mm x W310mm x D290mm). This model has a rated current of 104A for heavy-duty applications, operates on a supply voltage of 500Vac-575Vac, and offers a degree of protection of IP20 NEMA 1. It is compatible with a network frequency of 50 Hz and provides a rated active power range of 90kW-110kW (125HP-150HP) for heavy-duty operations.

Nidec

I55AE155D10V0100KS

Lenze I55AE155D10V0100KS is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and supports EtherCAT communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range, with a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at 8kHz or 16kHz. The drive has an IP20 degree of protection, is compatible with single-phase or 3-phase networks, and operates at a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, all supporting various configurations. The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

M000-09202190EU0100AB100

NIDEC M000-09202190EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor and requires an external choke and air cooling for operation. It features a frame size of 9E with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model has a rated current of 219A for heavy-duty applications and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1 and supports a rated active power range of 90kW-250kW (125HP-400HP) for heavy-duty operations.

Nidec

EDP11S007DN12

STANDARD PANEL EDP11S007DN12

WEG

I5DAE215D10V00000S

Lenze I5DAE215D10V00000S is a variable speed/frequency drive (VSD/VFD) or inverter within the Power units sub-range, designed without a communication interface. It features inverter power unit functionality and is equipped with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor protection. This model has a rated current of 7A for heavy-duty applications at 230-240Vac, and it supports both single-phase and three-phase networks. It is designed for mounting in a control cabinet or on a surface/wall, with a degree of protection rated at IP20. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 230-240Vac.

Lenze
