Variable Frequency Drives (VFD)

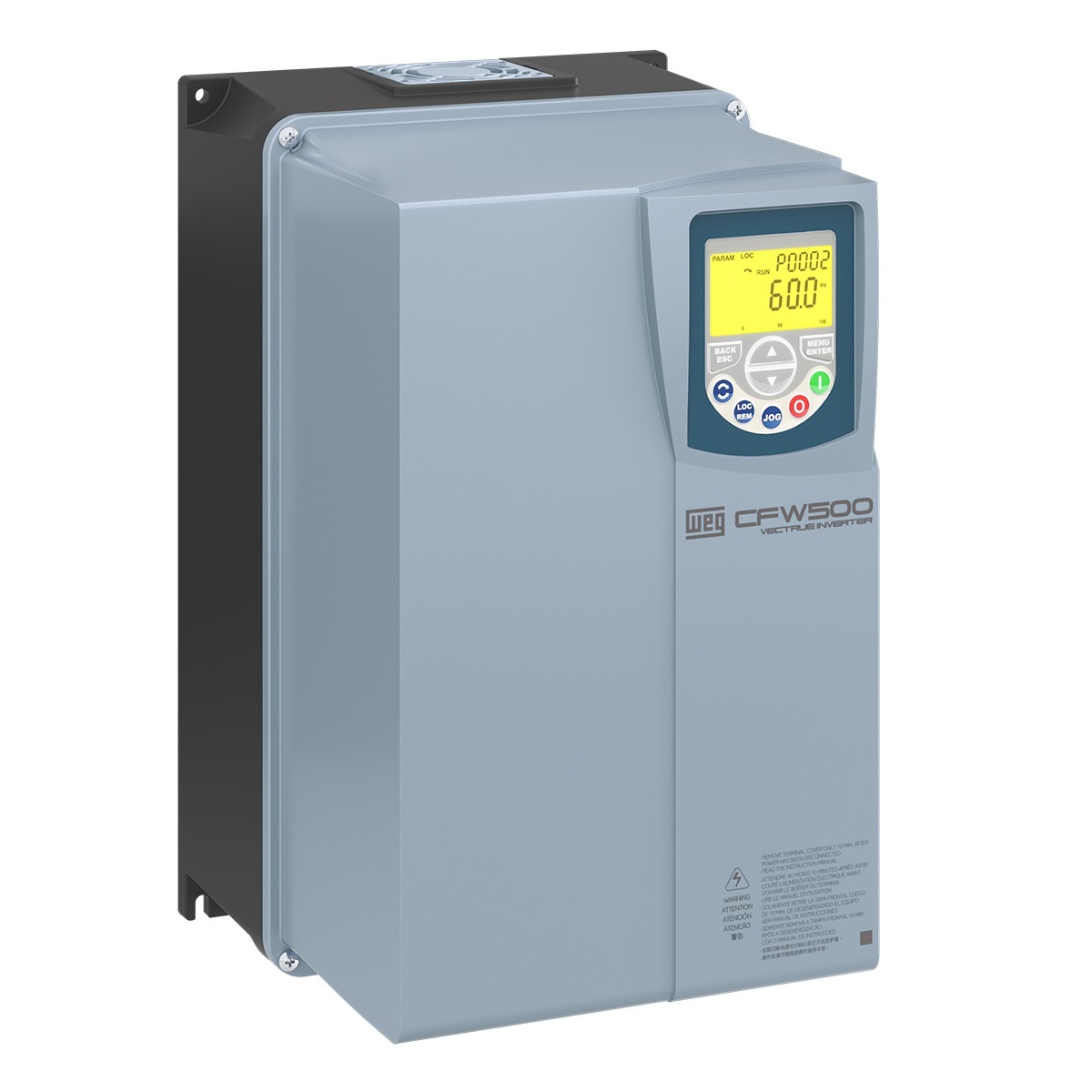

CFW500B03P0T5DB66

DRIVE CFW500B03P0T5DB66

WEG

GA80UT371AWM

GA80UT371AWM Yaskawa - Variable frequency drive (VFD), 12 Pulse, 480 VAC, 371 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

EDP11S070GN3R01000

STANDARD PANEL EDP11S070GN3R01000

WEG

I55AE230F10V11004S

Lenze I55AE230F10V11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, standard I.O., and conformal coating. This model supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates at rated currents of 8.8A for light-duty at 400Vac, 7.6A for light-duty at 480Vac, 7.3A for heavy-duty at 400Vac, and 6.3A for heavy-duty at 480Vac, with a supply voltage of 400Vac / 480Vac. Designed for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a protection degree of IP20. It is compatible with a 3-phase network (3P / 3AC) at a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive features 1 analog output (0-10Vdc; 0-20mA or 4-20mA), multiple digital inputs with flexible functionality, 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA), and 1 digital output (max. 100mA). It has a rated active power of 4kW for light-duty and 3kW for heavy-duty operations at 400-480Vac, corresponding to 5HP and 4HP respectively.

Lenze

M12200B

Lenze M12200B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H324mm x W261mm x D197mm and supports the Modbus communication protocol. This model offers thermal overload protection and solid state motor overload protection. It operates with a rated current of 62A at 200Vac and 54A at 230Vac, and it is suitable for supply voltages ranging from 200Vac to 240Vac (208Vac / 220Vac / 230Vac). The M12200B can be mounted in a control cabinet or on a surface/wall and is designed to operate in ambient air temperatures ranging from -10 to +50 °C. It has a NEMA 1 degree of protection and is compatible with a 3-phase (3P / 3AC) network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The device includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs (terminal 13A-13D), 1 digital input (terminal 12A START), 1 digital input (terminal 1 STOP), and 2 digital outputs (NPN; sinking) (terminal 14 and 15). Additionally, it features 1 analog input (0-10Vdc) (terminal 5A) and 1 analog input (4-20mA) (terminal 5B). The rated active power is 15kW (200-240Vac), and the rated power is 20HP (200-240Vac).

Lenze

M000-11602380DU0100AB100

NIDEC M000-11602380DU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor and a built-in DC to AC inverter featuring air cooling. It has dimensions of frame size 11D, measuring H31.7" x W12.2" x D12.3" (H804mm x W310mm x D312mm). This model is rated for a heavy-duty current of 238A and operates on a supply voltage of 500Vac-690Vac (600Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW, and the rated power is between 125HP and 400HP for heavy-duty applications.

Nidec

M000-10601500TU0100AN100

NIDEC M000-10601500TU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed for AC to DC conversion with twin rectifier air cooling. It features a frame size of 10T with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model is rated for a heavy-duty current of 150A and operates on a supply voltage of 500Vac-690Vac (600Vac), with a network frequency of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW, and the rated power is between 125HP and 400HP for heavy-duty applications.

Nidec

F600-05200300A10101AB103

NIDEC F600-05200300A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed control of AC motors. It operates within an ambient air temperature range of -20°C to +40°C and offers a degree of protection rated at IP20. This model features a frame size 5 with dimensions of H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). It includes 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), 1 analog input (4-20mA / 0-10Vdc; single-ended), and 3 digital inputs (24Vdc) that are configurable between 0-24Vdc. The F600 series drive is equipped with a built-in brake transistor, internal line choke, and utilizes air cooling for temperature management. It requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a network frequency of 60 Hz and supports Modbus RTU communication protocol. The rated current for normal duty operation is 30A, with a rated active power of 7.5kW (10HP) for normal duty applications. This drive is designed for a 3-phase input (3P) network.

Nidec

ESV371N02SFC

ESV371N02SFC Lenze Variable Frequency Drive (VFD) - The SMV 0.50 hp (0.37 kW) drive features a 208 / 240 VAC 1Ø filtered input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line fi

Lenze

HS71-03200106A10101AB100

NIDEC HS71-03200106A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS71 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling. The dimensions are frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). It supports RS-485 communication protocol and operates with a rated current of 12.7A under normal duty and 10.6A under heavy-duty conditions. The supply voltage required is 200Vac-240Vac (220Vac / 230Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. This model has an IP20 NEMA 1 UL open degree of protection, accepts a 3-phase input (3P), and works within a network frequency of 45-66 Hz (supply input) with an output frequency range of 0-3000 Hz. It offers 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 x digital inputs (0-24Vdc), 4 x digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 x analog inputs (1 x differential and 2 x single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 3kW under normal duty and 2.2kW under heavy-duty, with a rated power of 3HP for both conditions.

Nidec

SP4403

NIDEC SP4403 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a single Safe Torque Off (STO) and air cooling. It features a frame size of 4, with dimensions H21.53" x W12.2" x D11.73" (H547mm x W310mm x D298mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The rated current is 104A under normal duty and 96A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol, with a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP4403 includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). Analog interface comprises 1 x analog input (-9.8Vdc...9.8Vdc; differential) with 16-bit conversion resolution and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with 10-bit conversion resolution, along with 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with 10-bit conversion resolution. The rated active power is 55kW for normal duty and 45kW for heavy-duty, with a rated power of 75HP for both normal and heavy-duty operations.

Nidec

I55AE222F1AV1100MS

Lenze I55AE222F1AV1100MS is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for variable speed control, DC-injection braking, brake management, smooth acceleration and deceleration with S-ramps, and flying restart circuit functionality. It includes a PID controller for precise process control. This model features a built-in RFI filter, safe torque off (STO) safety standard, and I.O. conformal coating for enhanced durability. It measures H250mm x W60mm x D130mm and supports Ethernet/IP communication protocol. The drive offers protection against overvoltage, leakage current, earth fault resistance, and motor overtemperature. It operates with a rated current of 5.6A at 400Vac and 4.8A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates efficiently within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. The drive has an IP20 degree of protection, is designed for a 3-phase network, and operates with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting both voltage and current input/output configurations. The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 400-480Vac.

Lenze

M600-11403770E10101AN100

NIDEC M600-11403770E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a single Safe Torque Off (STO) and requires an external choke and air cooling for operation. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 437A under normal duty and 377A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 analog outputs, 6 digital inputs, 4 digital outputs, and 3 analog inputs with varying specifications detailed in the description. The rated active power is 225kW for normal duty and 185kW for heavy-duty, corresponding to 350HP and 300HP, respectively.

Nidec

GA80U2030ABM

GA80U2030ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 240 VAC, 30 A, IP20, General Purpose GA800 Series

Yaskawa

C300-02200024A10101AB100

NIDEC C300-02200024A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and is housed within a frame size 2, measuring H8.07" x W2.95" x D5.9" (H205mm x W75mm x D150mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 2.4A for both normal and heavy-duty operations. It supports Modbus RTU communication protocol and can be connected to a network with either single-phase input (2P) or 3-phase input (3P), with a network frequency of 45-66 Hz (supply input) and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 0.37kW and the rated power is 1/2HP for both normal and heavy-duty applications.

Nidec

M702-11502540E10101AN100

NIDEC M702-11502540E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with dual Safe Torque Off (STO) and requires an external choke and air cooling for operation. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 288A under normal duty and 254A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. The device is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 225kW under normal duty and 185kW under heavy-duty, corresponding to 300HP and 250HP, respectively.

Nidec

UMI-0015CU-B5

UMI-0015CU-B5 Unitronics - Limited Availability. If Not Available Use UMI-0015CE-B1 or UMI-0015CU-B7

Unitronics

I55AE230F1AV1100KS

Lenze I55AE230F1AV1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports EtherCAT communication protocol. The drive offers protection functions against overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 8.8A (light-duty; 400Vac), 7.6A (light-duty; 480Vac), 7.3A (heavy-duty; 400Vac), and 6.3A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Designed for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is compatible with a 3-phase (3P / 3AC) network, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 4kW (light-duty; 400-480Vac) and 3kW (heavy-duty; 400-480Vac), with a rated power of 5HP (light-duty; 400-480Vac) and 4HP (heavy-duty; 400-480Vac).

Lenze

ATV312HU11M2

Schneider Electric ATV312HU11M2 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed for sensorless flux vector control with an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in EMC filter and heatsink, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), and has dimensions of H143mm x W107mm x D152mm. This model offers an IP21 degree of protection, a rated current of 6.9A at 200Vac with a 4kHz frequency and can handle a maximum current of 10.4A for up to 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. The ATV312HU11M2 operates on a single-phase network with an output frequency range of 0.1-500 Hz. It includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for versatile connectivity. The current consumption is rated at 12.1A at 200Vac (Isc = 1kA) and 10.2A at 240Vac, with a rated active power of 1.1kW or 1.5HP / 1-1/2HP and power dissipation/losses of 74 W.

Schneider Electric

I5DAE215D10V00000S

Lenze I5DAE215D10V00000S is a variable speed/frequency drive (VSD/VFD) or inverter within the Power units sub-range, designed without a communication interface. It features inverter power unit functionality and is equipped with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor protection. This model has a rated current of 7A for heavy-duty applications at 230-240Vac, and it supports both single-phase and three-phase networks. It is designed for mounting in a control cabinet or on a surface/wall, with a degree of protection rated at IP20. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 230-240Vac.

Lenze
