Variable Frequency Drives (VFD)

M701-09501040E10101AN100

NIDEC M701-09501040E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M701 series designed for variable speed control with a single Safe Torque Off (STO) feature, requiring an external choke and air cooling. It has dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 125A under normal duty and 104A under heavy-duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input network, with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 analog inputs (0-20mA / 4-20mA / -10...+10Vdc; with different conversion resolutions). The rated active power is 110kW for normal duty and 75kW for heavy-duty, corresponding to 125HP and 100HP, respectively.

Nidec

I55AE175F10V11002S

Lenze I55AE175F10V11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, and S-ramps for smooth acceleration and deceleration. It features a flying restart circuit, PID controller, and is equipped with a built-in RFI filter standard I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm, and it supports CANopen communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 2.4A for heavy-duty applications at 400Vac and 2.1A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), multiple digital inputs with flexible functionality, 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) that can be optionally used as voltage or current inputs. The rated active power is 0.75kW and rated power is 1HP for heavy-duty applications at 400-480Vac.

Lenze

CFW700B10P0T5DBN1

WEG CFW700B10P0T5DBN1 - DRIVE CFW700B10P0T5DBN1, CFW500/700 Drives

WEG

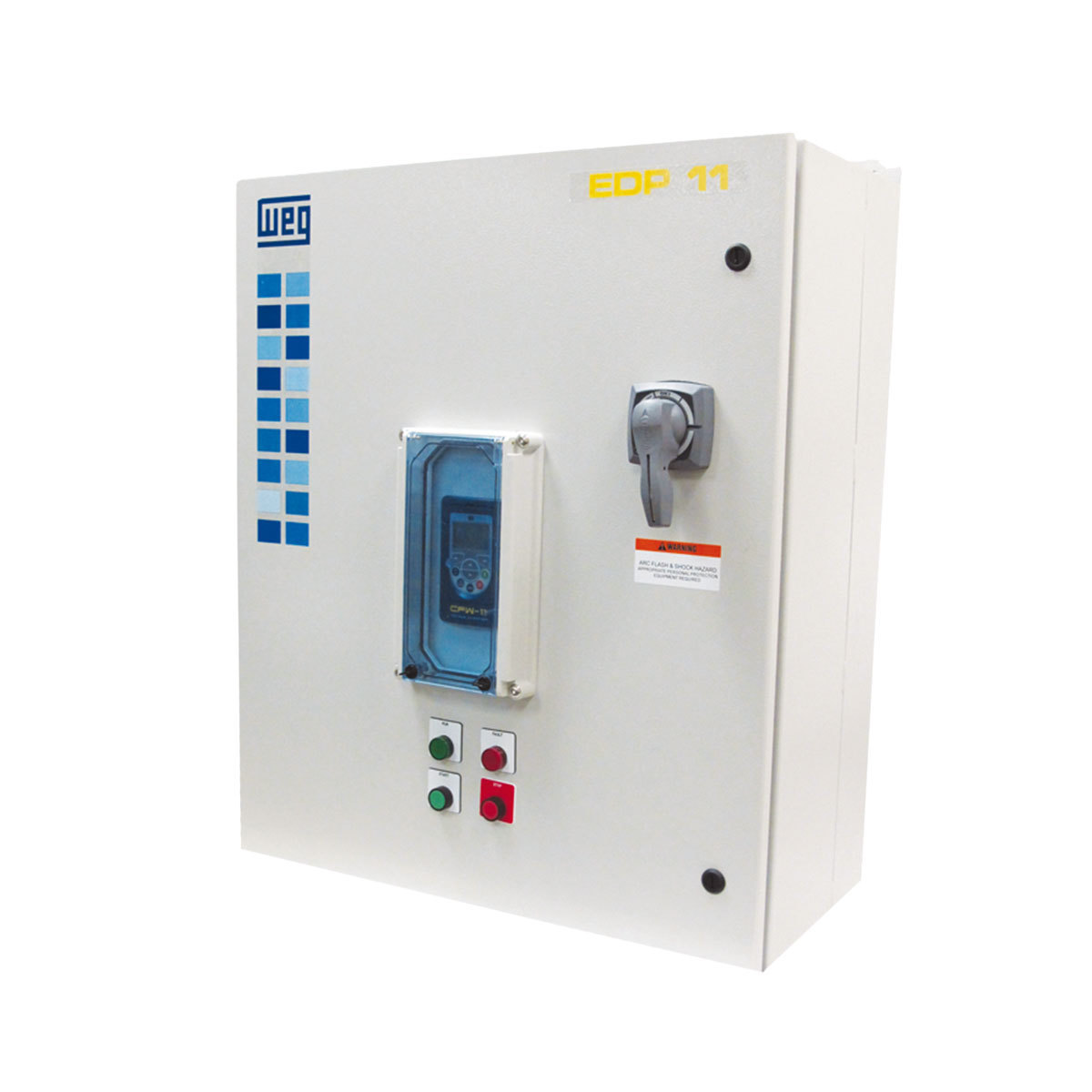

EDP11S024DN3R01000

STANDARD PANEL EDP11S024DN3R01000

WEG

M000-10601500EU0100AB100

NIDEC M000-10601500EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M000 series designed with a built-in brake transistor, requiring an external choke and utilizing air cooling for its operation. It features frame size 10E with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model has a rated current of 150A for heavy-duty applications and operates on a supply voltage of 500Vac-690Vac (600Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW, and the rated power is between 125HP and 400HP for heavy-duty operations.

Nidec

C200-08600860A10101AB100

NIDEC C200-08600860A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 500Vac-690Vac (600Vac) and has dimensions of frame size 8 H31.65" x W12.21" x D11.42" (H804mm x W310mm x D290mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 108A for normal duty and 86A for heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and one 2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 90kW for normal duty and 75kW for heavy-duty, with rated power of 125HP and 100HP, respectively.

Nidec

I55AE211B10V11004S

Lenze I55AE211B10V11004S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, standard I.O. conformal coating, and dimensions of H250mm x W60mm x D130mm. This model supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 1.1kW, and the rated power is 1-1/2HP for heavy-duty applications at 230-240Vac.

Lenze

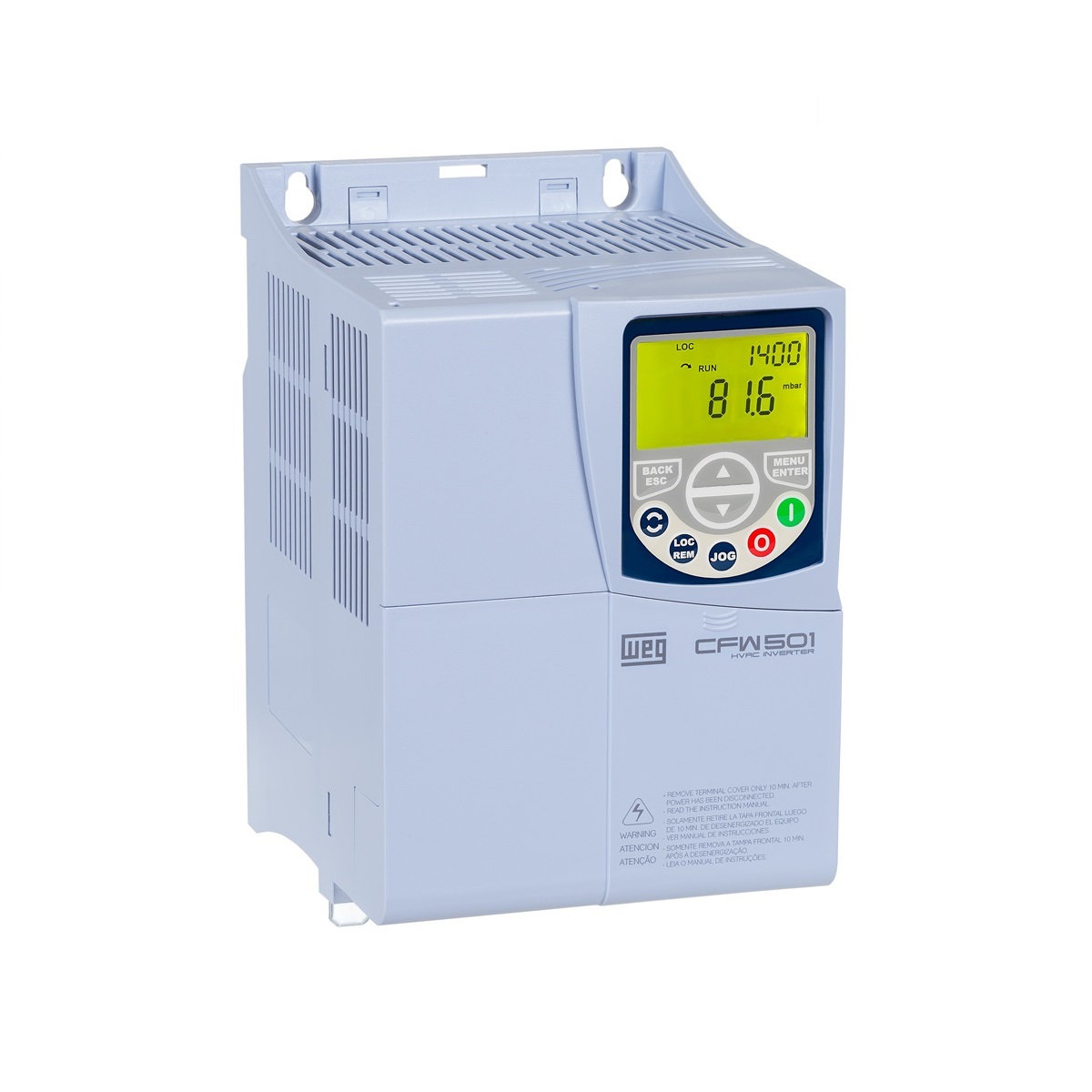

CFW501C24P0T2DB20C3

DRIVE CFW501C24P0T2DB20C3

WEG

HVW701D070T4N12-J-X

STANDARD PANEL HVW701D070T4N12-J-X

WEG

ACS35503U17A62J404

MACHINERY DRIVE, 5 HP, 17.6 A, 240 VAC, Voltage Range: 200-240V, UL TYPE OPEN (IP20), Cabinet-mounted, Basic Panel, 3-Phase Input, 3-Phase Output, Frame: R2

ABB Control

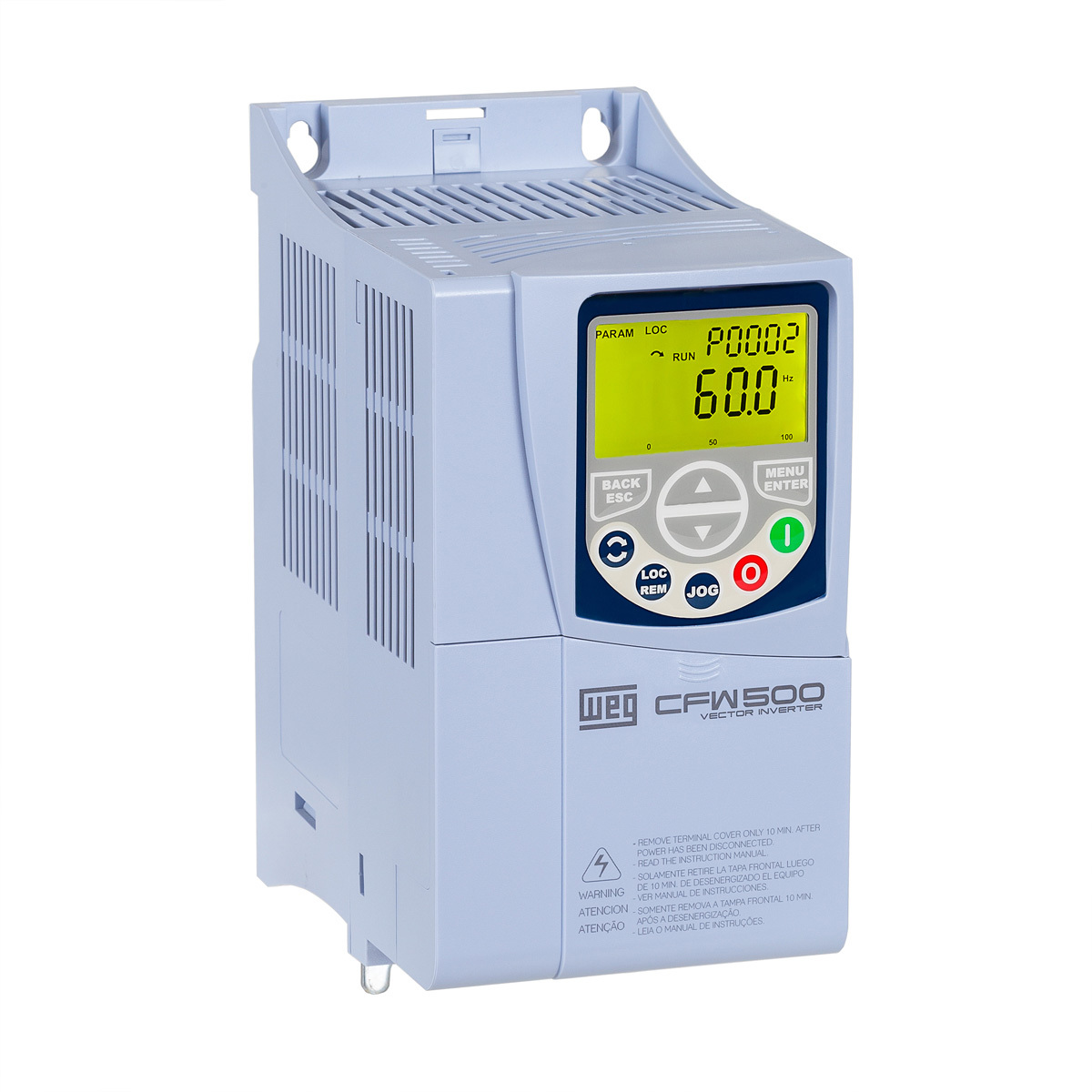

CFW500B10P0T4DB20G2

DRIVE CFW500B10P0T4DB20G2

WEG

GA80U4605ABM

GA80U4605ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 605 A, IP20, General Purpose GA800 Series

Yaskawa

I51AE215D10V01001S

Lenze I51AE215D10V01001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a basic I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports CANopen and Modbus RTU communication protocols. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network can be single-phase or 3-phase, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs, supporting a rated active power of 1.5kW and a rated power of 2HP for heavy-duty applications at 230-240Vac.

Lenze

M15250D

Lenze M15250D is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for oil-tight and dust-tight applications. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device operates at a rated current of 27A for supply voltages of 480Vac / 590Vac. It is suitable for control cabinet or surface/wall mounting and can operate in ambient air temperatures ranging from -10 to +40 °C. The M15250D offers a degree of protection of NEMA 12 and is compatible with a 3-phase (3P / 3AC) network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it has 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. The rated active power is 18.5kW, and the rated power is 25HP for both 480Vac and 590Vac.

Lenze

S100-01253-0B0000

Nidec S100-01253-0B0000

Nidec

HVW701C058GN01200001

WEG HVW701C058GN01200001 - STANDARD PANEL HVW701C058GN01200001, HVAC Enclosed Drives (HVW)

WEG

F600-05400300A10101AB653

NIDEC F600-05400300A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 380Vac-480Vac, specifically 400Vac / 415Vac, and operates on a 60 Hz network frequency. It features a built-in brake transistor, internal line choke, and air cooling design, ensuring operation within an ambient air temperature range of -20°C to +40°C. This model, part of the F600 series, offers a degree of protection rated at IP65 and has dimensions of frame size 5, measuring H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). It is equipped with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), 3 additional digital inputs (0-24Vdc; configurable), and 2 digital outputs (240Vac; relay contact type). The drive supports Modbus RTU communication protocol, has a rated current of 30A for normal duty, and delivers a rated active power of 15kW (20HP) for normal duty applications.

Nidec

ATV312HU11N4B

Schneider Electric ATV312HU11N4B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed for sensorless flux vector control with an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in EMC filter and heatsink, and it is a version without a control I.O. card to allow space for a communication card. The supply voltage ranges from 323-550Vac, supporting 380Vac, 400Vac, 480Vac, and 500Vac nominal values. This product has dimensions of H143mm x W107mm x D152mm and offers an IP21 degree of protection. It is rated for a current of 3A at 380Vac with a 4kHz frequency and can handle a maximum current of 4.5A for 60 seconds. Designed for wall mounting, it supports Modbus and CANopen communication protocols and operates on a 3-phase network with an output frequency range of 0.1-500 Hz. The ATV312HU11N4B includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for versatile connectivity. It consumes 4.9A at 380Vac with an Isc of 5kA and 3.7A at 500Vac, with a rated active power of 1.1kW, equivalent to 1.5HP / 1-1/2HP, and has power dissipation/losses of 48 W.

Schneider Electric

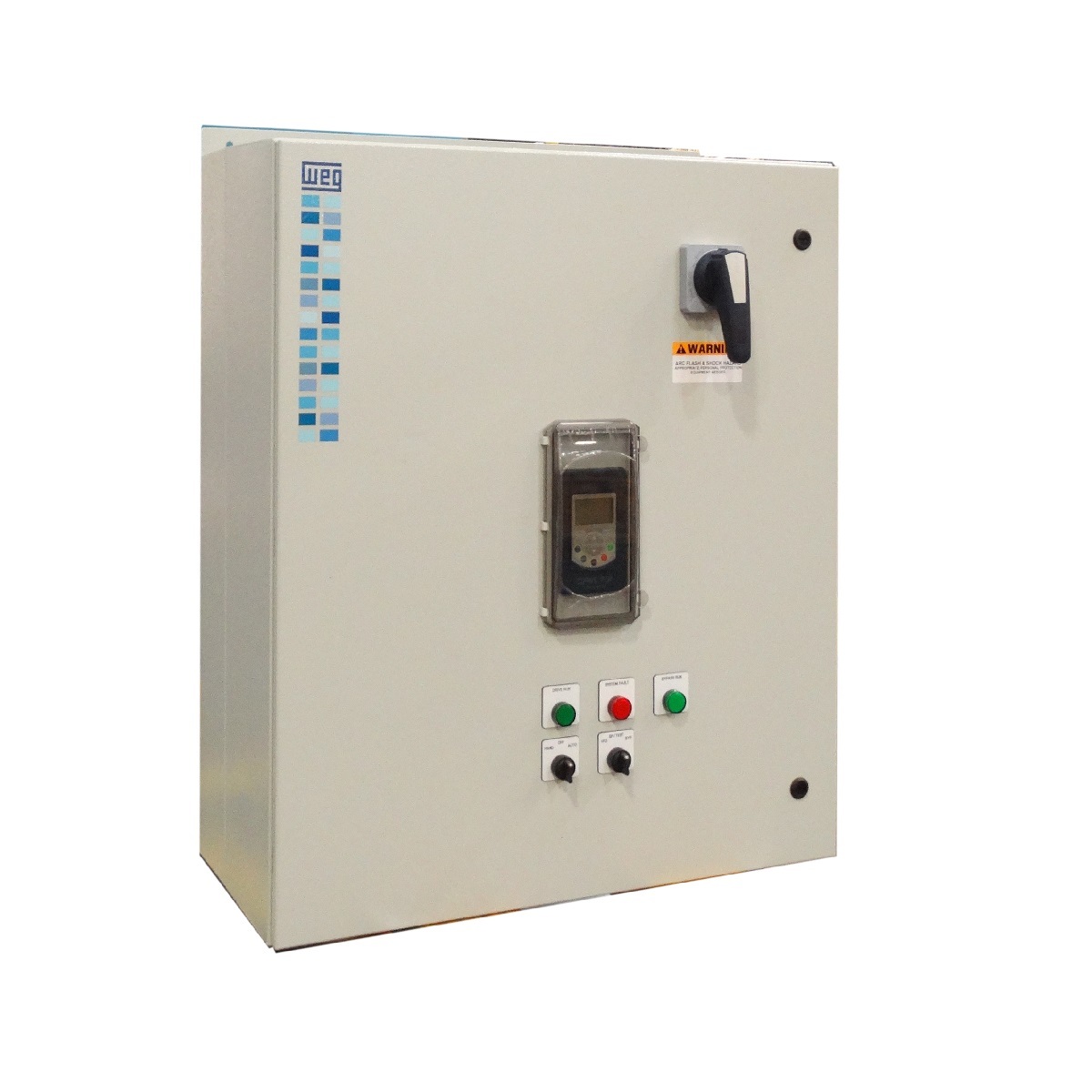

HVW701A010T4N01-J-C

WEG HVW701A010T4N01-J-C - STANDARD PANEL HVW701A010T4N01-J-C, HVAC Enclosed Drives (HVW)

WEG

SP1203-EZ

NIDEC SP1203-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module and a single Safe Torque Off (STO) feature, utilizing air cooling. It has a frame size 1 with dimensions of H15.2" x W3.93" x D8.62" (H386mm x W100mm x D219mm) and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The rated current is 9.6A under normal duty and 7.5A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP1203-EZ features 3 digital outputs (0-24Vdc; source), 1 digital output (2A / 240Vac; source; relay contact type), 3-phase input (3P), 3 digital inputs (0-24Vdc), and 3 additional digital inputs (0-24Vdc). Analog interface includes 1 analog input (-9.8Vdc...9.8Vdc; differential) with a 16-bit conversion resolution and 2 analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, along with 2 analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. The rated active power is 2.2kW under normal duty and 1.5kW under heavy-duty, corresponding to a rated power of 3HP and 2HP, respectively.

Nidec
