Variable Frequency Drives (VFD)

ATV71HC13Y

Schneider Electric ATV71HC13Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series, designed for variable speed and frequency control with a U/F ratio of 2 points or 5 points. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model comes with a built-in EMC filter, a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, with specific nominal voltages at 480Vac, 500Vac, 600Vac, and 690Vac. The dimensions are H1190mm x W340mm x D377mm, and it has a conformal coating for chemical resistance. The degree of protection is IP30 UL type 1. The rated current specifications are 165A at 500Vac, 144A at 575Vac, 150A at 690Vac, with a maximum current of 272.25A for 2 seconds and 247.5A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. Designed for a 3-phase network with an output frequency range of 0.1-500 Hz, it includes 1 analog output, 5 digital inputs plus 1 programmable digital input, and 3 digital outputs. The analog inputs consist of 1 x (-10...+10Vdc) and 1 x (0-10Vdc / 0-20mA). The current consumption is 153A at 500Vac for 110kW, 133A at 600Vac for 150 HP, and 137A at 690Vac for 132kW, with rated active power of 132kW at 690Vac and 110kW at 500Vac, and a rated power of 150HP.

Schneider Electric

M702-06500100A10101AB100

NIDEC M702-06500100A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 6, measuring H14.37" x W8.27" x D8.94" (H365mm x W210mm x D227mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 12A under normal duty and 10A under heavy-duty conditions, with a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, and UL open. Designed for a 3-phase input network with a frequency range of 45-66 Hz for supply input and 0-599 Hz for output. It includes 2 x digital inputs (0-24Vdc with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 7.5kW for normal duty and 5.5kW for heavy-duty, corresponding to a rated power of 10HP under normal duty and 7.5HP / 7-1/2HP under heavy-duty conditions.

Nidec

ESV152N02YXB

ESV152N02YXB Lenze Variable Frequency Drive (VFD) - The SMV 2.0 hp (1.5 kW) drive features a 208 / 240 VAC 1Ø or 3Ø input in a convection cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

C200-06500290A10101AB100

NIDEC C200-06500290A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 6 H15.39" x W8.27" x D8.94" (H291mm x W210mm x D227mm) and offers a degree of protection of IP20 NEMA 1. The rated current is 34A for Normal duty and 29A for Heavy-duty. It supports Modbus RTU communication protocol and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 22kW for Normal duty and 18.5kW for Heavy-duty, with rated power of 30HP for Normal duty and 25HP for Heavy-duty.

Nidec

F600-07600730A10101AB103

NIDEC F600-07600730A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-690Vac, specifically optimized for 600Vac and a network frequency of 60 Hz. It features a rated current of 73A and supports a rated active power of 55kW or 75HP under normal duty conditions. This model is equipped with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), and 2 digital outputs (240Vac; relay contact type), all housed within a frame size 7 with dimensions of H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm). It operates efficiently within an ambient air temperature range of -20°C to +40°C. The F600 series drive includes a built-in brake transistor, an internal line choke, and utilizes air cooling for temperature management. It offers an IP20 degree of protection and communicates via the Modbus RTU protocol.

Nidec

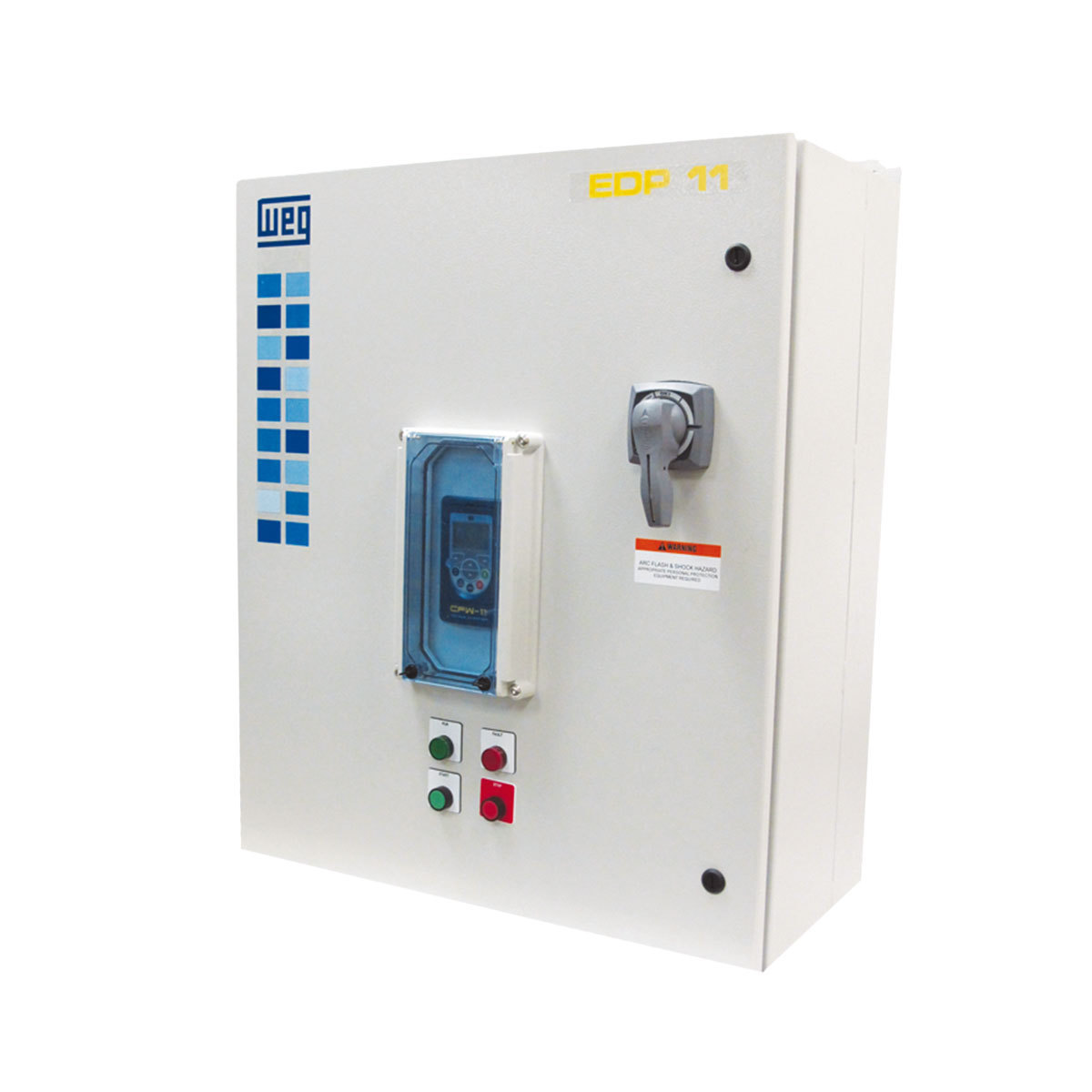

EDP11S007DN3R

STANDARD PANEL EDP11S007DN3R

WEG

3G3MX2-AB007-V2

MX2 Series Fast-Response Inverter for Machine Control

Omron

M000-10501900TU0100AB100

NIDEC M000-10501900TU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in brake transistor, AC to DC twin rectifier, and air cooling. It features a frame size of 10T with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model has a rated current of 190A for heavy-duty applications, operates on a supply voltage of 500Vac-575Vac, and offers a degree of protection of IP20 NEMA 1. The network frequency for supply input is 50 Hz. It supports a rated active power range of 90kW-250kW and a rated power range of 125HP-400HP for heavy-duty operations.

Nidec

CFW110031T4OFAZ

WEG CFW110031T4OFAZ - INVERTER EUCFW110031T4OFAZ, CFW11 Drives

WEG

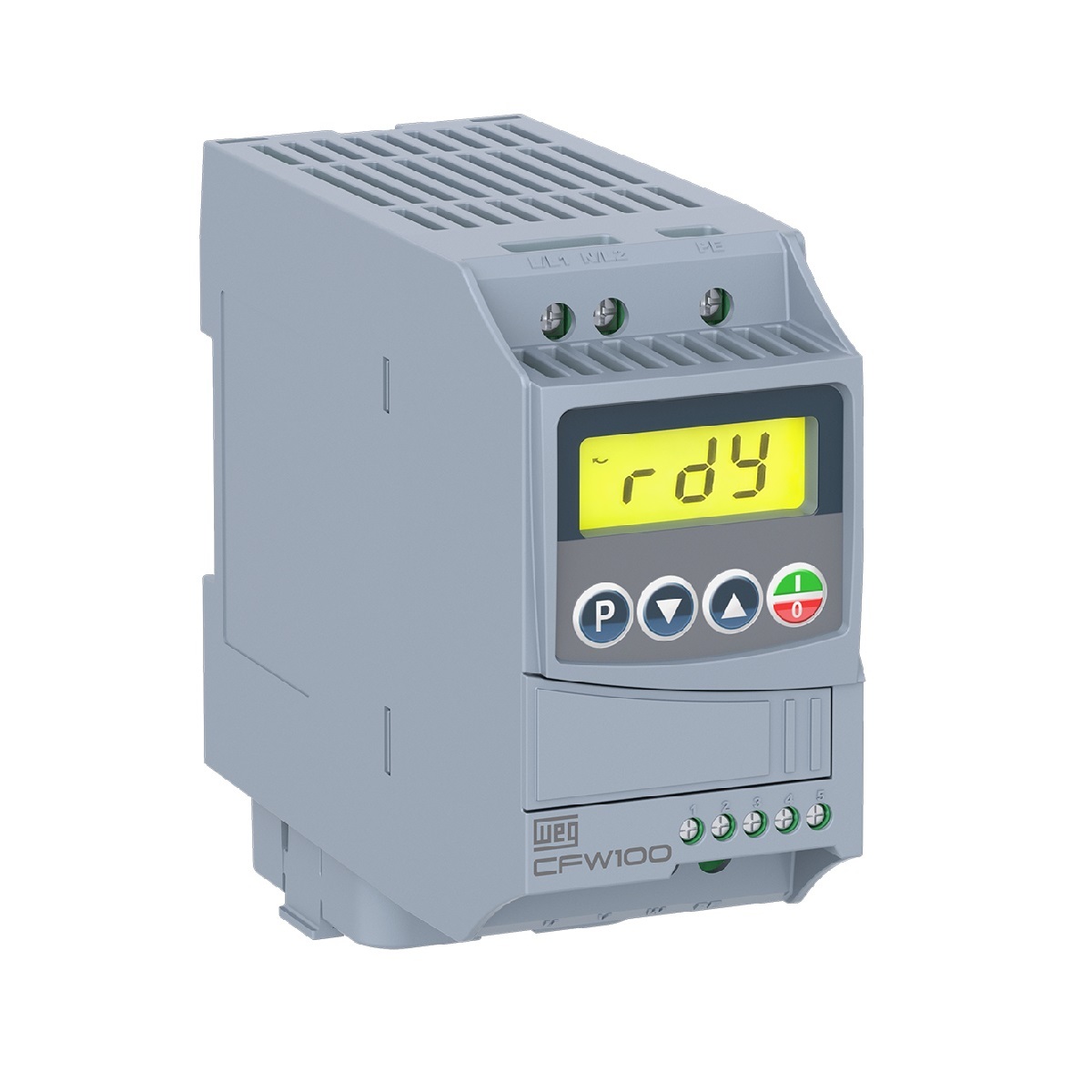

CFW100B02P6S120G2

DRIVE CFW100B02P6S120G2

WEG

F600-09501250A10101AN103

NIDEC F600-09501250A10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-575Vac and a network frequency of 60 Hz. It features an IP20 degree of protection and operates within an ambient air temperature range of -20°C to +40°C. This model comes equipped with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), and 3 additional digital inputs (0-24Vdc; configurable), alongside 2 digital outputs (240Vac; relay contact type). It has a rated current of 125A under normal duty, supporting a rated active power of 90kW (125HP) under the same conditions. The unit's dimensions are frame size 9A, measuring H43.6" x W12.2" x D11.4" (H1108mm x W310mm x D290mm), and it utilizes an internal line choke air cooling design for thermal management. Communication is facilitated via the Modbus RTU protocol, aligning with its function as a variable speed/frequency drive within the F600 series.

Nidec

I55AE337F1AV1100LS

Lenze I55AE337F1AV1100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H450mm x W250mm x D230mm. The communication protocol supported is PROFINET. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. Rated currents are 91.2A (light-duty; 400Vac), 78A (light-duty; 480Vac), 76A (heavy-duty; 400Vac), and 65A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. It is designed for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), and has a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with network frequencies of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with flexible functionality, 2 x analog inputs, and 1 x digital output. The rated active power is 45kW (light-duty; 400-480Vac) and 37kW (heavy-duty; 400-480Vac), with rated power of 60HP (light-duty; 400-480Vac) and 50HP (heavy-duty; 400-480Vac).

Lenze

HVW701E142T2N12-I-C

WEG HVW701E142T2N12-I-C - STANDARD PANEL HVW701E142T2N12-I-C, HVAC Enclosed Drives (HVW)

WEG

ATV312HU30N4412

Schneider Electric ATV312HU30N4412 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 solar series designed for solar energy-driven pumping applications. It features sensorless flux vector control and an energy-saving ratio of 170-200% of the nominal motor torque. This model comes with a built-in EMC filter and heatsink, operates on a supply voltage of 361-525Vac (380Vac / 400Vac / 480Vac / 500Vac nom.), and has dimensions of H184mm x W142mm x D152mm. It offers an IP20 degree of protection, a rated current of 7.1A at 380Vac (4kHz) with a maximum current of 10.7A for 60 seconds, and supports wall mounting. Communication is facilitated through Modbus and CANopen protocols, and it is designed for a 3-phase (3P) network with an output frequency range of 0-500 Hz. The unit provides 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for versatile connectivity. It has a current consumption of 10.9A at 380Vac (Isc = 1kA) and 8.3A at 500Vac, with a rated active power of 3kW and power dissipation/losses of 125 W.

Schneider Electric

M1103SC

Lenze M1103SC is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for water-tight and dust-tight applications, supporting Modbus communication protocol. It features thermal overload protection and solid state motor overload protection, with a rated current of 1.4A for supply voltages of 120Vac or 240Vac. This part is suitable for control cabinet or surface/wall mounting and operates within an ambient air temperature range of -10 to +40 °C. It offers a degree of protection of NEMA 4, is compatible with single-phase networks, and operates with a network frequency of 48-62 Hz input and 0-120 Hz output. The M1103SC provides 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. Its rated active power is 0.18kW for 120-240Vac, with a rated power of 1/4HP for the same voltage range.

Lenze

EDP11S028DN12

STANDARD PANEL EDP11S028DN12

WEG

H300-06400380A10101AB653

NIDEC H300-06400380A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features dimensions of frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). This model supports Modbus RTU communication protocol and operates with a rated current of 38A under normal duty. It is designed for a supply voltage range of 380Vac-480Vac, specifically 400Vac / 415Vac, and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP65, NEMA 4, UL type 12, and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 2 digital outputs (relay contact type), alongside 2 analog inputs (1 for 4-20mA and 1 for 0-10Vdc). The rated active power is 18.5kW, and the rated power is 25HP under normal duty conditions.

Nidec

M702-10402700E10101AB100

NIDEC M702-10402700E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 320A under normal duty and 270A under heavy-duty conditions, and it is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, UL open, and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). It provides a rated active power of 160kW under normal duty and 132kW under heavy-duty, equivalent to 250HP and 200HP respectively.

Nidec

S100-01223-0B0000

Nidec S100-01223-0B0000

Nidec

ATV312HU30N4B

Schneider Electric ATV312HU30N4B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed for sensorless flux vector control with an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in EMC filter and heatsink, and it is a version without a control I.O. card to allow space for a communication card. The supply voltage ranges from 323-550Vac, supporting 380Vac, 400Vac, 480Vac, and 500Vac nominal values. Its dimensions are H184mm x W142mm x D152mm, with an IP21 degree of protection. The rated current is 7.1A at 380Vac with a 4kHz frequency and a maximum current of 10.7A for 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. This 3-phase network device outputs frequencies from 0.1 to 500 Hz. It includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for varied voltage and current ranges. The current consumption is 10.9A at 380Vac with an Isc of 5kA and 8.3A at 500Vac. It has a rated active power of 3kW and power dissipation/losses of 125 W.

Schneider Electric
