Variable Frequency Drives (VFD)

M400-03200100A10101AB100

NIDEC M400-03200100A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 3, measuring H8.9" x W3.5" x D6.3" (H226mm x W90mm x D160mm). This model supports multiple communication protocols, including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 10A for both normal and heavy-duty applications and requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +60°C, and it has a degree of protection of IP20 NEMA 1. The M400-03200100A10101AB100 can be used with a single-phase input (2P) or 3-phase input (3P) network, with a network frequency of 45-66 Hz (supply input) and an output frequency range of 0-550 Hz. It includes 2 analog outputs (0-20mA / 4-20mA / 0-10Vdc/ 0-24Vdc; single-ended; source; can also function as digital outputs), 8 digital inputs, and 3 digital outputs, including PWM and relay contact types. Additionally, it has 2 analog inputs with an 11-bit conversion resolution. The rated active power and power in HP for both normal and heavy-duty operations are 2.2kW and 3HP, respectively.

Nidec

SF520

Lenze SF520 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for precise control of motor speed and frequency. It features dimensions of H146mm x W73mm x D146mm and supports a supply voltage of either 480Vac or 590Vac, with rated currents of 3.4A at 460Vac and 3A at 575Vac. This unit can be mounted in a cabinet or on a DIN rail and operates within an ambient air temperature range of 0 to +50 °C, with a derating of 2.5% per °C above +50°C. It utilizes an RS-485 communication protocol and is compatible with a network frequency of 48-62 Hz on input and can output 0-240 Hz. The SF520 includes 2 digital outputs (open-collector outputs; 50mA at 30Vdc) at terminals TB-14 and TB-15, and operates on a 3-phase network (3P / 3AC). It is equipped with 2 analog inputs (1 x 0-10Vdc at terminal TB5 and 1 x 4-20mA at terminal TB25) and 2 analog outputs (1 x 0-10Vdc or 2Vdc-10Vdc at Terminal TB-30 and 1 x 0-10Vdc or 2-10Vdc at Terminal TB-31), both proportional to output frequency or load. The rated active power is 1.5kW, and the rated power is 2HP, both at 480-590Vac.

Lenze

M14200B

Lenze M14200B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H324mm x W200mm x D174mm and supports Modbus communication protocol. The device offers thermal overload protection and solid state motor overload protection. It operates with a rated current of 31A at 400Vac and 27A at 460Vac, and it can be supplied with either 400Vac or 480Vac. The M14200B is suitable for control cabinet or surface/wall mounting and can operate in ambient air temperatures ranging from -10 to +50 °C. It has a NEMA 1 degree of protection and is designed for a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The unit includes 1 analog output proportional to speed, 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it features 1 analog input (0-10Vdc) and 1 analog input (4-20mA). The rated active power is 15kW, and the rated power is 20HP for both 400Vac and 480Vac.

Lenze

I55AE215D1AV0100WS

Lenze I55AE215D1AV0100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H250mm x W60mm x D130mm. It supports Modbus TCP communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. It can be used in single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, 5 x digital inputs with options for frequency or encoder input, 1 x digital output, and 2 x analog inputs, all supporting various configurations. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 230-240Vac.

Lenze

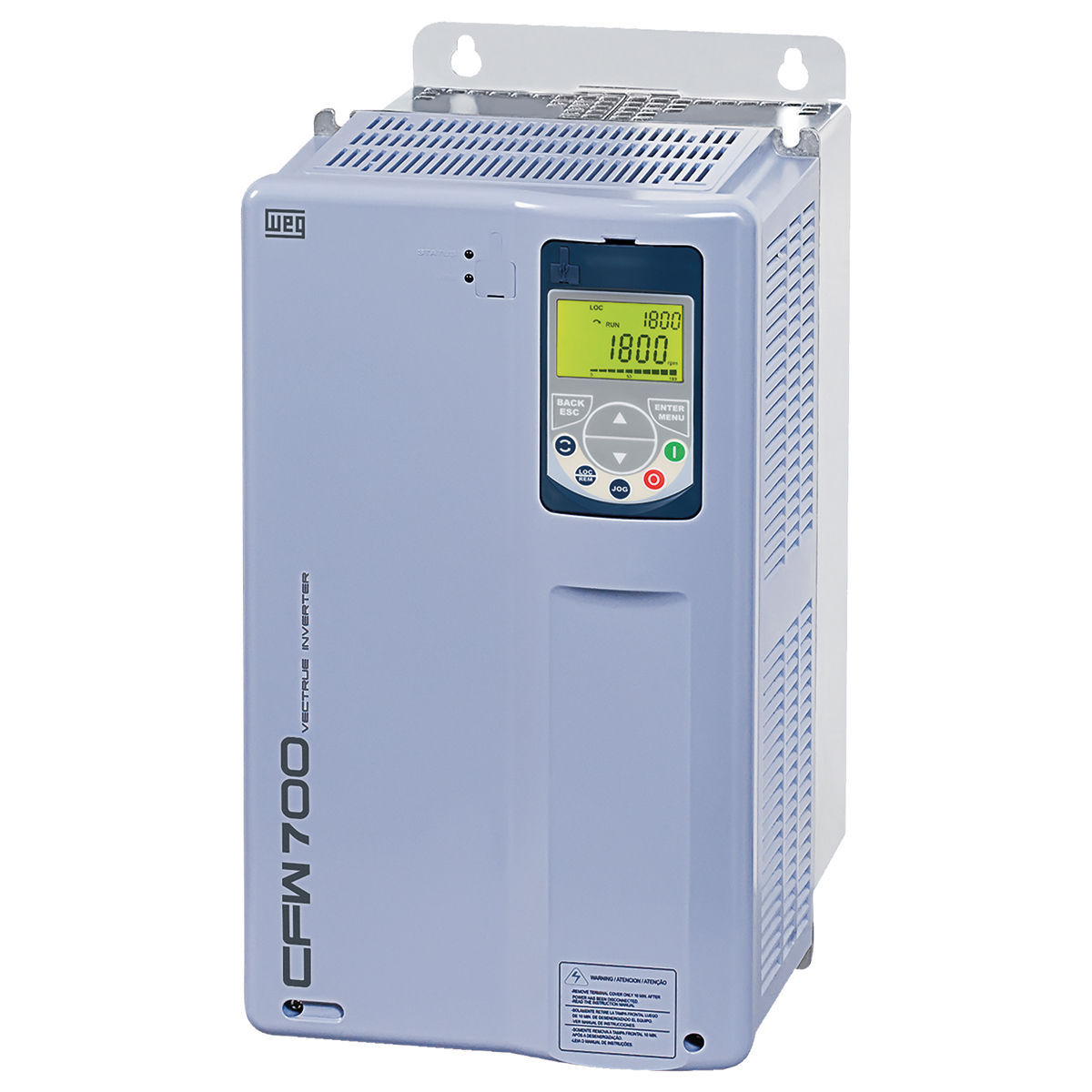

CFW700C45P0T4DB20

DRIVE CFW700C45P0T4DB20

WEG

EDP11S211DN1201000

STANDARD PANEL EDP11S211DN1201000

WEG

HVW701A010T2N01-X-B

WEG HVW701A010T2N01-X-B - STANDARD PANEL HVW701A010T2N01-X-B, HVAC Enclosed Drives (HVW)

WEG

HVW701B031T4N01-I-X

WEG HVW701B031T4N01-I-X - STANDARD PANEL HVW701B031T4N01-I-X, HVAC Enclosed Drives (HVW)

WEG

ESV552N04TFC

ESV552N04TFC Lenze Variable Frequency Drive (VFD) - The SMV 7.5 hp (5.5 kW) drive features a 400 / 480 VAC 3Ø filtered input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line fil

Lenze

EDP11S070DN3R

STANDARD PANEL EDP11S070DN3R

WEG

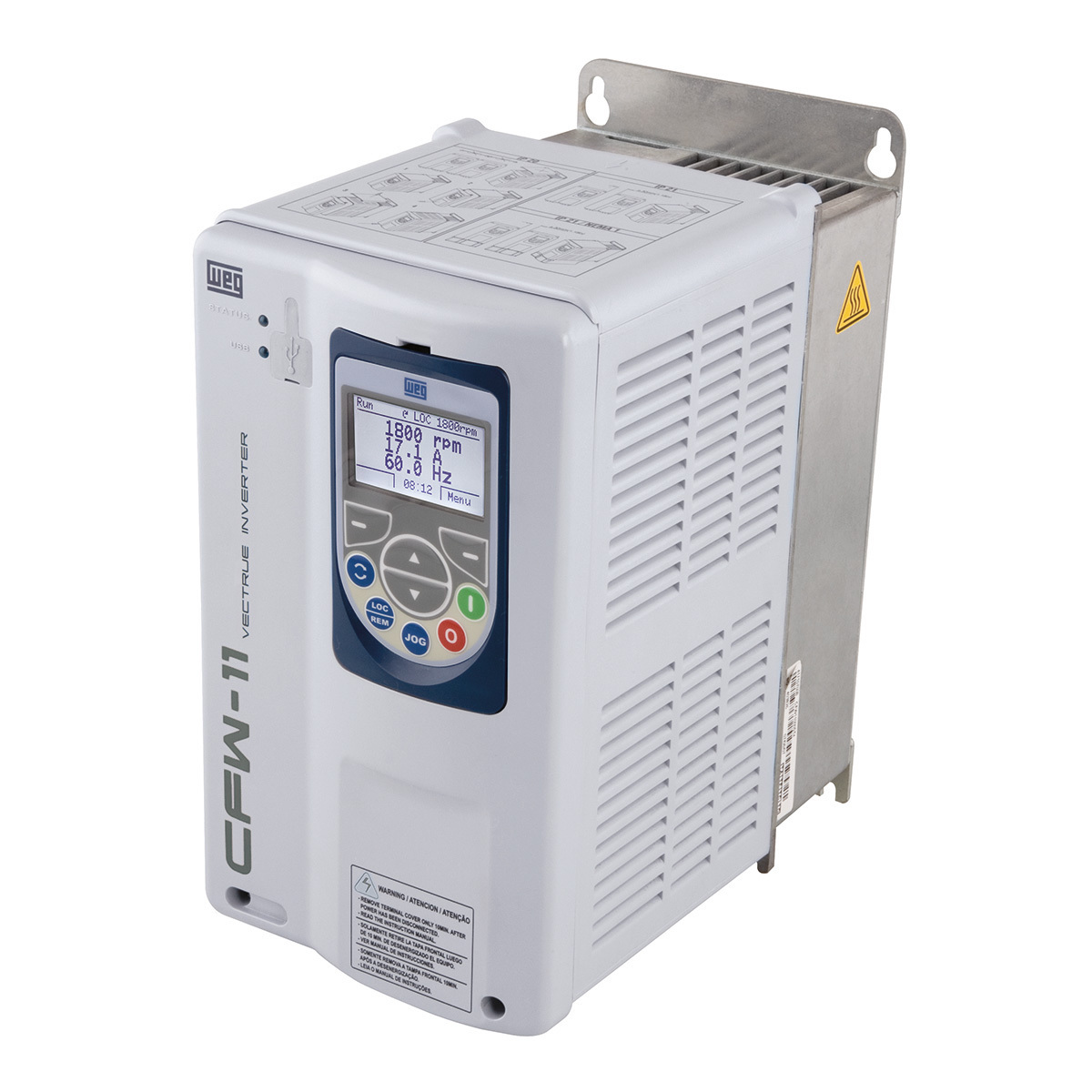

CFW110013T4ON1Z-PGS

DRIVE CFW110013T4ON1Z-PGS

WEG

EDP11S086DN3R10000

STANDARD PANEL EDP11S086DN3R10000

WEG

ATV312HU22N4B

Schneider Electric ATV312HU22N4B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed for sensorless flux vector control with an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in EMC filter and heatsink, and it is a version without a control I.O. card to allow space for a communication card. The supply voltage ranges from 323-550Vac, supporting 380Vac, 400Vac, 480Vac, and 500Vac nominal values. Its dimensions are H184mm x W142mm x D152mm, with an IP21 degree of protection. The rated current is 5.5A at 380Vac with a 4kHz frequency and can reach up to 8.3A max current for 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. This 3-phase network device outputs frequencies from 0.1 to 500 Hz. It includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for varied signal types. The current consumption is 8.9A at 380Vac with a short-circuit current rating of 5kA and 6.7A at 500Vac. It has a rated active power of 2.2kW, equivalent to 3HP, and power dissipation/losses are calculated at 79 W.

Schneider Electric

I55AE137B1AV11012S

Lenze I55AE137B1AV11012S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed control, compact inverter DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H155mm x W60mm x D130mm. This model supports Ethernet POWERLINK communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, and 2 x analog inputs with optional configurations. The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

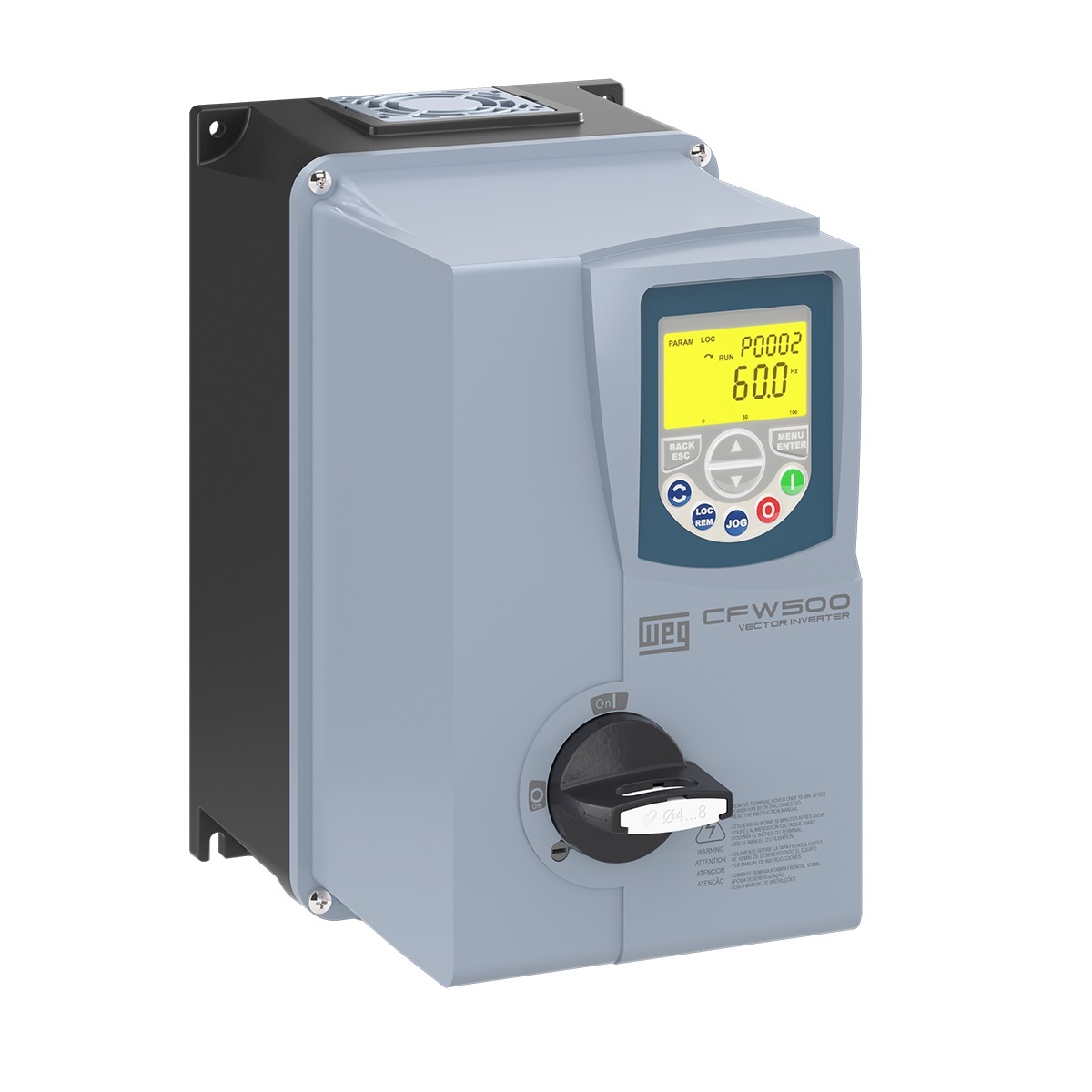

CFW500A06P5T4DB66DSG2

DRIVE CFW500A06P5T4DB66DSG2

WEG

ATV71H075N4383

Schneider Electric ATV71H075N4383 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for synchronous motor control with a built-in DC choke, EMC filter, and heatsink. It operates on a supply voltage of 323-528Vac, accommodating 380Vac, 400Vac, 480Vac, and 500Vac nominal values. This model features a compact design with dimensions of H230mm x W130mm x D175mm and offers a degree of protection rated at IP20, IP21, and UL type 1. It supports a rated current of 2.3A at 380Vac (4kHz), 2.1A at 460Vac (4kHz), with a maximum current of 3.8A for 2 seconds and 3.5A for 60 seconds. The ATV71H075N4383 facilitates wall mounting and communicates via Modbus and CANopen protocols. It is designed for a 3-phase network with an output frequency range of 0.1-599 Hz. The unit includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts). It also features 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The current consumption is rated at 3.7A for 380Vac and 3A for 480Vac, with a rated active power of 750W / 0.75kW and a rated power of 1HP.

Schneider Electric

ACS355-03U-24A4-2

AC Drive, 3-Phase Low Voltage, Series: ACS355, 200 to 240 VAC Input/240 VAC Output, 24.4 A, 7-1/2 hp, 6.65 in Width, 6.65 in Depth, 9.29 in Height, IP20/Open Enclosure, Blank Panel Display, Cabinet Mounting, Extruded Aluminum/Sheet Steel, Gray/White, Hot

ABB Control

ESV113N06TMD

ESV113N06TMD Lenze Variable Frequency Drive (VFD) - The SMV 15.0 hp (11.0 kW) drive features a 480 / 600 VAC 3Ø input with input disconnect in a fan cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated l

Lenze

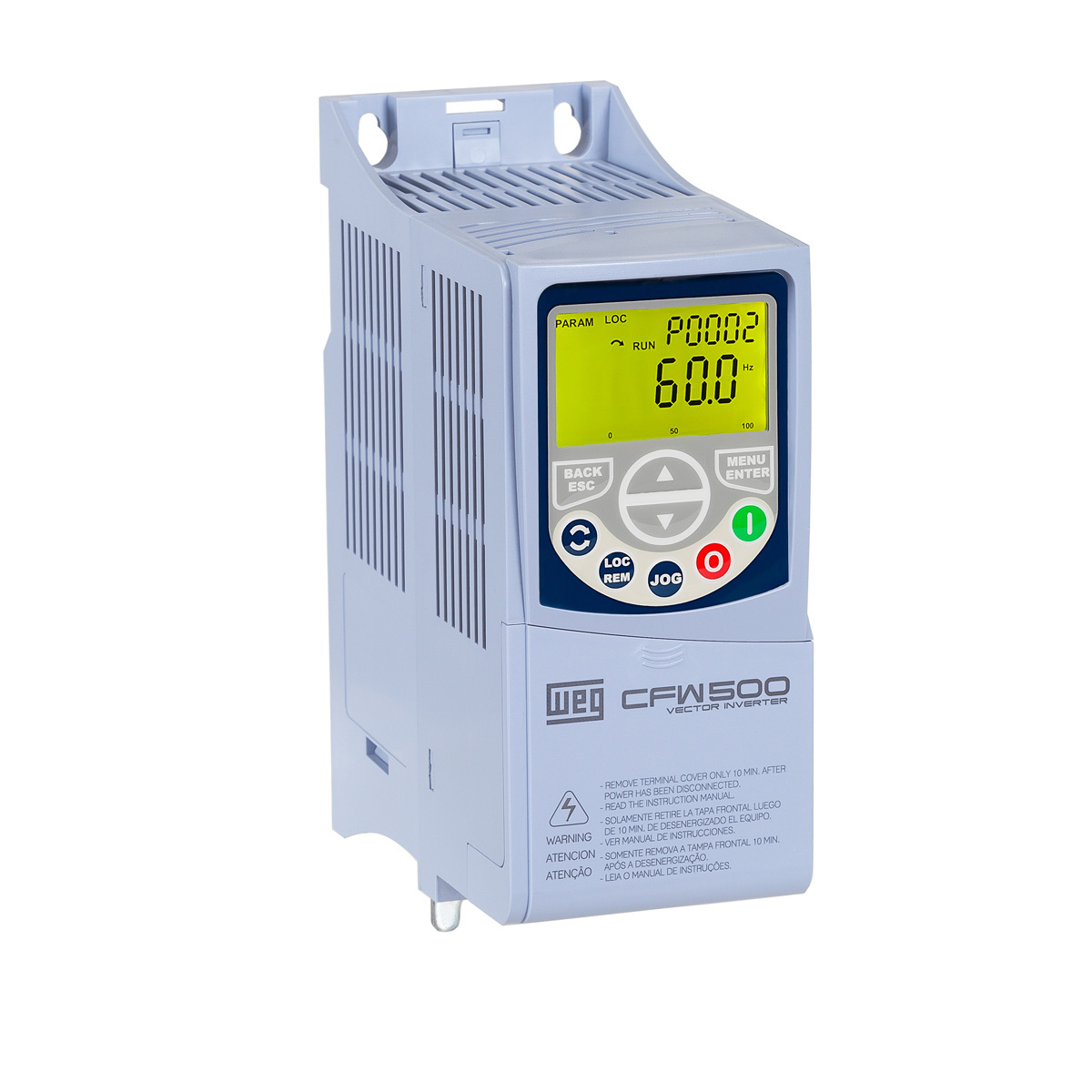

CFW500A07P0T2NB20G2

DRIVE CFW500A07P0T2NB20G2

WEG

ATV312HU30N4B

Schneider Electric ATV312HU30N4B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed for sensorless flux vector control with an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in EMC filter and heatsink, and it is a version without a control I.O. card to allow space for a communication card. The supply voltage ranges from 323-550Vac, supporting 380Vac, 400Vac, 480Vac, and 500Vac nominal values. Its dimensions are H184mm x W142mm x D152mm, with an IP21 degree of protection. The rated current is 7.1A at 380Vac with a 4kHz frequency and a maximum current of 10.7A for 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. This 3-phase network device outputs frequencies from 0.1 to 500 Hz. It includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for varied voltage and current ranges. The current consumption is 10.9A at 380Vac with an Isc of 5kA and 8.3A at 500Vac. It has a rated active power of 3kW and power dissipation/losses of 125 W.

Schneider Electric
