Variable Frequency Drives (VFD)

I55AE125A10V01000S

Lenze i55AE125A10V01000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and lacks a communication interface. The drive offers protection against overvoltage, leakage current, earth fault resistance, and motor overtemperature. It has a rated current of 1.7A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network is single-phase / 1P, with a network frequency of 45-65 Hz input and 0-599 Hz output. It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 120Vac.

Lenze

HVW701A007T2N01-J-A

WEG HVW701A007T2N01-J-A - STANDARD PANEL HVW701A007T2N01-J-A, HVAC Enclosed Drives (HVW)

WEG

HS72-07200610A10101AB100

NIDEC HS72-07200610A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and dual Safe Torque Off (STO) functionality, suitable for high-speed applications, and utilizes air cooling. The dimensions are frame size 7, measuring H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm). This model supports Ethernet communication protocol, operates with a rated current of 75A under normal duty and 61A under heavy-duty conditions, and requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac). It is designed to function within an ambient air temperature range of -20°C to +40°C and has a degree of protection rated at IP20 NEMA 1 UL open. The drive accepts a 3-phase input (3P) with a network frequency of 45-66 Hz on the supply input and can output 0-3000 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 18.5kW under normal duty and 15kW under heavy-duty, corresponding to 25HP and 20HP, respectively.

Nidec

M000-10501520EU0100AB100

NIDEC M000-10501520EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M000 series designed with a built-in brake transistor, requiring an external choke and utilizing air cooling for its operation. It features a frame size of 10E with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model is rated for a heavy-duty current of 152A and operates on a supply voltage of 500Vac-575Vac. It offers a degree of protection of IP20 NEMA 1 and is designed to work with a network frequency (supply input) of 50 Hz. The rated active power ranges from 90kW to 250kW for heavy-duty applications, equivalent to 125HP to 400HP.

Nidec

UMI-0450EU-B5

UMI-0450EU-B5 Unitronics - Use UMI-0450EU-B7

Unitronics

ATV71HC50Y

Schneider Electric ATV71HC50Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series, designed for variable speed and frequency control with a U/F ratio of 2 points / 5 points. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model comes with a built-in EMC filter, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, with specific nominal voltages at 480Vac, 500Vac, 600Vac, and 690Vac. The dimensions are H1390mm x W1120mm x D377mm, and it has a conformal coating for chemical resistance. The degree of protection is rated at IP30 UL type 1. The rated current specifications are 590A at 500Vac, 528A at 575Vac, 543A at 690Vac, with a maximum current of 973.5A for 2 seconds and 885A for 60 seconds. For installation, it supports wall mounting and uses Modbus and CANopen for communication protocols. It is designed for a 3-phase network with an output frequency range of 0.1-500 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input. It also features 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts), along with 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The current consumption is 544A at 500Vac for 400kW, 491A at 600Vac for 600 HP, and 498A at 690Vac for 500kW, with rated active power of 500kW at 690Vac and 400kW at 500Vac, and a rated power of 550HP.

Schneider Electric

ATV71HD55Y

Schneider Electric ATV71HD55Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control with a U/F ratio of 2 points / 5 points. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. This model comes with a built-in EMC filter, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, accommodating 480Vac, 500Vac, 600Vac, and 690Vac nominal values. The dimensions are H630mm x W320mm x D290mm, and it has a conformal coating for chemical resistance. The degree of protection includes IP20, IP21, and UL type 1. The rated current specifications are 68A at 500Vac, 62A at 575Vac, 62A at 690Vac, with a maximum current of 112.2A for 2 seconds and 102A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. Designed for a 3-phase network with an output frequency range of 0.1-500 Hz, it includes 1 analog output, 5 digital inputs plus 1 programmable digital input, and 3 digital outputs. The analog inputs consist of 1 x (-10...+10Vdc) and 1 x (0-10Vdc / 0-20mA). The current consumption is rated at 68A for 500Vac (45kW), 57A for 600Vac (60 HP), and 63A for 690Vac (55kW), with rated active power of 55kW at 690Vac and 45kW at 500Vac, and a rated power of 60HP.

Schneider Electric

SP4202-HF

NIDEC SP4202-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max in open-loop configurations, featuring a single Safe Torque Off (STO) and air cooling. It has a frame size of 4, measuring H21.53" x W12.2" x D11.73" (H547mm x W310mm x D298mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The rated current is 80A under normal duty and 68A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol, with a network frequency of 48-65 Hz on supply input and an output frequency range of 0-3000 Hz. The SP4202-HF includes 3 digital outputs (0-24Vdc; source), 1 digital output (2A / 240Vac; source; relay contact type), 3 digital inputs (0-24Vdc), and 3 additional digital inputs (0-24Vdc). Analog interface features include 1 analog input (-9.8Vdc...9.8Vdc; differential) with a 16-bit conversion resolution and 2 analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, alongside 2 analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. The rated active power is 22kW under normal duty and 18.5kW under heavy-duty, corresponding to a rated power of 30HP and 25HP, respectively.

Nidec

I55AE318F1AV11004S

Lenze I55AE318F1AV11004S is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for variable speed control, featuring DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It includes a built-in RFI filter, safe torque off (STO) safety standard, and I.O. conformal coating. The dimensions are H347mm x W204.5mm x D222mm. It supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 48A (light-duty; 400Vac), 40.8A (light-duty; 480Vac), 40A (heavy-duty; 400Vac), and 34A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 analog output, 5 digital inputs (with options for frequency or encoder input), 1 digital output, and 2 analog inputs (with options for voltage or current input). The rated active power is 22kW (light-duty; 400-480Vac) and 18.5kW (heavy-duty; 400-480Vac), with a rated power of 30HP (light-duty; 400-480Vac) and 25HP (heavy-duty; 400-480Vac).

Lenze

HVW701B033T2N01-X-B

WEG HVW701B033T2N01-X-B - STANDARD PANEL HVW701B033T2N01-X-B, HVAC Enclosed Drives (HVW)

WEG

ATV71HD30N4S337

Schneider Electric ATV71HD30N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control. It features sensorless flux vector control, ENA system vector control with or without speed feedback, and can deliver 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. The unit includes a built-in DC choke, EMC filter, and a heatsink with a coated version for enhanced durability. It operates on a supply voltage of 323-528Vac, accommodating 380Vac, 400Vac, 480Vac, and 500Vac nominal values. The device measures H550mm x W240mm x D266mm and offers chemical resistance with a conformal coating in a reinforced version. It has an IP20 UL type 1 degree of protection and supports a rated current of 66A at 380Vac (4kHz), 52A at 460Vac (4kHz), with a maximum current of 109A for 2 seconds and 99A for 60 seconds. Wall mounting is the prescribed installation method. Communication is facilitated via Modbus and CANopen protocols, and it is designed for a 3-phase network with an output frequency range of 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts). It also features 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The current consumption is rated at 66A for 380Vac and 56A for 480Vac, with a rated active power of 30kW and rated power of 40HP.

Schneider Electric

M000-11602380DU0100AN100

NIDEC M000-11602380DU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in DC to AC inverter air cooling system. It features a frame size of 11D with dimensions of H31.7" x W12.2" x D12.3" (H804mm x W310mm x D312mm). This model has a rated current of 238A for heavy-duty applications and operates on a supply voltage of 500Vac-690Vac (600Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW, and the rated power is between 125HP and 400HP for heavy-duty operations.

Nidec

EDP11S028DN1211000

STANDARD PANEL EDP11S028DN1211000

WEG

F600-04400185A10101AB653

NIDEC F600-04400185A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 380Vac-480Vac, specifically 400Vac / 415Vac, and operates on a 60 Hz network frequency. It features a built-in brake transistor, an internal line choke, and utilizes air cooling for its design. This model is equipped with one analog input (4-20mA / 0-10Vdc; single-ended), one analog output (0-10Vdc), three digital inputs (24Vdc), three additional digital inputs (0-24Vdc; configurable), and two digital outputs (240Vac; relay contact type). It has a rated current of 18.5A under normal duty, a rated active power of 7.5kW, and a rated power of 10HP, also under normal duty. The F600 series inverter is housed in a frame size 4, measuring H15.4" x W4.9" x D7.9" (H391mm x W124mm x D200mm), and offers a degree of protection rated at IP65. Communication is facilitated via the Modbus RTU protocol.

Nidec

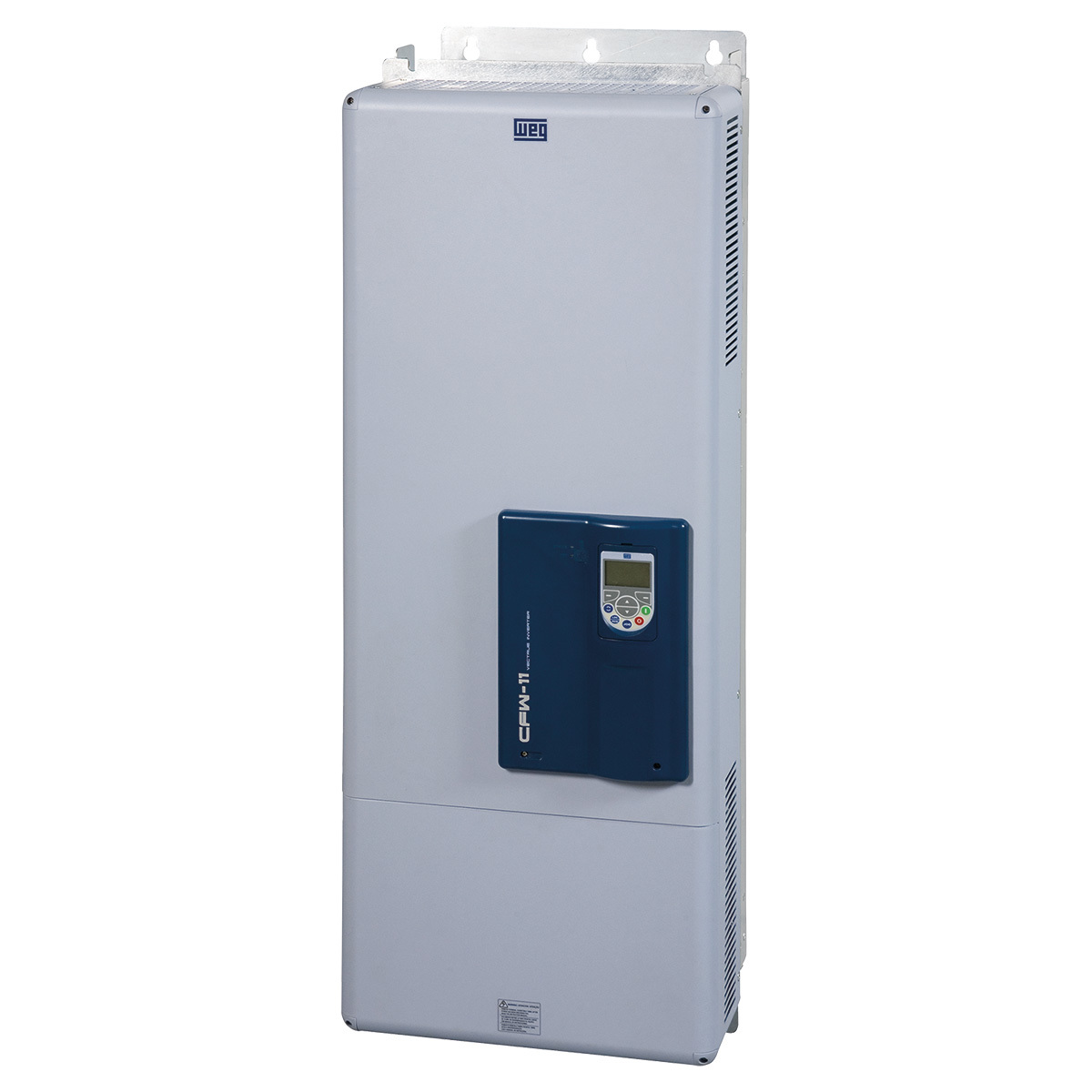

CFW110170T6OYZ

DRIVE CFW110170T6OYZ

WEG

EDP11S312GN1210000

STANDARD PANEL EDP11S312GN1210000

WEG

I55AE137F1AV1100MS

Lenze I55AE137F1AV1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H155mm x W60mm x D130mm. This model supports Ethernet/IP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.3A for heavy-duty applications at 400-480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range, with a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at 8kHz or 16kHz. The degree of protection is IP20, designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 400-480Vac.

Lenze

C300-09601310A10101AB100

NIDEC C300-09601310A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 500Vac-690Vac (600Vac) and has dimensions of frame size 9A H43.62" x W12.21" x D11.42" (H1108mm x W310mm x D290mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 150A for Normal duty and 131A for Heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. For connectivity, it includes 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) along with 1 x digital output (2A / 240Vac; source; relay contact type). Analog input capabilities feature 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 132kW for Normal duty and 110kW for Heavy-duty, corresponding to a rated power of 175HP for Normal duty and 150HP for Heavy-duty.

Nidec

ESV113N04TNB

SMV series 3phase 15hp 480V Nema 1

Lenze

UMI-0015EE-B1

UMI-0015EE-B1 Unitronics - Unitronics VFD - B1 Casing, 380-480V, 3 Phase, 1.5kW, 2HP, STO included

Unitronics
