Variable Frequency Drives (VFD)

EDP11S013GN12-PGS

WEG EDP11S013GN12-PGS - STANDARD PANEL EDP11S013GN12-PGS, Enclosed Drive Packages (EDP)

WEG

I55AE175A10V0100KS

Lenze I55AE175A10V0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports EtherCAT communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 4.2A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, and 1 digital output. The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 120Vac.

Lenze

HVW701A010DN01200001

WEG HVW701A010DN01200001 - STANDARD PANEL HVW701A010DN01200001, HVAC Enclosed Drives (HVW)

WEG

VLA122A240

VLA122A240 Lovato - Variable speed drive, VLA1 type, single-phase, supply 200...240VAC (50/60Hz). Built-in EMC suppressor, Cat. C2, 2.2kW

Lovato Electric

C300-07600380A10101AB100

NIDEC C300-07600380A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series, designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 500Vac-690Vac (600Vac) and has dimensions of frame size 7 H21.93" x W10.63" x D11.02" (H557mm x W270mm x D280mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 46A under normal duty and 38A under heavy-duty conditions. It supports Modbus RTU communication protocol over a 3-phase input network, with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 37kW under normal duty and 30kW under heavy-duty, with a rated power of 50HP (normal duty) and 40HP (heavy-duty).

Nidec

VLB30300A480

VLB30300A480 Lovato - Variable speed drive, VLB3... type, three-phase supply 400-480VAC 50/60Hz. EMC suppressor built-in, Cat. C2, 30kW

Lovato Electric

M400-03400094A10101AB100

NIDEC M400-03400094A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 3, measuring H8.9" x W3.5" x D6.3" (H226mm x W90mm x D160mm). This model supports multiple communication protocols, including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 9.4A for both normal and heavy-duty applications and requires a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +60°C, and it is designed with a degree of protection of IP20 NEMA 1. The network type is a 3-phase input (3P) with a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz. It includes 2 x analog outputs, 5 + 1 + 2 digital inputs, and 2 + 1 digital outputs, alongside 1 x analog input with an 11-bit conversion resolution and another analog input that can also function as a digital input. The rated active power is 4kW for both normal and heavy-duty operations, with a corresponding rated power of 5HP.

Nidec

GA80U5289ABM

GA80U5289ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 600 VAC, 289 A, IP20, General Purpose GA800 Series

Yaskawa

ACS355-03U-12A5-4

ABB Control - ACS355-03U-12A5-4

ABB Control

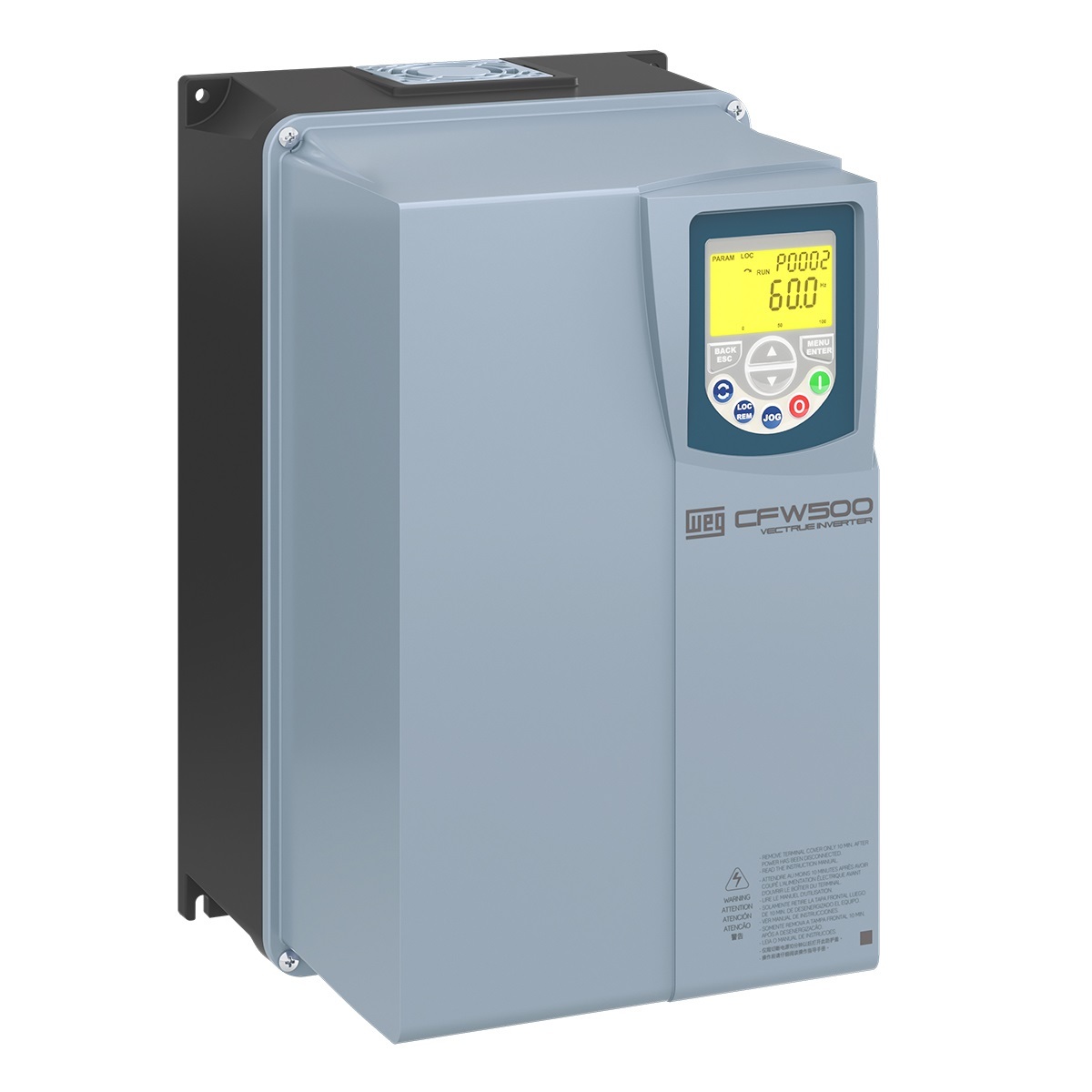

CFW500B14P0T4DB66G2

DRIVE CFW500B14P0T4DB66G2

WEG

ATV71HC40Y

Schneider Electric ATV71HC40Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model comes with a built-in EMC filter, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, with specific nominal voltages at 480Vac, 500Vac, 600Vac, and 690Vac. The dimensions are H1390mm x W1120mm x D377mm, and it has a conformal coating for chemical resistance. The degree of protection is IP30 UL type 1. The rated current specifications are 462A at 500Vac, 412A at 575Vac, 420A at 690Vac, with a maximum current of 762.3A for 2 seconds and 693A for 60 seconds. For installation, it supports wall mounting and uses Modbus and CANopen communication protocols. It is designed for a 3-phase network with an output frequency range of 0.1-500 Hz. The unit includes 1 analog output, 5+1 programmable digital inputs, 1 safety digital input, 2 digital outputs, and 2 analog inputs. The current consumption is specified at 439A for 500Vac (315kW), 401A for 600Vac (500 HP), and 409A for 690Vac (400kW), with rated active power of 400kW at 690Vac and 315kW at 500Vac, and a rated power of 450HP.

Schneider Electric

M600-05200250A10101AB100

NIDEC M600-05200250A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling for temperature management. It has dimensions of frame size 5, measuring H14.37" x W5.63" x D7.87" (H365mm x W143mm x D200mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 30A under normal duty and 25A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs, 6 x digital inputs, and 4 x digital outputs, alongside 3 x analog inputs with varying specifications for comprehensive control and feedback. The rated active power is 7.5kW for normal duty and 5.5kW for heavy-duty applications, corresponding to a rated power of 10HP and 7.5HP / 7-1/2HP, respectively.

Nidec

EDP11S142DN3R01000

STANDARD PANEL EDP11S142DN3R01000

WEG

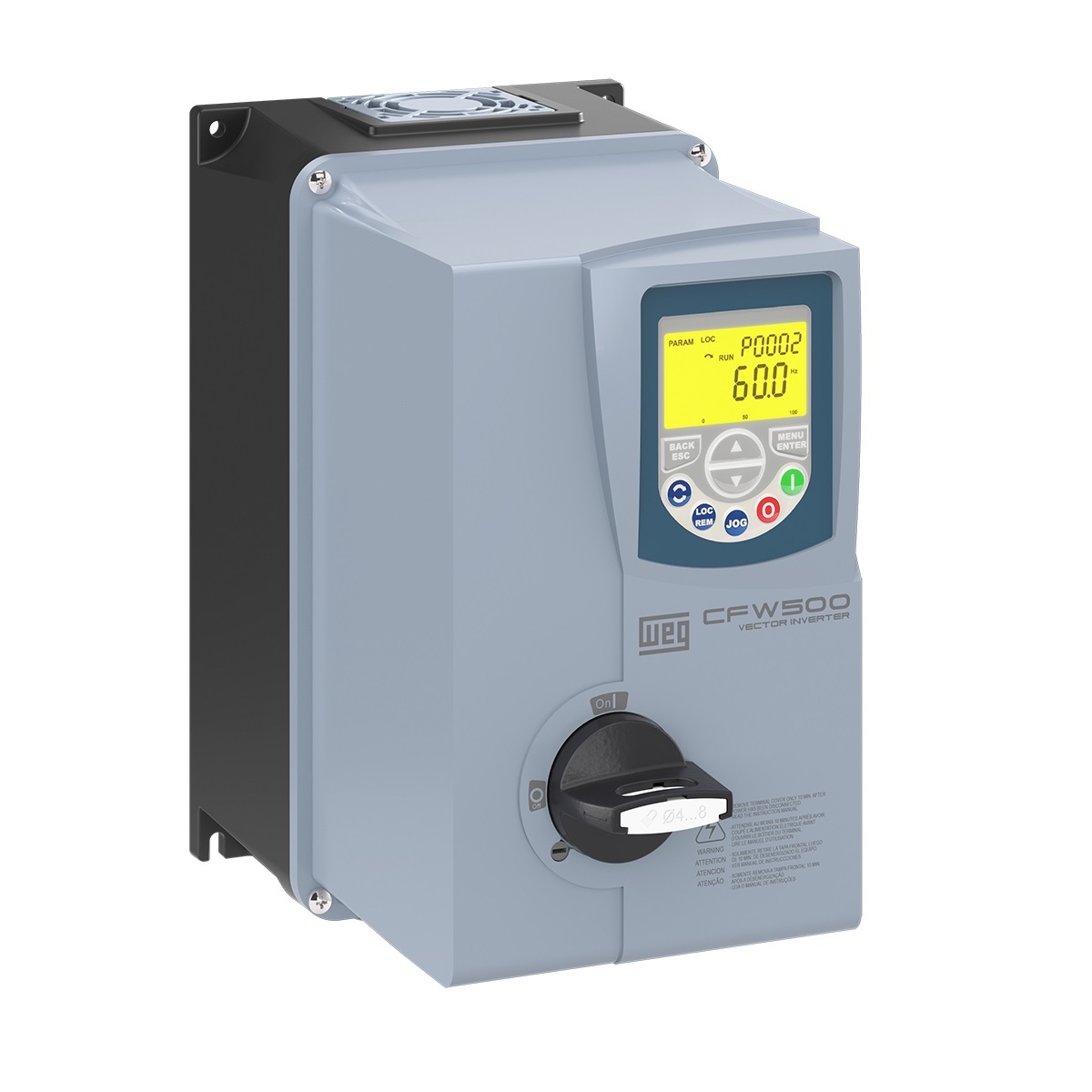

CFW500A04P3B2DB66DSG2

DRIVE CFW500A04P3B2DB66DSG2

WEG

ESV112N02YXE

ESV112N02YXE Lenze Variable Frequency Drive (VFD) - The SMV 1.5 hp (1.1 kW) drive features a 208 / 240 VAC 1Ø or 3Ø input in a convection cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line

Lenze

I55AE390F1AV11012S

Lenze I55AE390F1AV11012S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H685mm x W258mm x D304mm. This model supports Ethernet POWERLINK communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 216A (light-duty; 400Vac), 187A (light-duty; 480Vac), 180A (heavy-duty; 400Vac), and 156A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can operate within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 x analog output, 5 x digital inputs (with options for frequency or encoder input), 1 x digital output, 2 x analog inputs (with options for voltage or current input), and delivers a rated active power of 110kW (light-duty; 400-480Vac) and 90kW (heavy-duty; 400-480Vac), equivalent to 150HP (light-duty; 400-480Vac) and 125HP (heavy-duty; 400-480Vac).

Lenze

M000-11404640DU0100AB100

NIDEC M000-11404640DU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in brake transistor and a built-in DC to AC inverter featuring air cooling. It has dimensions of frame size 11D, measuring H31.7" x W12.2" x D12.3" (H804mm x W310mm x D312mm). This model is rated for a heavy-duty current of 464A and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac), with a network frequency (supply input) of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW for heavy-duty applications, equivalent to 125HP to 400HP.

Nidec

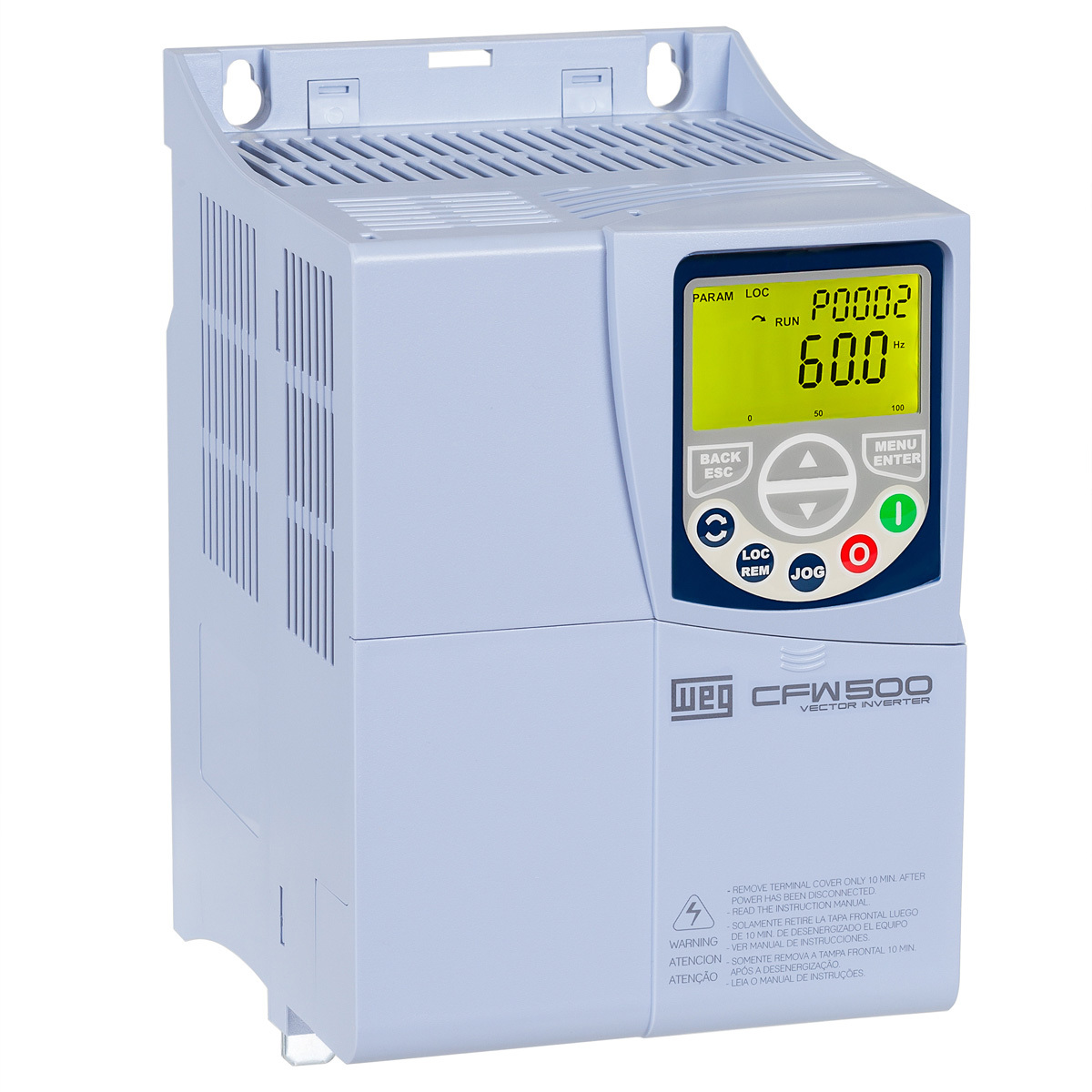

CFW500C14P0T4DB20

DRIVE CFW500C14P0T4DB20

WEG

M400-09202190E10101AN100

NIDEC M400-09202190E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with dual Safe Torque Off (STO) and requires an external choke for air cooling. It features dimensions of frame size 9E, measuring H39.8" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model supports various communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 266A under normal duty and 219A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it can function within an ambient air temperature range of -20°C to +55°C. The device offers a degree of protection of IP20 NEMA 1 and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with an 11-bit conversion resolution. The rated active power is 75kW for normal duty and 55kW for heavy-duty, corresponding to 100HP and 75HP, respectively.

Nidec

I55AE411F1AV1100MS

Lenze I55AE411F1AV1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H685mm x W258mm x D304mm. This model supports Ethernet/IP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 254A (light-duty; 400Vac), 216A (light-duty; 480Vac), 212A (heavy-duty; 400Vac), and 180A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with a protection degree of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs, supporting a rated active power of 132kW (light-duty; 400-480Vac) and 110kW (heavy-duty; 400-480Vac), equivalent to 180HP (light-duty; 400-480Vac) and 150HP (heavy-duty; 400-480Vac).

Lenze
