Variable Frequency Drives (VFD)

EDP11S054DN3R10000

STANDARD PANEL EDP11S054DN3R10000

WEG

I55AE125A10V01012S

Lenze I55AE125A10V01012S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and supports Ethernet POWERLINK communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.7A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. This single-phase drive operates on a network frequency of 45-65 Hz (input) and 0-599 Hz (output), featuring 1 analog output, 5 digital inputs with flexible functionalities, 1 digital output, and 2 analog inputs, all supporting various configurations. It has a rated active power of 0.25kW and a rated power of 1/3HP for heavy-duty applications at 120Vac.

Lenze

EDP11S017GN3R11000

STANDARD PANEL EDP11S017GN3R11000

WEG

I55AE315F10V1100MS

Lenze I55AE315F10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. The design incorporates a built-in RFI filter, standard I.O., and conformal coating. Its dimensions are H347mm x W204.5mm x D222mm. It supports Ethernet/IP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 38.4A (light-duty; 400Vac), 32.4A (light-duty; 480Vac), 32A (heavy-duty; 400Vac), and 27A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, 5 x digital inputs (with options for frequency or encoder input), 2 x analog inputs (with options for voltage or current input), and 1 x digital output. The rated active power is 18.5kW (light-duty; 400-480Vac) and 15kW (heavy-duty; 400-480Vac), with a rated power of 25HP (light-duty; 400-480Vac) and 20HP (heavy-duty; 400-480Vac).

Lenze

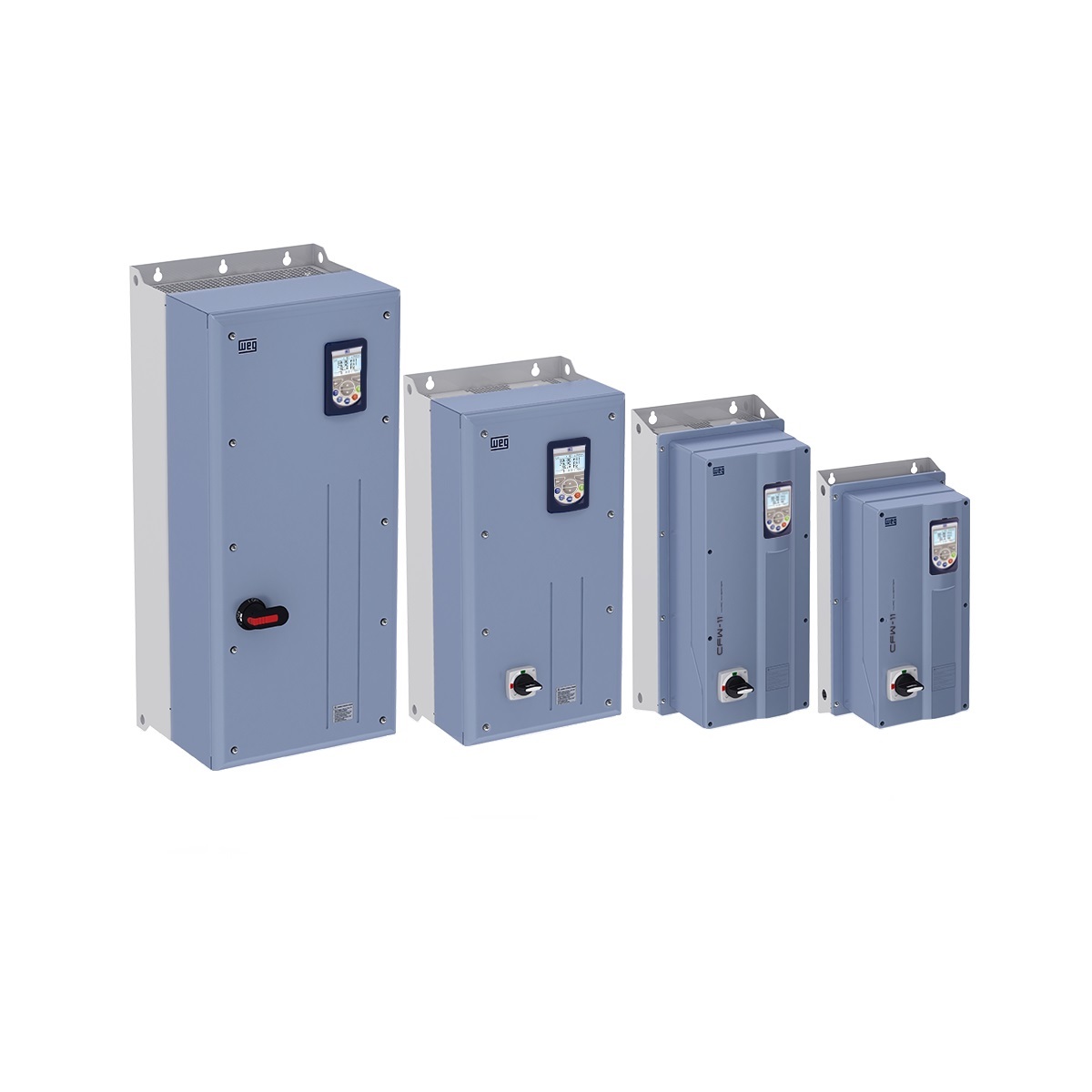

HVW701C045T4N01-X-B

WEG HVW701C045T4N01-X-B - STANDARD PANEL HVW701C045T4N01-X-B, HVAC Enclosed Drives (HVW)

WEG

I55AE318F10V11001S

Lenze I55AE318F10V11001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It is equipped with a built-in RFI filter, application I.O., and conformal coating. The dimensions are H347mm x W204.5mm x D222mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 48A (light-duty; 400Vac), 40.8A (light-duty; 480Vac), 40A (heavy-duty; 400Vac), and 34A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a protection degree of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 2 x analog outputs, 7 x digital inputs with flexible functionality, 2 x digital outputs, and 2 x analog inputs, supporting a rated active power of 22kW (light-duty; 400-480Vac) and 18.5kW (heavy-duty; 400-480Vac), equivalent to 30HP (light-duty) and 25HP (heavy-duty).

Lenze

SP0203-EZ

NIDEC SP0203-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module featuring a single Safe Torque Off (STO) and air cooling. It has dimensions of frame size 0, measuring H12.677" x W2.441" x D8.898" (H322mm x W62mm x D226mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a rated current of 4A for heavy-duty applications. This wall-mounted unit is designed to function within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates with a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP0203-EZ features 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs including 1 x (-9.8Vdc...9.8Vdc; differential) and 2 x (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended). Additionally, it has 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. The rated active power is 0.75kW for both normal and heavy-duty operations, with a rated power of 1HP for each. It can be configured for either single-phase input (2P) or 3-phase input (3P).

Nidec

I55AE222D1AV01001S

Lenze I55AE222D1AV01001S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit, PID controller, and is equipped with a safe torque off (STO) safety application and I.O. conformal coating. The dimensions are H250mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection and supports both single-phase and three-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 2 analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 digital inputs with various functionalities, and 2 digital outputs (max. 100mA). Additionally, it has 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) that can be optionally used as voltage or current inputs. The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 230-240Vac.

Lenze

ATV71HC25N4D

Schneider Electric ATV71HC25N4D is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. This model comes with a built-in EMC filter, a built-in heatsink, and a coated version without a DC choke. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) and has dimensions of H1190mm x W595mm x D377mm. The ATV71HC25N4D offers chemical resistance with its conformal coating (reinforced version) and has a degree of protection rated at IP30 UL type 1. The rated current specifications include 427A and 481A at 380Vac for 220kW and 250kW respectively, with a maximum current of up to 793A for short durations. Wall mounting is supported for installation, and it utilizes Modbus and CANopen for communication protocols. This 3-phase (3P) network device outputs a frequency range of 0.1-500 Hz and includes 1 analog output, 5+1 digital inputs with programmable capabilities, and 3 digital outputs. Analog inputs consist of 1 x (-10...+10Vdc) and 1 x (0-10Vdc / 0-20mA), with current consumption rates provided for various operational conditions. The rated active power is 220kW and 250kW, corresponding to 350HP and 400HP respectively.

Schneider Electric

F600-03400034A10101AB103

NIDEC F600-03400034A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 380Vac-480Vac, specifically 400Vac / 415Vac, and operates on a 60 Hz network frequency. It features a built-in brake transistor, an internal line choke, and utilizes air cooling for temperature management. The device is capable of operating within an ambient air temperature range of -20°C to +40°C. It offers a degree of protection rated at IP20 and has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). For connectivity, it includes 1 x analog input (4-20mA / 0-10Vdc; single-ended), 1 x analog output (0-10Vdc), 3 x digital inputs (24Vdc), 3 x digital inputs (0-24Vdc; configurable), and 2 x digital outputs (240Vac; relay contact type). The F600 series drive supports Modbus RTU communication protocol, has a rated current of 3.4A for normal duty operations, and delivers a rated active power of 1.1kW and rated power of 1.5HP / 1-1/2HP under normal duty conditions.

Nidec

HVW701E105T4N12-X-B

WEG HVW701E105T4N12-X-B - STANDARD PANEL HVW701E105T4N12-X-B, HVAC Enclosed Drives (HVW)

WEG

I55AE215F1AV1100KS

Lenze I55AE215F1AV1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H250mm x W60mm x D130mm. This model supports EtherCAT communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 3.9A for heavy-duty operations at 400Vac and 3.5A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with optional uses, 1 x digital output, and 2 x analog inputs with optional uses. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty operations at 400-480Vac.

Lenze

I5DAE125A10V00000S

Lenze I5DAE125A10V00000S is a variable speed/frequency drive (VSD/VFD) or inverter within the Power units sub-range designed for inverter power unit functions. This model does not include a communication interface. It features protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.7A for heavy-duty applications at 120Vac, and it is designed for either control cabinet or surface/wall mounting. With a degree of protection rated at IP20, it operates on a single-phase (1P) network. The rated active power is 0.25kW, and the rated power is 1/3HP, both specified for heavy-duty operations at 120Vac.

Lenze

CFW700C58P5T4DBN1

WEG CFW700C58P5T4DBN1 - DRIVE CFW700C58P5T4DBN1, CFW500/700 Drives

WEG

HVW701A007T2N01-I-A

WEG HVW701A007T2N01-I-A - STANDARD PANEL HVW701A007T2N01-I-A, HVAC Enclosed Drives (HVW)

WEG

CFW110016T2O55DSZ

DRIVE CFW110016T2O55DSZ

WEG

M400-09402240E10101AB100

NIDEC M400-09402240E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M400 series designed for variable speed control with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It has dimensions of frame size 9E, measuring H39.8" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 255A under normal duty and 211A under heavy-duty conditions, and it is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +55°C, and it offers a degree of protection of IP20 NEMA 1. This VSD/VFD is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 analog outputs, 5+1+2 digital inputs, and 2+1 digital outputs, along with 1+1 analog inputs, supporting various signal types. The rated active power is 132kW under normal duty and 110kW under heavy-duty, equivalent to 200HP and 150HP respectively.

Nidec

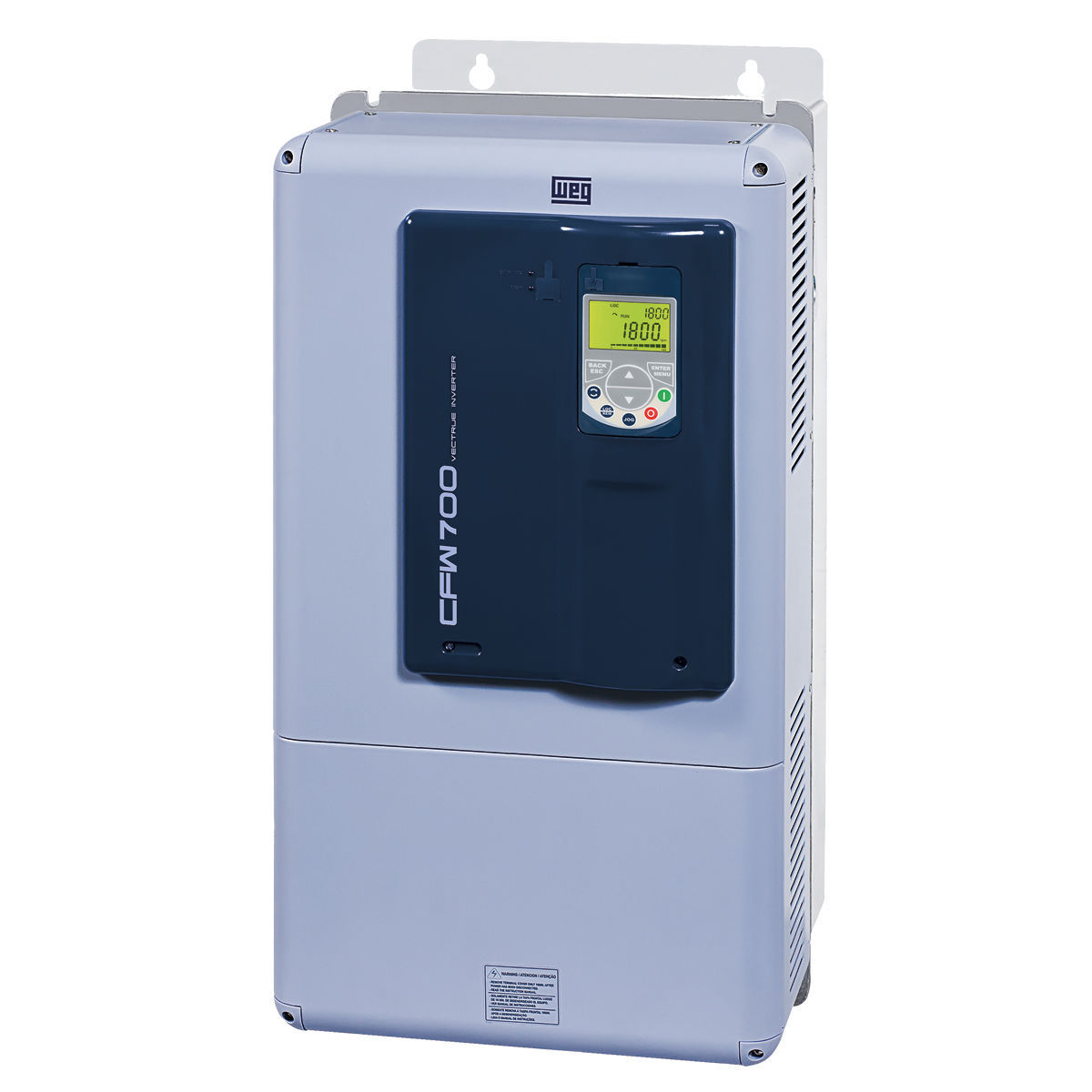

CFW700E142T2NBN1C3

WEG CFW700E142T2NBN1C3 - DRIVE CFW700E0142T2NBN1C3, CFW500/700 Drives

WEG

I55AE255C1AV01001S

Lenze I55AE255C1AV01001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, and S-ramps for smooth acceleration and deceleration. It features a flying restart circuit, PID controller, and is equipped with a safe torque off (STO) safety application and I.O. conformal coating. The dimensions are H250mm x W90mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 27.6A for light-duty (230-240Vac) and 23A for heavy-duty (230-240Vac) operations. The supply voltage is 230Vac / 240Vac, suitable for control cabinet or surface/wall mounting. The operational ambient air temperature ranges up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. It operates on a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 2 analog outputs, 7 digital inputs with flexible functionality, and 2 digital outputs, alongside 2 analog inputs that can be optionally used as voltage or current inputs. The rated active power is 7.5kW for light-duty and 5.5kW for heavy-duty, corresponding to 10HP and 7-1/2HP respectively.

Lenze

CFW700E0107T5NB20C3

DRIVE CFW700E0107T5NB20C3

WEG
