Variable Frequency Drives (VFD)

I55AE125A10V01004S

Lenze I55AE125A10V01004S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. This model has a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and uses the PROFIBUS communication protocol. It offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.7A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz input and 0-599 Hz output. It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 120Vac.

Lenze

S100-01133-0B0000

Nidec S100-01133-0B0000

Nidec

I55AE211A10V01000S

Lenze i55AE211A10V01000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and lacks a communication interface. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 6A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting both voltage and current input/output configurations. The rated active power is 1.1kW, and the rated power is 1-1/2HP for heavy-duty applications at 120Vac.

Lenze

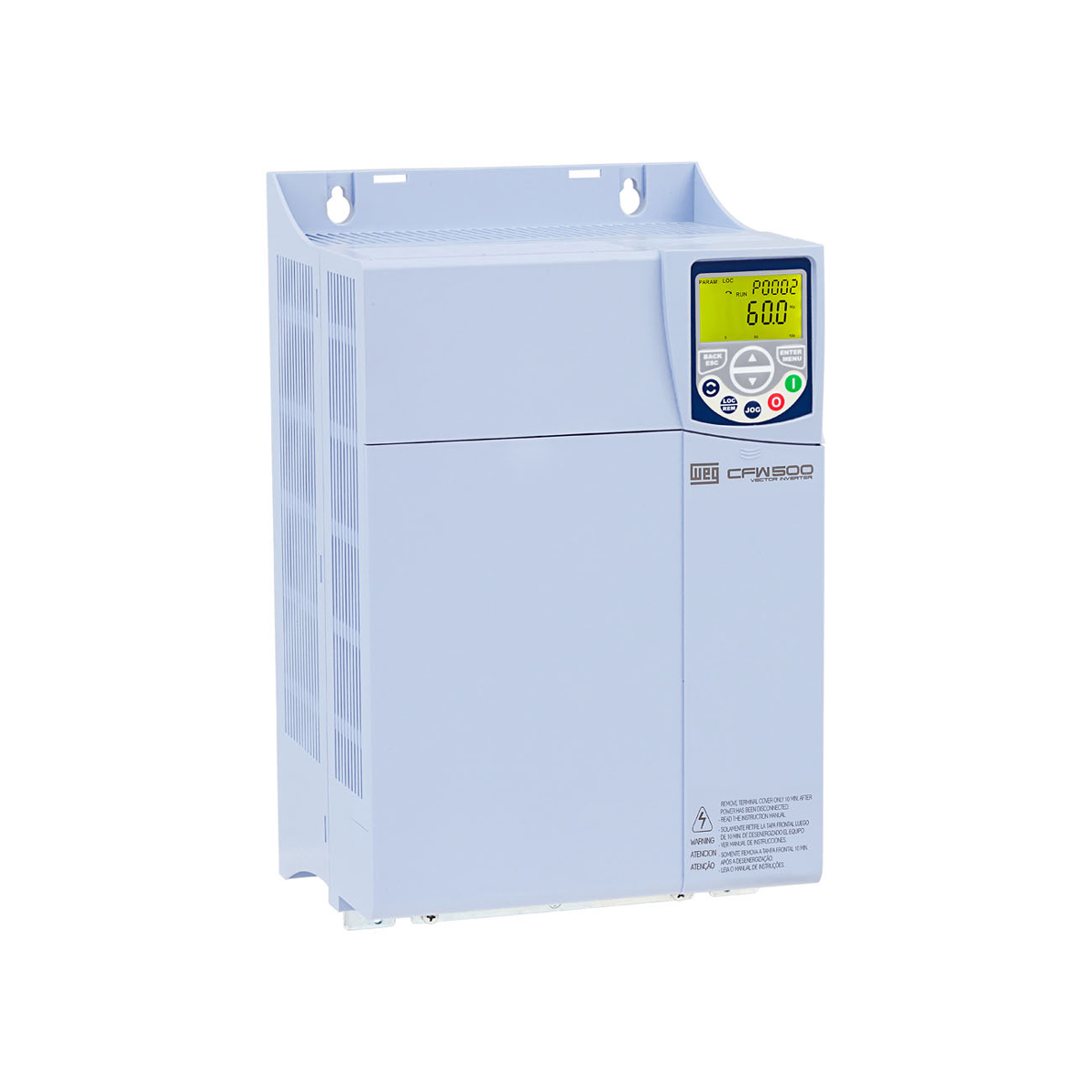

CFW500E49P0T4DB20G2

DRIVE CFW500E49P0T4DB20G2

WEG

EDP11S013DN3R

STANDARD PANEL EDP11S013DN3R

WEG

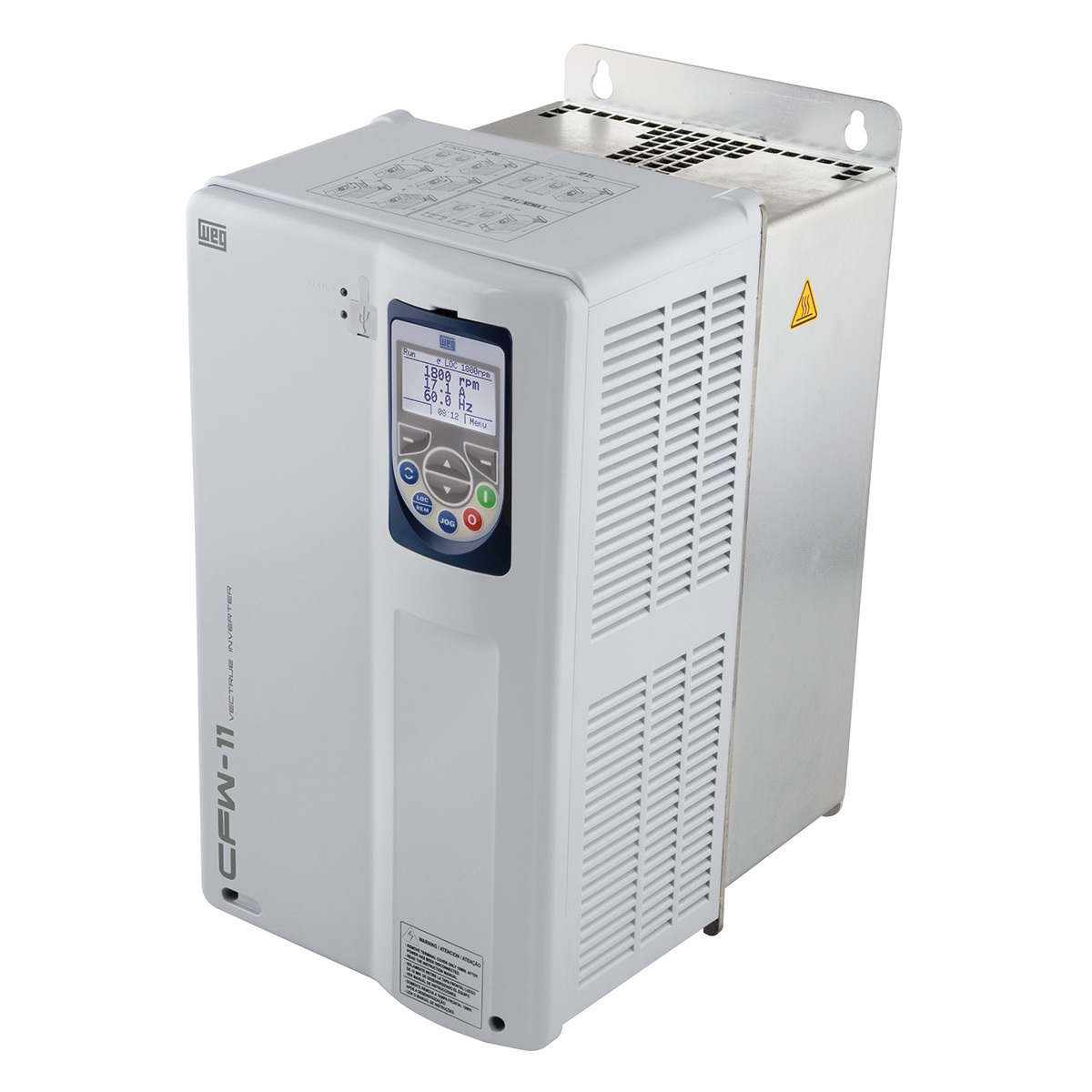

CFW110033T2O55DSZ

DRIVE CFW110033T2O55DSZ

WEG

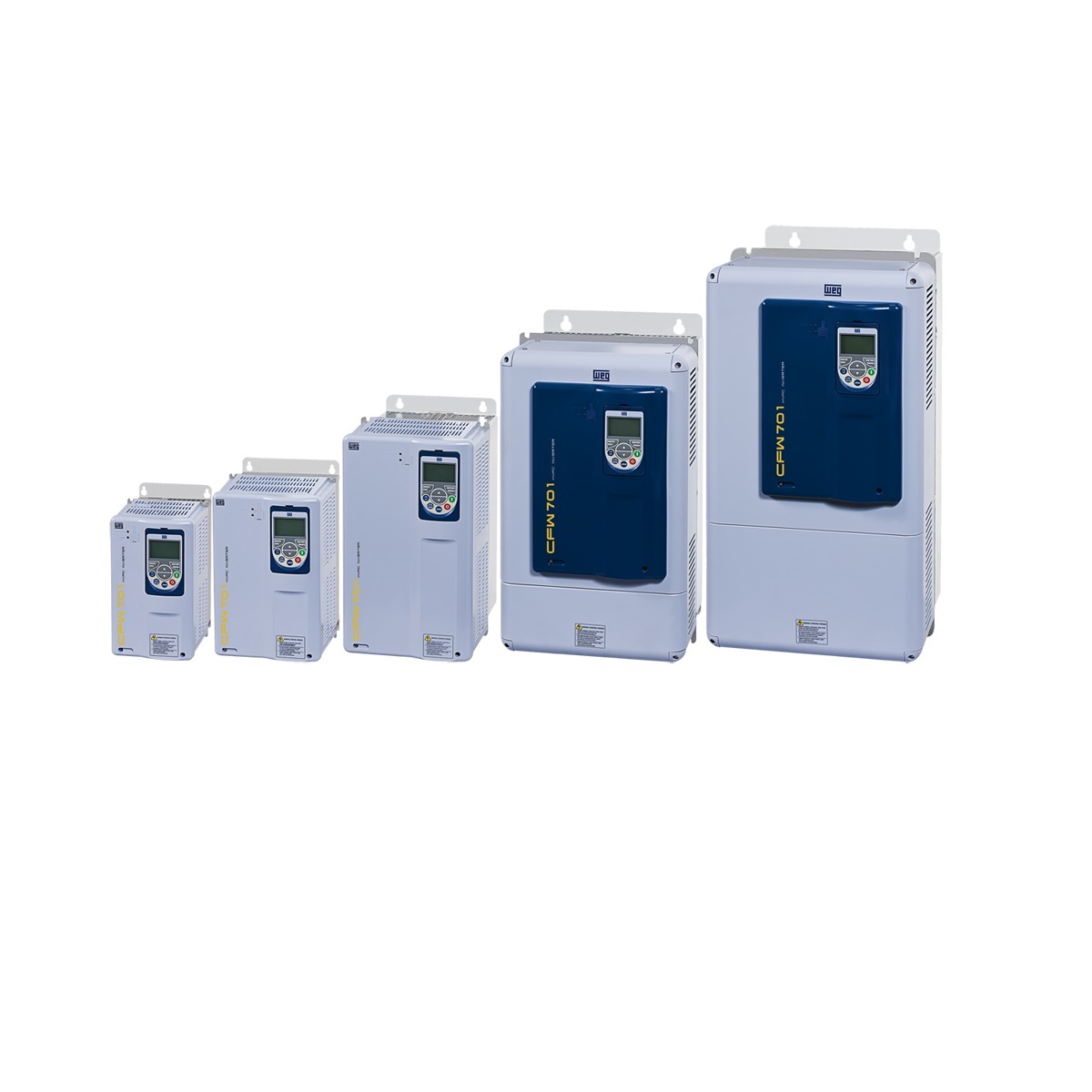

CFW701A07P0T2DBN1C3

DRIVE CFW701A07P0T2DBN1C3

WEG

I55AE137A1AV0100KS

Lenze I55AE137A1AV0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm, and it supports EtherCAT communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a single-phase / 1P network with a frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 0.37kW and a rated power of 1/2HP for heavy-duty applications at 120Vac.

Lenze

I55AE155D1AV0100LS

Lenze I55AE155D1AV0100LS is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for variable speed control, featuring DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, and a flying restart circuit. It includes a PID controller and adheres to the safe torque off (STO) safety standard with an I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports PROFINET communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. It can be used in single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. It has a rated active power of 0.55kW and a rated power of 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

M000-09601040EU0100AB100

NIDEC M000-09601040EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in brake transistor and requires an external choke and air cooling for operation. It features a frame size of 9E, with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model is rated for a heavy-duty current of 104A and operates on a supply voltage of 500Vac-690Vac (600Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1 and supports a rated active power range of 90kW-250kW (heavy-duty) or 125HP-400HP (heavy-duty).

Nidec

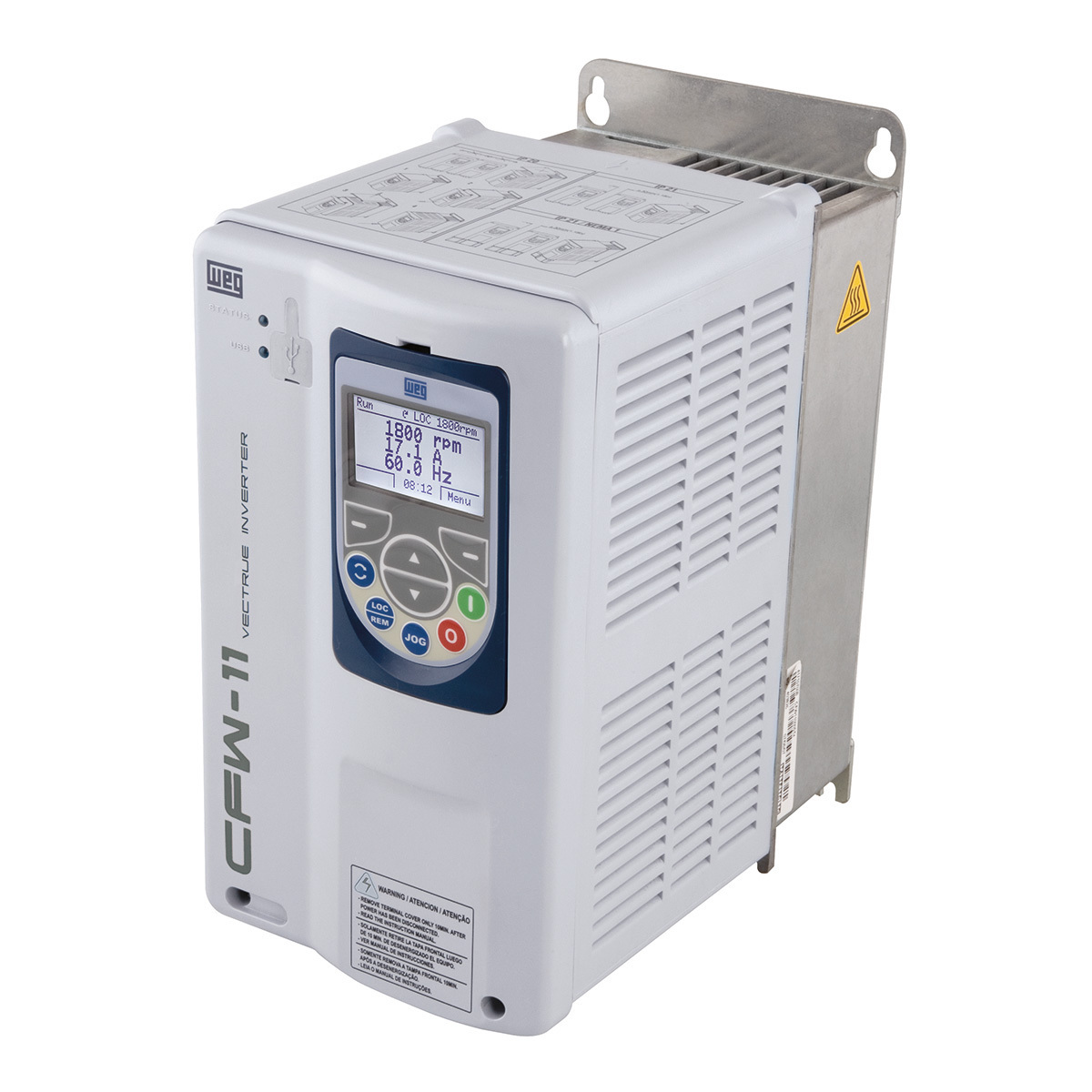

CFW110045T4ON1YZ

DRIVE CFW110045T4ON1YZ

WEG

EDP11S058GN3R10000

STANDARD PANEL EDP11S058GN3R10000

WEG

M000-09501040TU0100AB100

NIDEC M000-09501040TU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor and air cooling. It features a frame size of 9T with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model has a rated current of 104A for heavy-duty applications and operates on a supply voltage of 500Vac-575Vac. It is equipped with a degree of protection IP20 NEMA 1 and is designed to work with a network frequency (supply input) of 50 Hz. The rated active power ranges from 90kW to 250kW, and the rated power is between 125HP and 400HP for heavy-duty operations.

Nidec

GA80U4012AWM

GA80U4012AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 12 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

I51AE255C10V01001S

Lenze I51AE255C10V01001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a basic I.O. with conformal coating, dimensions of H250mm x W90mm x D130mm, and supports CANopen and Modbus RTU communication protocols. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 23A for heavy-duty operations at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. The rated active power is 7.5kW for light-duty and 5.5kW for heavy-duty operations at 230-240Vac, equivalent to 10HP and 7-1/2HP respectively.

Lenze

CFW110010T2ON1Z-PGS

DRIVE CFW110010T2ON1Z-PGS

WEG

M000-10501900EU0100AB100

NIDEC M000-10501900EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor and requires an external choke and air cooling for operation. It features a frame size of 10E with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model is rated for a heavy-duty current of 190A and operates on a supply voltage of 500Vac-575Vac. It offers a degree of protection of IP20 NEMA 1 and is designed to work with a network frequency (supply input) of 50 Hz. The rated active power ranges from 90kW to 250kW, and the rated power in horsepower is from 125HP to 400HP, suitable for heavy-duty applications.

Nidec

SP1204-EZ

NIDEC SP1204-EZ is a Variable Speed/Frequency Drive (VSD/VFD) with an E.Z. Motion module and single Safe Torque Off (STO) feature, designed for air cooling. It has a frame size of 1, measuring H15.2" x W3.93" x D8.62" (H386mm x W100mm x D219mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The rated current is 11A for Normal duty and 10.6A for Heavy-duty applications. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol, with a network frequency of 48-65 Hz (Supply input) and 0-550 Hz (output). The SP1204-EZ features 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). Analog interface includes 1 x analog input (-9.8Vdc...9.8Vdc; differential) with 16-bit conversion resolution, and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with 10-bit conversion resolution, along with 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with 10-bit conversion resolution. It is designed for a 3-phase input network, with rated active power of 3kW (Normal duty) and 2.2kW (Heavy-duty), equivalent to 3HP for both Normal and Heavy-duty operations.

Nidec

C300-09202190A10101AB100

NIDEC C300-09202190A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and has dimensions of frame size 9A H43.62" x W12.21" x D11.42" (H1108mm x W310mm x D290mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 266A for Normal duty and 219A for Heavy-duty. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a frequency range of 45-66 Hz for supply input and 0-550 Hz for output. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). It is rated for an active power of 75kW (Normal duty) and 55kW (Heavy-duty), equivalent to 100HP (Normal duty) and 75HP (Heavy-duty).

Nidec

I55AE155B1AV11004S

Lenze I55AE155B1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter applications, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H180mm x W60mm x D130mm. This model supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs, supporting both voltage and current input/output configurations. The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 230-240Vac.

Lenze
