Variable Frequency Drives (VFD)

M701-09402240E10101AB100

NIDEC M701-09402240E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor, single Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 266A under normal duty and 224A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20 NEMA 1 UL open, suitable for 3-phase input (3P) networks with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), and 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), alongside 3 analog inputs (0-20mA / 4-20mA / -10...+10Vdc; with different conversion resolutions and input types). The rated active power is 132kW under normal duty and 110kW under heavy-duty, corresponding to a rated power of 200HP and 150HP, respectively.

Nidec

M000-10501900TU0100AN100

NIDEC M000-10501900TU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed for AC to DC conversion with twin rectifier air cooling. It features a frame size of 10T with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model has a rated current of 190A for heavy-duty applications, operates on a supply voltage of 500Vac-575Vac, and offers a degree of protection of IP20 NEMA 1. It is designed to work with a network frequency of 50 Hz and supports a rated active power range of 90kW-250kW (125HP-400HP) for heavy-duty operations.

Nidec

UMI-0004CE-B1

UMI-0004CE-B1 Unitronics - Use UMI-0004CU-B1

Unitronics

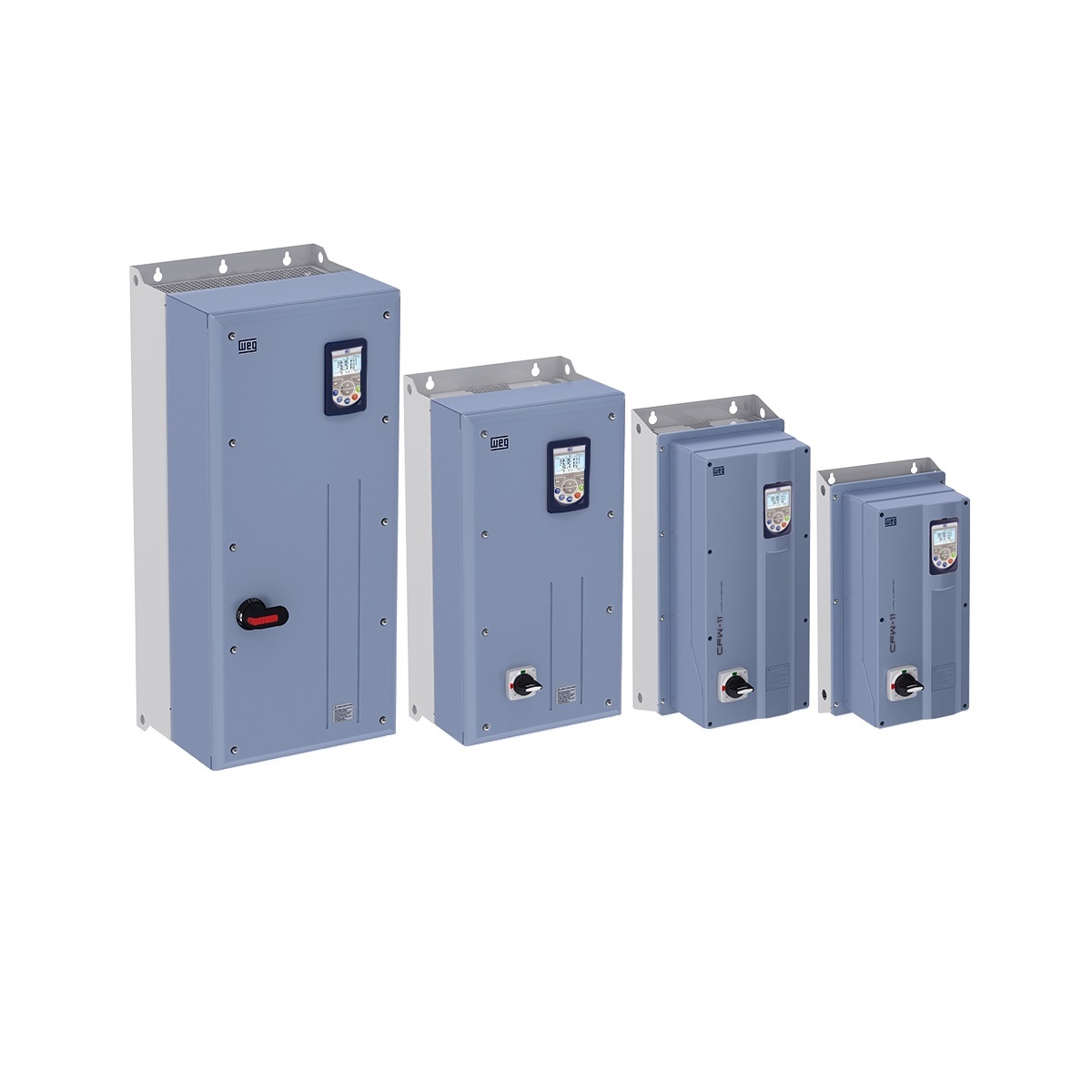

HVW701D105T2N12-I-A

WEG HVW701D105T2N12-I-A - STANDARD PANEL HVW701D105T2N12-I-A, HVAC Enclosed Drives (HVW)

WEG

HVW701C054T2N01-X-X

WEG HVW701C054T2N01-X-X - STANDARD PANEL HVW701C054T2N01-X-X, HVAC Enclosed Drives (HVW)

WEG

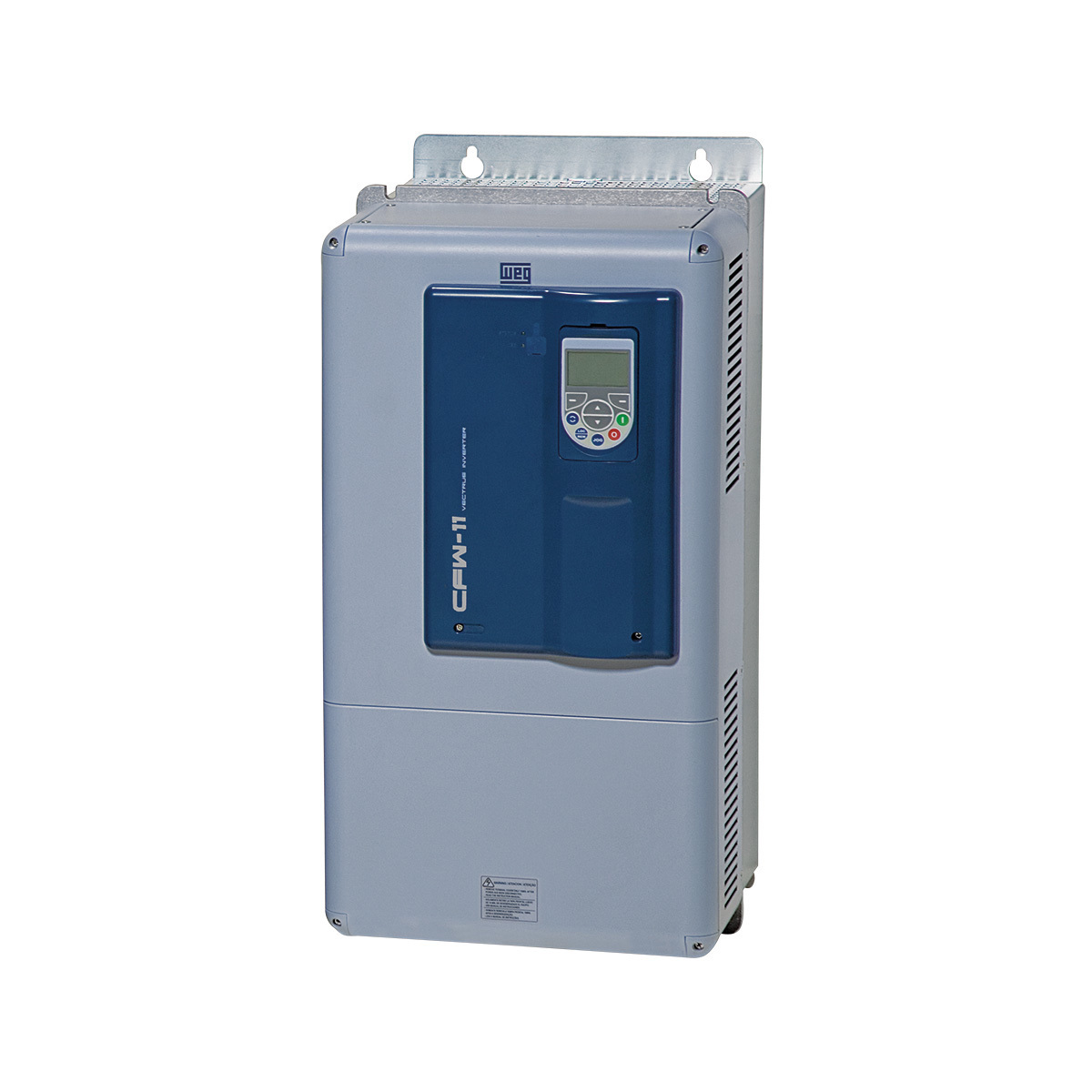

CFW110086T2O55DSZ

DRIVE CFW110086T2O55DSZ

WEG

CFW700E211T4NB20C3

WEG CFW700E211T4NB20C3 - DRIVE CFW700E0211T4NB20C3, CFW500/700 Drives

WEG

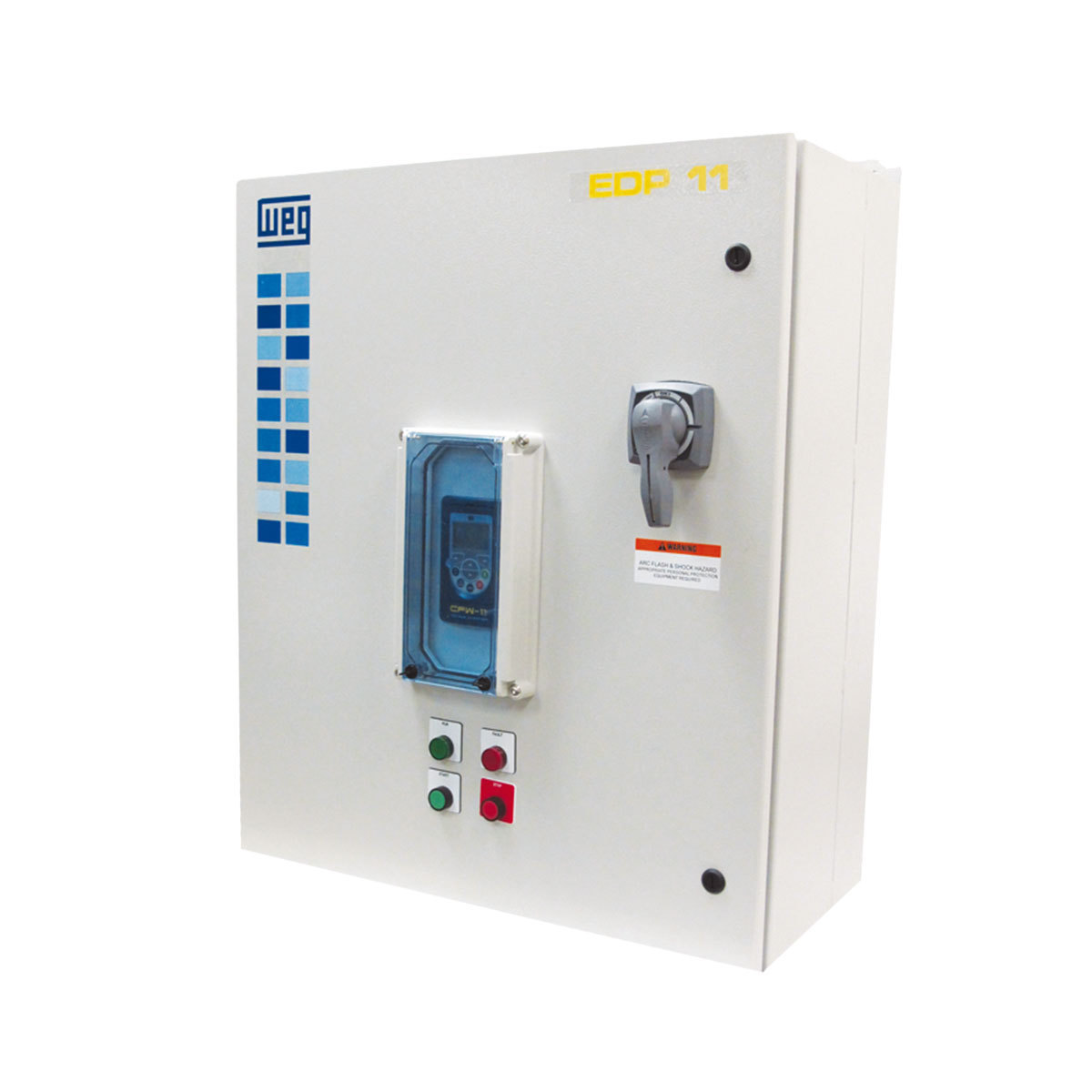

EDP11S024DN1211000

STANDARD PANEL EDP11S024DN1211000

WEG

I55AE355F1AV11002S

Lenze I55AE355F1AV11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H536mm x W250mm x D265mm. The communication protocol supported is CANopen, with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 132A (light-duty; 400Vac), 115A (light-duty; 480Vac), 110A (heavy-duty; 400Vac), and 96A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It operates on a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 75kW (light-duty; 400-480Vac) and 55kW (heavy-duty; 400-480Vac), with a rated power of 100HP (light-duty; 400-480Vac) and 75HP (heavy-duty; 400-480Vac).

Lenze

EDP11S024GN3R10000

STANDARD PANEL EDP11S024GN3R10000

WEG

HVW701D070T4N12-X-X

WEG HVW701D070T4N12-X-X - STANDARD PANEL HVW701D070T4N12-X-X, HVAC Enclosed Drives (HVW)

WEG

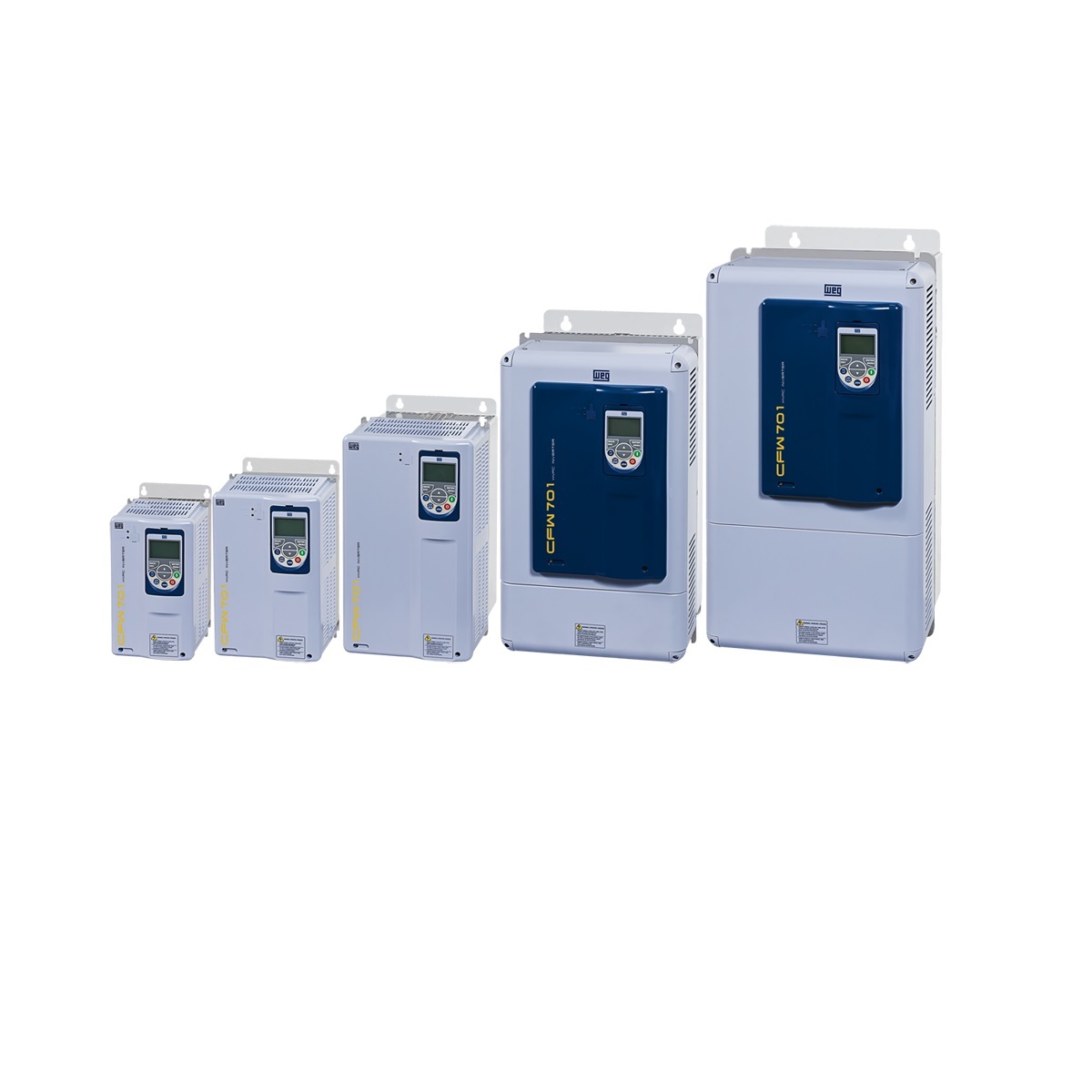

CFW701B04P2T5DBN1C3

DRIVE CFW701B04P2T5DBN1C3

WEG

GA80U2313ABM

GA80U2313ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 240 VAC, 313 A, IP20, General Purpose GA800 Series

Yaskawa

ATV312HD11M3

Schneider Electric ATV312HD11M3 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed with sensorless flux vector control and an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in heatsink, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), and has dimensions of H329.5mm x W245mm x D192mm. This model offers an IP21 degree of protection, a rated current of 54A (200Vac; 4kHz) with a maximum current of 81A for 60 seconds, and is suitable for wall mounting. Communication is facilitated through Modbus and CANopen protocols, supporting a 3-phase (3P) network with an output frequency range of 0.1-500 Hz. It includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for versatile connectivity. The current consumption is rated at 63.5A (200Vac; Isc = 22kA) and 55.6A (240Vac), with a rated active power of 11kW (15HP) and power dissipation/losses of 477 W.

Schneider Electric

EDP11S070DN1210000

STANDARD PANEL EDP11S070DN1210000

WEG

HS72-08401570A10101AB100

NIDEC HS72-08401570A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor, dual Safe Torque Off (STO) for high-speed applications, and utilizes air cooling. The dimensions are frame size 8, measuring H31.6" x W12.2" x D11.4" (H803mm x W310mm x D290mm). It supports Ethernet communication protocol, has a rated current of 184A under normal duty and 157A under heavy-duty conditions, and operates with a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C, with a degree of protection of IP20 NEMA 1 UL open. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of up to 3000 Hz. It includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 2 x digital outputs (100mA / 0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 90kW under normal duty and 75kW under heavy-duty, with a rated power of 125HP for both conditions.

Nidec

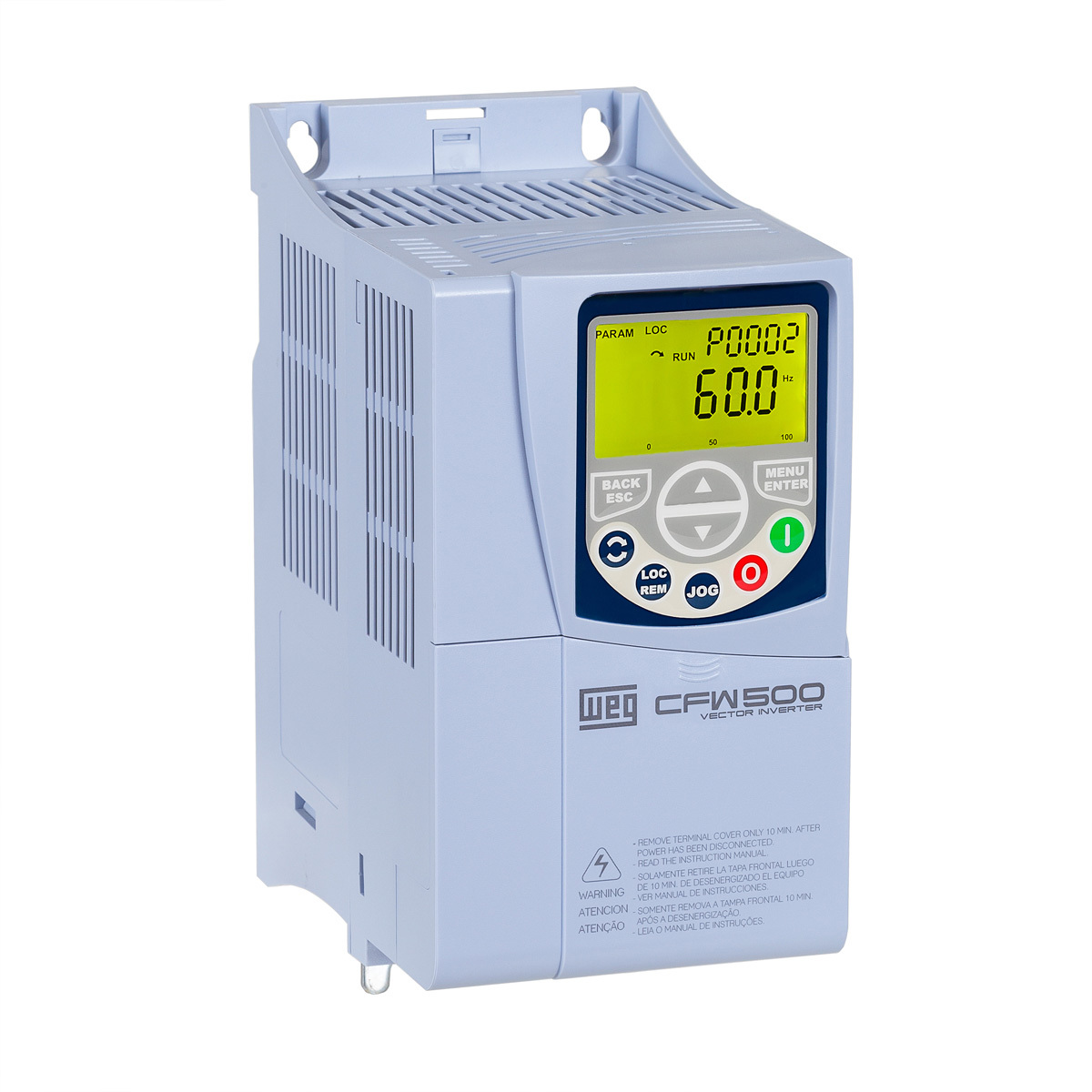

CFW500B06P5T4DB20G2

DRIVE CFW500B06P5T4DB20G2

WEG

I55AE315F1AV11004S

Lenze I55AE315F1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H347mm x W204.5mm x D222mm. The communication protocol supported is PROFIBUS. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. Rated current specifications are 38.4A (light-duty; 400Vac), 32.4A (light-duty; 480Vac), 32A (heavy-duty; 400Vac), and 27A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. It is designed for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) or up to 40°C (at a switching frequency of 8kHz or 16kHz), and has a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and has a rated active power of 18.5kW (light-duty; 400-480Vac) and 15kW (heavy-duty; 400-480Vac), equivalent to 25HP (light-duty) and 20HP (heavy-duty).

Lenze

CFW110211T4ON1Z-PGS

DRIVE CFW110211T4ON1Z-PGS

WEG

I5DAE318F10V10000S

Lenze I5DAE318F10V10000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Power units sub-range, designed with a built-in RFI filter. This inverter power unit does not feature a communication interface but is equipped with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 48A for light-duty at 400Vac, 40.8A for light-duty at 480Vac, 40A for heavy-duty at 400Vac, and 34A for heavy-duty at 480Vac. The supply voltage is rated at 400Vac / 480Vac, suitable for mounting in a control cabinet or on a surface/wall with an IP20 degree of protection. It operates on a 3-phase (3P / 3AC) network, with a rated active power of 18.5kW and a rated power of 25HP for heavy-duty applications at 400-480Vac.

Lenze
