Variable Frequency Drives (VFD)

I55AE137A10V0100KS

Lenze I55AE137A10V0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and supports EtherCAT communication protocol. The drive offers protection against overvoltage, leakage current, earth fault resistance, and motor overtemperature. It has a rated current of 2.4A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network is single-phase with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, all supporting various configurations. The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 120Vac.

Lenze

F600-11405070E10101AN103

NIDEC F600-11405070E10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed control of AC motors. It operates within an ambient air temperature range of -20°C to +40°C. This model features 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), and 1 analog input (4-20mA / 0-10Vdc; single-ended) alongside 3 digital inputs (24Vdc) that are configurable for 0-24Vdc. It is protected by an IP20 enclosure and has dimensions of frame size 11E, measuring H48.9" x W12.2" x D12.3" (H1242mm x W310mm x D312mm). The F600 series drive utilizes external line choke air cooling, supports a supply voltage of 380Vac-480Vac (400Vac / 415Vac) with a network frequency of 60 Hz, and communicates via Modbus RTU protocol. It is rated for a current of 507A under normal duty, with a rated active power of 280kW (or 450HP under normal duty), and is designed for a 3-phase input network.

Nidec

I55AE375F1AV11012S

Lenze I55AE375F1AV11012S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H536mm x W250mm x D265mm. This model supports Ethernet POWERLINK communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 180A (light-duty; 400Vac), 149A (light-duty; 480Vac), 150A (heavy-duty; 400Vac), and 124A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and delivers a rated active power of 90kW (light-duty; 400-480Vac) and 75kW (heavy-duty; 400-480Vac), equivalent to 125HP (light-duty; 400-480Vac) and 100HP (heavy-duty; 400-480Vac).

Lenze

CFW700E0211T4DB20C3

WEG CFW700E0211T4DB20C3 - DRIVE CFW700E0211T4DB20C3, CFW500/700 Drives

WEG

UMI-0300CU-B5

UMI-0300CU-B5 Unitronics - Use UMI-0300CU-B7

Unitronics

VFD150C53B-21

Variable Frequency Drive, 3 phase, 575 VAC Input, 10 HP, frame B, wall mount, IP20, NEMA 1

Delta

M702-09601310E10101AN100

NIDEC M702-09601310E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with dual Safe Torque Off (STO) and requires an external choke and air cooling for operation. It features dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 155A under normal duty and 131A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation ranges from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. The device is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 132kW under normal duty and 110kW under heavy-duty, corresponding to a rated power of 175HP and 150HP, respectively.

Nidec

I55AE318F1AV1100LS

Lenze I55AE318F1AV1100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H347mm x W204.5mm x D222mm. The communication protocol supported is PROFINET. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. Rated current specifications are 48A (light-duty; 400Vac), 40.8A (light-duty; 480Vac), 40A (heavy-duty; 400Vac), and 34A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. It is designed for control cabinet or surface/wall mounting, operates within an ambient air temperature range based on switching frequency, with a maximum of 45°C (at 2kHz or 4kHz) and 40°C (at 8kHz or 16kHz), and has a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and is rated for 22kW (light-duty; 400-480Vac) and 18.5kW (heavy-duty; 400-480Vac) active power, equivalent to 30HP (light-duty) and 25HP (heavy-duty).

Lenze

M701-09501040A10101AB100

NIDEC M701-09501040A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor, single Safe Torque Off (STO), and air cooling. It features dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 125A under normal duty and 104A under heavy-duty conditions. It requires a supply voltage of 500Vac-575Vac and is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection is IP20 NEMA 1 UL open, suitable for 3-phase input (3P) networks with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 1 x analog input (0-20mA / 4-20mA / -10...+10Vdc; differential; 11-bit conversion resolution), and 2 x analog inputs (0-20mA / 4-20mA / -10...+10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 110kW for normal duty and 75kW for heavy-duty, with rated power of 125HP under normal duty and 100HP under heavy-duty conditions.

Nidec

I55AE137F10V11004S

Lenze I55AE137F10V11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H155mm x W60mm x D130mm, and it supports the PROFIBUS communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current is 1.3A for heavy-duty applications at 400-480Vac, with a supply voltage of 400Vac / 480Vac. It is designed for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 400-480Vac.

Lenze

UMI-0220CU-B7

UMI-0220CU-B7 Unitronics - Unitronics VFD - B7 Series, 200-240V, 3 Phase, 22kW, 30HP, STO included

Unitronics

SP0401-HF

NIDEC SP0401-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a compact frame size of 0, measuring H12.677" x W2.441" x D8.898" (H322mm x W62mm x D226mm), and supports a supply voltage of 380Vac-480Vac (400Vac / 415Vac) with a rated current of 1.3A for heavy-duty operations. This wall-mounted unit operates within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. Communication is facilitated via Modbus RTU RS-485, accommodating a network frequency of 48-65 Hz on the supply input and 0-3000 Hz on the output. It includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs comprising 1 x (-9.8Vdc...9.8Vdc; differential) and 2 x (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution. Additionally, it has 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. The rated active power is 0.37kW for both normal and heavy-duty operations, equivalent to 1/2HP.

Nidec

M000-10203000EU0100AB100

NIDEC M000-10203000EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M000 series designed with a built-in brake transistor, requiring an external choke and air cooling for operation. It features a frame size of 10E with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model is rated for a heavy-duty current of 300A and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW for heavy-duty applications, equivalent to 125HP to 400HP.

Nidec

GA80U4038ABM

GA80U4038ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 38 A, IP20, General Purpose GA800 Series

Yaskawa

EDP11S045GN3R

STANDARD PANEL EDP11S045GN3R

WEG

M1110SC

Lenze M1110SC is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for water-tight and dust-tight applications, supporting Modbus communication protocol. It features thermal overload protection and solid state motor overload protection, with a rated current of 4A for 0-230Vac and supply voltage options of 120Vac or 240Vac. This device is suitable for control cabinet or surface/wall mounting and operates within an ambient air temperature range of -10 to +40 °C. It offers a degree of protection of NEMA 4 and is compatible with a single-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The M1110SC provides 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. Its rated active power is 0.75kW for 120-240Vac, and its rated power is 1HP for 120-240Vac.

Lenze

M701-08500630A10101AB100

NIDEC M701-08500630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 86A under normal duty and 63A under heavy-duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), and 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type). Additionally, it includes 1 analog input (0-20mA / 4-20mA / -10...+10Vdc; differential; 11-bit conversion resolution) and 2 analog inputs (0-20mA / 4-20mA / -10...+10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 75kW under normal duty and 45kW under heavy-duty, with a rated power of 75HP (normal duty) and 60HP (heavy-duty).

Nidec

M1420C

Lenze M1420C is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for water-tight and dust-tight applications, supporting Modbus communication protocol. It features thermal overload protection and solid state motor overload protection. The device operates at a rated current of 3.9A with a 400Vac supply voltage and 3.4A with a 460Vac supply voltage. It is suitable for control cabinet or surface/wall mounting and can operate in ambient air temperatures ranging from -10 to +40 °C. The M1420C offers a degree of protection of NEMA 4 and is compatible with a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It provides 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input (0-10Vdc) and 1 analog input (4-20mA). The rated active power is 1.5kW for both 400Vac and 480Vac supply voltages, with a rated power of 2HP for the same voltages.

Lenze

M12150E

Lenze M12150E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a water-tight and dust-tight corrosion-resistant stainless steel housing. It utilizes the Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device supports a rated current of 48A at 200Vac and 42A at 230Vac, with a supply voltage range of 200Vac-240Vac, accommodating 208Vac, 220Vac, and 230Vac. It is suitable for control cabinet or surface/wall mounting and operates within an ambient air temperature range of -10 to +40 °C. The M12150E offers a degree of protection rated at NEMA 4X and is designed for a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. The rated active power is 11kW, and the rated power is 15HP for a supply voltage of 200-240Vac.

Lenze

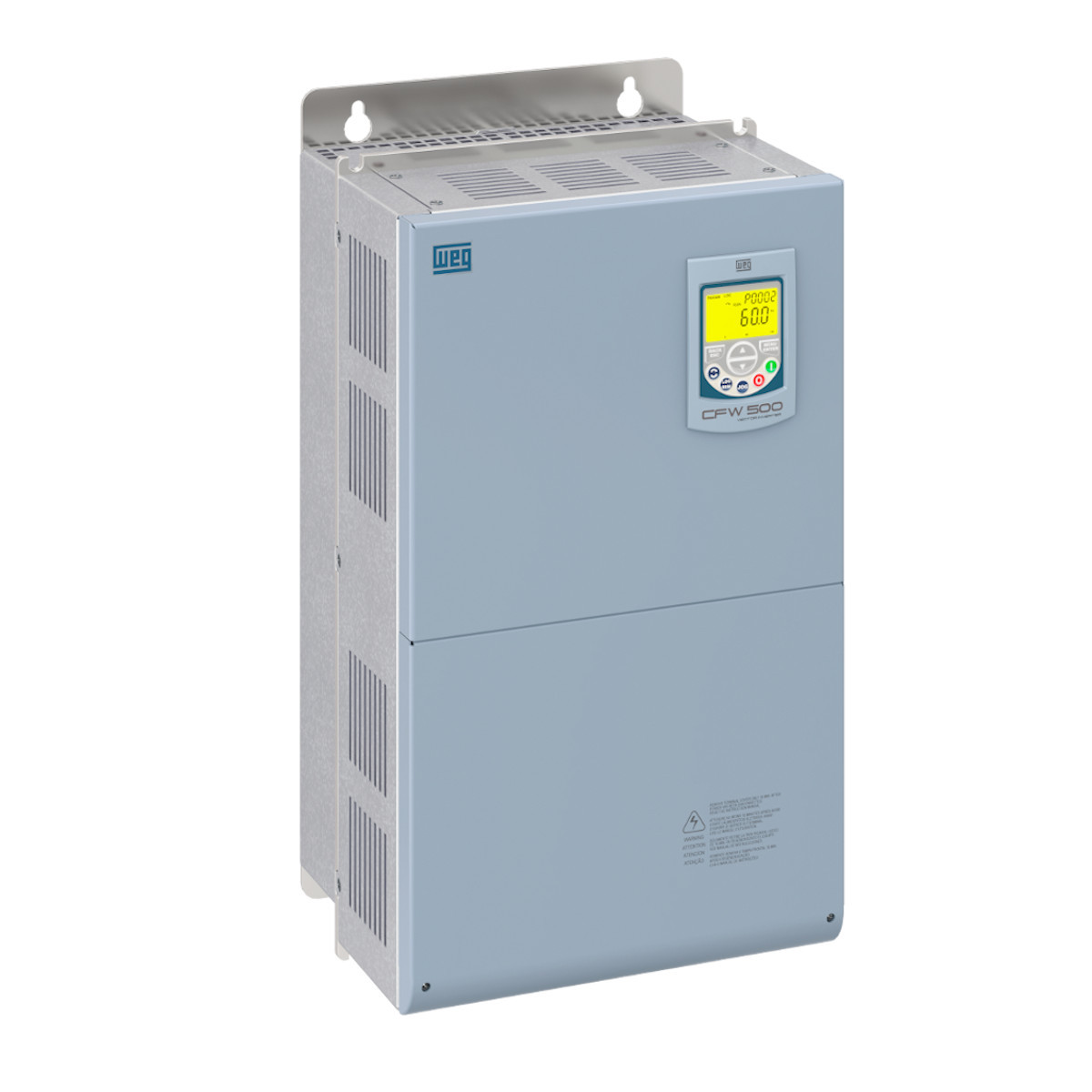

CFW500F0105T2DB20G2

DRIVE CFW500F0105T2DB20G2

WEG
