Variable Frequency Drives (VFD)

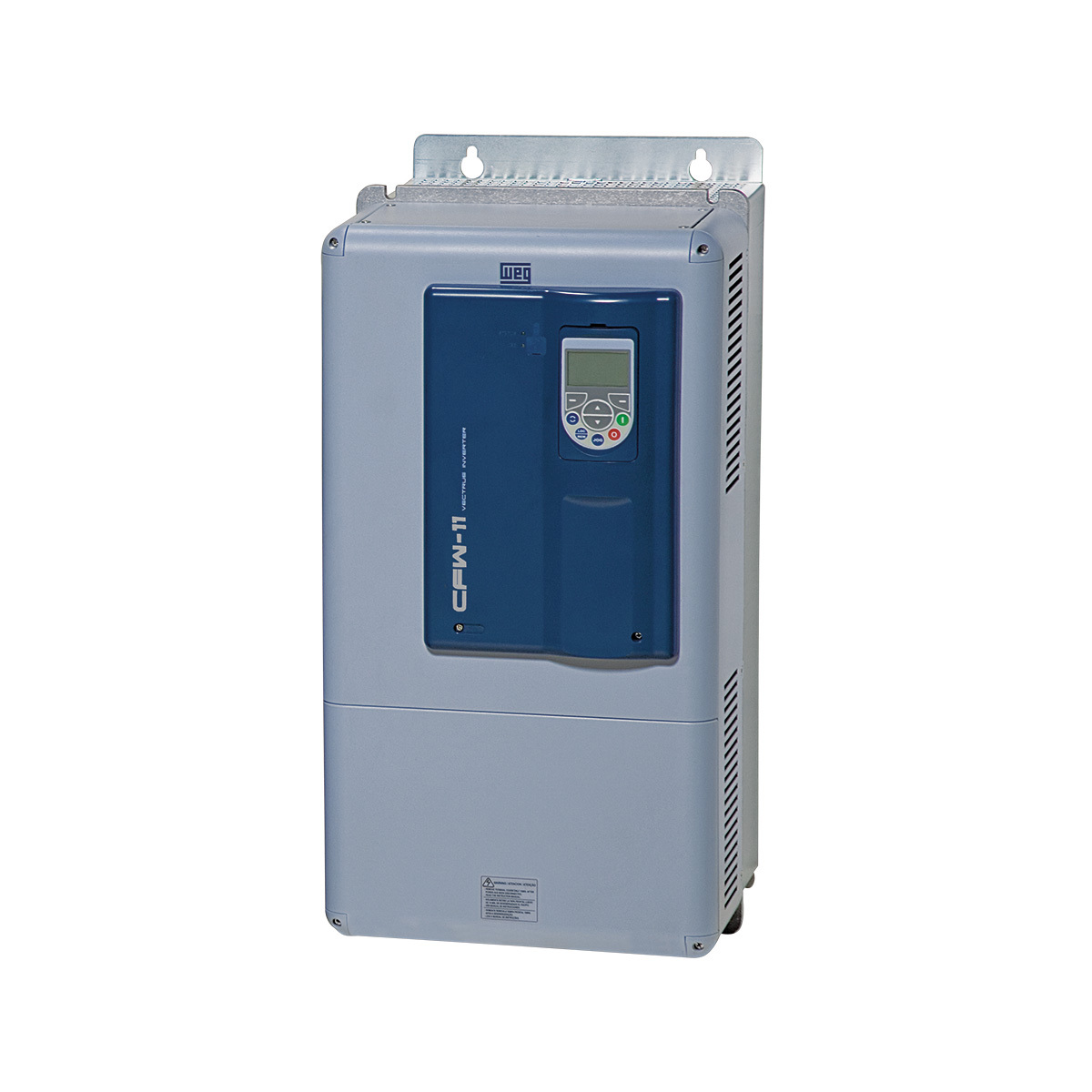

CFW110007T5ON1NFZ

DRIVE CFW110007T5ON1NFZ

WEG

QMP45A4

NIDEC QMP45A4 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 2 quadrant operation with air cooling. It operates within an ambient air temperature range of 0°C to +55°C and has a rated current of 45A. This model supports a supply voltage range of 208Vac-480Vac, accommodating various standard voltages such as 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. The device features a frame size 1A with dimensions of H22.6" x W13" x D8.7" (H573mm x W330mm x D272mm) and is rated with an IP00 degree of protection. It is designed for a single-phase input network (2P) and utilizes the Modbus RTU communication protocol. The QMP45A4 includes 3 digital outputs (240mA total including term.22 / 0-24Vdc; source) and 2 digital outputs (5A / 240Vac; source; relay contact type), alongside 1 analog input (-10Vdc to 10Vdc; differential with 14-bit conversion resolution) and 2 analog inputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; single-ended with 10-bit conversion resolution). Additionally, it features 3 digital inputs (0-24Vdc) and 2 analog outputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; source; single-ended with 10-bit conversion resolution). The rated active power is 15kW, and the rated power is 27HP.

Nidec

F600-03200080A10101AB103

NIDEC F600-03200080A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed control of AC motors. It operates within an ambient air temperature range of -20°C to +40°C. This model features 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), and 1 analog input (4-20mA / 0-10Vdc; single-ended) alongside 3 digital inputs (24Vdc) that are configurable between 0-24Vdc. It is protected by an IP20 enclosure and has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). The F600 series drive includes a built-in brake transistor, an internal line choke, and utilizes air cooling for temperature management. It requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a network frequency of 60 Hz and supports Modbus RTU communication protocol. The rated current for normal duty is 8A, with a rated active power of 1.5kW (2HP in normal duty). It is designed for a 3-phase input network (3P).

Nidec

I55AE215D10V0100MS

Lenze I55AE215D10V0100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports Ethernet/IP communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase connections, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 x analog output, multiple digital inputs with flexible functionality, 2 x analog inputs, and 1 x digital output. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE222D1AV01003S

Lenze I55AE222D1AV01003S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. This model adheres to the safe torque off (STO) safety standard and includes an I.O. conformal coating. Its dimensions are H250mm x W60mm x D130mm. It supports the Modbus RTU communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is designed for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection and is compatible with single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output, 5 digital inputs with flexible functionality, and 1 digital output, alongside 2 analog inputs that can be optionally used as voltage or current inputs. The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 230-240Vac.

Lenze

EDP11S070GN3R10000

STANDARD PANEL EDP11S070GN3R10000

WEG

M600-08500630A10101AB100

NIDEC M600-08500630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 86A under normal duty and 63A under heavy-duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying specifications detailed in the description. The rated active power is 75kW for normal duty and 45kW for heavy-duty, corresponding to 75HP and 60HP, respectively.

Nidec

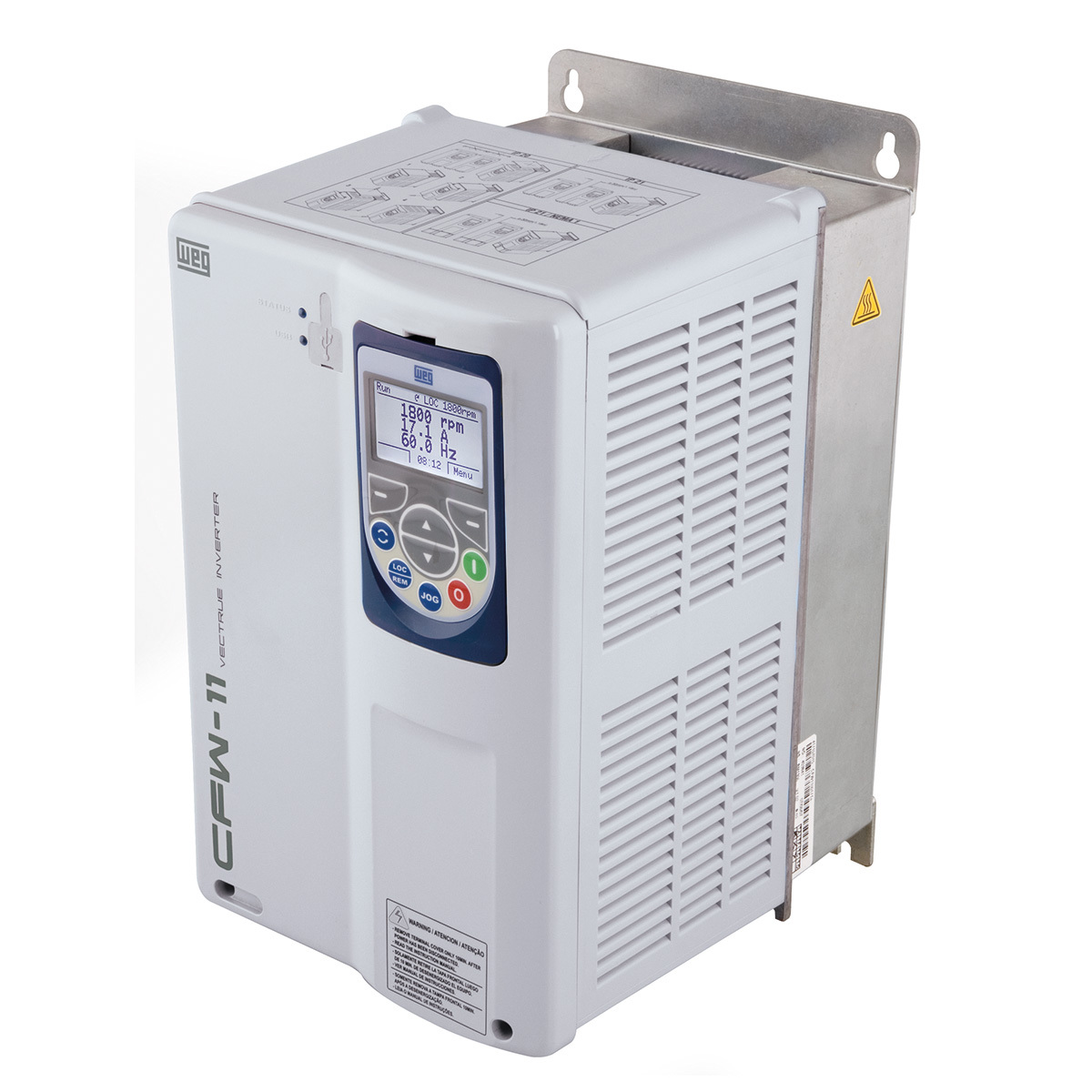

CFW110125T6ON1NBYZ

DRIVE CFW110125T6ON1NBYZ

WEG

CFW110142T4OYZ

DRIVE CFW110142T4OYZ

WEG

HVW701A007GN01200001

WEG HVW701A007GN01200001 - STANDARD PANEL HVW701A007GN01200001, HVAC Enclosed Drives (HVW)

WEG

I55AE375F10V1100WS

Lenze I55AE375F10V1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H536mm x W250mm x D265mm. This model supports Modbus TCP communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 180A (light-duty; 400Vac), 149A (light-duty; 480Vac), 150A (heavy-duty; 400Vac), and 124A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can operate within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with optional uses for two of them, 1 x digital output, and 2 x analog inputs with optional voltage or current input functionality. The rated active power is 90kW (light-duty; 400-480Vac) and 75kW (heavy-duty; 400-480Vac), with a rated power of 125HP (light-duty; 400-480Vac) and 100HP (heavy-duty; 400-480Vac).

Lenze

I55AE275F10V1100WS

Lenze I55AE275F10V1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, and includes a flying restart circuit and PID controller. It features a built-in RFI filter, standard I.O. conformal coating, and supports Modbus TCP communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 23A (light-duty; 400Vac), 18.3A (light-duty; 480Vac), 16.5A (heavy-duty; 400Vac), and 14A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network is 3-phase (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with optional uses for two of them, 2 x analog inputs with optional voltage or current input, and 1 x digital output. The rated active power is 11kW (light-duty; 400-480Vac) and 7.5kW (heavy-duty; 400-480Vac), with a rated power of 15HP (light-duty; 400-480Vac) and 10HP (heavy-duty; 400-480Vac).

Lenze

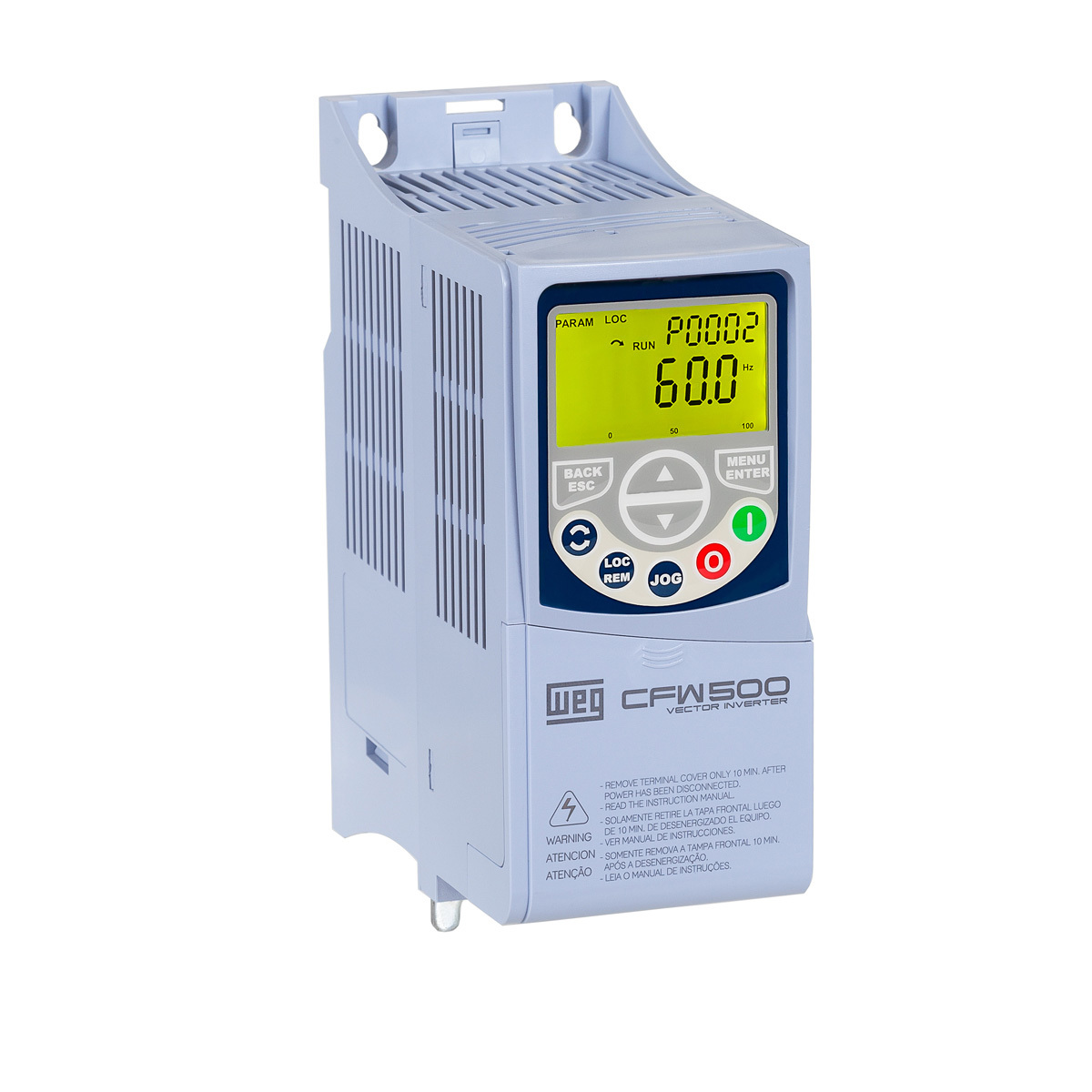

CFW500A02P6B2NB20G2

DRIVE CFW500A02P6B2NB20G2

WEG

HS70-04200185A10101AB100

NIDEC HS70-04200185A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for high-speed applications with a built-in brake transistor and a single Safe Torque Off (STO) feature. It operates with a rated frequency output of 0-3000Hz in open loop and 0-1250Hz in closed loop, supported by air cooling. The dimensions are frame size 4, measuring H15.4" x W4.9" x D7.9" (H391mm x W124mm x D200mm). It utilizes Ethernet for communication and has a rated current of 25A under normal duty and 18.5A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. The degree of protection is IP20 NEMA 1 UL open. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying conversion resolutions. The rated active power is 5.5kW under normal duty and 4kW under heavy-duty, equivalent to 7.5HP / 7-1/2HP and 5HP, respectively.

Nidec

ESV112N01SXB

ESV112N01SXB Lenze Variable Frequency Drive (VFD) - The SMV 1.5 hp (1.1 kW) drive features a 120 VAC (doubler) / 240 VAC 1Ø input in a convection cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

I55AE337F1AV11002S

Lenze I55AE337F1AV11002S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications with features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and has dimensions of H450mm x W250mm x D230mm. The drive supports CANopen communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 91.2A (light-duty; 400Vac), 78A (light-duty; 480Vac), 76A (heavy-duty; 400Vac), and 65A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can function in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with network frequencies of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, 2 analog inputs, and delivers a rated active power of 45kW (light-duty; 400-480Vac) and 37kW (heavy-duty; 400-480Vac), equivalent to 60HP (light-duty) and 50HP (heavy-duty).

Lenze

SM250

Lenze SM250 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed control of AC motors. It has dimensions of H146mm x W95mm x D171mm and operates on a supply voltage of 200Vac-240Vac (208Vac / 220Vac / 230Vac) with a rated current of 17.5A at 208Vac and 15.2A at 230Vac. This device is suitable for mounting in a control cabinet or on a surface/wall and can operate within an ambient air temperature range of 0-40°C. It does not feature a communication interface but supports a network frequency of 48-62 Hz on input and can output frequencies from 0 to 240 Hz. The SM250 includes 1 digital output (normally open relay; contacts rated 3A at 250Vac), 1 digital output (current-sourcing; rated 50mA at 12Vdc), and 4 digital inputs (active-high) (terminal 1; 13A; 13B; 13E). It is designed for a 3-phase network (3P / 3AC) and offers a rated active power of 4kW and a rated power of 5HP at 208Vac-240Vac.

Lenze

CFW500A01P6B2NB20Y2

WEG CFW500A01P6B2NB20Y2 - DRIVE CFW500A01P6B2NB20Y2, CFW500/700 Drives

WEG

C300-07600540A10101AB100

NIDEC C300-07600540A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 500Vac-690Vac (600Vac) and has dimensions of frame size 7 H21.93" x W10.63" x D11.02" (H557mm x W270mm x D280mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 73A under normal duty and 54A under heavy-duty conditions. It supports Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 55kW under normal duty and 45kW under heavy-duty, corresponding to a rated power of 75HP and 60HP, respectively.

Nidec

ESV371N04TXE

ESV371N04TXE Lenze Variable Frequency Drive (VFD) - The SMV 0.50 hp (0.37 kW) drive features a 400 / 480 VAC 3Ø input in a convection cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line fi

Lenze
