Variable Frequency Drives (VFD)

HS71-06200330A10101AB100

NIDEC HS71-06200330A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS71 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling for temperature management. The dimensions of this model are frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). It supports RS-485 communication protocol and operates with a rated current of 50A under normal duty and 33A under heavy-duty conditions. The supply voltage required is 200Vac-240Vac (220Vac / 230Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. This model has an IP20, NEMA 1, UL open degree of protection, and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of up to 3000 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying conversion resolutions. The rated active power is 11kW under normal duty and 7.5kW under heavy-duty, equivalent to 15HP and 10HP respectively.

Nidec

CFW110013T2O55DSZ

DRIVE CFW110013T2O55DSZ

WEG

SP1406

NIDEC SP1406 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a single Safe Torque Off (STO) and air cooling. It features a frame size of 1, with dimensions H15.2" x W3.93" x D8.62" (H386mm x W100mm x D219mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The rated current is 11A under normal duty and 9.5A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates with a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP1406 includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs comprising 1 x (-9.8Vdc...9.8Vdc; differential) and 2 x (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended). Additionally, it features 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. The rated active power is 5.5kW under normal duty and 4kW under heavy-duty, equivalent to 7.5HP / 7-1/2HP and 5HP respectively.

Nidec

HVW701A013DN01200000

WEG HVW701A013DN01200000 - STANDARD PANEL HVW701A013DN01200000, HVAC Enclosed Drives (HVW)

WEG

EDP11S142DN1210000

STANDARD PANEL EDP11S142DN1210000

WEG

UMI-0550FU-B7

UMI-0550FU-B7 Unitronics - Unitronics VFD - B7 Series, 520-600V, 3 Phase, 55kW, 75HP, STO included

Unitronics

EP216-I00-ENR0

NIDEC EP216-I00-ENR0 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Indexer series designed for point-to-point positioning with an ambient air temperature for operation range of 0°C to +40°C. It features 2 analog outputs (20mA / -10...+10Vdc; single-ended; 10-bit conversion resolution), an IP20 degree of protection, and dimensions of H9.6" x W3.4" x D5.23" (H243.84mm x W86.3mm x D132.84mm). This model also includes 8 digital outputs (150mA / 10-30Vdc; source), 1 analog input (-10...+10Vdc; differential; 14-bit conversion resolution), and 16 digital inputs (10-30Vdc; source). It supports a supply voltage (AC) of 90Vac-264Vac (120Vac / 220Vac / 230Vac / 240Vac), utilizes RS-485 Modbus RTU for communication, and operates with a rated current of 16A. The device is suitable for both single-phase input (2P) or 3-phase input (3P) networks and has a rated active power of 4.8kW. It is RoHS compliant and employs air cooling for temperature management.

Nidec

EDP11S088GN12-PGS

WEG EDP11S088GN12-PGS - STANDARD PANEL EDP11S088GN12-PGS, Enclosed Drive Packages (EDP)

WEG

I55AE255C1AV01003S

Lenze I55AE255C1AV01003S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H250mm x W90mm x D130mm. It supports Modbus RTU communication protocol and includes protection functions against overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 27.6A for light-duty (230-240Vac) and 23A for heavy-duty (230-240Vac) applications. It operates on a supply voltage of 230Vac / 240Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and a maximum of 40°C at a switching frequency of 8kHz or 16kHz. It has an IP20 degree of protection, is designed for a 3-phase (3P / 3AC) network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 7.5kW for light-duty (230-240Vac) and 5.5kW for heavy-duty (230-240Vac), with a rated power of 10HP for light-duty (230-240Vac) and 7-1/2HP for heavy-duty (230-240Vac).

Lenze

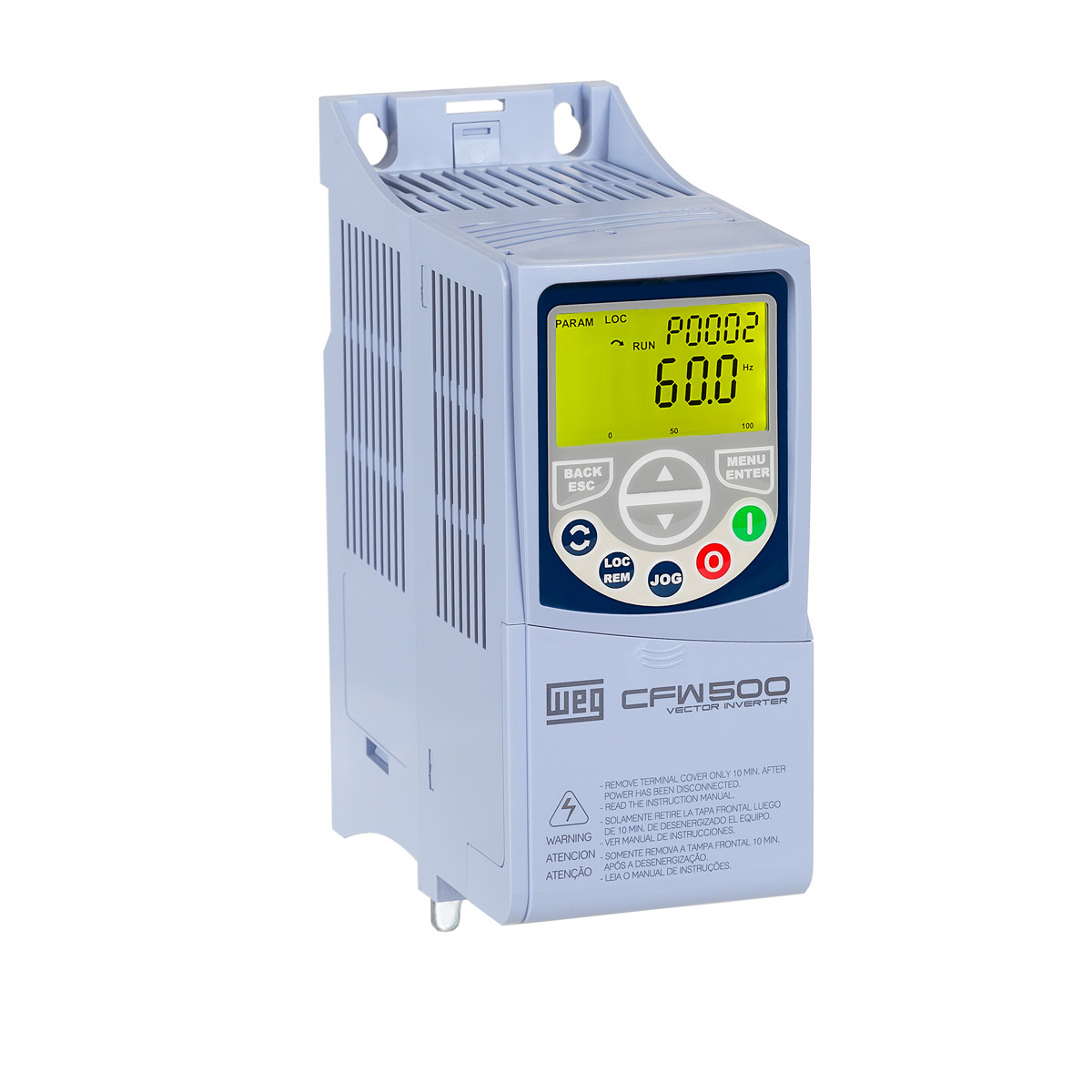

CFW500A02P6T4NB20

DRIVE CFW500A02P6T4NB20

WEG

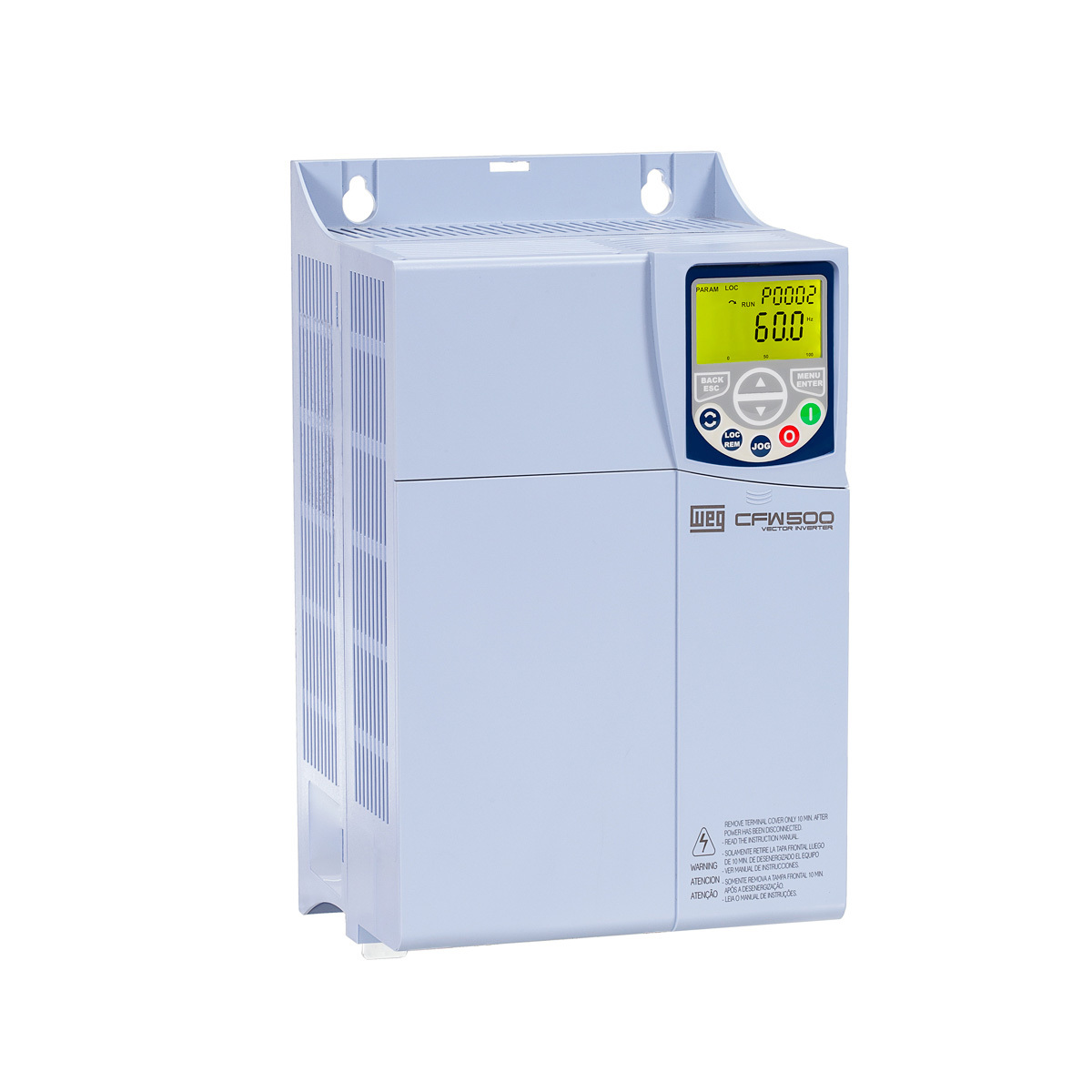

CFW500D31P0T4DB20

DRIVE CFW500D31P0T4DB20

WEG

I55AE315F10V1100KS

Lenze I55AE315F10V1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H347mm x W204.5mm x D222mm. It supports EtherCAT communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 38.4A for light-duty at 400Vac, 32.4A for light-duty at 480Vac, 32A for heavy-duty at 400Vac, and 27A for heavy-duty at 480Vac. It operates on a supply voltage of 400Vac / 480Vac and is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, 5 x digital inputs with optional uses for two of them, 2 x analog inputs with optional voltage or current input, and 1 x digital output. The rated active power is 18.5kW for light-duty and 15kW for heavy-duty, with a rated power of 25HP for light-duty and 20HP for heavy-duty, both at 400-480Vac.

Lenze

I55AE137B10V1100MS

Lenze I55AE137B10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, standard I.O. conformal coating, and dimensions of H155mm x W60mm x D130mm. This model supports Ethernet/IP communication protocol and includes protection functions for overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A (heavy-duty; 230-240Vac), with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW (heavy-duty; 230-240Vac), and the rated power is 1/2HP (heavy-duty; 230-240Vac).

Lenze

I55AE137D10V01000S

Lenze I55AE137D10V01000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H155mm x W60mm x D130mm, and lacks a communication interface. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, all supporting various configurations. The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

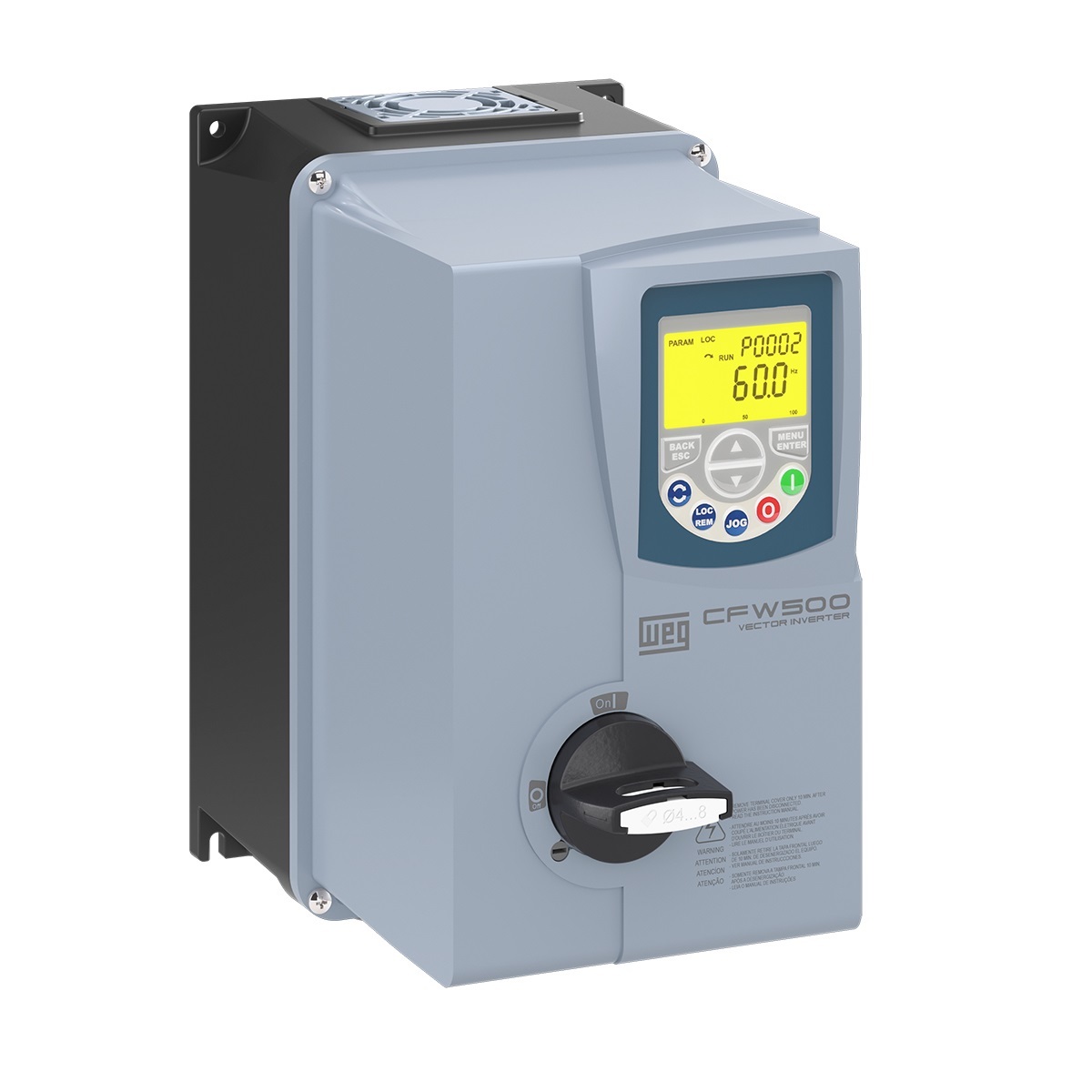

CFW500A07P3B2DB66DSG2

DRIVE CFW500A07P3B2DB66DSG2

WEG

M600-08600860A10101AB100

NIDEC M600-08600860A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 108A under normal duty and 86A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input (3P) network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs (-10...+10Vdc; single-ended; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (100mA / 0-24Vdc; source), 1 x digital output (2A / 240Vac; relay contact type), and multiple analog inputs with varying specifications, including differential and single-ended configurations with 11-bit conversion resolution. The rated active power is 90kW under normal duty and 75kW under heavy-duty, corresponding to 125HP and 100HP, respectively.

Nidec

HS72-07400770A10101AB100

NIDEC HS72-07400770A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for high-speed applications with a built-in brake transistor and dual Safe Torque Off (STO) features. It operates with variable frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop, supported by air cooling. The device has dimensions of frame size 7, measuring H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm), and uses Ethernet for communication. It is rated for a current of 94A under normal duty and 77A under heavy-duty conditions, with a supply voltage range of 380Vac-480Vac (specifically 400Vac / 415Vac). The operational ambient air temperature range is -20°C to +40°C, and it has an IP20 NEMA 1 UL open degree of protection. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It includes 2 x digital inputs (0-24Vdc), with one terminal that can be configured as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 45kW under normal duty and 37kW under heavy-duty, with a rated power of 60HP for both conditions.

Nidec

I55AE215B10V11004S

Lenze I55AE215B10V11004S is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for precise control of motor speed and torque. It falls under the Drives sub-range and offers features such as DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. The design includes a built-in RFI filter, standard I.O., and conformal coating. Its dimensions are H250mm x W60mm x D130mm, and it supports the PROFIBUS communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, with an ambient air temperature for operation of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz. The degree of protection is IP20, designed for a single-phase / 1P network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE222D10V0100MS

Lenze I55AE222D10V0100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It has a standard I.O. conformal coating design, with dimensions of H250mm x W60mm x D130mm, and supports Ethernet/IP communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. It accommodates both single-phase and three-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive features 1 x analog output, 5 x digital inputs with flexible functionality, 2 x analog inputs, and 1 x digital output. It has a rated active power of 2.2kW and a rated power of 3HP for heavy-duty applications at 230-240Vac.

Lenze

HVW701B017T4N01-J-C

WEG HVW701B017T4N01-J-C - STANDARD PANEL HVW701B017T4N01-J-C, HVAC Enclosed Drives (HVW)

WEG
