Variable Frequency Drives (VFD)

M600-09501310E10101AN100

NIDEC M600-09501310E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed for variable speed control with a single Safe Torque Off (STO) and requires an external choke and air cooling. It features dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm), and operates with an RS-485 Modbus RTU communication protocol. The rated current is 150A under normal duty and 131A under heavy-duty conditions, with a supply voltage range of 500Vac-575Vac. It is designed to operate in ambient air temperatures ranging from -20°C to +40°C and has a degree of protection rated at IP20 NEMA 1. This inverter supports a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x additional digital inputs, 3 x digital outputs plus 1 x digital output with relay contact type, and 3 x analog inputs with varying specifications. The rated active power is 110kW under normal duty and 90kW under heavy-duty, equivalent to 150HP and 125HP, respectively.

Nidec

ATV71HU75M3S337

Schneider Electric ATV71HU75M3S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control. It features sensorless flux vector control, ENA System Vector control with or without speed feedback, and can deliver 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model comes with a built-in EMC filter, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 170-264Vac, accommodating 200Vac, 220Vac, 230Vac, and 240Vac nominal values. The dimensions are H295mm x W210mm x D213mm, and it has a conformal coating for chemical resistance. With an IP20 and UL type 1 degree of protection, it supports a rated current of 33A at 230Vac for 3-phase and 27.5A for single-phase at 4kHz, with maximum currents of 45.3A (single-phase) and 54.3A (3-phase) for 2 seconds, and 41.3A (single-phase) and 49.5A (3-phase) for 60 seconds. Wall mounting is the prescribed mounting mode. Communication is facilitated via Modbus and CANopen protocols, and it is compatible with both single-phase and 3-phase networks, outputting frequencies from 0.1 to 599 Hz. It includes 1 analog output, 5+1 programmable digital inputs, 3 digital outputs, and 2 analog inputs for comprehensive connectivity. Current consumption is rated at 47.3A for single-phase and 45A for 3-phase at 200Vac, with rated active power of 7.5kW for 3-phase and 5.5kW for single-phase, corresponding to 10HP and 7.5HP respectively.

Schneider Electric

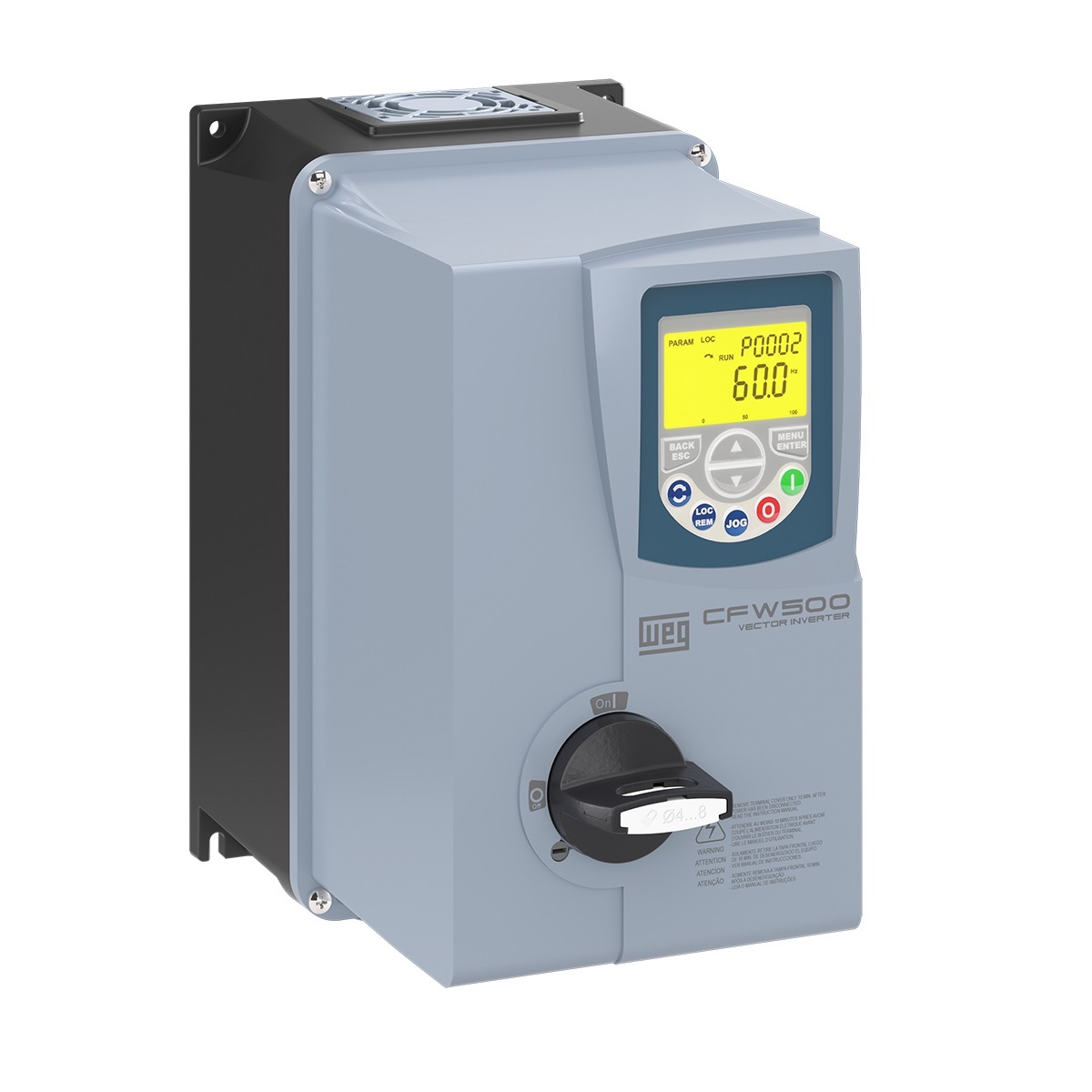

CFW500A01P0T4DB66DSG2

DRIVE CFW500A01P0T4DB66DSG2

WEG

CFW701E80P0T5NBN1C3

DRIVE CFW701E80P0T5NBN1C3

WEG

I55AE155D1AV01003S

Lenze I55AE155D1AV01003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports Modbus RTU communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It can be used in single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 0.55kW and a rated power of 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE355F10V11000S

Lenze I55AE355F10V11000S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, standard I.O. conformal coating, and dimensions of H536mm x W250mm x D265mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 132A (light-duty; 400Vac), 115A (light-duty; 480Vac), 110A (heavy-duty; 400Vac), and 96A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 75kW (light-duty; 400-480Vac) and 55kW (heavy-duty; 400-480Vac), with a rated power of 100HP (light-duty; 400-480Vac) and 75HP (heavy-duty; 400-480Vac).

Lenze

ESV152N04TLC

ESV152N04TLC Lenze Variable Frequency Drive (VFD) - The SMV 2.0 hp (1.5 kW) drive features a 400 / 480 VAC 3Ø filtered input with input disconnect in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch a

Lenze

HVW701C045GN01200001

WEG HVW701C045GN01200001 - STANDARD PANEL HVW701C045GN01200001, HVAC Enclosed Drives (HVW)

WEG

ESV751N06TXE

ESV751N06TXE Lenze Variable Frequency Drive (VFD) - The SMV 1.0 hp (0.75 kW) drive features a 480 / 600 VAC 3Ø input in a convection cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filt

Lenze

F600-09202160E10101AN103

NIDEC F600-09202160E10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 200Vac-240Vac, specifically at 220Vac or 230Vac, and operates on a 60 Hz network frequency. It features an ambient air temperature range for operation between -20°C and +40°C. This model is equipped with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), 3 additional digital inputs (0-24Vdc; configurable), and 2 digital outputs (240Vac; relay contact type). It has an IP20 degree of protection and utilizes external line choke air cooling for its design. The dimensions are frame size 9E, measuring H42.1" x W12.2" x D11.4" (H1069mm x W310mm x D290mm). The drive supports Modbus RTU communication protocol, has a rated current of 216A for normal duty, and provides a rated active power of 55kW (75HP) for normal duty.

Nidec

EDP11S105GN3R

STANDARD PANEL EDP11S105GN3R

WEG

HVW701A005T4N01-J-A

WEG HVW701A005T4N01-J-A - STANDARD PANEL HVW701A005T4N01-J-A, HVAC Enclosed Drives (HVW)

WEG

M400-02100056A10101AB100

NIDEC M400-02100056A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). This model supports multiple communication protocols, including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 5.6A for both normal and heavy-duty applications and requires a supply voltage of 100Vac-120Vac. The ambient air temperature for operation ranges from -20°C to +60°C, and it offers a degree of protection of IP20 NEMA 1. Designed for a single-phase input (2P) network with a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz, it includes 2 x analog outputs, 5 + 1 + 2 digital inputs, and 2 + 1 digital outputs, alongside 1 + 1 analog inputs. The rated active power is 1.1kW, and the rated power is 1.5HP / 1-1/2HP for both normal and heavy-duty operations.

Nidec

M701-09402240A10101AB100

NIDEC M701-09402240A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 266A under normal duty and 224A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The degree of protection is IP20 NEMA 1 UL open, and it is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device features 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type), and analog inputs including 1 x differential (0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution) and 2 x single-ended (0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). It has a rated active power of 132kW under normal duty and 110kW under heavy-duty, equivalent to 200HP and 150HP respectively.

Nidec

I55AE175A10V01001S

Lenze i55AE175A10V01001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for application I.O. with conformal coating. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. This compact inverter has dimensions of H250mm x W60mm x D130mm and does not include a communication interface. It offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 4.2A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 x analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 x digital inputs (PNP/NPN logic), 2 x digital outputs (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 120Vac.

Lenze

UMI-0007CU-B7

UMI-0007CU-B7 Unitronics - Unitronics VFD - B7 Series, 200-240V, 3 Phase, 0.75kW, 1HP, STO included

Unitronics

HVW701A005T4N01-X-B

WEG HVW701A005T4N01-X-B - STANDARD PANEL HVW701A005T4N01-X-B, HVAC Enclosed Drives (HVW)

WEG

C200-09202190A10101AB100

NIDEC C200-09202190A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and has dimensions of frame size 9A H43.62" x W12.21" x D11.42" (H1108mm x W310mm x D290mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 266A for Normal duty and 219A for Heavy-duty. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation is specified between -20°C and +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 x digital outputs (one 50mA / 0-24Vdc; source; PWM and one 2A / 240Vac; source; relay contact type). Additionally, it includes 2 x analog inputs (one 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution and one 0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 75kW for Normal duty and 55kW for Heavy-duty, corresponding to a rated power of 100HP for Normal duty and 75HP for Heavy-duty.

Nidec

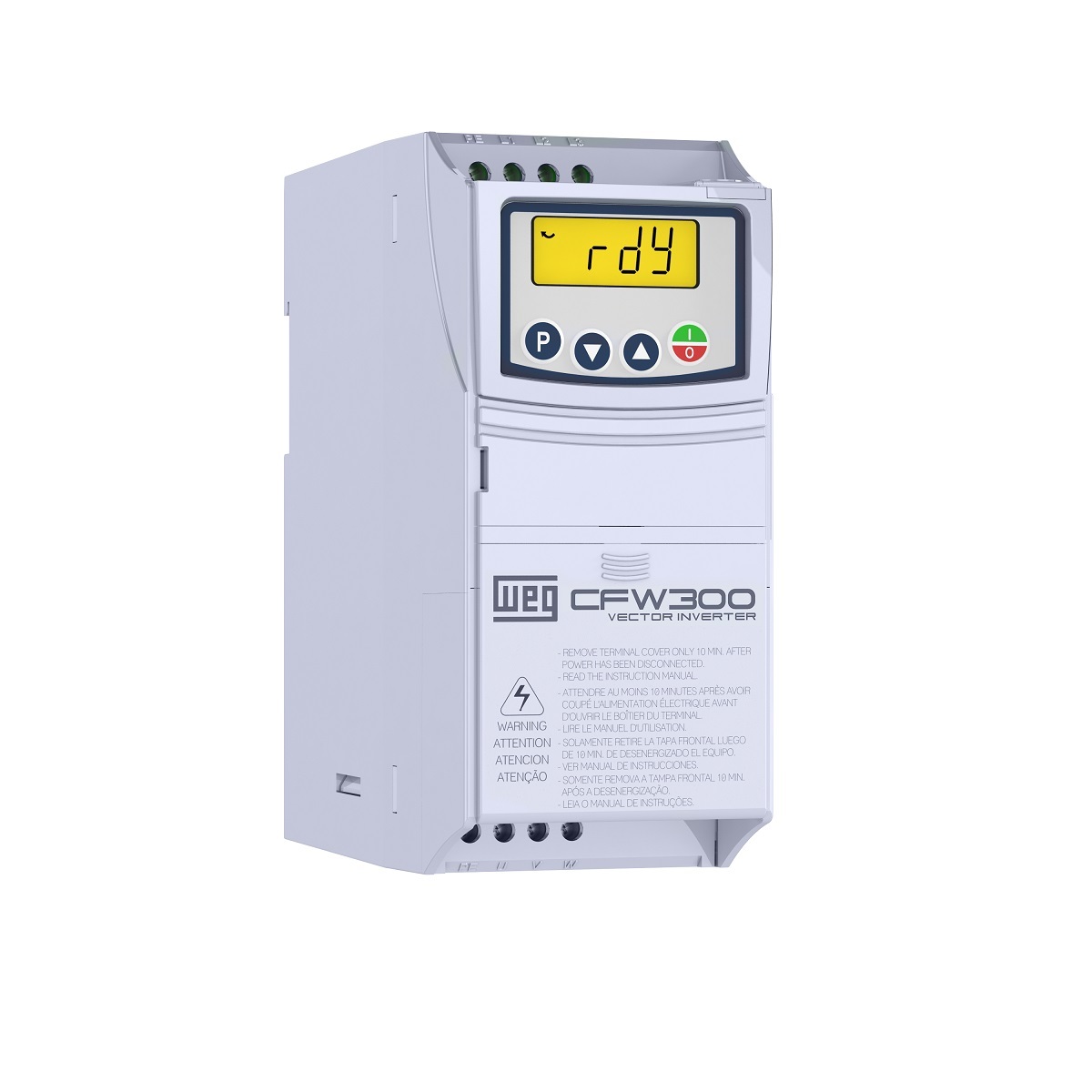

CFW300A01P6S1NB20

DRIVE CFW300A01P6S1NB20

WEG

HVW701E211T4N12-J-B

WEG HVW701E211T4N12-J-B - STANDARD PANEL HVW701E211T4N12-J-B, HVAC Enclosed Drives (HVW)

WEG
