Variable Frequency Drives (VFD)

I55AE255F1AV11000S

Lenze I55AE255F1AV11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and has dimensions of H250mm x W90mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports rated currents of 15.6A (light-duty; 400Vac), 13.2A (light-duty; 480Vac), 13A (heavy-duty; 400Vac), and 11A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive features 1 x analog output, multiple digital inputs with optional uses, 2 x analog inputs with optional voltage or current input, and has a rated active power of 7.5kW (light-duty; 400-480Vac) and 5.5kW (heavy-duty; 400-480Vac), equivalent to 10HP (light-duty) and 7-1/2HP (heavy-duty).

Lenze

ATV71HC20Y

Schneider Electric ATV71HC20Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series, designed for variable speed and frequency control with a U/F ratio of 2 points / 5 points. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model comes with a built-in EMC filter, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, with specific nominal voltages at 480Vac, 500Vac, 600Vac, and 690Vac. The dimensions are H1190mm x W595mm x D377mm, and it has a conformal coating for chemical resistance. The degree of protection is IP30 UL type 1. The rated current specifications are 240A at 500Vac, 192A at 575Vac, 220A at 690Vac, with a maximum current of 396A for 2 seconds and 360A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. Designed for a 3-phase network with an output frequency range of 0.1-500 Hz, it includes 1 analog output, 5+1 digital inputs with programmable functions, and 3 digital outputs. The analog inputs include one for -10...+10Vdc and another for 0-10Vdc / 0-20mA signals. The current consumption is rated at 227A for 500Vac (160kW), 204A for 600Vac (250 HP), and 212A for 690Vac (200kW), with rated active power of 200kW at 690Vac and 160kW at 500Vac.

Schneider Electric

EDP11S024GN12-PGS

WEG EDP11S024GN12-PGS - STANDARD PANEL EDP11S024GN12-PGS, Enclosed Drive Packages (EDP)

WEG

I55AE315F1AV1100WS

Lenze I55AE315F1AV1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H347mm x W204.5mm x D222mm. This model supports Modbus TCP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 38.4A (light-duty; 400Vac), 32.4A (light-duty; 480Vac), 32A (heavy-duty; 400Vac), and 27A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase (3P / 3AC) network, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The unit includes 1 x analog output, 5 x digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and has a rated active power of 18.5kW (light-duty; 400-480Vac) and 15kW (heavy-duty; 400-480Vac), equivalent to 25HP (light-duty; 400-480Vac) and 20HP (heavy-duty; 400-480Vac).

Lenze

HVW701A016T2N01-X-C

WEG HVW701A016T2N01-X-C - STANDARD PANEL HVW701A016T2N01-X-C, HVAC Enclosed Drives (HVW)

WEG

ATV71HU22S6X

Schneider Electric ATV71HU22S6X is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control of electric motors. It features sensorless flux vector control, ENA system vector control with or without speed feedback, and can deliver 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. This model comes with a built-in heatsink, operates on a supply voltage of 425-660Vac (with nominal voltages of 440Vac, 480Vac, 500Vac, and 600Vac), and offers a degree of protection rated at IP20, IP21, and UL type 1. Its dimensions are H295mm x W210mm x D213mm. The rated current is 4.5A at 500Vac (4kHz), 3.9A at 575Vac (4kHz), with a maximum current of 7.4A for 2 seconds and 6.8A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. Designed for a 3-phase network with an output frequency range of 0.1-599 Hz, it includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input. It also features 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts), alongside 2 analog inputs for comprehensive control. The current consumption is rated at 7.6A for 500Vac and 6.7A for 600Vac, with a rated active power of 2.2kW and a rated power of 3HP.

Schneider Electric

M000-11502540EU0100AB100

NIDEC M000-11502540EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M000 series designed with a built-in brake transistor, requiring an external choke and air cooling for operation. It features frame size 11E with dimensions of H46.9" x W12.2" x D12.3" (H1190mm x W310mm x D312mm). This model has a rated current of 254A for heavy-duty applications and operates on a supply voltage of 500Vac-575Vac. It is equipped with a degree of protection IP20 NEMA 1 and is designed to work with a network frequency (supply input) of 50 Hz. The rated active power ranges from 90kW to 250kW for heavy-duty tasks, corresponding to a rated power of 125HP to 400HP.

Nidec

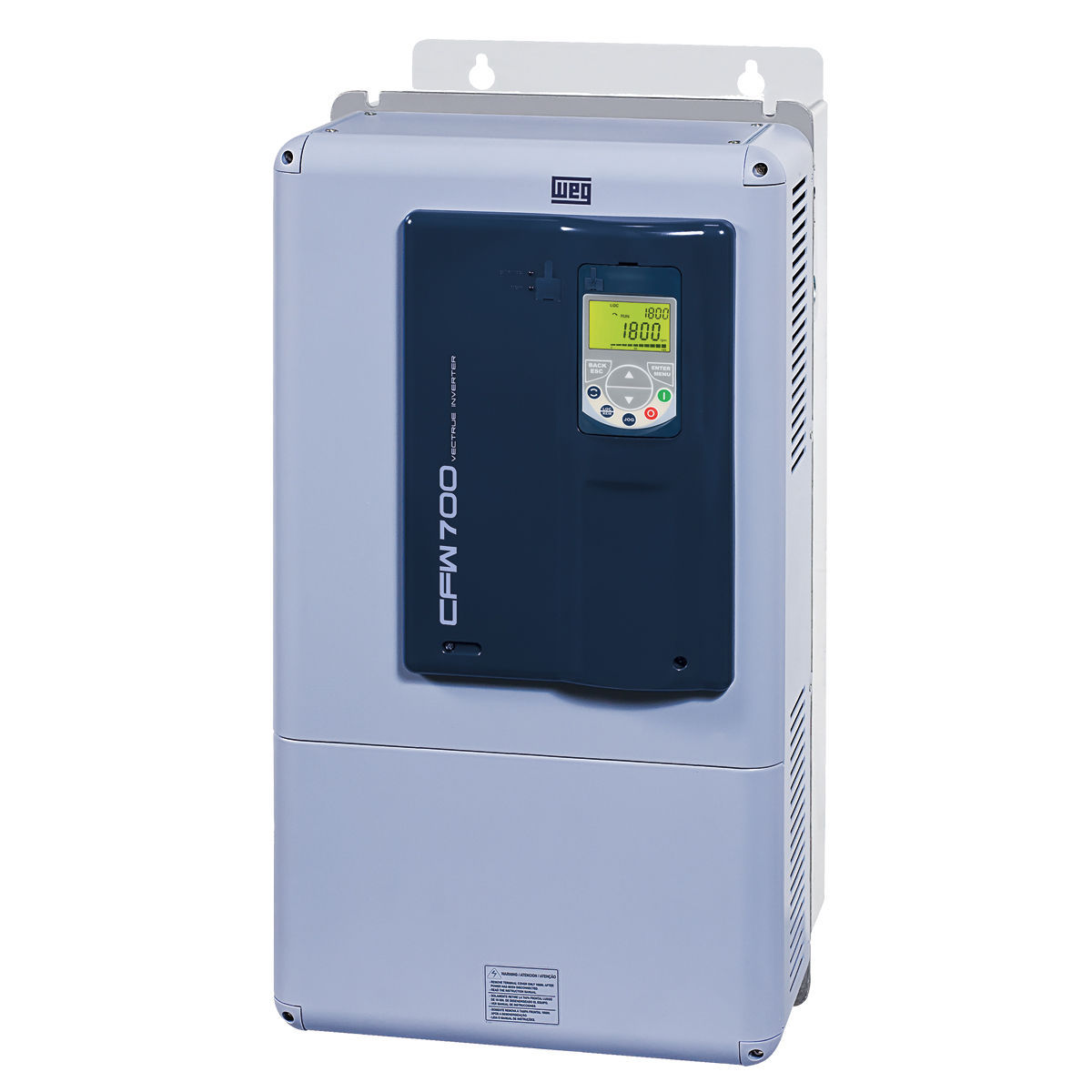

CFW700E0142T4NB20C3

DRIVE CFW700E0142T4NB20C3

WEG

EDP11S720GN3R

STANDARD PANEL EDP11S720GN3R

WEG

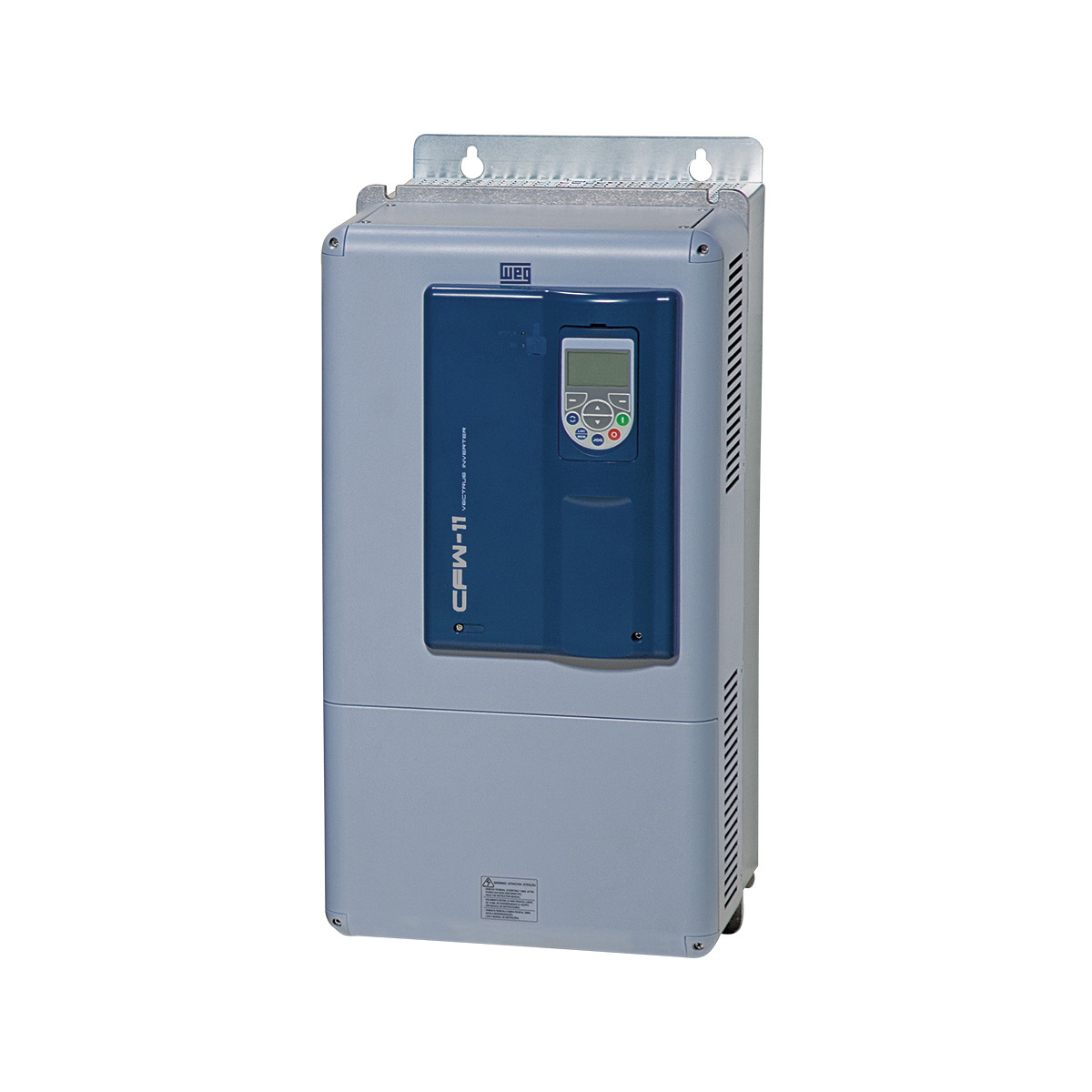

CFW110105T4ON1Z

DRIVE CFW110105T4ON1Z

WEG

ATV312H037M2B

Schneider Electric ATV312H037M2B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed for sensorless flux vector control with an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in EMC filter and heatsink, and it is a version without a control I.O. card to allow space for a communication card. The supply voltage ranges from 170-264Vac, accommodating 200Vac, 220Vac, 230Vac, and 240Vac nominal values. Its dimensions are H145mm x W72mm x D132mm, with an IP21 degree of protection. The rated current is 3.3A at 200Vac with a 4kHz frequency and a maximum current of 5A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. Designed for single-phase networks, it outputs frequencies from 0.1 to 500 Hz. The device includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), 1 analog input (0-10Vdc), 1 analog input (0-20mA / 4-20mA), and 1 analog input (-10...+10Vdc). Current consumption is 5.3A at 200Vac and 4.4A at 240Vac, with a rated active power of 370W / 0.37kW and a rated power of 1/2HP. Power dissipation/losses are 41 W.

Schneider Electric

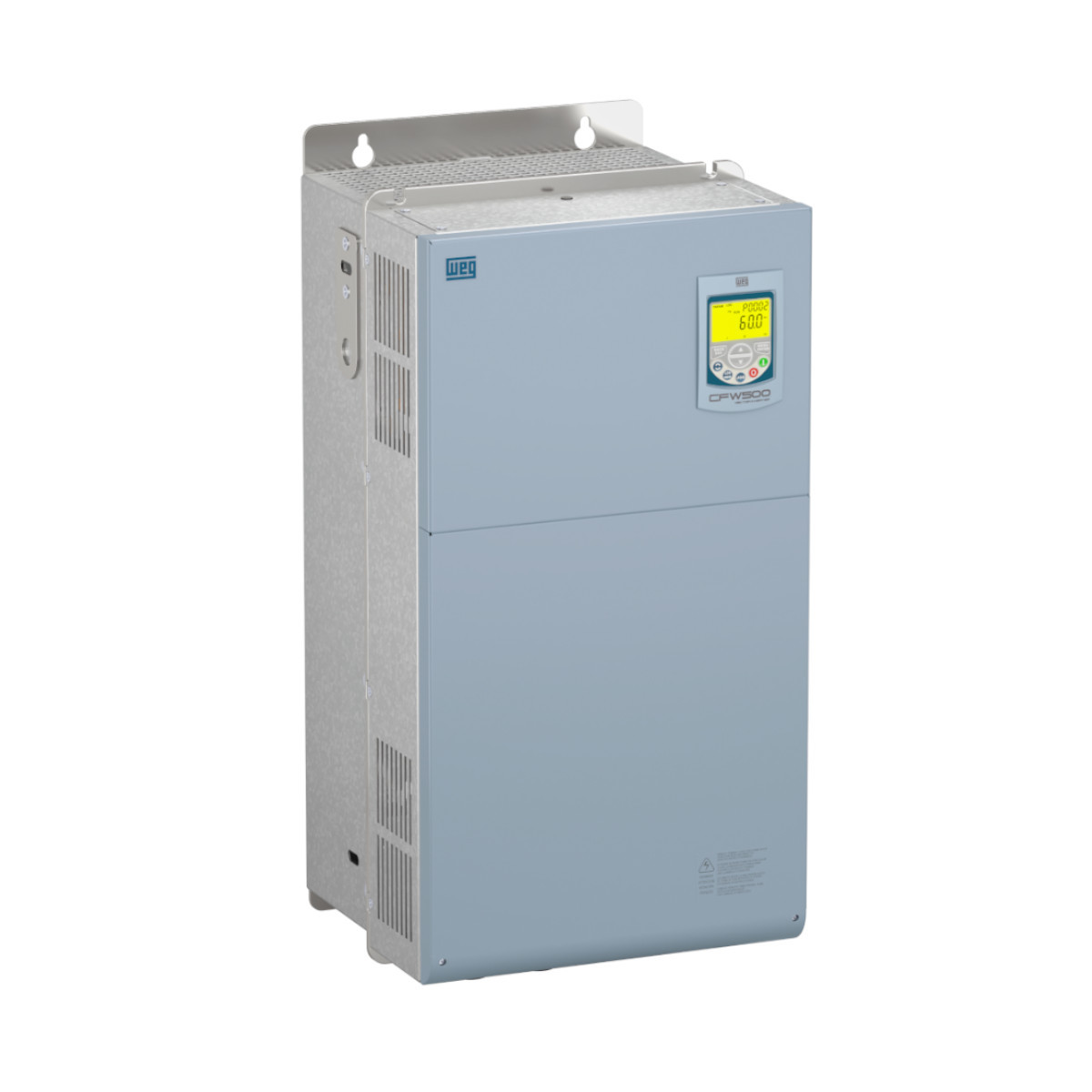

CFW500G0211T2DB20G2

DRIVE CFW500G0211T2DB20G2

WEG

HVW701A010GN01200000

WEG HVW701A010GN01200000 - STANDARD PANEL HVW701A010GN01200000, HVAC Enclosed Drives (HVW)

WEG

I51AE125B10V11001S

Lenze I51AE125B10V11001S is a Variable Speed/Frequency Drive (VSD/VFD) also known as a compact inverter, designed for variable speed control and equipped with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It features a built-in RFI filter, basic I.O., and conformal coating. The dimensions are H155mm x W60mm x D130mm. It supports CANopen and Modbus RTU communication protocols. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is designed for control cabinet or surface/wall mounting. The ambient air temperature for operation is max. 45°C at a switching frequency of 2kHz or 4kHz, and max. 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It operates on a single-phase / 1P network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (0-10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 230-240Vac.

Lenze

ATV32HD15N4437

Schneider Electric ATV32HD15N4437 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 32 series designed for 3-phase networks with a supply voltage range of 323-550Vac, including nominal voltages of 380Vac, 400Vac, 480Vac, and 500Vac. It features a built-in EMC filter, Bluetooth connectivity for configuration, and a built-in heatsink. This model offers advanced safety functions such as STO (Safe Torque Off up to SIL3 / PLe), SS1 (Safe Stop 1), SLS (Safely Limited Speed), and SDI (Safe Direction Information), alongside sensorless flux vector control and a sensorless ratio for synchronous motors achieving 170-200% of the nominal motor torque. The drive has a rated current of 33A at 4kHz and can handle a maximum current of 49.5A for up to 60 seconds. It supports Modbus and CANopen communication protocols and provides a variety of inputs and outputs, including 4 digital inputs, 1 programmable digital input, 1 digital input for STO, 2 analog inputs, 1 analog input for current measurement, 1 analog output, 1 digital output, and 2 relay outputs. The unit's dimensions are H404mm x W180mm x D232mm, with an IP20 degree of protection, an output frequency range of 0.1-599 Hz, a current consumption of 47.3A at 380Vac and 33.3A at 500Vac, a rated active power of 15kW, a rated power of 20HP, and power dissipation/losses of 480W.

Schneider Electric

M600-10501520E10101AN100

NIDEC M600-10501520E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a single Safe Torque Off (STO), requiring an external choke and air cooling. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 200A under normal duty and 152A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-575Vac and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input network, supporting a network frequency of 45-66 Hz (supply input) and output frequency range of 0-550 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x additional digital inputs, 3 x digital outputs, and 1 x digital output for relay contact type, alongside multiple analog inputs with varying specifications. The rated active power is 130kW for normal duty and 110kW for heavy-duty, corresponding to a rated power of 200HP and 150HP, respectively.

Nidec

HVW701E142T2N12-X-B

WEG HVW701E142T2N12-X-B - STANDARD PANEL HVW701E142T2N12-X-B, HVAC Enclosed Drives (HVW)

WEG

I55AE125D10V0100KS

Lenze I55AE125D10V0100KS is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a standard I.O. with conformal coating, dimensions of H155mm x W60mm x D130mm, and supports EtherCAT communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 x analog output, 5 x digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs, supporting both voltage and current input/output configurations. The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 230-240Vac.

Lenze

EDP11S242GN12-PGS

WEG EDP11S242GN12-PGS - STANDARD PANEL EDP11S242GN12-PGS, Enclosed Drive Packages (EDP)

WEG

HVW701D105T2N12-J-B

WEG HVW701D105T2N12-J-B - STANDARD PANEL HVW701D105T2N12-J-B, HVAC Enclosed Drives (HVW)

WEG
