Variable Frequency Drives (VFD)

EDP11S038GN1210000

STANDARD PANEL EDP11S038GN1210000

WEG

M400-01200033A10101AB100

NIDEC M400-01200033A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 1, measuring H6.3" x W3" x D5.1" (H160mm x W75mm x D130mm). This model supports multiple communication protocols, including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 3.3A for both normal and heavy-duty applications and requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +60°C, and it is protected by an IP20 NEMA 1 enclosure. Designed for a single-phase input (2P) network, it operates at a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz. The device includes 2 analog outputs (0-20mA / 4-20mA / 0-10Vdc/ 0-24Vdc; single-ended; source; can be used as digital outputs), 8 digital inputs (0-24Vdc), and 3 digital outputs (200mA / 0-24Vdc; PWM; source and 2A / 240Vac; source; relay contact type). Additionally, it has 2 analog inputs (0-20mA / 4-20mA / -10...+10Vdc; single-ended; 11-bit conversion resolution and 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit; can be used as a digital input). The rated active power and power in HP are both 0.55kW and 3/4HP for normal and heavy-duty operations, respectively.

Nidec

HVW701B024T2N01-X-X

WEG HVW701B024T2N01-X-X - STANDARD PANEL HVW701B024T2N01-X-X, HVAC Enclosed Drives (HVW)

WEG

EDP11S105GN1210000

STANDARD PANEL EDP11S105GN1210000

WEG

CFW110312T4ODCZ

WEG CFW110312T4ODCZ - INVERTER NACFW110312T4ODCZ, CFW11 Drives

WEG

I55AE211A10V0100LS

Lenze I55AE211A10V0100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports PROFINET communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 6A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. The drive has an IP20 degree of protection, is designed for single-phase networks with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, all supporting various configurations. The rated active power is 1.1kW, and the rated power is 1-1/2HP for heavy-duty applications at 120Vac.

Lenze

ATV312HU55M3412

Schneider Electric ATV312HU55M3412 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 solar series designed for solar energy-driven pumping applications. It features sensorless flux vector control with an energy-saving ratio of 170-200% of the nominal motor torque and a built-in heatsink. This model operates on a supply voltage of 190-252Vac (200Vac / 220Vac / 230Vac / 240Vac nom.) and has dimensions of H232mm x W180mm x D172mm. It offers an IP20 degree of protection, a rated current of 27.5A at 200Vac with a 4kHz frequency, and a maximum current of 41.3A for 60 seconds. The ATV312HU55M3412 supports wall mounting and uses Modbus and CANopen communication protocols. It is designed for a 3-phase network with an output frequency range of 0-500 Hz. The device includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for versatile connectivity. It has a current consumption of 36.8A at 200Vac and 32A at 240Vac, with a rated active power of 5.5kW (7.5HP / 7-1/2HP) and power dissipation/losses of 292 W.

Schneider Electric

EDP11S031GN1211000

STANDARD PANEL EDP11S031GN1211000

WEG

EDP11S142GN12-PGS

WEG EDP11S142GN12-PGS - STANDARD PANEL EDP11S142GN12-PGS, Enclosed Drive Packages (EDP)

WEG

M000-10601500DU0100AB100

NIDEC M000-10601500DU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in brake transistor and a built-in DC to AC inverter featuring air cooling. It has dimensions of frame size 10D, measuring H28.11" x W12.2" x D11.4" (H714mm x W310mm x D290mm). This model is rated for a heavy-duty current of 150A and operates on a supply voltage of 500Vac-690Vac (600Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW for heavy-duty applications, equivalent to 125HP to 400HP.

Nidec

ESV112N04TXC

ESV112N04TXC Lenze Variable Frequency Drive (VFD) - The SMV 1.5 hp (1.1 kW) drive features a 400 / 480 VAC 3Ø input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter ideal

Lenze

F600-10601720E10101AN103

NIDEC F600-10601720E10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed control of AC motors. It operates within an ambient air temperature range of -20°C to +40°C and offers a degree of protection rated at IP20. This model features a frame size 10E with dimensions of H42.1" x W12.2" x D11.4" (H1069mm x W310mm x D290mm). It is equipped with 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), 1 analog input (4-20mA / 0-10Vdc; single-ended), and 3 digital inputs (24Vdc) plus an additional 3 digital inputs (0-24Vdc; configurable) for flexible connectivity. The F600 series drive utilizes external line choke air cooling, supports a supply voltage of 500Vac-690Vac (600Vac) with a network frequency of 60 Hz, and communicates via Modbus RTU protocol. It is designed for a 3-phase input (3P) network, with a rated current of 172A (Normal duty), rated active power of 160kW (Normal duty), and rated power of 200HP (Normal duty).

Nidec

I55AE345F1AV11003S

Lenze I55AE345F1AV11003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H450mm x W250mm x D230mm. The communication protocol supported is Modbus RTU, with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 107A (light-duty; 400Vac), 92.4A (light-duty; 480Vac), 89A (heavy-duty; 400Vac), and 77A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It operates on a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and is rated for 55kW (light-duty; 400-480Vac) and 45kW (heavy-duty; 400-480Vac) with a power rating of 75HP (light-duty; 400-480Vac) and 60HP (heavy-duty; 400-480Vac).

Lenze

HVW701E211T2N12-I-X

WEG HVW701E211T2N12-I-X - STANDARD PANEL HVW701E211T2N12-I-X, HVAC Enclosed Drives (HVW)

WEG

I55AE175B10V11012S

Lenze I55AE175B10V11012S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It comes with a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports Ethernet POWERLINK as its communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 4.2A for heavy-duty applications at 230-240Vac, and it is designed for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection and is suitable for a single-phase / 1P network with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. The device includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (with options for frequency or encoder input), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) with flexibility in usage as voltage or current inputs. The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 230-240Vac.

Lenze

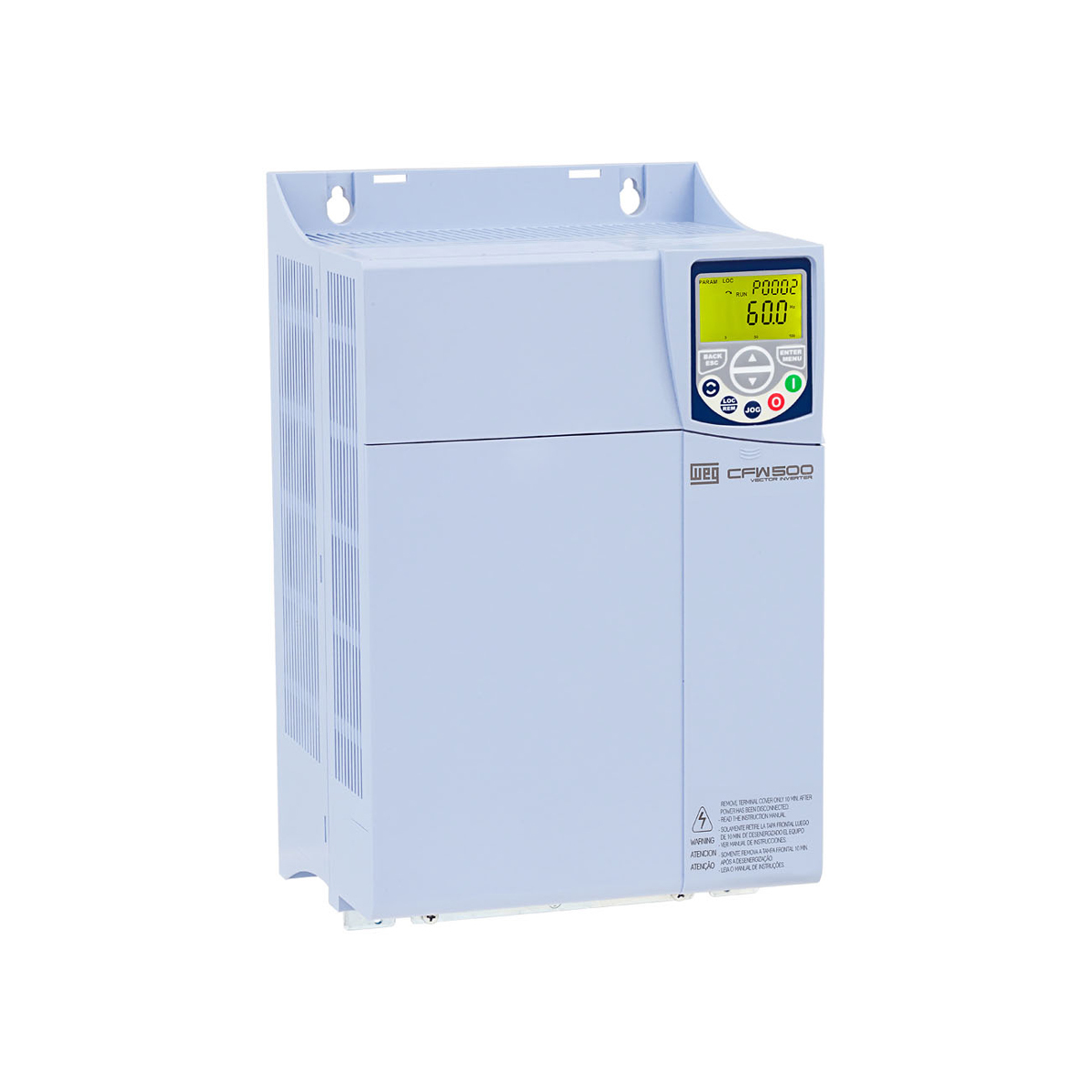

CFW500E49P0T4DB20

DRIVE CFW500E49P0T4DB20

WEG

EDP11S058GN3R01000

STANDARD PANEL EDP11S058GN3R01000

WEG

I55AE337F1AV11004S

Lenze I55AE337F1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H450mm x W250mm x D230mm. This model supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 91.2A (light-duty; 400Vac), 78A (light-duty; 480Vac), 76A (heavy-duty; 400Vac), and 65A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and is rated for 45kW (light-duty; 400-480Vac) and 37kW (heavy-duty; 400-480Vac) with a power rating of 60HP (light-duty; 400-480Vac) and 50HP (heavy-duty; 400-480Vac).

Lenze

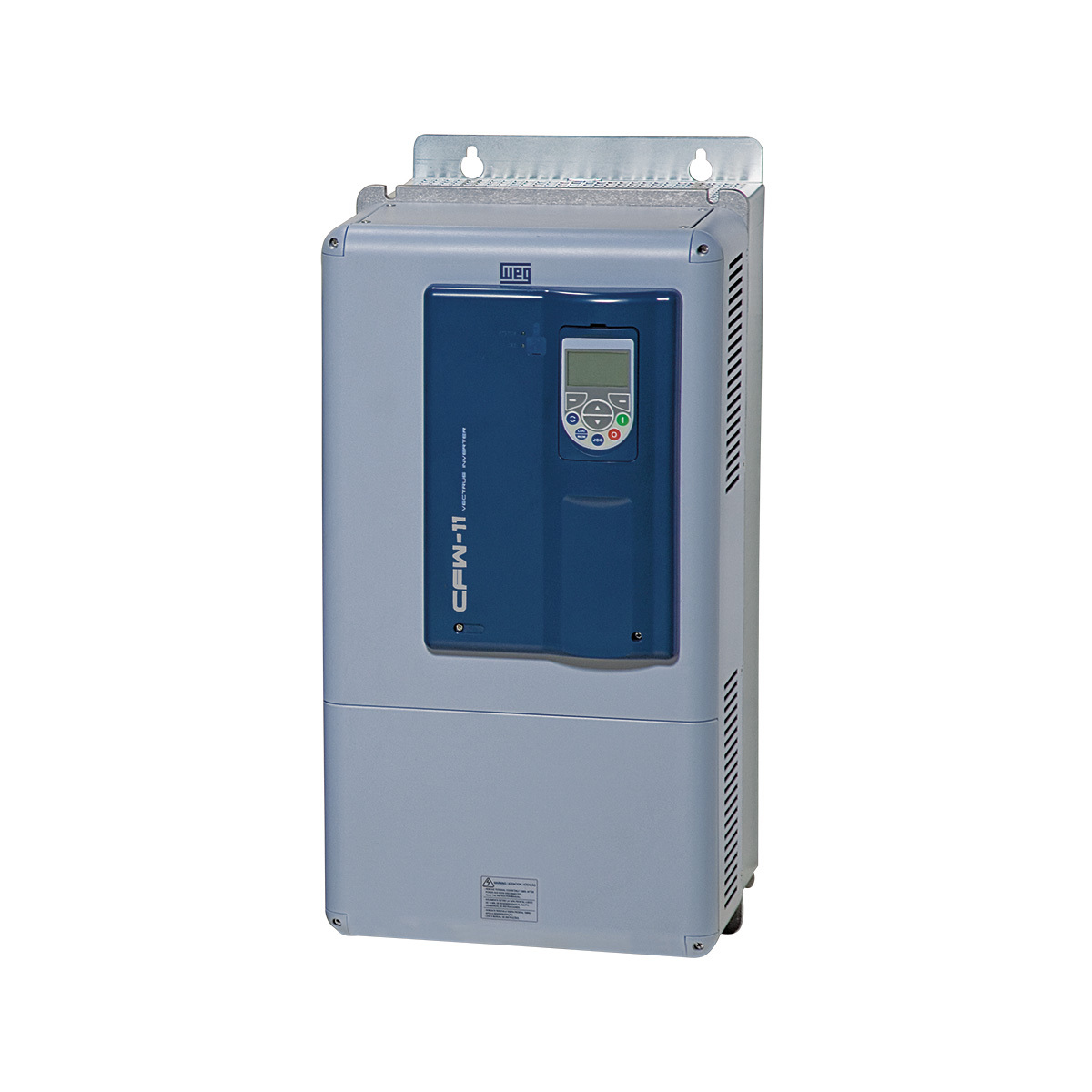

CFW110180T2ON1DBZ

DRIVE CFW110180T2ON1DBZ

WEG

I5DAE311F10V10000S

Lenze I5DAE311F10V10000S is a Variable Speed/Frequency Drive (VSD/VFD) or Inverter within the Power units sub-range, designed with a built-in RFI filter. This model does not include a communication interface but is equipped with protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 28.2A for light-duty operations at 400Vac, 25.2A at 480Vac, and for heavy-duty operations, 23.5A at 400Vac, and 21A at 480Vac. The supply voltage is rated for 400Vac / 480Vac, and it is suitable for mounting in a control cabinet or on a surface/wall with an IP20 degree of protection. It operates on a 3-phase (3P / 3AC) network, with a rated active power of 11kW and rated power of 15HP for heavy-duty applications at 400-480Vac.

Lenze
