Variable Frequency Drives (VFD)

ATV61HD18N4S337

Schneider Electric ATV61HD18N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with U/F ratio adjustment options (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback capable of delivering 120% of the nominal motor torque. It features a built-in DC choke, an EMC filter (class C2), a built-in heatsink, and a coated version for enhanced durability. The supply voltage ranges from 323-528Vac, supporting 380Vac, 400Vac, 480Vac, and 500Vac nominal values. Its dimensions are H400mm x W230mm x D213mm, and it has a conformal coating for chemical resistance, classified as a reinforced version. The degree of protection is IP20 UL type 1. The rated current is 41A at 380Vac (12kHz), 34A at 460Vac (12kHz), with a maximum current of 49.2A for 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. This 3-phase (3P) network device outputs frequencies from 0.1 to 599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input, and 1 PWR safety input. There are also 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact), along with 2 analog inputs (-10...+10Vdc and 0-10Vdc / 0-20mA). The current consumption is 45.5A at 380Vac and 37.5A at 480Vac, with a rated active power of 18.5kW and a rated power of 25HP.

Schneider Electric

M702-10202830E10101AB100

NIDEC M702-10202830E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 325A under normal duty and 283A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 2 x digital outputs (100mA / 0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). It offers a rated active power of 90kW under normal duty and 75kW under heavy-duty, equivalent to 125HP and 100HP respectively.

Nidec

ATV312HU40N4B

Schneider Electric ATV312HU40N4B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed for sensorless flux vector control with an energy saving ratio of 170-200% of the nominal motor torque. It features a built-in EMC filter and heatsink, and is a version without a control I.O. card to allow space for a communication card. The supply voltage ranges from 323-550Vac, supporting 380Vac, 400Vac, 480Vac, and 500Vac nominal values. Its dimensions are H184mm x W142mm x D152mm, with an IP21 degree of protection. The rated current is 9.5A at 380Vac with a 4kHz frequency and a maximum current of 14.3A for 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. This 3-phase network device outputs frequencies from 0.1 to 500 Hz. It includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), 1 analog input (0-10Vdc), 1 analog input (0-20mA / 4-20mA), and 1 analog input (-10...+10Vdc). The current consumption is 13.9A at 380Vac with an Isc of 5kA and 10.6A at 500Vac. It has a rated active power of 4kW, equivalent to 5HP, and power dissipation/losses of 150 W.

Schneider Electric

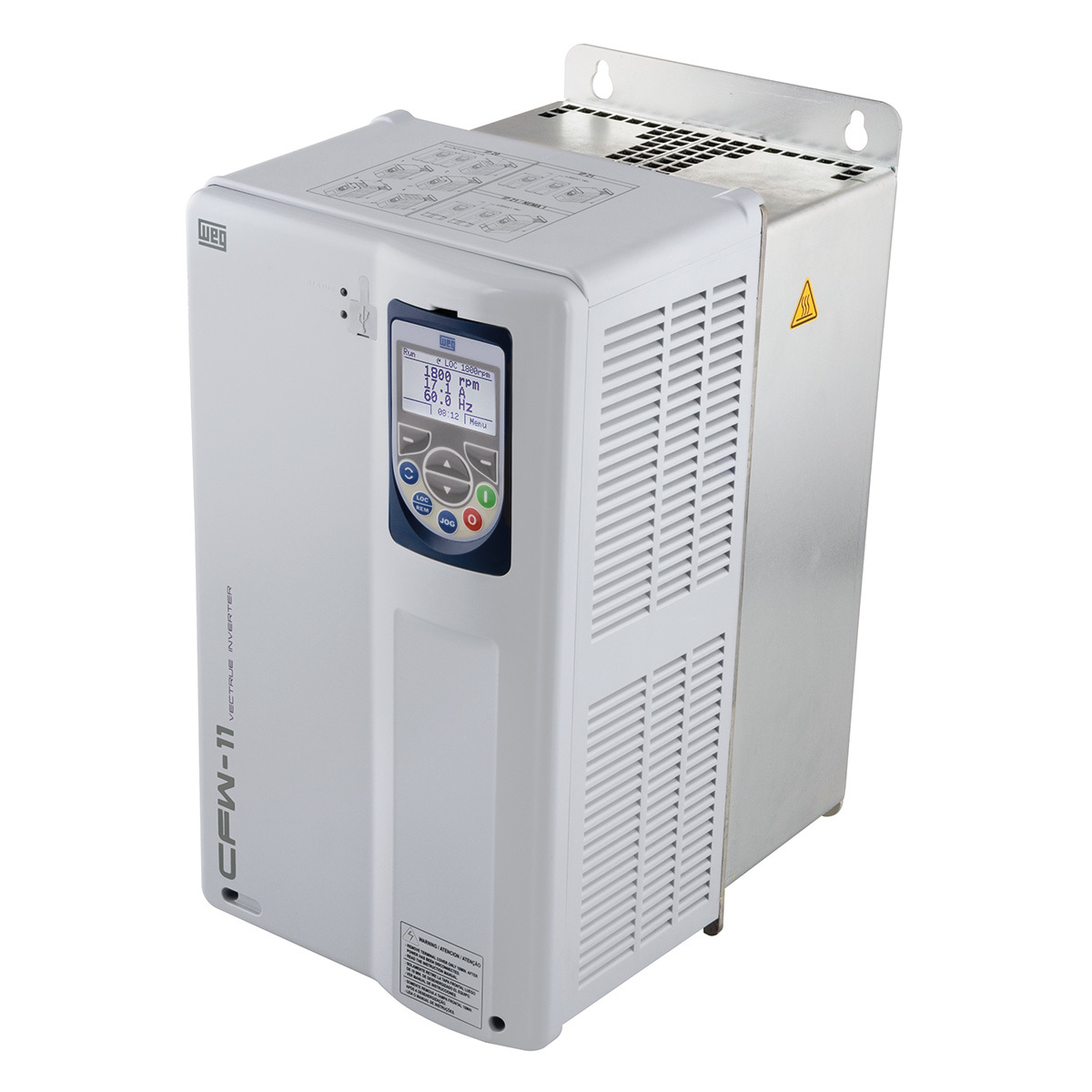

CFW110045T4ON1Z

DRIVE CFW110045T4ON1Z

WEG

M000-11403770EU0100AB100

NIDEC M000-11403770EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M000 series designed with a built-in brake transistor; an external choke is required, and it utilizes air cooling for temperature management. This unit has dimensions of frame size 11E, measuring H46.9" x W12.2" x D12.3" (H1190mm x W310mm x D312mm). It operates with a rated current of 377A for heavy-duty applications and supports a supply voltage range of 380Vac-480Vac, specifically including 400Vac and 415Vac. The degree of protection offered by this model is IP20 NEMA 1, and it is designed to work with a network frequency (supply input) of 50 Hz. Its rated active power ranges from 90kW to 250kW for heavy-duty operations, equivalent to 125HP to 400HP.

Nidec

I55AE275F1AV1100MS

Lenze I55AE275F1AV1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports Ethernet/IP communication protocol. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 23A (light-duty; 400Vac), 18.3A (light-duty; 480Vac), 16.5A (heavy-duty; 400Vac), and 14A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with optional uses, 1 x digital output, and 2 x analog inputs with optional uses. The rated active power is 11kW (light-duty; 400-480Vac) and 7.5kW (heavy-duty; 400-480Vac), with a rated power of 15HP (light-duty; 400-480Vac) and 10HP (heavy-duty; 400-480Vac).

Lenze

HS71-04200137A10101AB100

NIDEC HS71-04200137A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS71 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling for temperature management. The device has dimensions of frame size 4, measuring H15.4" x W4.9" x D7.9" (H391mm x W124mm x D200mm), and supports RS-485 communication protocol. It operates with a rated current of 18A under normal duty and 13.7A under heavy-duty conditions, requiring a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it has a degree of protection rated at IP20 NEMA 1 UL open. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and can output frequencies up to 3000 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying resolutions and types. The rated active power is 4kW for normal duty and 3kW for heavy-duty, corresponding to 5HP and 3HP, respectively.

Nidec

QMP45A4R

NIDEC QMP45A4R is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 4 quadrant operation with air cooling. It operates within an ambient air temperature range of 0°C to +55 °C and has a rated current of 45A. This model supports a supply voltage range of 208Vac-480Vac, accommodating various standards such as 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. The device's dimensions are frame size 1A, measuring H22.6" x W13" x D8.7" (H573mm x W330mm x D272mm), and it has a degree of protection rated at IP00. It is designed for a single-phase input (2P) network and uses the Modbus RTU communication protocol. The QMP45A4R features 3 x digital outputs (240mA (total including term.22) / 0-24Vdc; source) and 2 x digital outputs (5A / 240Vac; source; relay contact type), along with 1 x analog input (-10Vdc...10Vdc; differential) and 2 x analog inputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended) with varying conversion resolutions. It also includes 3 x digital inputs (0-24Vdc) and is capable of delivering a rated active power of 15kW or 27HP. Additionally, it offers 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; source; single-ended) with a 10-bit conversion resolution.

Nidec

ATV71HU40N4383

Schneider Electric ATV71HU40N4383 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for synchronous motor control. It features a built-in DC choke, EMC filter, and heatsink, offering variable speed and frequency drive capabilities with U/F ratio (2 points / 5 points), sensorless flux vector control, ENA System, and vector control with or without speed feedback. This model can deliver 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) and has dimensions of H260mm x W155mm x D187mm. The ATV71HU40N4383 is designed for wall mounting, has a degree of protection of IP20, IP21, UL type 1, and supports Modbus and CANopen communication protocols. It is suitable for a 3-phase (3P) network with an output frequency range of 0.1-599 Hz. The drive includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) programmable (LI1-LI5), 1 digital input programmable as discrete or PTC input (LI6), 1 digital input (PWR safety input), 1 digital output (C/O SPDT relay contact) (R1), and 2 digital outputs (NO relay contacts) (R2). It also features 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The rated current is 10.5A at 380Vac (4kHz), 7.6A at 460Vac (4kHz), with a maximum current of 17.3A for 2 seconds and 15.8A for 60 seconds. The current consumption is 14.1A at 380Vac and 11.5A at 480Vac, with a rated active power of 4kW and rated power of 5HP.

Schneider Electric

HVW701C038T4N01-X-A

WEG HVW701C038T4N01-X-A - STANDARD PANEL HVW701C038T4N01-X-A, HVAC Enclosed Drives (HVW)

WEG

SP1404

NIDEC SP1404 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a single Safe Torque Off (STO) and air cooling. It features variable speed/frequency drive functionality within a frame size of 1, measuring H15.2" x W3.93" x D8.62" (H386mm x W100mm x D219mm). The SP1404 operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and offers a rated current of 6.9A under normal duty and 5.8A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP1404 includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). It also features 1 x analog input (-9.8Vdc...9.8Vdc; differential) and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, along with 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. The rated active power is 3kW for normal duty and 2.2kW for heavy-duty, corresponding to a rated power of 5HP and 3HP, respectively. This device is designed for a 3-phase input network.

Nidec

GA80U2313AWM

GA80U2313AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 240 VAC, 313 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

HVW701C045T2N01-X-B

WEG HVW701C045T2N01-X-B - STANDARD PANEL HVW701C045T2N01-X-B, HVAC Enclosed Drives (HVW)

WEG

HS70-03400025A10101AB100

NIDEC HS70-03400025A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for high-speed applications with a built-in brake transistor and a single Safe Torque Off (STO) feature. It operates with variable frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop, supported by air cooling. The unit has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), and uses Ethernet for communication. It is rated for a current of 3.4A under normal duty and 2.5A under heavy-duty conditions, with a supply voltage range of 380Vac-480Vac (specifically 400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it has a degree of protection of IP20 NEMA 1 UL open. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 analog inputs (1 differential and 2 single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 1.1kW for normal duty and 0.75kW for heavy-duty, with rated power of 1.5HP / 1-1/2HP for normal duty and 1HP for heavy-duty.

Nidec

HVW701D070T4N12-X-C

WEG HVW701D070T4N12-X-C - STANDARD PANEL HVW701D070T4N12-X-C, HVAC Enclosed Drives (HVW)

WEG

ATV71HD11N4S337

Schneider Electric ATV71HD11N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series. It features variable speed/frequency drive functionality with U/F ratio (2 points / 5 points), sensorless flux vector control, ENA System, and vector control with or without speed feedback. It can deliver 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. The design includes a built-in DC choke, EMC filter, heatsink, and a coated version for enhanced chemical resistance. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) and has dimensions of H295mm x W210mm x D213mm. The ATV71HD11N4S337 offers an IP20 UL type 1 degree of protection and supports wall mounting. It has a rated current of 27.7A (380Vac; 4kHz), 21A (460Vac; 4kHz), with a maximum current of 45.7A for 2 seconds and 41.6A for 60 seconds. Communication is facilitated through Modbus and CANopen protocols, and it is designed for a 3-phase (3P) network with an output frequency range of 0.1-599 Hz. The unit includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) programmable, 1 digital input programmable as discrete or PTC input, 1 PWR safety input, 1 digital output (C/O SPDT relay contact), 2 digital outputs (NO relay contacts), and 2 analog inputs. It has a current consumption of 36.6A (380Vac) and 30A (480Vac), with a rated active power of 11kW and rated power of 15HP.

Schneider Electric

I55AE155F10V11001S

Lenze I55AE155F10V11001S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, application I.O., and conformal coating, with dimensions of H180mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 1.8A for 400Vac and 1.6A for 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 analog outputs, 7 digital inputs with flexible functionality, 2 digital outputs, and 2 analog inputs, all supporting various configurations. The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 400-480Vac.

Lenze

CFW700E80P0T5NBN1C3

WEG CFW700E80P0T5NBN1C3 - DRIVE CFW700E80P0T5NBN1C3, CFW500/700 Drives

WEG

S100-02413-0B0000

Nidec S100-02413-0B0000

Nidec

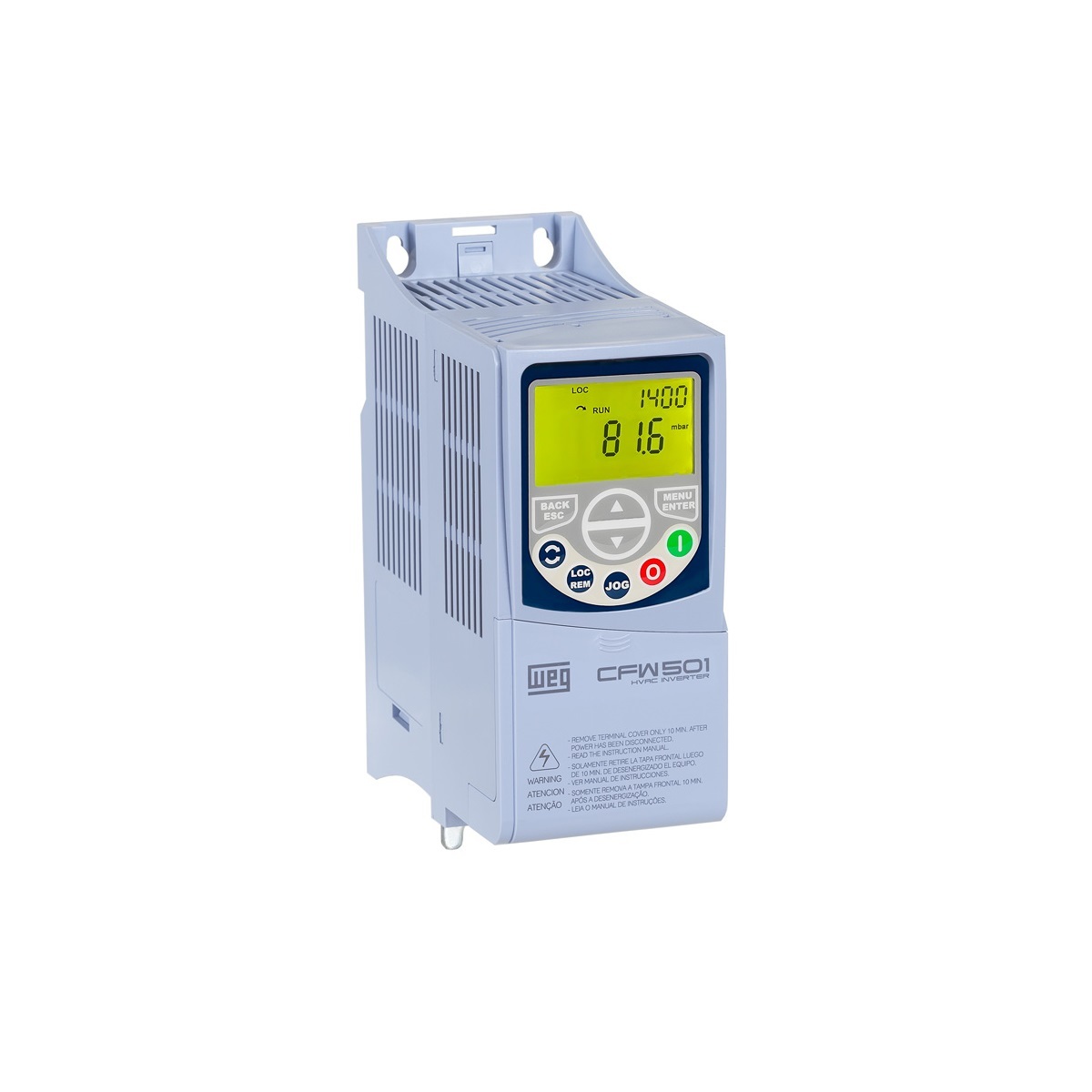

CFW501A01P0T4NB20C3

DRIVE CFW501A01P0T4NB20C3

WEG
