Variable Frequency Drives (VFD)

EDP11S007GN3R

STANDARD PANEL EDP11S007GN3R

WEG

M400-07600380A10101AB100

NIDEC M400-07600380A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H21.9" x W10.6" x D11" (H556mm x W270mm x D280mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 46A under normal duty and 38A under heavy-duty conditions, and it is designed for a supply voltage of 500Vac-690Vac (600Vac). The ambient air temperature for operation ranges from -20°C to +55°C. It offers a degree of protection of IP20 NEMA 1 and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz. The device includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with an 11-bit conversion resolution. It is rated for an active power of 37kW under normal duty and 30kW under heavy-duty, equivalent to 50HP and 40HP respectively.

Nidec

HVW701E142T2N12-I-X

WEG HVW701E142T2N12-I-X - STANDARD PANEL HVW701E142T2N12-I-X, HVAC Enclosed Drives (HVW)

WEG

HS70-03400062A10101AB100

NIDEC HS70-03400062A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling. The dimensions are frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). It supports Ethernet communication protocol and operates with a rated current of 7.7A under Normal duty and 6.2A under Heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. This part has an IP20 NEMA 1 UL open degree of protection, is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-3000 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying conversion resolutions. The rated active power is 3kW for Normal duty and 2.2kW for Heavy-duty, corresponding to 5HP and 3HP, respectively.

Nidec

ESV752N02TXF

ESV752N02TXF Lenze Variable Frequency Drive (VFD) - The SMV 10.0 hp (7.5 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter idea

Lenze

HS71-07200750A10101AB100

NIDEC HS71-07200750A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS71 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling for temperature management. The dimensions are frame size 7, measuring H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm). It supports RS-485 communication protocol, operates with a rated current of 94A under normal duty and 75A under heavy-duty conditions, and requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The device is designed to operate within an ambient air temperature range of -20°C to +40°C and has an IP20 NEMA 1 UL open degree of protection. It is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency of up to 3000 Hz. The drive offers 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs, all supporting various signal types and resolutions. It is rated for an active power of 22kW under normal duty and 18.5kW under heavy-duty, equivalent to 30HP and 25HP respectively.

Nidec

HS30-02200075A10101AB100

NIDEC HS30-02200075A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS30 series designed for high-speed applications with a rated frequency output of 0-3000Hz (open loop). It features a built-in brake transistor and dual Safe Torque Off (STO) with air cooling. The dimensions are frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 7.5A for both normal and heavy-duty applications and requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +55°C, and it has a degree of protection of IP20 NEMA 1. It is compatible with both single-phase input (2P) and 3-phase input (3P) networks, with a network frequency of 45-66 Hz (supply input) and 0-3000 Hz (output). The device includes 1 analog output (10Vdc; source; single-ended), 5 digital inputs (0-24Vdc) plus 1 digital input (0-24Vdc), 1 digital output (100mA / 0-24Vdc; PWM; source) and 1 digital output (2A / 240Vac; source; relay contact type), along with 1 analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 analog input (0-10Vdc; single-ended; 11-bit; can be used as a digital input). It has a rated active power of 1.5kW and a rated power of 2HP for both normal and heavy-duty operations.

Nidec

M701-08401340A10101AB100

NIDEC M701-08401340A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 155A under normal duty and 134A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20 NEMA 1 UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device features 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 x digital inputs (0-24Vdc), 4 x digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 x analog inputs (1 x differential and 2 x single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). It has a rated active power of 75kW under normal duty and 55kW under heavy-duty, with a rated power of 100HP for both conditions.

Nidec

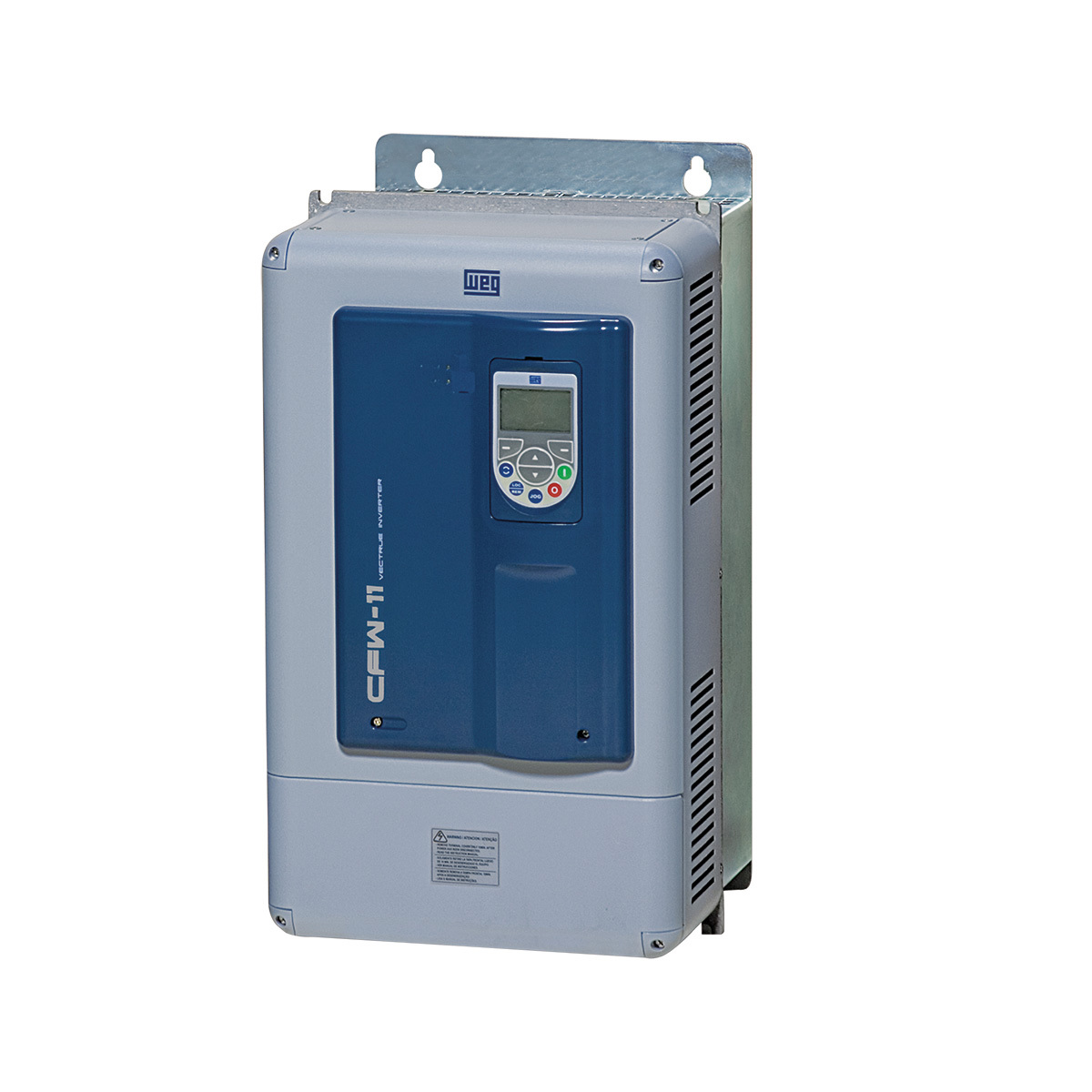

CFW110086T2ON1Z

DRIVE CFW110086T2SZ

WEG

M701-10403200E10101AN100

NIDEC M701-10403200E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed for variable speed control with a single Safe Torque Off (STO) feature, requiring an external choke and air cooling for operation. It has dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 361A under normal duty and 320A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), and 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), along with 3 analog inputs (0-20mA / 4-20mA / -10...+10Vdc; with different conversion resolutions). The rated active power is 200kW for normal duty and 160kW for heavy-duty, corresponding to a rated power of 300HP and 250HP, respectively.

Nidec

C300-06200440A10101AB100

NIDEC C300-06200440A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and has dimensions of frame size 6 H15.39" x W8.27" x D8.94" (H291mm x W210mm x D227mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 58A for Normal duty and 44A for Heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (1 x 50mA / 0-24Vdc; source; PWM and 1 x 2A / 240Vac; source; relay contact type). Additionally, it includes 2 analog inputs (1 x 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution and 1 x 0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 15kW for Normal duty and 11kW for Heavy-duty, with a rated power of 20HP for Normal duty and 15HP for Heavy-duty.

Nidec

I55AE175D10V0100KS

Lenze I55AE175D10V0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and supports EtherCAT communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 4.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with optional uses, 1 digital output, and 2 analog inputs with optional voltage or current input functionality. The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 230-240Vac.

Lenze

EDP11S033DN1210000

STANDARD PANEL EDP11S033DN1210000

WEG

ATV61HU15N4S337

Schneider Electric ATV61HU15N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase motors. It features a built-in DC choke, an EMC filter of class C2, and a built-in heatsink, all within a coated version for enhanced chemical resistance. The device operates on a supply voltage range of 323-528Vac, accommodating 380Vac, 400Vac, 480Vac, and 500Vac nominal values. It measures H230mm x W130mm x D175mm and offers an IP20 UL type 1 degree of protection. The rated current is 4.1A at 380Vac and 3.4A at 460Vac with a 12kHz frequency, peaking at 4.9A max current for 60 seconds. Wall mounting is the prescribed installation method. Communication is facilitated via Modbus and CANopen protocols, supporting a 3-phase network with an output frequency range of 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, alongside 1 digital output (C/O SPDT relay contact) and another (NO relay contact). The unit also features 1 analog input (-10...+10Vdc) and another (0-10Vdc / 0-20mA). Its current consumption is 5.8A at 380Vac and 5.3A at 480Vac, with a rated active power of 1.5kW and a rated power of 2HP.

Schneider Electric

I55AE175F10V1100KS

Lenze I55AE175F10V1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H180mm x W60mm x D130mm. This model supports EtherCAT communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 400Vac and 2.1A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with optional uses for frequency or encoder input, 1 digital output, and 2 analog inputs with optional voltage or current input configurations. The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 400-480Vac.

Lenze

HVW701E180T4N12-I-X

WEG HVW701E180T4N12-I-X - STANDARD PANEL HVW701E180T4N12-I-X, HVAC Enclosed Drives (HVW)

WEG

GA80U2056AWM

GA80U2056AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 240 VAC, 56 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

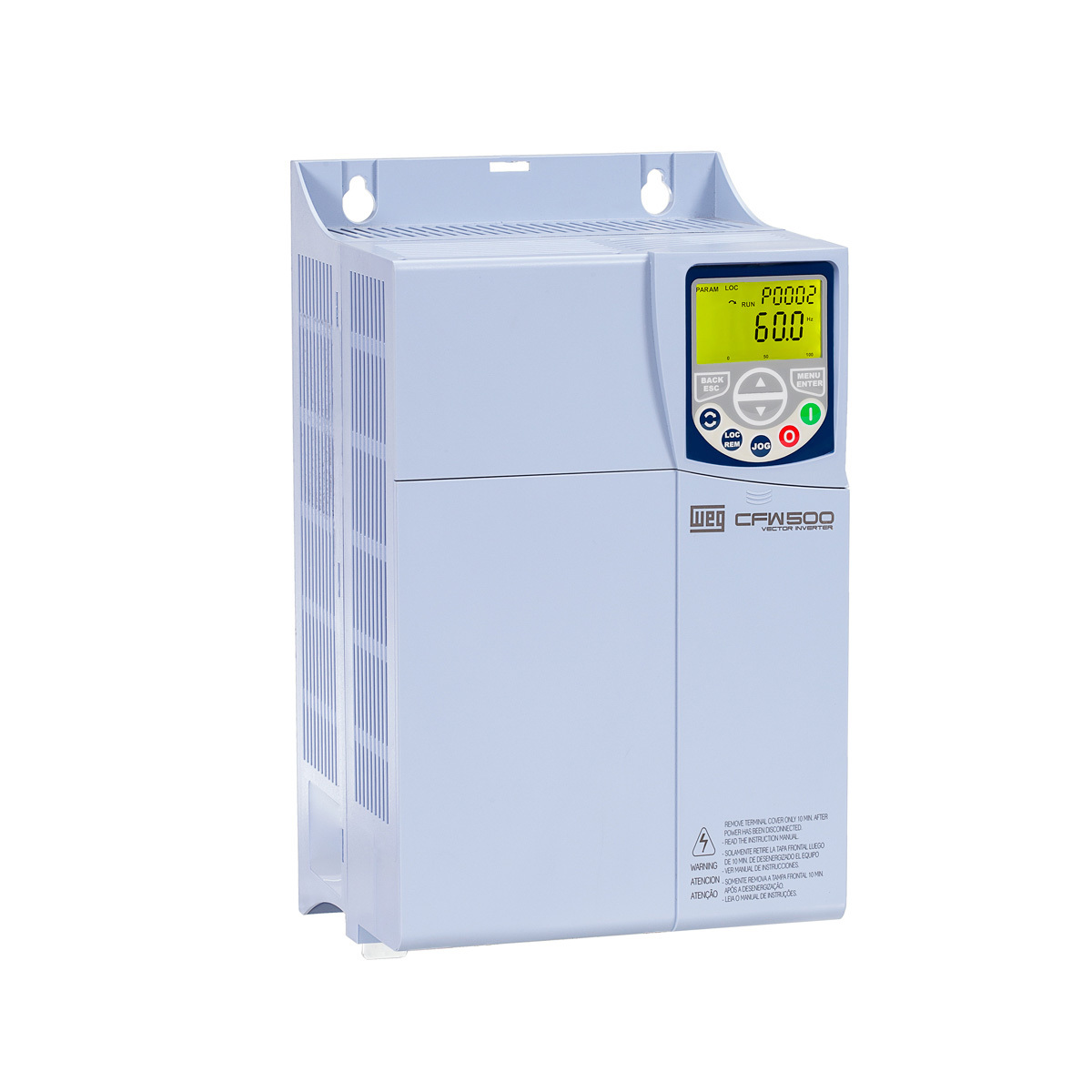

CFW500D33P0T2DB20G2

DRIVE CFW500D33P0T2DB20G2

WEG

CFW110105T2ON1Z-PGM

DRIVE CFW110105T2ON1Z-PGM

WEG

SP0401-EZ

NIDEC SP0401-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 0, measuring H12.677" x W2.441" x D8.898" (H322mm x W62mm x D226mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) with a rated current of 1.3A for heavy-duty applications. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP0401-EZ features 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), and is designed for a 3-phase input network. It includes 3 x digital inputs (0-24Vdc), 1 x analog input (-9.8Vdc...9.8Vdc; differential), and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution. Additionally, it has 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. The rated active power is 0.37kW for both normal and heavy-duty operations, with a rated power of 1/2HP for the same.

Nidec
