Variable Frequency Drives (VFD)

QMP350A4R

NIDEC QMP350A4R is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 4 quadrant operation with air cooling. It operates within an ambient air temperature range of 0°C to +55°C and has a rated current of 350A. This model supports a supply voltage range of 208Vac to 480Vac, accommodating various standards such as 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. The device's dimensions are frame size 2A, measuring H38.5" x W20.3" x D13.5" (H978mm x W516mm x D343mm), and it has a degree of protection rated at IP00. It is compatible with a single-phase input network (2P) and uses the Modbus RTU communication protocol. The QMP350A4R features 3 digital outputs (240mA total including term.22 / 0-24Vdc; source) and 2 digital outputs (5A / 240Vac; source; relay contact type), along with 1 analog input (-10Vdc to 10Vdc; differential with 14-bit conversion resolution) and 2 analog inputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; single-ended with 10-bit conversion resolution). Additionally, it has 3 digital inputs (0-24Vdc) and is rated for an active power of 125kW or 200HP. The device also includes 2 analog outputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; source; single-ended with 10-bit conversion resolution).

Nidec

I55AE337F10V1100LS

Lenze I55AE337F10V1100LS is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It has a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H450mm x W250mm x D230mm. This model supports PROFINET communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 91.2A (light-duty; 400Vac), 78A (light-duty; 480Vac), 76A (heavy-duty; 400Vac), and 65A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Designed for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with an IP20 degree of protection. It accommodates a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting a rated active power of 45kW (light-duty; 400-480Vac) and 37kW (heavy-duty; 400-480Vac), equivalent to 60HP (light-duty) and 50HP (heavy-duty).

Lenze

C300-04400170A10101AB100

NIDEC C300-04400170A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 380Vac-480Vac, including 400Vac and 415Vac, within a frame size 4, measuring H10.9" x W4.5" x D6.9" (H277mm x W115mm x D175mm). This model offers an IP20 NEMA 1 degree of protection and supports a rated current of 17A for both normal and heavy-duty operations. It utilizes the Modbus RTU communication protocol over a 3-phase input network, with a supply input frequency range of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation spans from -20°C to +60°C. It features 1 analog output (10Vdc; source; single-ended), 5 digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and one 2A / 240Vac; source; relay contact type). Additionally, it includes 2 analog inputs with one supporting 0-20mA / 4-20mA / 0-10Vdc (single-ended; 11-bit conversion resolution) and the other 0-10Vdc (single-ended; 11-bit conversion resolution). The rated active power and power in HP are both 7.5kW and 10HP for normal and heavy-duty applications, respectively.

Nidec

I55AE222F10V11001S

Lenze I55AE222F10V11001S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. The design incorporates a built-in RFI filter, application I.O., and conformal coating. Its dimensions are H250mm x W60mm x D130mm. This model does not have a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 5.6A for heavy-duty applications at 400Vac and 4.8A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 x analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 x digital inputs (PNP/NPN logic), 2 x digital outputs (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 2.2kW for heavy-duty applications at 400-480Vac, with a rated power of 3HP at the same voltage range.

Lenze

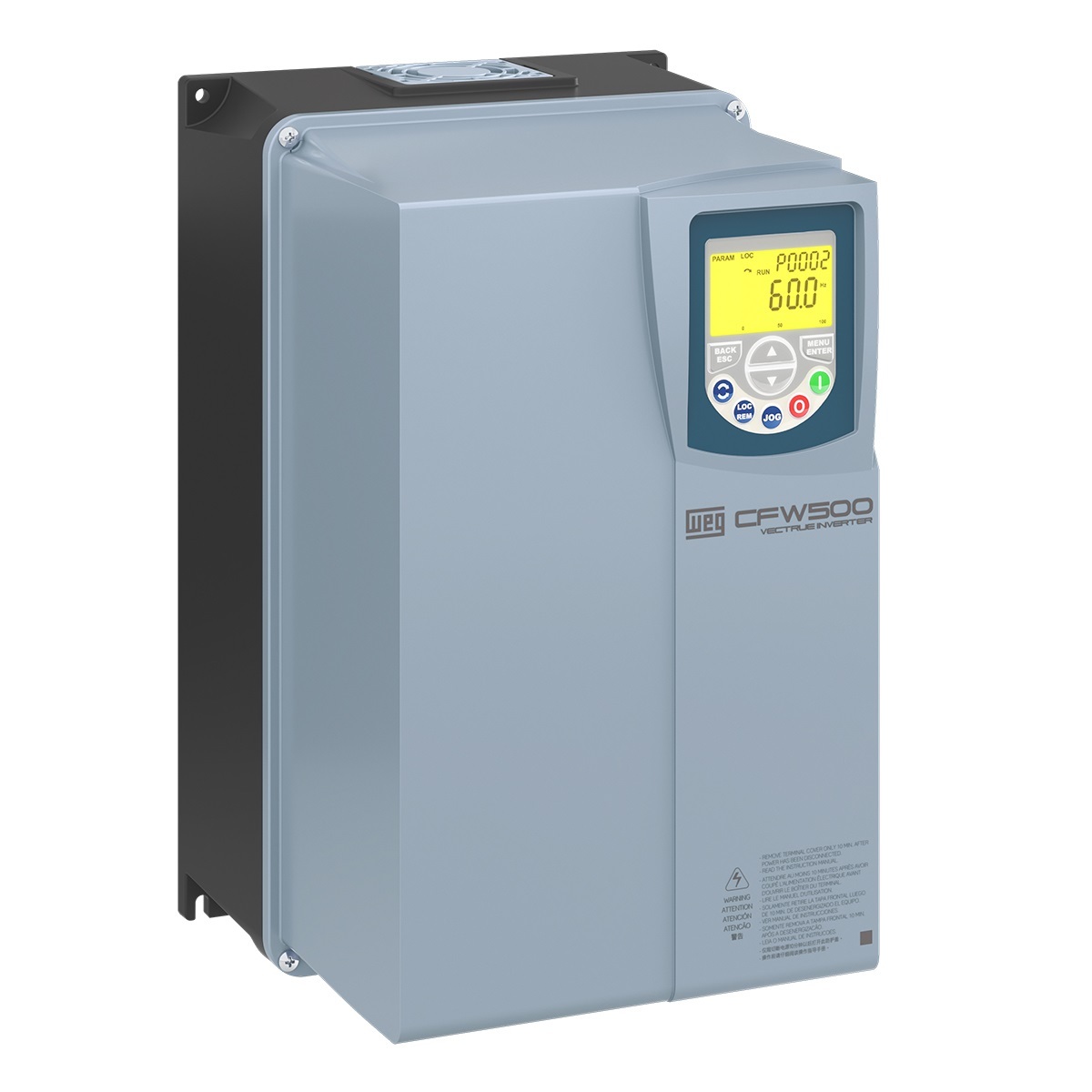

CFW500B24P0T2DB66G2

DRIVE CFW500B24P0T2DB66G2

WEG

I55AE322F10V11000S

Lenze I55AE322F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It is equipped with a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H347mm x W204.5mm x D222mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 56.4A for light-duty (400Vac and 480Vac) and 48.5A for heavy-duty (400Vac), with 40.4A for heavy-duty (480Vac). The supply voltage is rated for 400Vac / 480Vac, and it is suitable for control cabinet or surface/wall mounting. The operational ambient air temperature ranges up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a protection degree of IP20. It operates on a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, and 1 digital output. The rated active power is 30kW for light-duty and 22kW for heavy-duty operations, corresponding to 40HP and 30HP respectively, across 400-480Vac.

Lenze

HVW701C058T4N01-J-B

WEG HVW701C058T4N01-J-B - STANDARD PANEL HVW701C058T4N01-J-B, HVAC Enclosed Drives (HVW)

WEG

I55AE211F10V1100MS

Lenze I55AE211F10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H250mm x W60mm x D130mm. This model supports Ethernet/IP communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 3.2A for heavy-duty applications at 400Vac and 3A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with optional uses for two of them, 2 x analog inputs with optional voltage or current input, and 1 x digital output. The rated active power is 1.1kW for heavy-duty applications at 400-480Vac, with a rated power of 1-1/2HP at the same voltage range.

Lenze

M702-11502850E10101AB100

NIDEC M702-11502850E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 315A under normal duty and 285A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. The device is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 250kW under normal duty and 225kW under heavy-duty, corresponding to a rated power of 350HP and 300HP, respectively.

Nidec

SP5402-HF

NIDEC SP5402-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max in open-loop configurations, featuring a single Safe Torque Off (STO) and air cooling. It has a frame size of 5, measuring H33.75" x W12.2" x D11.73" (H857mm x W310mm x D298mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The rated current is 168A under normal duty and 156A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol, with a network frequency of 48-65 Hz on the supply input and an output frequency range of 0-3000 Hz. The device includes 3 digital outputs (0-24Vdc; source), 1 digital output (2A / 240Vac; source; relay contact type), 3-phase input, 6 digital inputs (0-24Vdc), and 3 analog inputs with varying specifications. Additionally, it features 2 analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source; 10-bit conversion resolution). The rated active power is 90kW for normal duty and 75kW for heavy-duty, with a rated power of 125HP for both duty types.

Nidec

ESV402N02TMC

ESV402N02TMC Lenze Variable Frequency Drive (VFD) - The SMV 5.0 hp (4.0 kW) drive features a 208 / 240 VAC 3Ø input with input disconnect in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integra

Lenze

I55AE275F1AV11004S

Lenze I55AE275F1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports PROFIBUS communication protocol. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 23A (light-duty; 400Vac), 18.3A (light-duty; 480Vac), 16.5A (heavy-duty; 400Vac), and 14A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, and 2 x analog inputs with optional uses. The rated active power is 11kW (light-duty; 400-480Vac) and 7.5kW (heavy-duty; 400-480Vac), with a rated power of 15HP (light-duty; 400-480Vac) and 10HP (heavy-duty; 400-480Vac).

Lenze

EDP11S477GN3R

STANDARD PANEL EDP11S477GN3R

WEG

M1230C

Lenze M1230C is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for water-tight and dust-tight applications, supporting Modbus communication protocol. It features thermal overload protection and solid state motor overload protection. The device operates at a rated current of 11A for 200Vac and 9.6A for 230Vac, with a supply voltage range of 200Vac-240Vac, accommodating 208Vac, 220Vac, and 230Vac. It is suitable for control cabinet or surface/wall mounting and can operate in ambient air temperatures ranging from -10 to +40 °C. The M1230C offers NEMA 4 protection, is compatible with a 3-phase network, and supports a network frequency of 48-62 Hz input and 0-120 Hz output. It includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it has 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. The rated active power is 2.2kW for 200-240Vac, and the rated power is 3HP for 200-240Vac.

Lenze

HVW701E142T4N12-X-X

WEG HVW701E142T4N12-X-X - STANDARD PANEL HVW701E142T4N12-X-X, HVAC Enclosed Drives (HVW)

WEG

CFW700E53P0T5NBN1C3

WEG CFW700E53P0T5NBN1C3 - DRIVE CFW700E53P0T5NBN1C3, CFW500/700 Drives

WEG

EDP11S013GN1211000

STANDARD PANEL EDP11S013GN1211000

WEG

GA80U5412ABM

GA80U5412ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 600 VAC, 412 A, IP20, General Purpose GA800 Series

Yaskawa

EDP11S017GN1210000

STANDARD PANEL EDP11S017GN1210000

WEG

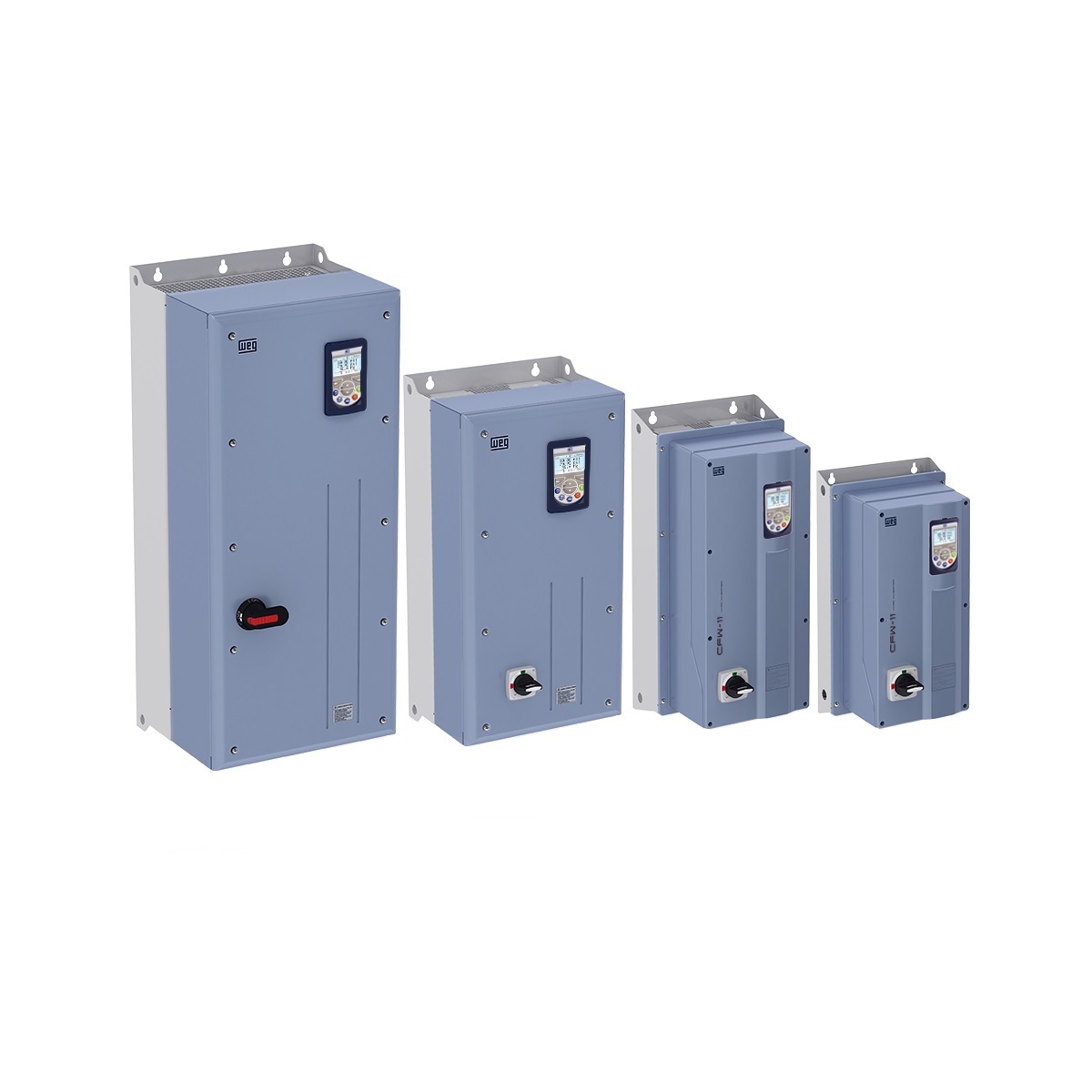

CFW110010T2O55DSZ

DRIVE CFW110010T2O55DSZ

WEG
