Variable Frequency Drives (VFD)

ESV152N02TXB

ESV152N02TXB Lenze Variable Frequency Drive (VFD) - The SMV 2.0 hp (1.5 kW) drive features a 208 / 240 VAC 3Ø input in a convection cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

CFW110003T4ON1Z-PGS

DRIVE CFW110003T4ON1Z-PGS

WEG

M000-10501520DU0100AN100

NIDEC M000-10501520DU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M000 series, featuring a built-in DC to AC inverter with air cooling. It has dimensions of frame size 10D, measuring H28.11" x W12.2" x D11.4" (H714mm x W310mm x D290mm). This model is designed for heavy-duty applications, with a rated current of 152A. It operates on a supply voltage of 500Vac-575Vac and is compatible with a network frequency of 50 Hz. The degree of protection offered is IP20 NEMA 1. Its rated active power ranges from 90kW to 250kW, and it can handle rated power from 125HP to 400HP for heavy-duty operations.

Nidec

H300-03200080A10101AB103

NIDEC H300-03200080A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). This model supports Modbus RTU communication protocol and operates with a rated current of 8A under normal duty. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP20 NEMA 1 UL type 1 and is compatible with a 3-phase input network (3P) at a supply input frequency of 60 Hz. It includes 2 analog outputs, 3 digital inputs (24Vdc), 3 configurable digital inputs (24Vdc / configurable), 1 digital input (0-24Vdc), and 2 digital outputs (relay contact type), along with 1 analog input (4-20mA) and 1 analog input (0-10Vdc). The rated active power is 1.5kW under normal duty, with a rated power of 2HP.

Nidec

I55AE137D1AV01002S

Lenze I55AE137D1AV01002S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H155mm x W60mm x D130mm. It supports CANopen communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. It can be used in single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, all supporting various configurations. The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

C300-02400032A10101AB100

NIDEC C300-02400032A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series, designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 380Vac-480Vac, including 400Vac and 415Vac, within a frame size of 2, measuring H8.07" x W2.95" x D5.9" (H205mm x W75mm x D150mm). This model offers an IP20 NEMA 1 degree of protection and supports a rated current of 3.2A for both normal and heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network, with a supply input frequency range of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation spans from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) along with 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). It is rated for 1.1kW (Normal duty) and 1.1kW (Heavy-duty) in active power, equivalent to 1.5HP / 1-1/2HP for both normal and heavy-duty operations.

Nidec

I55AE175B10V1100WS

Lenze I55AE175B10V1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O. conformal coating, and dimensions of H180mm x W60mm x D130mm. This model supports Modbus TCP communication protocol and includes protection functions for overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 4.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE125A1AV0100WS

Lenze I55AE125A1AV0100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports Modbus TCP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.7A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz. The degree of protection is IP20, designed for a single-phase network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 120Vac.

Lenze

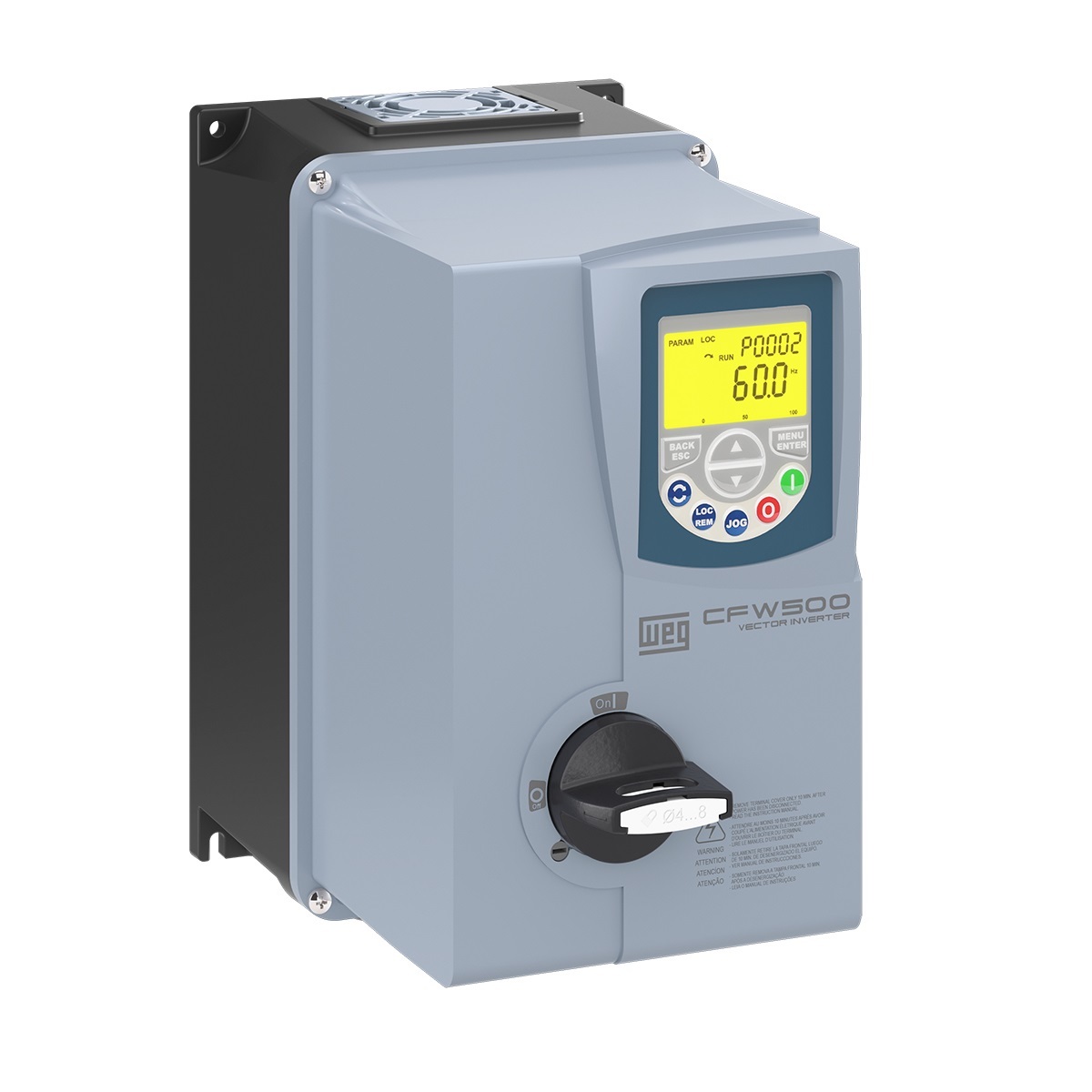

CFW500A02P6T4DB66DSG2

DRIVE CFW500A02P6T4DB66DSG2

WEG

GA80U4302AWM

GA80U4302AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 302 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

F600-10502000E10101AN103

NIDEC F600-10502000E10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-575Vac and a network frequency of 60 Hz. It features an ambient air temperature for operation range from -20°C to +40°C. This model comes with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), and 2 digital outputs (240Vac; relay contact type), all housed within an IP20 degree of protection. The dimensions are frame size 10E, measuring H42.1" x W12.2" x D11.4" (H1069mm x W310mm x D290mm). It supports Modbus RTU communication protocol, has a rated current of 200A for normal duty, and delivers a rated active power of 130kW (200HP) for normal duty. The design includes an external line choke for air cooling.

Nidec

M702-07500440A10101AB100

NIDEC M702-07500440A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports multiple communication protocols, including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 53A under normal duty and 44A under heavy-duty conditions, with a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, and UL open. Designed for a 3-phase input network with a frequency range of 45-66 Hz for supply input and 0-599 Hz for output, it includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source; relay contact type). The rated active power is 45kW under normal duty and 30kW under heavy-duty, corresponding to 50HP and 40HP, respectively.

Nidec

I55AE175B10V11000S

Lenze I55AE175B10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications with features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It has a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H180mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates at a rated current of 4.2A for heavy-duty applications with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. It supports a single-phase network with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. The drive includes 1 analog output, 5 digital inputs with optional uses for two of them, 1 digital output, and 2 analog inputs that can also be optionally used as voltage or current inputs. It has a rated active power of 0.75kW and a rated power of 1HP for heavy-duty applications at 230-240Vac.

Lenze

HS71-03400031A10101AB100

NIDEC HS71-03400031A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS71 series designed for high-speed applications with a built-in brake transistor and a single Safe Torque Off (STO) feature. It operates with variable frequency outputs ranging from 0-3000Hz in open loop and 0-1250Hz in closed loop configurations. This model is air-cooled and has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). It supports RS-485 communication protocol and has a rated current of 4.5A under normal duty and 3.1A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it can operate in ambient air temperatures from -20°C to +40°C. The device offers an IP20 degree of protection and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying conversion resolutions. The rated active power is 1.5kW for normal duty and 1.1kW for heavy-duty, corresponding to 2HP and 1.5HP respectively.

Nidec

M400-09202190E10101AB100

NIDEC M400-09202190E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 9E, measuring H39.8" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 266A under normal duty and 219A under heavy-duty conditions. The supply voltage required is 200Vac-240Vac (220Vac / 230Vac), and it can function within an ambient air temperature range of -20°C to +55°C. The device offers a degree of protection of IP20 NEMA 1 and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 analog outputs (0-20mA / 4-20mA / 0-10Vdc/ 0-24Vdc; single-ended; source; can be used as digital outputs), 8 digital inputs (0-24Vdc), and 3 digital outputs (200mA / 0-24Vdc; PWM; source and 2A / 240Vac; source; relay contact type). Additionally, it has 2 analog inputs (0-20mA / 4-20mA / -10...+10Vdc and 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution; can be used as a digital input). The rated active power is 75kW under normal duty and 55kW under heavy-duty, with rated power of 100HP and 75HP respectively.

Nidec

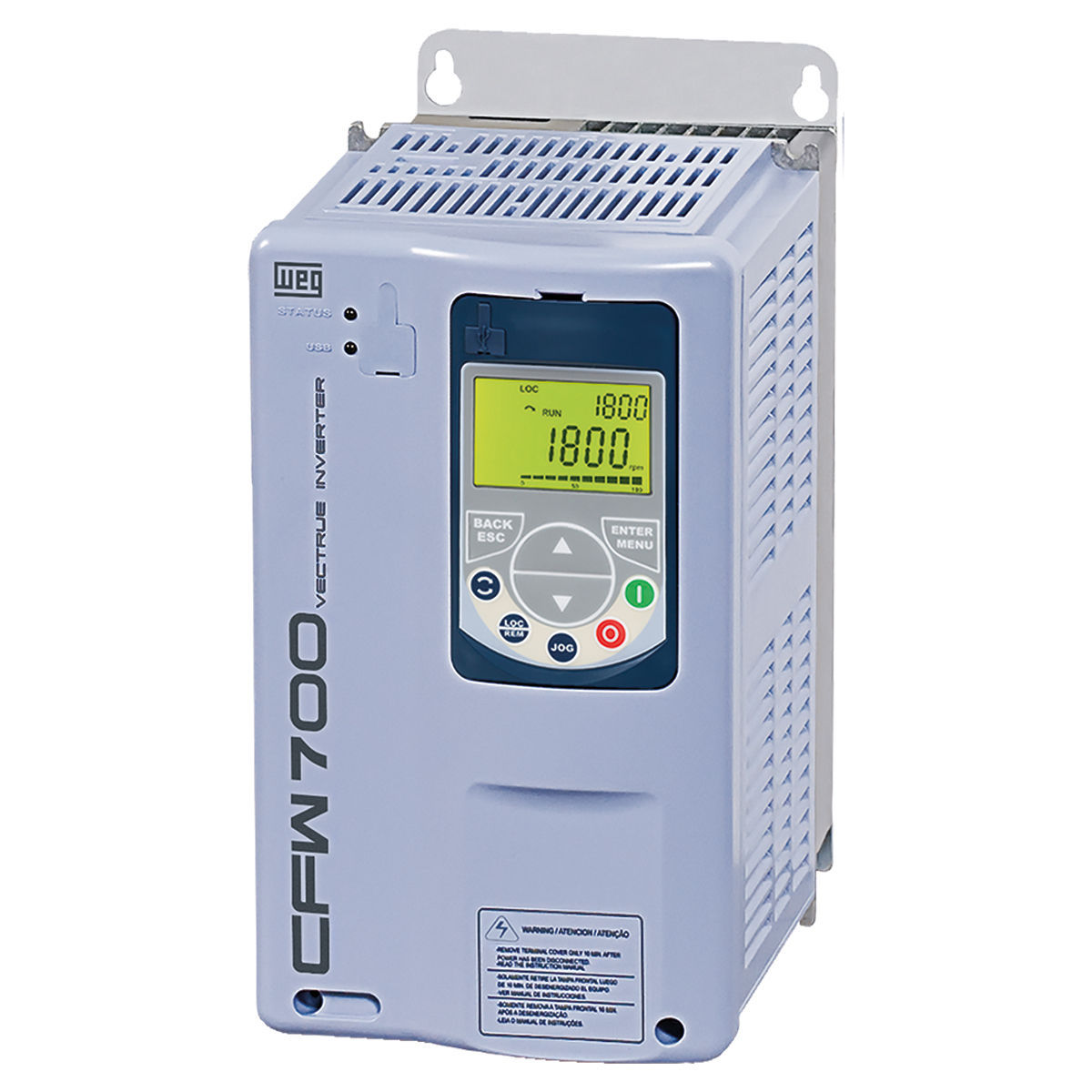

CFW700A03P6T4DB20

DRIVE CFW700A03P6T4DB20

WEG

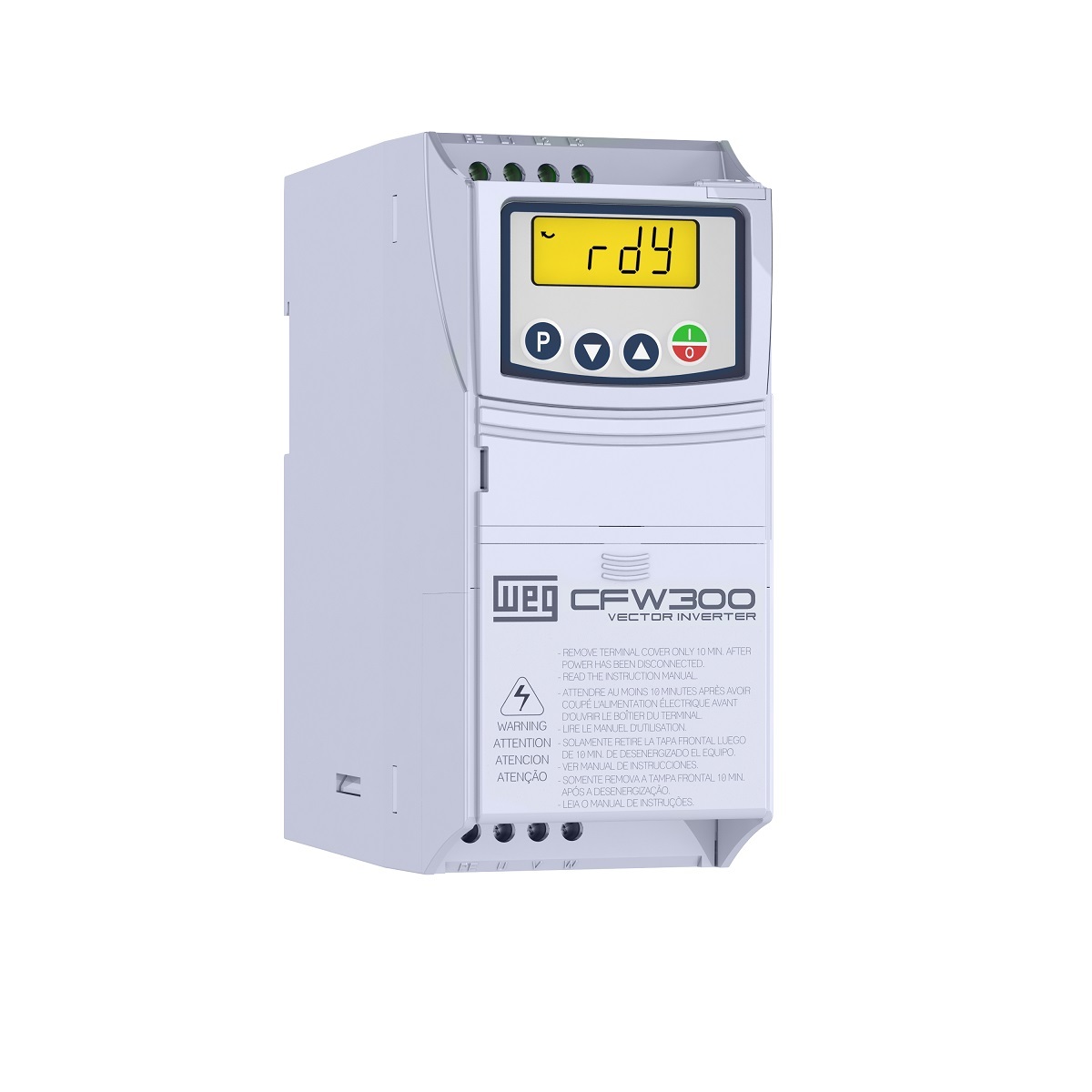

CFW300A04P2T2NB20

DRIVE CFW300A04P2T2NB20

WEG

I55AE211A1AV01000S

Lenze i55AE211A1AV01000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed to offer variable speed/frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H250mm x W60mm x D130mm. This model does not include a communication interface but provides protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 6A for heavy-duty applications at 120Vac and a supply voltage of 120Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The operational ambient air temperature varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, is designed for single-phase / 1P networks with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 1.1kW and a rated power of 1-1/2HP for heavy-duty applications at 120Vac.

Lenze

HVW701C070T2N01-I-B

WEG HVW701C070T2N01-I-B - STANDARD PANEL HVW701C070T2N01-I-B, HVAC Enclosed Drives (HVW)

WEG

ATV312HU15N4412

Schneider Electric ATV312HU15N4412 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 solar series designed for solar energy-driven pumping applications. It features sensorless flux vector control and an energy-saving ratio of 170-200% of the nominal motor torque. This model comes with a built-in EMC filter and heatsink, operates on a supply voltage of 361-525Vac (380Vac / 400Vac / 480Vac / 500Vac nom.), and has dimensions of H329.5mm x W245mm x D192mm. It offers an IP20 degree of protection, a rated current of 4.1A at 380Vac with a 4kHz frequency, and a maximum current of 6.2A for 60 seconds. For installation, it supports wall mounting and communicates via Modbus and CANopen protocols. It is designed for a 3-phase (3P) network with an output frequency range of 0-500 Hz. The device includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for versatile connectivity. It has a current consumption of 6.4A at 380Vac and 4.8A at 500Vac, with a rated active power of 1.5kW (2HP) and power dissipation/losses of 61 W.

Schneider Electric
