Variable Frequency Drives (VFD)

ESV402N02TXB

ESV402N02TXB Lenze Variable Frequency Drive (VFD) - The SMV 5.0 hp (4.0 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

F600-03200127A10101AB653

NIDEC F600-03200127A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for controlling motor speed and frequency. It operates within an ambient air temperature range of -20°C to +40°C. This model features 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), and 1 analog input (4-20mA / 0-10Vdc; single-ended) alongside 3 digital inputs (24Vdc) that are configurable for 0-24Vdc. It is protected by an IP65-rated enclosure, ensuring protection against dust and water jets. The dimensions are frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). The F600 series drive includes a built-in brake transistor, internal line choke, and utilizes air cooling for temperature management. It requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a network frequency of 60 Hz and supports Modbus RTU communication protocol. The rated current for normal duty is 12.7A, with a rated active power of 3kW and rated power of 3HP for normal duty. It is designed for a 3-phase input network.

Nidec

I55AE222B1AV1100LS

Lenze I55AE222B1AV1100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H250mm x W60mm x D130mm. The communication protocol supported is PROFINET. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a single-phase / 1P network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, multiple digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs that can be optionally used as voltage or current inputs. The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 230-240Vac.

Lenze

VFD110C23B-21

Variable Frequency Drive, 3 phase, 230 VAC Input, 15 HP, frame B, wall mount, IP20, NEMA 1

Delta

VFD185C23C-21

Variable Frequency Drive, 3 phase, 230 VAC Input, 25 HP, frame C, IP20, NEMA 1

Delta

S100-01S23-0B0000

Nidec S100-01S23-0B0000

Nidec

M600-09201760A10101AB100

NIDEC M600-09201760A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 analog outputs, 6 digital inputs, 4 digital outputs, and 3 analog inputs with varying specifications for comprehensive control and feedback. The rated active power is 55kW for normal duty and 45kW for heavy-duty applications, corresponding to 75HP and 60HP, respectively.

Nidec

ATV71HC50N4383

Schneider Electric ATV71HC50N4383 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series. It features variable speed/frequency drive functionality with U/F ratio (2 points / 5 points), sensorless flux vector control, ENA System, and vector control with or without speed feedback. It can deliver 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. The design includes a DC choke, built-in EMC filter, synchronous motor control, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) and has dimensions of H1390mm x W1120mm x D377mm. The part offers chemical resistance with a conformal coating (reinforced version) and has a degree of protection of IP30 UL type 1. The rated current is 941A (380Vac; 2.5kHz), 941A (460Vac; 2.5kHz), with a maximum current of 1552A for 2 seconds and 1411A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. The network is 3-phase (3P) with an output frequency of 0.1-500 Hz. It includes 1 x analog output (0-10Vdc / 0-20mA), 5 x digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input, and 3 x digital outputs. There are also 2 x analog inputs for comprehensive connectivity. The current consumption is 876A (380Vac) and 699A (480Vac), with a rated active power of 500kW and rated power of 700HP.

Schneider Electric

M600-09601310A10101AB100

NIDEC M600-09601310A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 155A under normal duty and 131A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input (3P) network, with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x additional digital inputs, 3 x digital outputs, and 1 x digital output of a relay contact type, alongside 3 x analog inputs with varying specifications. The rated active power is 132kW under normal duty and 110kW under heavy-duty, corresponding to 175HP and 150HP, respectively.

Nidec

CFW080100BDN4A1Z

WEG CFW080100BDN4A1Z - INVERTER USCFW080100B2024EON4A1Z, CFW08 / CFW500 Washdown Drives

WEG

M000-10203000DU0100AN100

NIDEC M000-10203000DU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in DC to AC inverter air cooling. It features dimensions of frame size 10D, measuring H28.11" x W12.2" x D11.4" (H714mm x W310mm x D290mm). This model has a rated current of 300A for heavy-duty applications and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). It offers a degree of protection of IP20 NEMA 1 and operates at a network frequency of 50 Hz. The rated active power ranges from 90kW to 250kW for heavy-duty operations, equivalent to 125HP to 400HP.

Nidec

M000-09601310EU0100AB100

NIDEC M000-09601310EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series. It features a built-in brake transistor, requires an external choke, and utilizes air cooling for its operation. The device has dimensions of frame size 9E, measuring H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). It is designed for a heavy-duty rated current of 131A and operates on a supply voltage of 500Vac-690Vac (600Vac), with a network frequency supply input of 50 Hz. The degree of protection offered is IP20 NEMA 1. This model supports a rated active power range of 90kW-250kW and a rated power of 125HP-400HP for heavy-duty applications.

Nidec

CFW700B31P0T4DB20

DRIVE CFW700B31P0T4DB20

WEG

GA80UT302AAM

GA80UT302AAM Yaskawa - Variable frequency drive (VFD), 12 Pulse, 480 VAC, 302 A, IP00, General Purpose GA800 Series

Yaskawa

I55AE125A1AV01003S

Lenze I55AE125A1AV01003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed to offer variable speed/frequency drive functionality along with compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports Modbus RTU communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.7A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is designed for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz. The degree of protection is IP20, suitable for single-phase / 1P networks with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It features 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 120Vac.

Lenze

3G3MX2-A2002-V2

MX2 Series Fast-Response Inverter for Machine Control

Omron

C200-04400135A10101AB100

NIDEC C200-04400135A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and has dimensions of frame size 4 H10.9" x W4.5" x D6.9" (H277mm x W115mm x D175mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 13.5A for both normal and heavy-duty operations. It utilizes Modbus RTU for communication and is compatible with a 3-phase input network, with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and another 2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). It is rated for an active power of 5.5kW and a power of 7.5HP / 7-1/2HP for both normal and heavy-duty applications.

Nidec

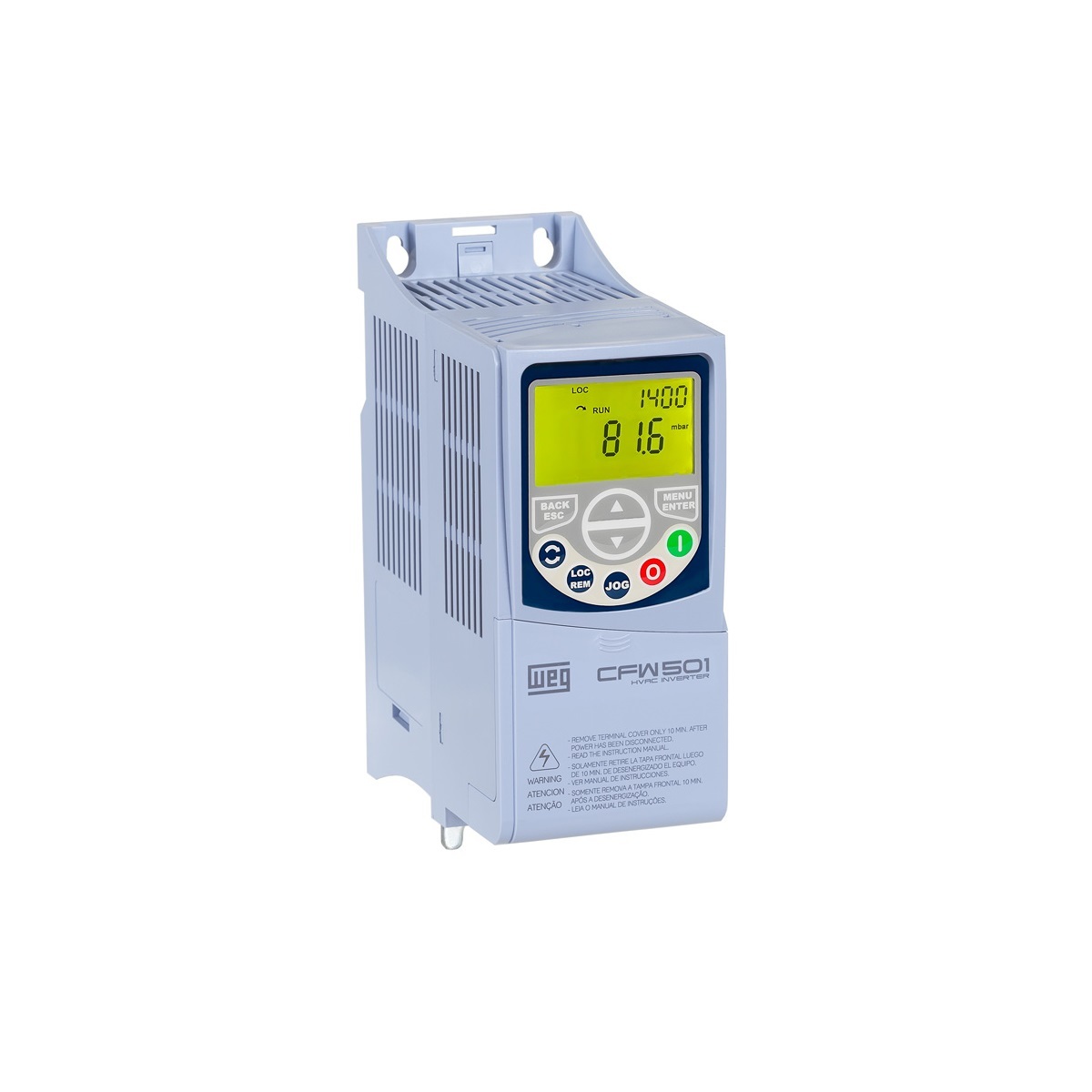

CFW501A04P3T2NB20C3

DRIVE CFW501A04P3T2NB20C3

WEG

GA80U5472AWM

GA80U5472AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 600 VAC, 472 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

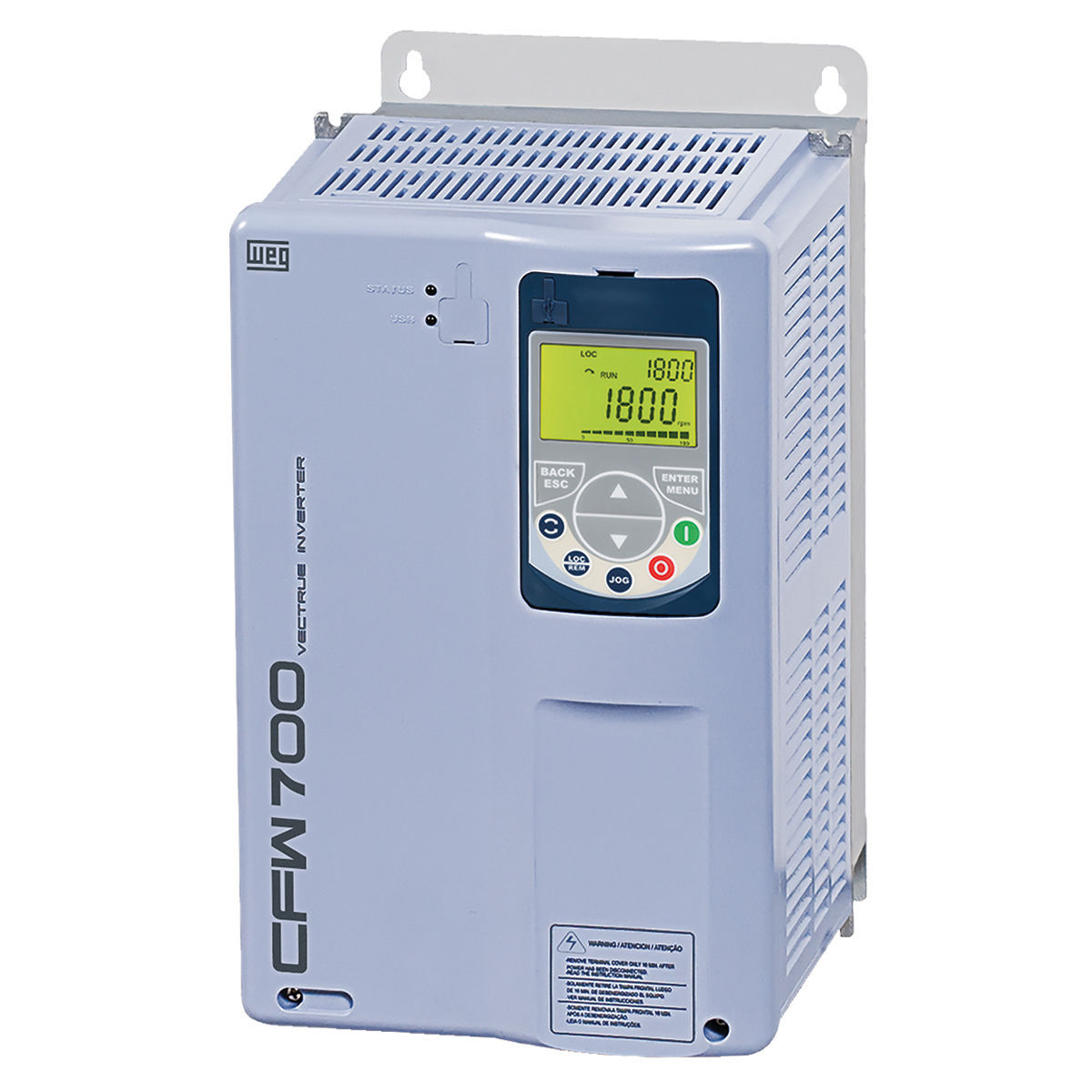

CFW700B31P0T4DBN1

WEG CFW700B31P0T4DBN1 - DRIVE CFW700B31P0T4DBN1, CFW500/700 Drives

WEG
