Variable Frequency Drives (VFD)

M702-08600860A10101AB100

NIDEC M702-08600860A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 108A under normal duty and 86A under heavy-duty conditions, with a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, UL open, and is designed for a 3-phase input network with a frequency range of 45-66 Hz (supply input) and 0-599 Hz (output). The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 90kW under normal duty and 75kW under heavy-duty, corresponding to 125HP and 100HP, respectively.

Nidec

QMP25A4R

NIDEC QMP25A4R is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 4 quadrant operation with air cooling. It operates within an ambient air temperature range of 0°C to +55 °C and has a rated current of 25A. This model supports a supply voltage range of 208Vac-480Vac, accommodating various standard voltages such as 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. The dimensions of the QMP25A4R are frame size 1A, measuring H22.6" x W13" x D8.7" (H573mm x W330mm x D272mm), and it has a degree of protection rated at IP00. It is designed for a single-phase input network (2P) and uses the Modbus RTU communication protocol. The device features 3 x digital outputs (240mA / 0-24Vdc; source) and 2 x digital outputs (5A / 240Vac; source; relay contact type), along with 1 x analog input (-10Vdc...10Vdc; differential) and 2 x analog inputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended). Additionally, it includes 3 x digital inputs (0-24Vdc) and 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; source; single-ended). The rated active power is 9kW, and the rated power is 15HP.

Nidec

HVW701C058T4N01-J-C

WEG HVW701C058T4N01-J-C - STANDARD PANEL HVW701C058T4N01-J-C, HVAC Enclosed Drives (HVW)

WEG

GA80U4605AWM

GA80U4605AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 605 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

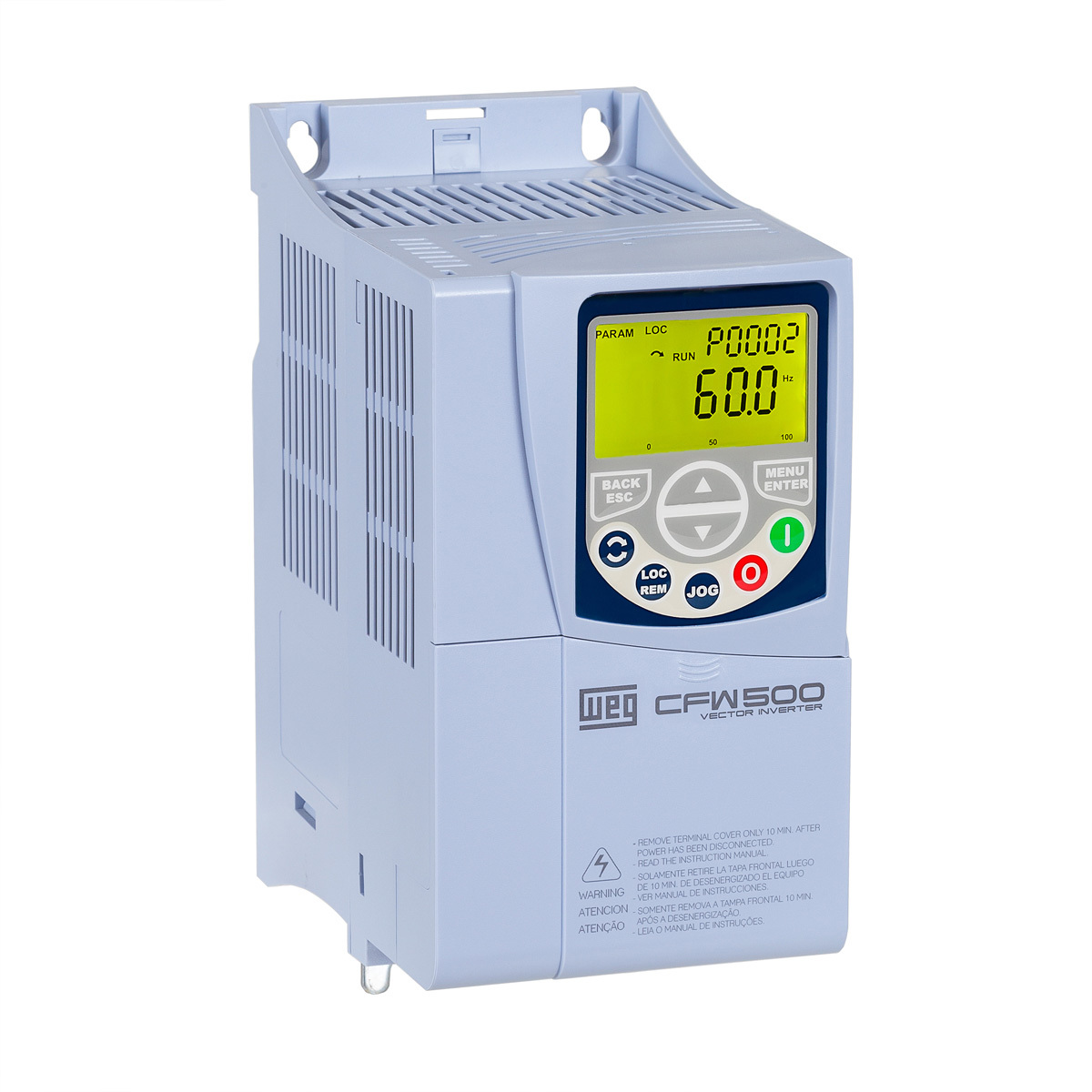

CFW500B07P3B2DB20G2

DRIVE CFW500B07P3B2DB20G2

WEG

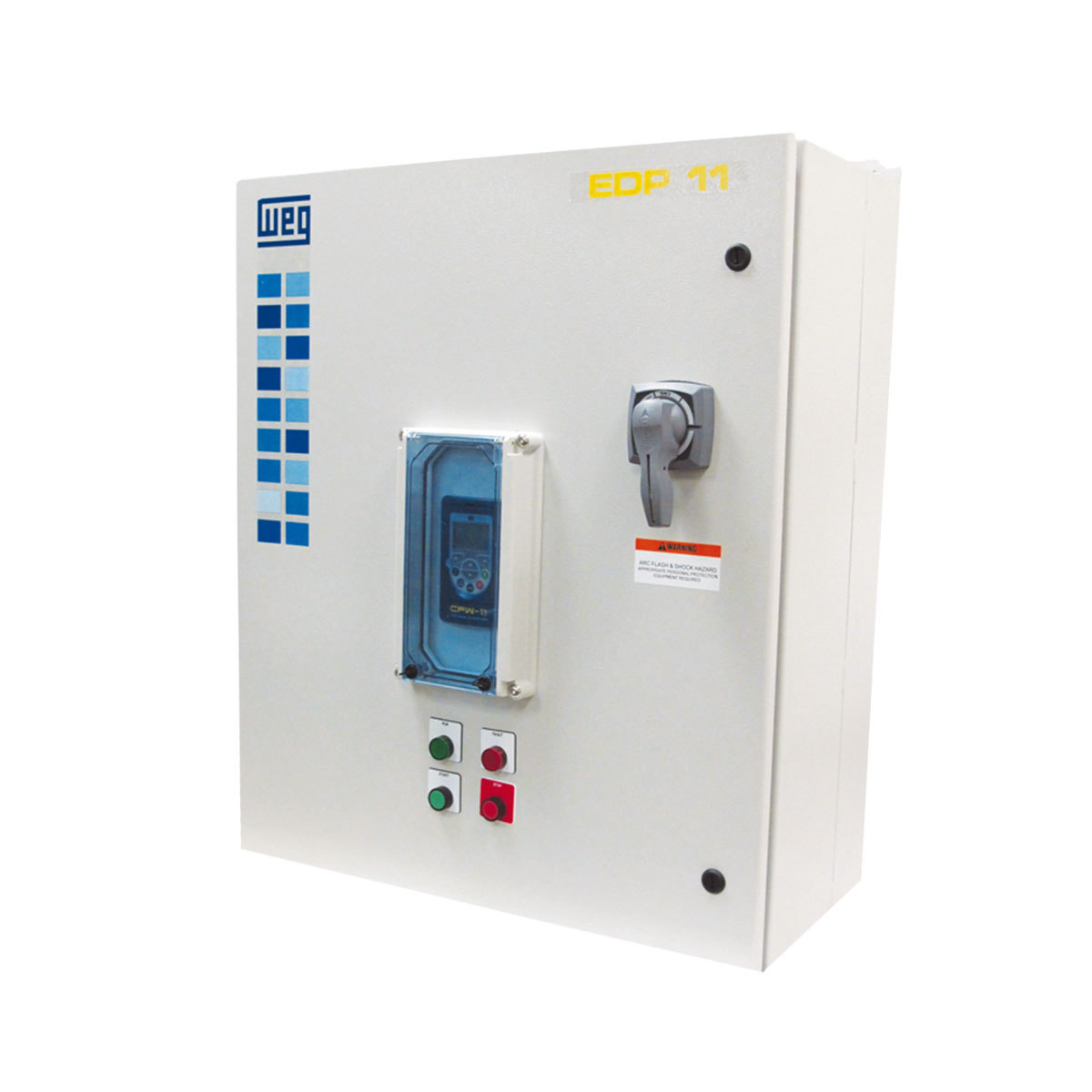

EDP11S010DN3R10000

STANDARD PANEL EDP11S010DN3R10000

WEG

HS70-03200106A10101AB100

NIDEC HS70-03200106A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for high-speed applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, utilizing air cooling for temperature management. This model has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), and supports Ethernet communication protocol. It operates with a rated current of 12.7A under normal duty and 10.6A under heavy-duty conditions. The supply voltage required is 200Vac-240Vac (220Vac / 230Vac), and it can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 degree of protection and is compatible with a 3-phase input network, supporting a network frequency of 45-66 Hz on the supply input and capable of outputting 0-3000 Hz (open loop) / 0-1250 Hz (closed loop). It includes 2 analog outputs, 6 digital inputs, and 4 digital outputs, with analog inputs featuring 11-bit conversion resolution. The rated active power is 3kW for normal duty and 2.2kW for heavy-duty, with a corresponding rated power of 3HP for both operational modes.

Nidec

I55AE137D1AV0100KS

Lenze I55AE137D1AV0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed to offer variable speed/frequency drive functionality along with compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, and a flying restart circuit. It incorporates a PID controller and adheres to the safe torque off (STO) safety standard with an I.O. conformal coating. This model has dimensions of H155mm x W60mm x D130mm and supports EtherCAT communication protocol. It is equipped with protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 2.4A for heavy-duty operations at 230-240Vac, and it is designed for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection and is compatible with both single-phase and three-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, 5 x digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs, supporting a range of signal types. The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE230F1AV1100LS

Lenze I55AE230F1AV1100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports PROFINET communication protocol. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates at rated currents of 8.8A for light-duty (400Vac), 7.6A for light-duty (480Vac), 7.3A for heavy-duty (400Vac), and 6.3A for heavy-duty (480Vac), with a supply voltage of 400Vac / 480Vac. Designed for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with an IP20 degree of protection. The network is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionalities, 1 digital output, and 2 analog inputs, supporting a rated active power of 4kW (light-duty; 400-480Vac) and 3kW (heavy-duty; 400-480Vac), equivalent to 5HP and 4HP respectively.

Lenze

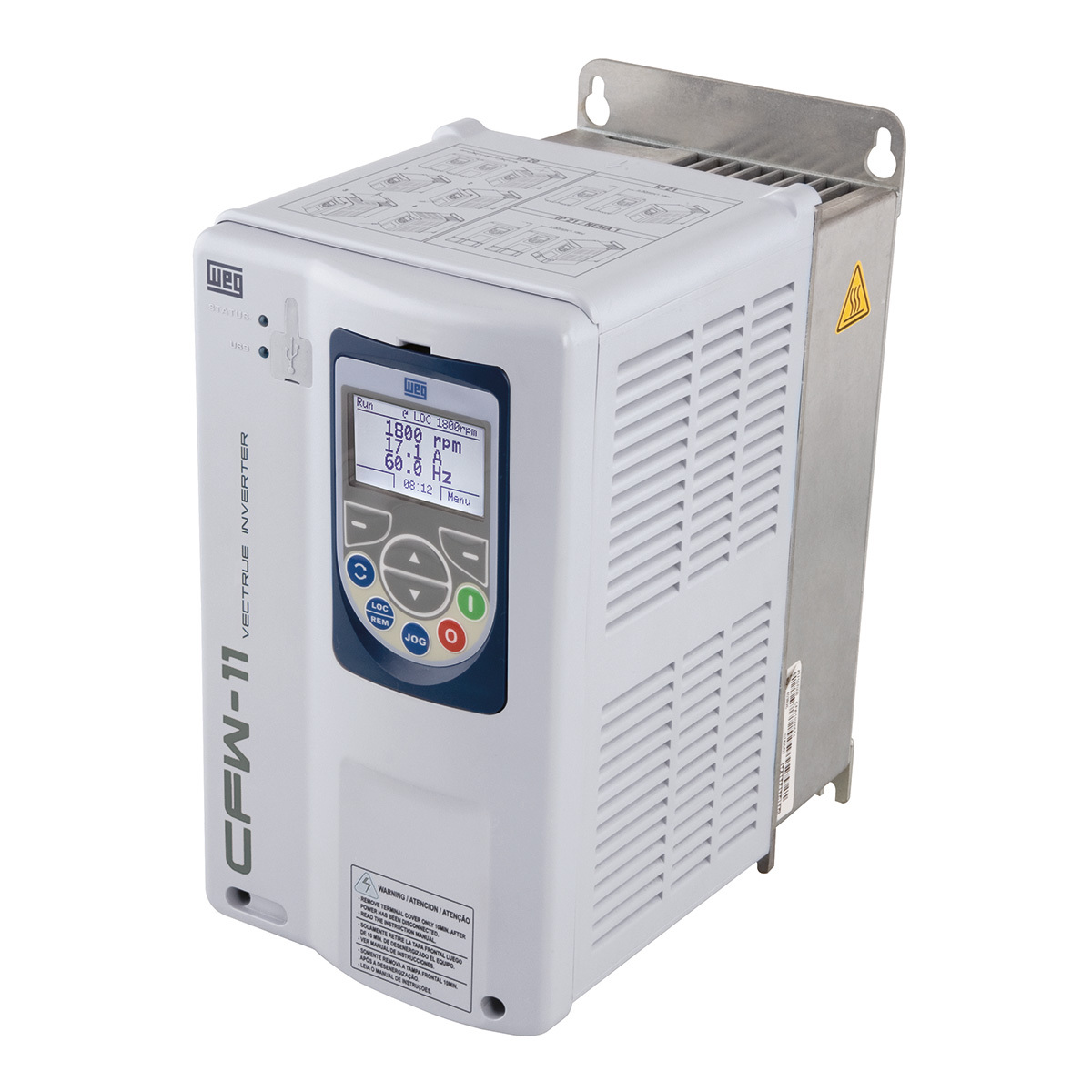

CFW110010S2ON1Z

DRIVE CFW110010S2ON1Z

WEG

M600-10202830E10101AN100

NIDEC M600-10202830E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed for variable speed control with a single Safe Torque Off (STO) feature, requiring an external choke and air cooling for operation. It has dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 325A under normal duty and 283A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is suitable for a 3-phase input (3P) network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 analog outputs (-10...+10Vdc; single-ended; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (including one 2A / 240Vac relay contact type), and 3 analog inputs with varying specifications and 11-bit conversion resolution. The rated active power is 90kW under normal duty and 75kW under heavy-duty, equivalent to 125HP and 100HP respectively.

Nidec

I55AE375F10V11004S

Lenze I55AE375F10V11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, and includes a flying restart circuit and PID controller. It features a built-in RFI filter, standard I.O. conformal coating, and dimensions of H536mm x W250mm x D265mm. This model supports PROFIBUS communication protocol and offers protection against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 180A (light-duty; 400Vac), 149A (light-duty; 480Vac), 150A (heavy-duty; 400Vac), and 124A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a protection degree of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 90kW (light-duty; 400-480Vac) and 75kW (heavy-duty; 400-480Vac), with a rated power of 125HP (light-duty; 400-480Vac) and 100HP (heavy-duty; 400-480Vac).

Lenze

SP0203-HF

NIDEC SP0203-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a compact frame size of 0, measuring H12.677" x W2.441" x D8.898" (H322mm x W62mm x D226mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a rated current of 4A for heavy-duty applications. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and offers a degree of protection of IP20 NEMA 1. Communication is facilitated through a Modbus RTU RS-485 protocol, and it supports a network frequency of 48-65 Hz on the supply input and 0-3000 Hz on the output. The SP0203-HF includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), 1 x analog input (-9.8Vdc...9.8Vdc; differential with a 16-bit conversion resolution), 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended with a 10-bit conversion resolution), and 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source with a 10-bit conversion resolution). It is suitable for both single-phase input (2P) and 3-phase input (3P) configurations, with a rated active power of 0.75kW and a rated power of 1HP for both normal and heavy-duty operations.

Nidec

HS71-03400025A10101AB100

NIDEC HS71-03400025A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS71 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling. The dimensions are frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). It supports RS-485 communication protocol and operates with a rated current of 3.4A under normal duty and 2.5A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. This model has an IP20 NEMA 1 UL open degree of protection, accepts a 3-phase input (3P), and works within a network frequency of 45-66 Hz (supply input) with an output frequency range of 0-3000 Hz. It offers 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type), and analog inputs including 1 x differential (0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution) and 2 x single-ended (0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 1.1kW under normal duty and 0.75kW under heavy-duty, with rated power of 1.5HP / 1-1/2HP (Normal duty) and 1HP (Heavy-duty).

Nidec

HS71-03200080A10101AB100

NIDEC HS71-03200080A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS71 series designed for variable speed control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling for temperature management. The dimensions are frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). It supports RS-485 communication protocol and operates with a rated current of 11A under normal duty and 8A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. This model has an IP20, NEMA 1, UL open degree of protection, and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs, with the outputs and inputs supporting various signal types and resolutions. The rated active power is 2.2kW under normal duty and 1.5kW under heavy-duty, corresponding to 3HP and 2HP, respectively.

Nidec

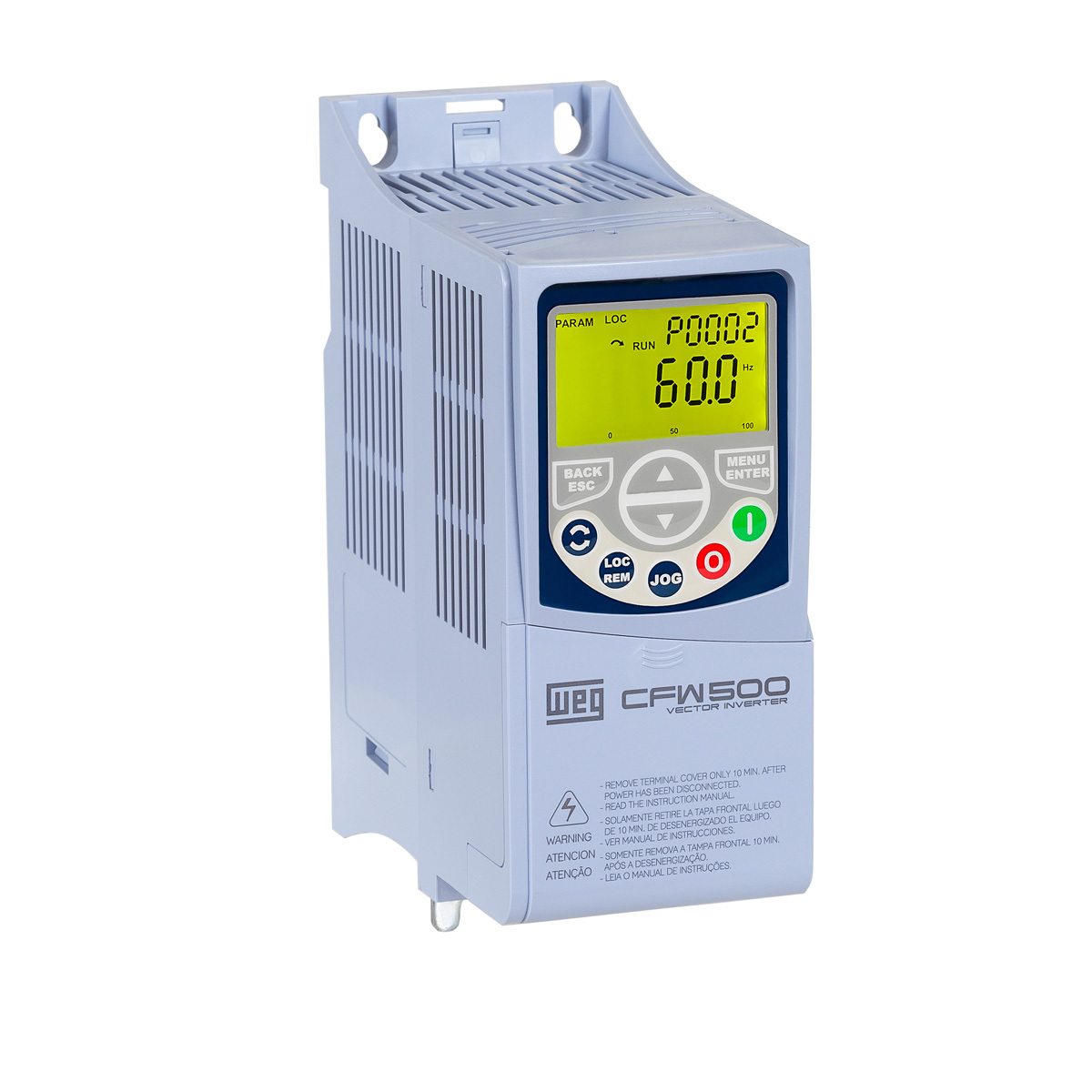

CFW500A04P3T4NB20G2

DRIVE CFW500A04P3T4NB20G2

WEG

UMI-0300EU-B7

UMI-0300EU-B7 Unitronics - Unitronics VFD - B7 Series, 380-480V, 3 Phase, 30kW, 40HP, STO included

Unitronics

HVW701E180T2N12-X-A

WEG HVW701E180T2N12-X-A - STANDARD PANEL HVW701E180T2N12-X-A, HVAC Enclosed Drives (HVW)

WEG

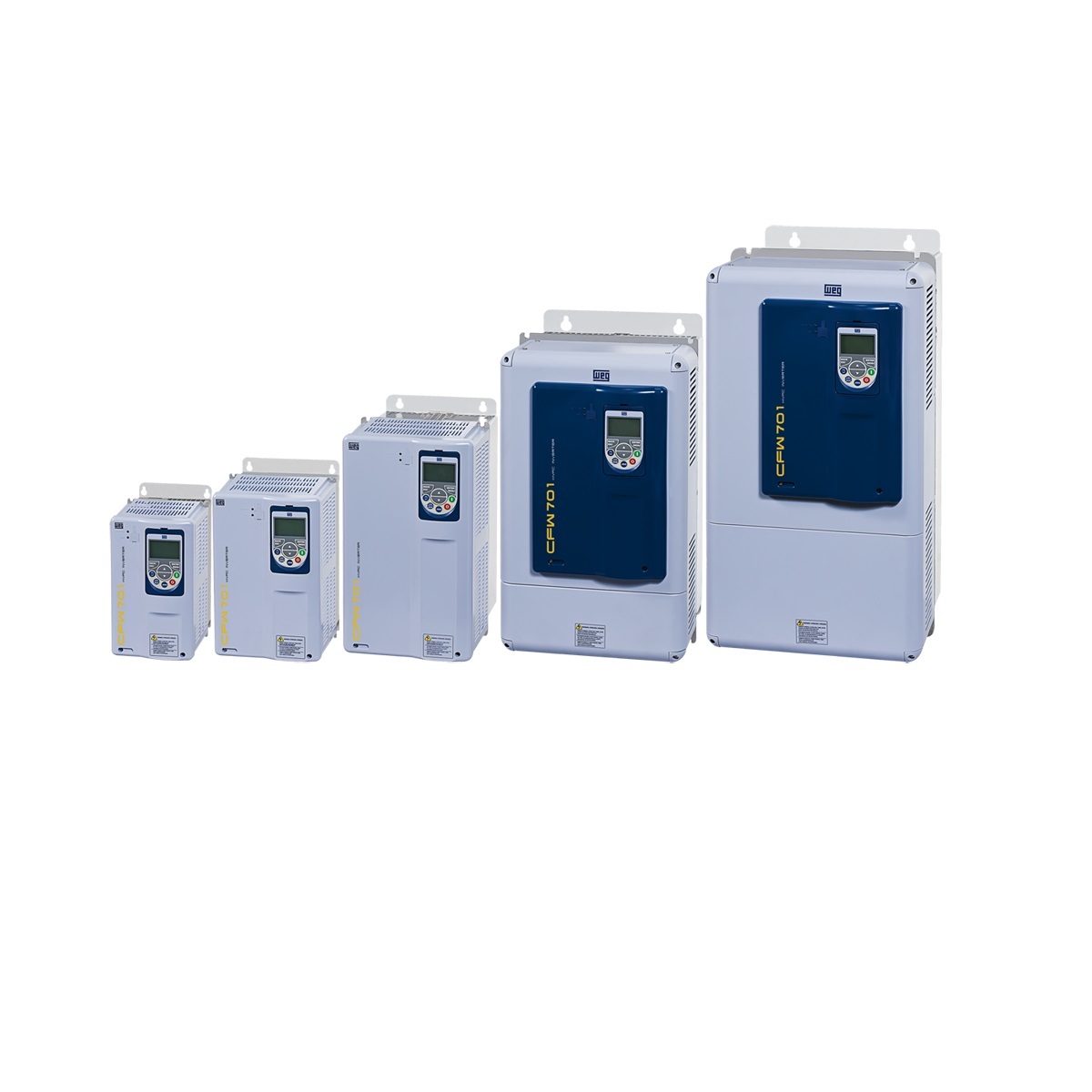

CFW701C58P5T4DBN1C3

DRIVE CFW701C58P5T4DBN1C3

WEG

ATV71H075M3Z

Schneider Electric ATV71H075M3Z is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series, designed for variable speed and frequency control with a U/F ratio of 2 points / 5 points, sensorless flux vector control, ENA System, and vector control with or without speed feedback. It delivers 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model features a built-in EMC filter, a non-detachable display, and a built-in heatsink. It operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.) and has dimensions of H230mm x W130mm x D175mm. The degree of protection offered includes IP20, IP21, and UL type 1. The rated current specifications are 4.8A (230Vac; 4kHz; 3-phase), 3A (230Vac; 4kHz; single-phase), with maximum currents of 4.9A (single-phase; for 2s), 7.9A (3-phase; for 2s), 4.5A (single-phase; for 60s), and 7.2A (3-phase; for 60s). It supports wall mounting and uses Modbus and CANopen communication protocols. The type of network it operates on can be either single-phase (1P) or 3-phase (3P), with an output network frequency of 0.1-599 Hz. It includes 1 x analog output (0-10Vdc / 0-20mA), 5 x digital inputs (24Vdc; sink/source) programmable (LI1-LI5), 1 x digital input programmable as discrete or PTC input (LI6), 1 x digital input (PWR safety input), 1 x digital output (C/O SPDT relay contact) (R1), and 2 x digital outputs (NO relay contacts) (R2). The analog inputs consist of 1 x analog input (-10...+10Vdc) and 1 x analog input (0-10Vdc / 0-20mA). Current consumption is rated at 6.9A (200Vac; 0.37kW; single-phase), 6.1A (200Vac; 0.75kW; 3-phase), 5.8A (240Vac; 0.37kW; single-phase), and 5.3A (240Vac; 0.75kW; 3-phase). The rated active power is 750W / 0.75kW (3-phase) and 370W / 0.37kW (single-phase), with rated power of 1HP (3-phase) and 0.5HP / 1/2HP (single-phase).

Schneider Electric
