Variable Frequency Drives (VFD)

M701-09202190E10101AN100

NIDEC M701-09202190E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M701 series designed for variable speed control with a single Safe Torque Off (STO) feature, requiring an external choke and air cooling for operation. It has dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 266A under normal duty and 219A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 analog inputs (1 x differential and 2 x single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 75kW for normal duty and 55kW for heavy-duty, with corresponding rated power of 100HP and 75HP, respectively.

Nidec

ESV371N01SXC

ESV371N01SXC Lenze Variable Frequency Drive (VFD) - The SMV 0.50 hp (0.37 kW) drive features a 120 VAC (doubler) / 240 VAC 1Ø input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated li

Lenze

I51AE222F10V11001S

Lenze I51AE222F10V11001S is a Variable Speed/Frequency Drive (VSD/VFD) also known as a compact inverter, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, basic input/output, and conformal coating. The dimensions of this inverter are H250mm x W60mm x D130mm. It supports CANopen and Modbus RTU communication protocols and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 5.6A for heavy-duty applications at 400Vac and 4.8A at 480Vac, with a supply voltage of 400Vac / 480Vac. It is designed for control cabinet or surface/wall mounting and operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. This inverter is suitable for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (with options for frequency or encoder input), 1 digital output (max. 100mA), and 2 analog inputs (0-10Vdc; 0-20mA or 4-20mA) with flexibility in usage. The rated active power is 2.2kW for heavy-duty applications at 400-480Vac, equivalent to 3HP.

Lenze

C200-08401340A10101AB100

NIDEC C200-08401340A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and has dimensions of frame size 8 H31.65" x W12.21" x D11.42" (H804mm x W310mm x D290mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 155A for Normal duty and 134A for Heavy-duty. It supports Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 75kW for Normal duty and 55kW for Heavy-duty, with a rated power of 100HP for both Normal and Heavy-duty applications.

Nidec

I55AE125A10V0100MS

Lenze i55AE125A10V0100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and supports Ethernet/IP communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.7A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 120Vac.

Lenze

UMI-0550EU-B5

UMI-0550EU-B5 Unitronics - Limited Availability. If Not Available Use UMI-0550EU-B7

Unitronics

HVW701D088T4N12-I-A

WEG HVW701D088T4N12-I-A - STANDARD PANEL HVW701D088T4N12-I-A, HVAC Enclosed Drives (HVW)

WEG

C300-09501040A10101AB100

NIDEC C300-09501040A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series, designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 9A, measuring H43.62" x W12.21" x D11.42" (H1108mm x W310mm x D290mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 125A for Normal duty and 104A for Heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network, with a network frequency of 45-66 Hz for supply input and 0-550 Hz for output. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and one 2A / 240Vac; source; relay contact type). The analog inputs include 1 x (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x (0-10Vdc; single-ended; 11-bit conversion resolution). It is rated for an active power of 90kW (Normal duty) and 75kW (Heavy-duty), equivalent to 125HP (Normal duty) and 100HP (Heavy-duty).

Nidec

SM230

Lenze SM230 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed control of AC motors. It has dimensions of H146mm x W95mm x D140mm and operates on a supply voltage of 200Vac-240Vac, including specific ratings of 208Vac, 220Vac, and 230Vac. The rated current is 11A at 208Vac and 9.6A at 230Vac. This unit is suitable for mounting in a control cabinet or on a surface/wall. It is designed to operate within an ambient air temperature range of 0-40°C. The SM230 does not include a communication interface but supports a network frequency of 48-62 Hz on input and can output frequencies from 0 to 240 Hz. It features 1 digital output (normally open relay; contacts rated 3A at 250Vac), 1 digital output (current-sourcing; rated 50mA at 12Vdc), and 4 digital inputs (active-high) (terminal 1; 13A; 13B; 13E). The drive is designed for a 3-phase network (3P / 3AC) and offers a rated active power of 2.2kW and a rated power of 3HP across 208Vac-240Vac.

Lenze

I5DAE322F10V10000S

Lenze I5DAE322F10V10000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Power units sub-range, designed with a built-in RFI filter. This model does not include a communication interface. It features protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 56.4A for light-duty operations at both 400Vac and 480Vac, and 48.5A for heavy-duty operations at 400Vac, with a reduction to 40.4A at 480Vac. It operates on a supply voltage of either 400Vac or 480Vac and is suitable for mounting in a control cabinet or on a surface/wall, boasting an IP20 degree of protection. This inverter is designed for a 3-phase network (3P / 3AC) and offers a rated active power of 22kW and a rated power of 30HP for heavy-duty applications at 400-480Vac.

Lenze

CFW080043THN4A1Z

WEG CFW080043THN4A1Z - INVERTER USCFW080043T5060EON4A1Z, CFW08 / CFW500 Washdown Drives

WEG

HVW701B024DN01200000

WEG HVW701B024DN01200000 - STANDARD PANEL HVW701B024DN01200000, HVAC Enclosed Drives (HVW)

WEG

I5DAE211F10V10000S

Lenze I5DAE211F10V10000S is a Variable Speed/Frequency Drive (VSD/VFD) or Inverter within the Power units sub-range, designed for control cabinet or surface/wall mounting. This inverter power unit features a built-in RFI filter and operates without a communication interface. It is equipped with protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 3.2A for heavy-duty applications at 400Vac and 3A at 480Vac, with a supply voltage of 400Vac / 480Vac. It supports a 3-phase (3P / 3AC) network type and offers a rated active power of 1.1kW and a rated power of 1-1/2HP for heavy-duty applications within the 400-480Vac range. The degree of protection provided is IP20.

Lenze

VFD220C43C-21

Variable Frequency Drive, 3 phase, 460 VAC Input, 40 HP, frame C, IP20, NEMA 1

Delta

C200-08201320A10101AB100

NIDEC C200-08201320A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and has dimensions of frame size 8 H31.65" x W12.21" x D11.42" (H804mm x W310mm x D290mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 180A for normal duty and 132A for heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 45kW for normal duty and 37kW for heavy-duty, with a rated power of 60HP for normal duty and 50HP for heavy-duty.

Nidec

CFW500A02P6S2NB20Y2

WEG CFW500A02P6S2NB20Y2 - DRIVE CFW500A02P6S2NB20Y2, CFW500/700 Drives

WEG

SP2404

NIDEC SP2404 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a single Safe Torque Off (STO) and air cooling. It features a frame size 2 with dimensions of H15.32" x W6.1" x D8.62" (H389mm x W155mm x D219mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The rated current is 29A for both normal and heavy-duty operations. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP2404 includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs comprising 1 x (-9.8Vdc...9.8Vdc; differential) and 2 x (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended). Additionally, it features 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. The rated active power is 15kW and the rated power is 20HP for both normal and heavy-duty applications.

Nidec

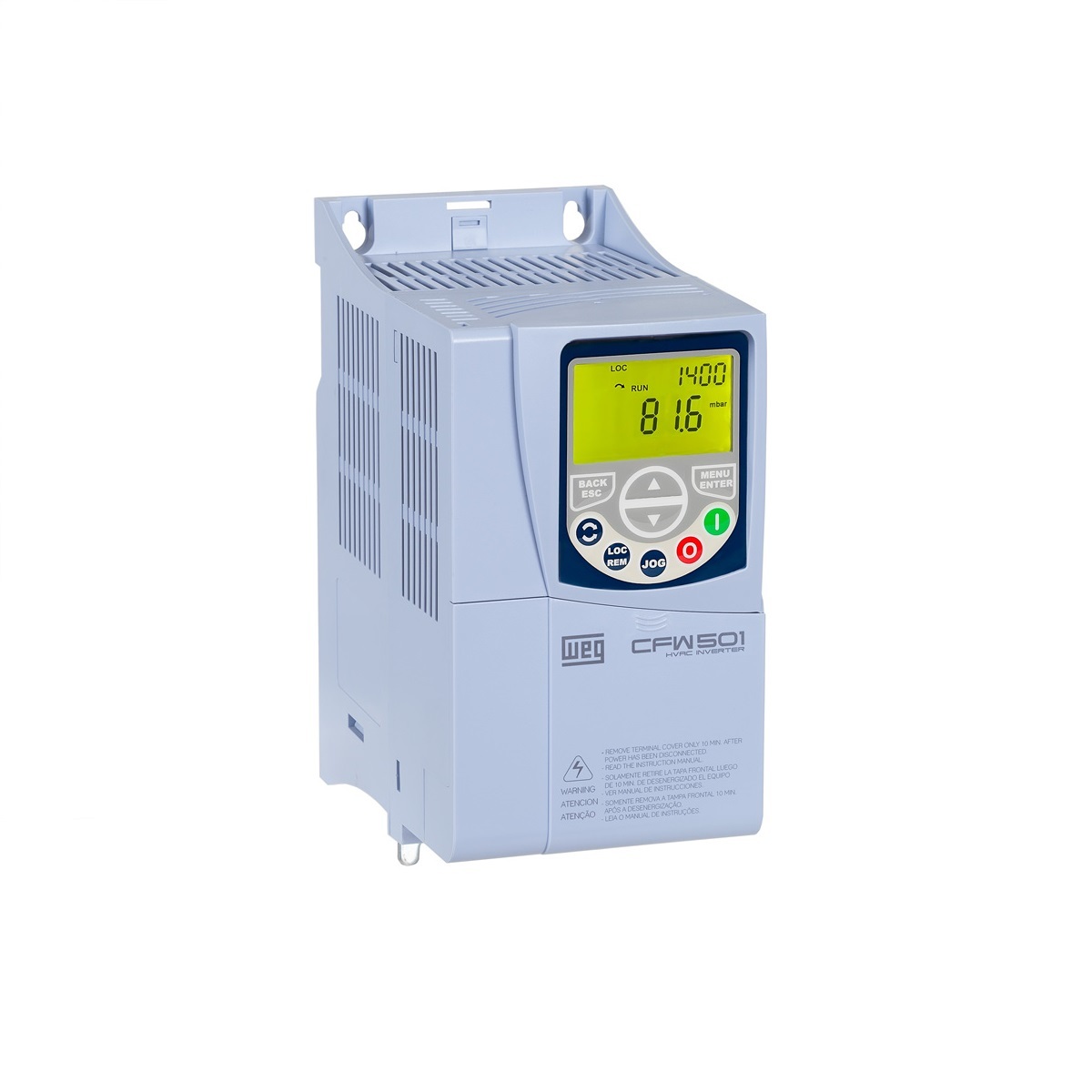

CFW501B02P6T4DB20C3

DRIVE CFW501B02P6T4DB20C3

WEG

EDP11S105GN3R11000

STANDARD PANEL EDP11S105GN3R11000

WEG

C300-08201160A10101AB100

NIDEC C300-08201160A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and has dimensions of frame size 8 H31.65" x W12.21" x D11.42" (H804mm x W310mm x D290mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 149A for Normal duty and 116A for Heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation is specified from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) along with 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). It is rated for an active power of 37kW (Normal duty) and 30kW (Heavy-duty), equivalent to 50HP (Normal duty) and 40HP (Heavy-duty).

Nidec
