Variable Frequency Drives (VFD)

M15400D

Lenze M15400D is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for oil-tight and dust-tight applications. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device operates with a rated current of 41A at supply voltages of 480Vac or 590Vac. It is suitable for control cabinet or surface/wall mounting and can function within an ambient air temperature range of -10 to +40 °C. The M15400D offers a degree of protection of NEMA 12 and is compatible with a 3-phase network, accepting an input frequency of 48-62 Hz and providing an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs plus 1 for start and 1 for stop functions, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input for 0-10Vdc and 1 for 4-20mA signals. The rated active power is 30kW, and the rated power is 40HP for both 480Vac and 590Vac supply voltages.

Lenze

I55AE137D1AV01004S

Lenze I55AE137D1AV01004S is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for variable speed control, featuring DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, and a flying restart circuit. It includes a PID controller and is designed with a safe torque off (STO) safety standard and I.O. conformal coating. The dimensions are H155mm x W60mm x D130mm. It supports the PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. It can be used in single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive features 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 0.37kW and a rated power of 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

ESV752N02TXD

ESV752N02TXD Lenze Variable Frequency Drive (VFD) - The SMV 10.0 hp (7.5 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter ideal for Eu

Lenze

EDP11S086DN3R11000

STANDARD PANEL EDP11S086DN3R11000

WEG

CFW110045T4ON1Z-PGS

DRIVE CFW110045T4ON1Z-PGS

WEG

I55AE355F10V11003S

Lenze I55AE355F10V11003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H536mm x W250mm x D265mm. It supports Modbus RTU communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 132A (light-duty; 400Vac), 115A (light-duty; 480Vac), 110A (heavy-duty; 400Vac), and 96A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The unit includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), multiple digital inputs with flexible functionality, 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) that can be optionally used as voltage or current inputs. The rated active power is 75kW (light-duty; 400-480Vac) and 55kW (heavy-duty; 400-480Vac), with rated power of 100HP (light-duty; 400-480Vac) and 75HP (heavy-duty; 400-480Vac).

Lenze

M600-11502000E10101AB100

NIDEC M600-11502000E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor, single Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 248A under normal duty and 200A under heavy-duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 1 x analog input with various specifications detailed in the description. The rated active power is 175kW for normal duty and 150kW for heavy-duty, corresponding to 250HP and 200HP, respectively.

Nidec

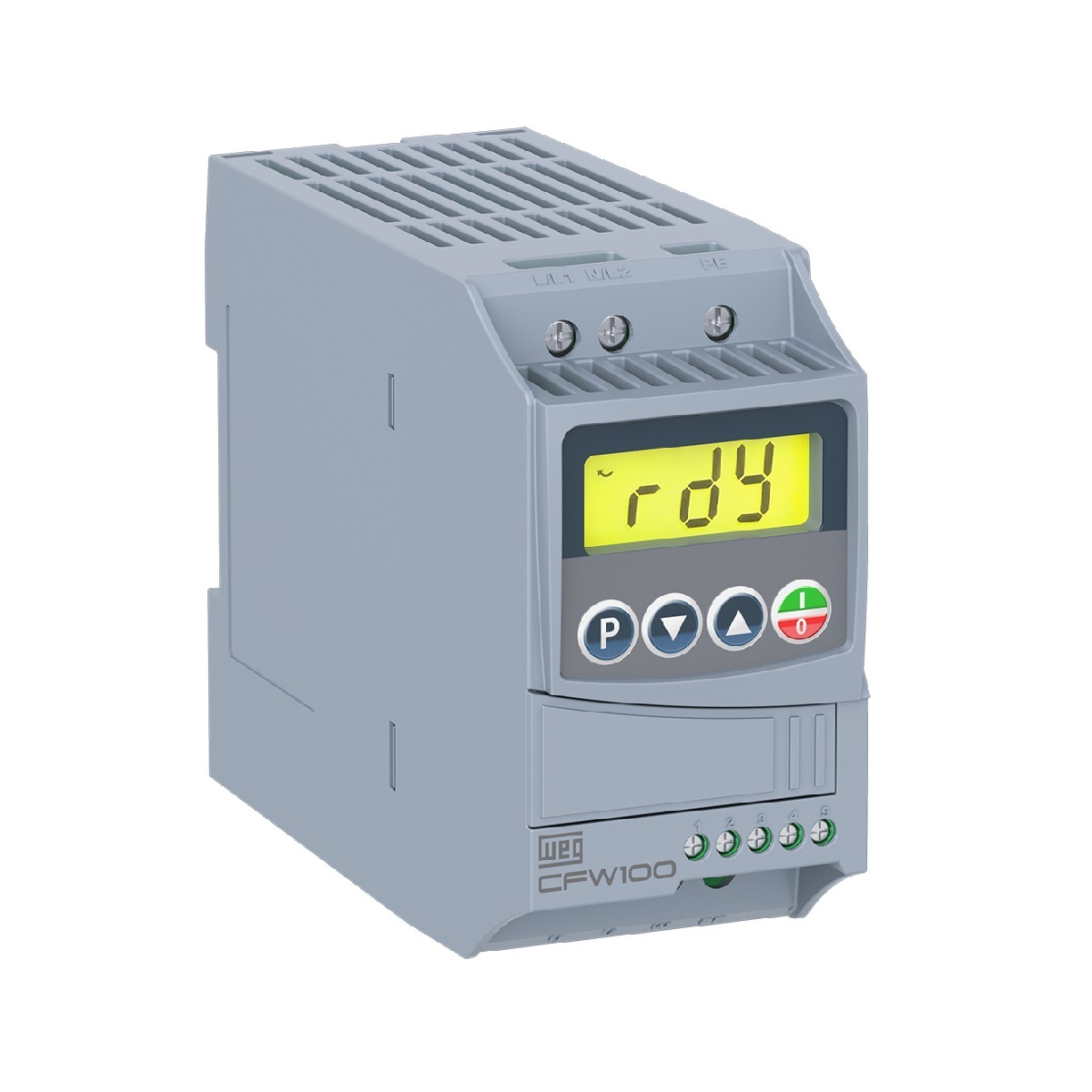

CFW100A01P6S120G2

DRIVE CFW100A01P6S120G2

WEG

HVW701A016DN01200001

WEG HVW701A016DN01200001 - STANDARD PANEL HVW701A016DN01200001, HVAC Enclosed Drives (HVW)

WEG

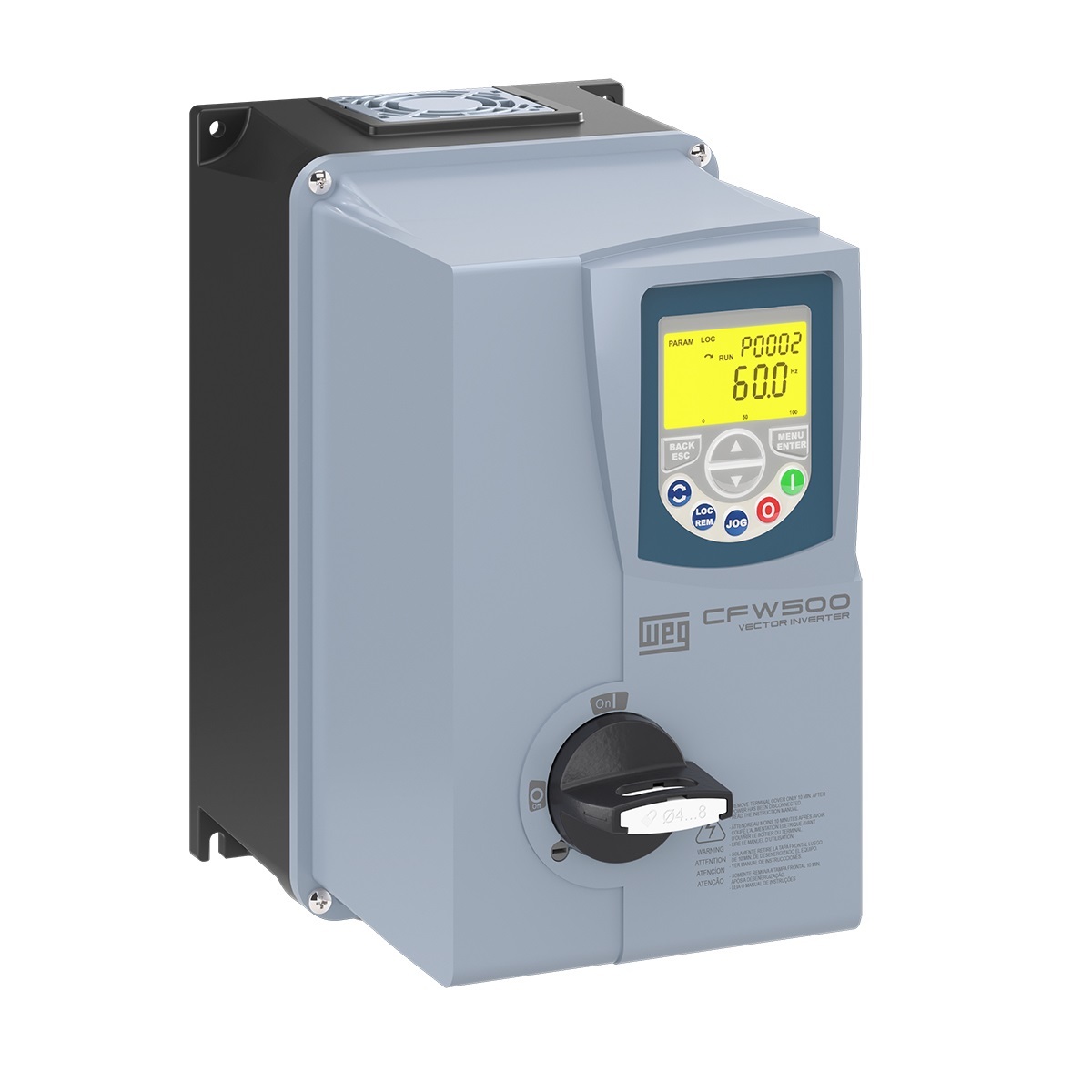

CFW500A10P0B2DB66DSG2

DRIVE CFW500A10P0B2DB66DSG2

WEG

CFW700E0105S2DB20KIT

WEG CFW700E0105S2DB20KIT - DRIVE CFW700E0105S2DB20KIT, CFW500/700 Drives

WEG

M12300D

Lenze M12300D is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for oil-tight and dust-tight environments, supporting Modbus communication protocol. It features thermal overload protection and solid state motor overload protection. The device operates with a rated current of 92A at 200Vac and 80A at 230Vac, and it is suitable for supply voltages ranging from 200Vac to 240Vac (including 208Vac, 220Vac, and 230Vac). It can be mounted in a control cabinet or on a surface/wall, and is designed to operate in ambient air temperatures ranging from -10 to +40°C. The M12300D offers a degree of protection of NEMA 12 and is compatible with a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs plus 1 for start and 1 for stop functions, and 2 digital outputs (NPN; sinking). Additionally, it has 1 analog input for 0-10Vdc and another for 4-20mA signals. The rated active power is 22kW, and the rated power is 30HP for supply voltages between 200-240Vac.

Lenze

ATV312H018M3

Schneider Electric ATV312H018M3 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed with sensorless flux vector control and an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in heatsink, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), and offers dimensions of H145mm x W72mm x D122mm with an IP21 degree of protection. The rated current is 1.5A at 200Vac with a 4kHz frequency and a maximum current of 2.3A for 60 seconds. This model supports wall mounting and uses Modbus and CANopen communication protocols. It is designed for a 3-phase (3P) network with an output frequency range of 0.1-500 Hz. The unit includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source), 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 3 analog inputs for versatile connectivity. The current consumption is 2.1A at 200Vac (Isc = 5kA) and 1.9A at 240Vac, with a rated active power of 180W / 0.18kW and a power rating of 1/4HP. Power dissipation/losses are calculated at 23 W.

Schneider Electric

CFW700B24P0T4DBN1

WEG CFW700B24P0T4DBN1 - DRIVE CFW700B24P0T4DBN1, CFW500/700 Drives

WEG

M600-11602630E10101AN100

NIDEC M600-11602630E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a single Safe Torque Off (STO) and requires an external choke and air cooling for operation. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 305A under normal duty and 263A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20 NEMA 1, suitable for 3-phase input (3P) networks with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 1 x digital output of varying specifications, alongside 3 x analog inputs with detailed conversion resolutions. The rated active power is 315kW for normal duty and 250kW for heavy-duty, equivalent to 400HP and 300HP respectively.

Nidec

M400-09601310A10101AB100

NIDEC M400-09601310A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 9A, measuring H43.6" x W12.2" x D11.4" (H1107mm x W310mm x D290mm). This model supports multiple communication protocols, including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 155A under normal duty and 131A under heavy-duty conditions, and it is designed for a supply voltage of 500Vac-690Vac (600Vac). The ambient air temperature for operation ranges from -20°C to +55°C, and it has a degree of protection rated at IP20 NEMA 1. The M400-09601310A10101AB100 is suitable for a 3-phase input (3P) network with a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz. It includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with an 11-bit conversion resolution. The rated active power is 132kW under normal duty and 110kW under heavy-duty, corresponding to 175HP and 150HP, respectively.

Nidec

M000-09202190DU0100AN100

NIDEC M000-09202190DU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in DC to AC inverter featuring air cooling. It has dimensions of frame size 9D, measuring H28.11" x W12.2" x D11.4" (H714mm x W310mm x D290mm). This model is rated for a heavy-duty current of 219A and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW for heavy-duty applications, equivalent to 125HP to 400HP.

Nidec

ESV183N04TLD

ESV183N04TLD Lenze Variable Frequency Drive (VFD) - The SMV 25.0 hp (18.5 kW) drive features a 400 / 480 VAC 3Ø filtered input with input disconnect in a fan cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and in

Lenze

CFW500A01P6S2NBN1

WEG CFW500A01P6S2NBN1 - DRIVE CFW500A01P6S2NBN1, CFW500/700 Drives

WEG

CFW500E39P0T4DBN1

WEG CFW500E39P0T4DBN1 - DRIVE CFW500E39P0T4DBN1, CFW500/700 Drives

WEG
