Variable Frequency Drives (VFD)

M600-09202190A10101AB100

NIDEC M600-09202190A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 266A under normal duty and 219A under heavy-duty conditions. It requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and is designed to function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs, with various specifications detailed in the description. The rated active power is 75kW under normal duty and 55kW under heavy-duty, corresponding to 100HP and 75HP, respectively.

Nidec

EDP11S142DN1211000

STANDARD PANEL EDP11S142DN1211000

WEG

HS72-03400062A10101AB100

NIDEC HS72-03400062A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and dual Safe Torque Off (STO) functionality suitable for high-speed applications, and utilizes air cooling for temperature management. The unit has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). It supports Ethernet communication protocol and operates with a rated current of 7.7A under Normal duty and 6.2A under Heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 degree of protection, NEMA 1 UL open, and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 3kW under Normal duty and 2.2kW under Heavy-duty, corresponding to 5HP and 3HP respectively.

Nidec

EDP11S142DN3R11000

STANDARD PANEL EDP11S142DN3R11000

WEG

I55AE137A10V01012S

Lenze I55AE137A10V01012S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and supports Ethernet POWERLINK communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. This single-phase drive operates on a network frequency of 45-65 Hz (input) and 0-599 Hz (output), featuring 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), multiple digital inputs with optional uses, 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) with optional uses. It has a rated active power of 0.37kW and a rated power of 1/2HP for heavy-duty applications at 120Vac.

Lenze

M400-02400023A10101AB100

NIDEC M400-02400023A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). This model supports multiple communication protocols, including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 2.3A for both normal and heavy-duty applications and requires a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +60°C, and it has a degree of protection of IP20 NEMA 1. Designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz, it includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with an 11-bit conversion resolution. The rated active power and power are both 0.75kW and 1HP for normal and heavy-duty operations, respectively.

Nidec

HVW701A007GN01300000

WEG HVW701A007GN01300000 - STANDARD PANEL HVW701A007GN01300000, HVAC Enclosed Drives (HVW)

WEG

EDP11S013GN1201000

STANDARD PANEL EDP11S013GN1201000

WEG

HVW701A007T2N01-I-C

WEG HVW701A007T2N01-I-C - STANDARD PANEL HVW701A007T2N01-I-C, HVAC Enclosed Drives (HVW)

WEG

I55AE137F10V1100KS

Lenze I55AE137F10V1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H155mm x W60mm x D130mm. It supports EtherCAT communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.3A for heavy-duty applications at 400-480Vac, with a supply voltage of 400Vac / 480Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), multiple digital inputs with optional uses, 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) with optional uses. The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 400-480Vac.

Lenze

MD-407-00-000

NIDEC MD-407-00-000 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with air cooling and measures H14.25" x W2.75" x D9" (H361.95mm x W69.85mm x D228.6mm). It supports Modbus RTU RS-232 RS-485 communication protocols and operates with a rated current of 7A at 5kHz and 5A at 10kHz. This device can handle a supply voltage range of 187Vac-528Vac, accommodating 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 480Vac, making it versatile for various electrical systems. It is designed to function optimally within an ambient air temperature range of 0°C to +40°C and has an IP20 degree of protection. The MD-407-00-000 features a 3-phase input network, 2 analog outputs (20mA / -10...+10Vdc; single-ended; 10-bit conversion resolution), 5 digital inputs (10-30Vdc; source), 3 digital outputs (150mA / 10-30Vdc; source), and 1 analog input (-10...+10Vdc; differential; 14-bit conversion resolution). It delivers a rated active power of 5.8kW at 460Vac and 2.9kW at 230Vac.

Nidec

I55AE337F1AV11001S

Lenze I55AE337F1AV11001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety application, I.O. conformal coating, and has dimensions of H450mm x W250mm x D230mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 91.2A (light-duty; 400Vac), 78A (light-duty; 480Vac), 76A (heavy-duty; 400Vac), and 65A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 x analog outputs, 7 x digital inputs with optional uses for some, 2 x digital outputs, and 2 x analog inputs with optional voltage or current input functionality. The rated active power is 45kW (light-duty; 400-480Vac) and 37kW (heavy-duty; 400-480Vac), with a rated power of 60HP (light-duty; 400-480Vac) and 50HP (heavy-duty; 400-480Vac).

Lenze

H300-05500061A10101AB103

NIDEC H300-05500061A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features dimensions of frame size 5, measuring H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). This model supports Modbus RTU communication protocol and operates with a rated current of 6.1A under normal duty. It is designed for a supply voltage range of 500Vac-575Vac and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP20, NEMA 1, UL type 1, and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 1 additional digital input ranging from 0-24Vdc, alongside 2 digital outputs of relay contact type. Additionally, it features 1 analog input for 4-20mA and another for 0-10Vdc signals. The rated active power is 4kW, and the rated power is 5HP under normal duty conditions.

Nidec

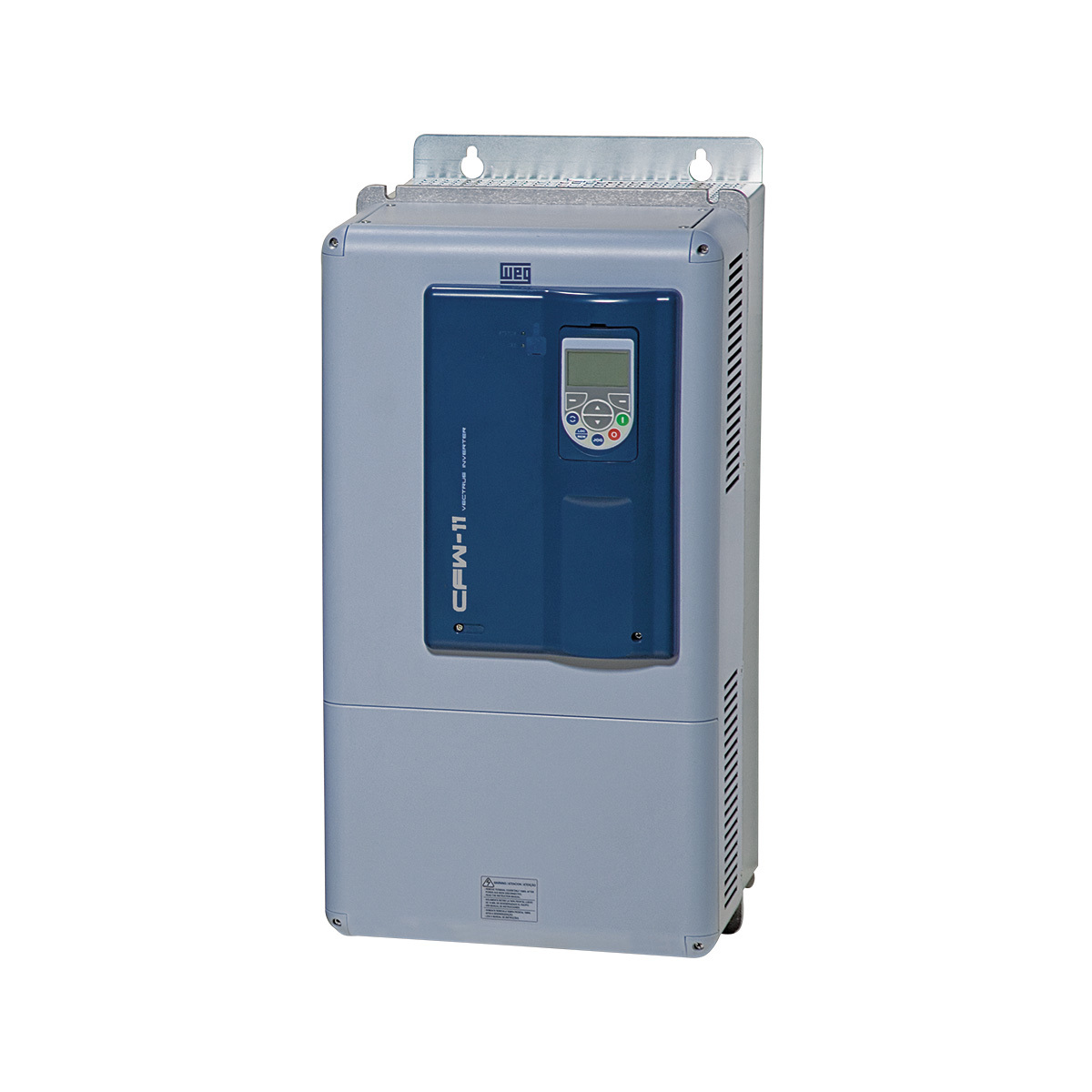

CFW110142T4ON1Z

DRIVE CFW110142T4ON1Z

WEG

SP1203

NIDEC SP1203 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a single Safe Torque Off (STO) and air cooling system. It features a frame size 1 with dimensions of H15.2" x W3.93" x D8.62" (H386mm x W100mm x D219mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The SP1203 is rated at 9.6A for normal duty and 7.5A for heavy-duty applications. It supports wall-mounted installation and can operate within an ambient air temperature range of 0°C to +40°C. This model offers an IP20 NEMA 1 degree of protection and utilizes the Modbus RTU RS-485 communication protocol. The network frequency ranges from 48-65 Hz for supply input and 0-550 Hz for output. It includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs/outputs with varying specifications. The SP1203 is designed for a 3-phase input network and delivers a rated active power of 2.2kW for normal duty and 1.5kW for heavy-duty, equivalent to 3HP and 2HP respectively.

Nidec

M400-09202190A10101AB100

NIDEC M400-09202190A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 9A, measuring H43.6" x W12.2" x D11.4" (H1107mm x W310mm x D290mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 266A under normal duty and 219A under heavy-duty conditions, and it is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +55°C, and it offers a degree of protection of IP20 NEMA 1. This VSD/VFD is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz. It includes 2 analog outputs (0-20mA / 4-20mA / 0-10Vdc/ 0-24Vdc; single-ended; source; can be used as digital outputs), 8 digital inputs (0-24Vdc), and 3 digital outputs (200mA / 0-24Vdc; PWM; source and 2A / 240Vac; source; relay contact type). Additionally, it has 2 analog inputs (0-20mA / 4-20mA / -10...+10Vdc and 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution), with a rated active power of 75kW under normal duty and 55kW under heavy-duty, corresponding to 100HP and 75HP respectively.

Nidec

SP0205-HF

NIDEC SP0205-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a compact frame size of 0, measuring H12.677" x W2.441" x D8.898" (H322mm x W62mm x D226mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a rated current of 7.5A for heavy-duty applications. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. Communication is facilitated through a Modbus RTU RS-485 protocol, and it supports a network frequency from 48-65 Hz (Supply input) to 0-3000 Hz (output). The SP0205-HF includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs comprising 1 x (-9.8Vdc...9.8Vdc; differential) and 2 x (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution. Analog outputs include 2 x (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. It is designed for both single-phase input (2P) or 3-phase input (3P) and offers a rated active power of 1.5kW and a rated power of 2HP for both normal and heavy-duty operations.

Nidec

EDP11S370GN1211000

STANDARD PANEL EDP11S370GN1211000

WEG

M1530E

Lenze M1530E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a water-tight and dust-tight corrosion-resistant stainless steel housing. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device operates at a rated current of 3.9A with a supply voltage of 480Vac / 590Vac and can be mounted in a control cabinet or on a surface/wall. It is designed to function within an ambient air temperature range of -10 to +40 °C and offers a degree of protection rated at NEMA 4X. The M1530E operates on a 3-phase network with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, 2 digital outputs (NPN; sinking), 1 analog input (0-10Vdc), and 1 analog input (4-20mA). The rated active power is 2.2kW, and the rated power is 3HP, both at 480Vac / 590Vac.

Lenze

M14250B

Lenze M14250B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H324mm x W261mm x D197mm and supports Modbus communication protocol. This model offers thermal overload protection and solid state motor overload protection. It operates with a rated current of 39A at 400Vac and 34A at 460Vac, and a supply voltage of 400Vac / 480Vac. The M14250B can be mounted in a control cabinet or on a surface/wall and is designed to operate in ambient air temperatures ranging from -10 to +50 °C. It has a NEMA 1 degree of protection and is compatible with a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The device includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs plus 1 for START and 1 for STOP, and 2 digital outputs (NPN; sinking). Additionally, it has 1 analog input for 0-10Vdc and 1 for 4-20mA. The rated active power is 18.5kW, and the rated power is 25HP for both 400Vac and 480Vac.

Lenze
