Variable Frequency Drives (VFD)

I55AE137A1AV0100WS

Lenze I55AE137A1AV0100WS is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports Modbus TCP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 2.4A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. This single-phase device operates on a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 120Vac.

Lenze

CFW700E211T4DB20C3

WEG CFW700E211T4DB20C3 - DRIVE CFW700E0211T4DB20C3, CFW500/700 Drives

WEG

I55AE175A1AV0100LS

Lenze I55AE175A1AV0100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed to offer variable speed/frequency drive, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H250mm x W60mm x D130mm. It supports PROFINET as its communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 4.2A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz. The degree of protection is IP20, designed for a single-phase / 1P network with a frequency range of 45-65 Hz (input) and 0-599 Hz (output). It features 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 120Vac.

Lenze

I55AE255F1AV11002S

Lenze I55AE255F1AV11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, and a flying restart circuit. It includes a PID controller, built-in RFI filter, safe torque off (STO) safety standard, and I.O. conformal coating. The dimensions are H250mm x W90mm x D130mm. It supports CANopen communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 15.6A (light-duty; 400Vac), 13.2A (light-duty; 480Vac), 13A (heavy-duty; 400Vac), and 11A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 7.5kW (light-duty; 400-480Vac) and 5.5kW (heavy-duty; 400-480Vac), with a rated power of 10HP (light-duty; 400-480Vac) and 7-1/2HP (heavy-duty; 400-480Vac).

Lenze

C200-03200100A10101AB100

NIDEC C200-03200100A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and has dimensions of frame size 3 H8.9" x W3.54" x D6.3" (H226mm x W90mm x D160mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 10A for both normal and heavy-duty operations. It supports Modbus RTU communication protocol and can be used with either single-phase input (2P) or 3-phase input (3P) networks, with a network frequency of 45-66 Hz (supply input) and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 2.2kW, and the rated power is 3HP for both normal and heavy-duty applications.

Nidec

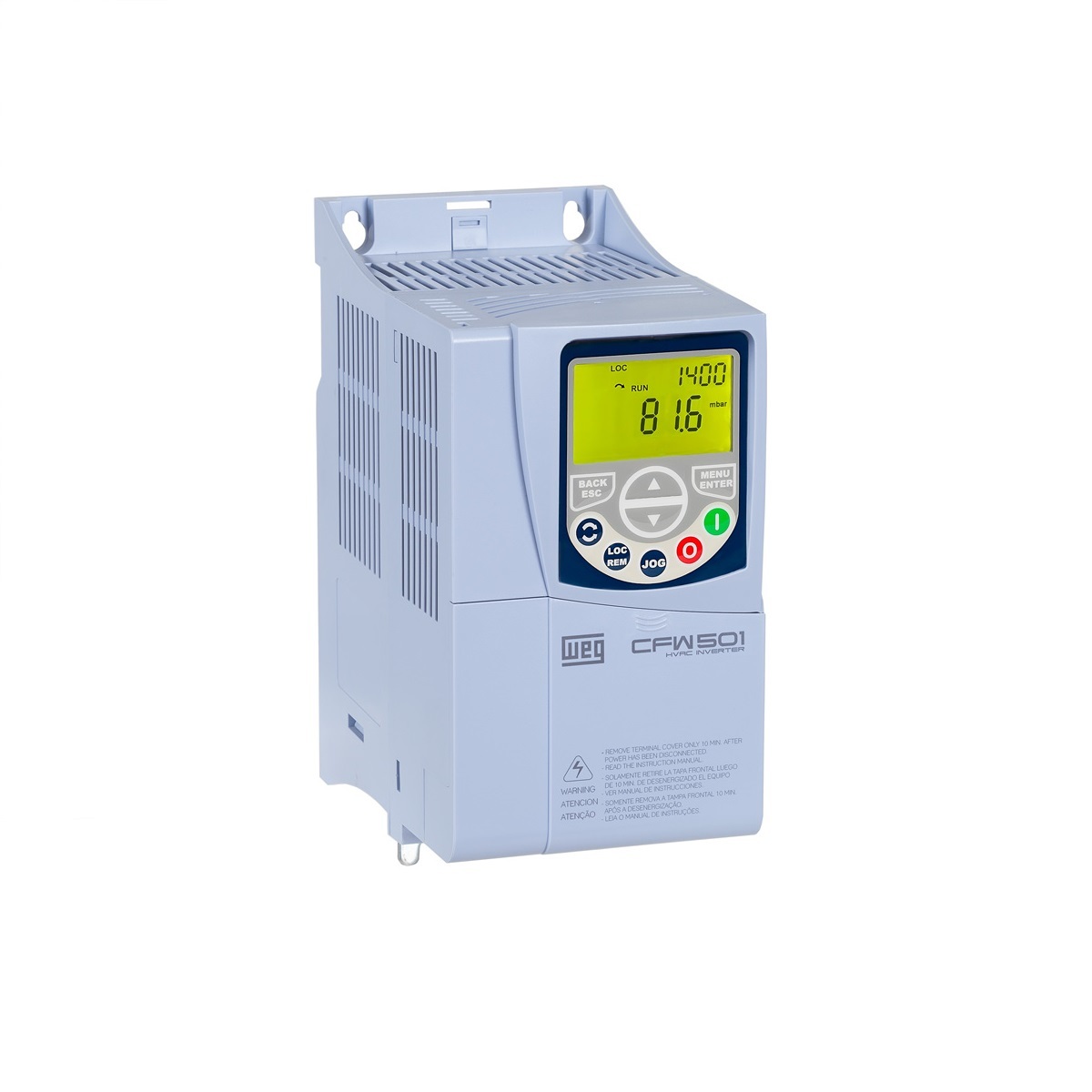

CFW501B06P5T4DB20C3

DRIVE CFW501B06P5T4DB20C3

WEG

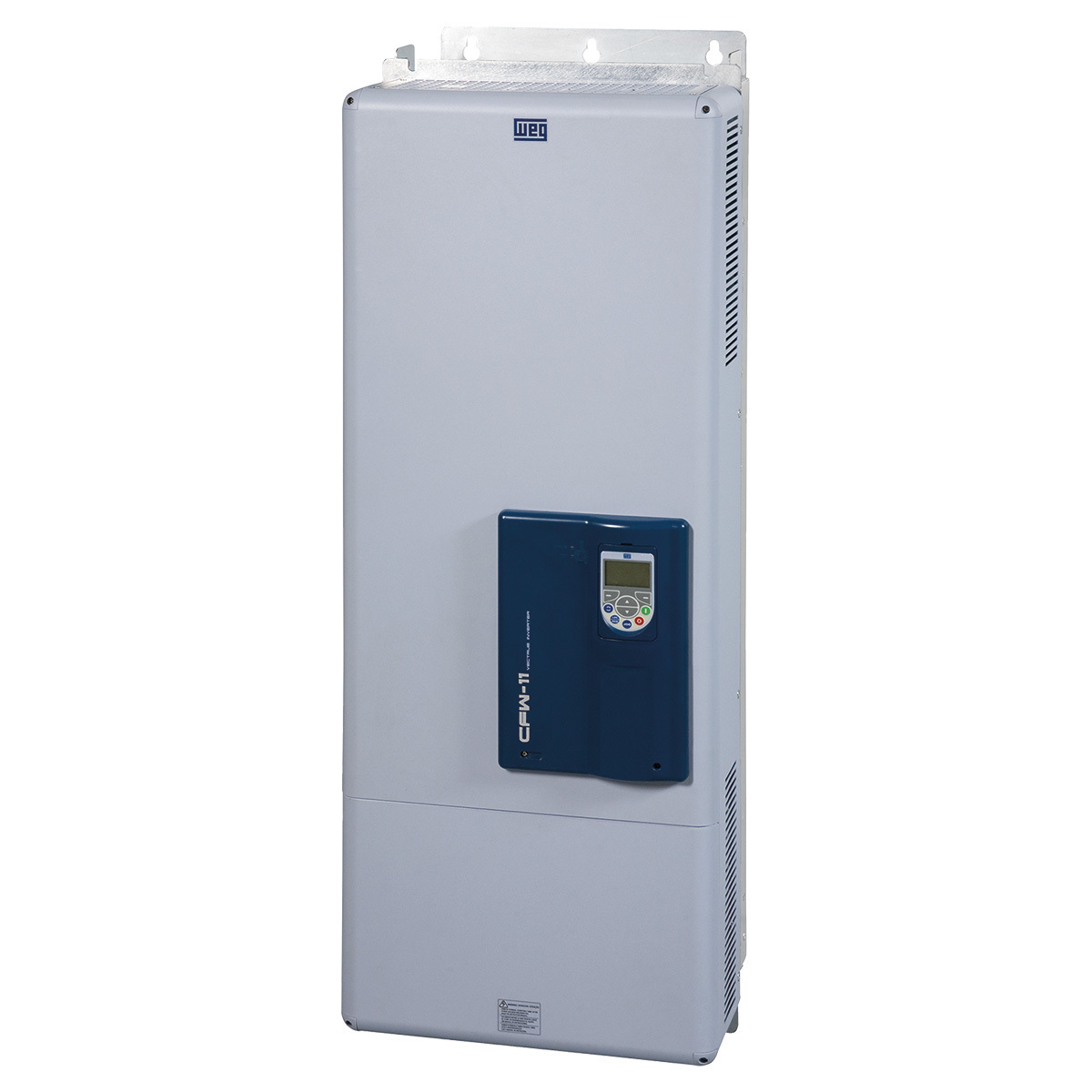

CFW110477T4SZ-PGS

DRIVE CFW110477T4SZ-PGS

WEG

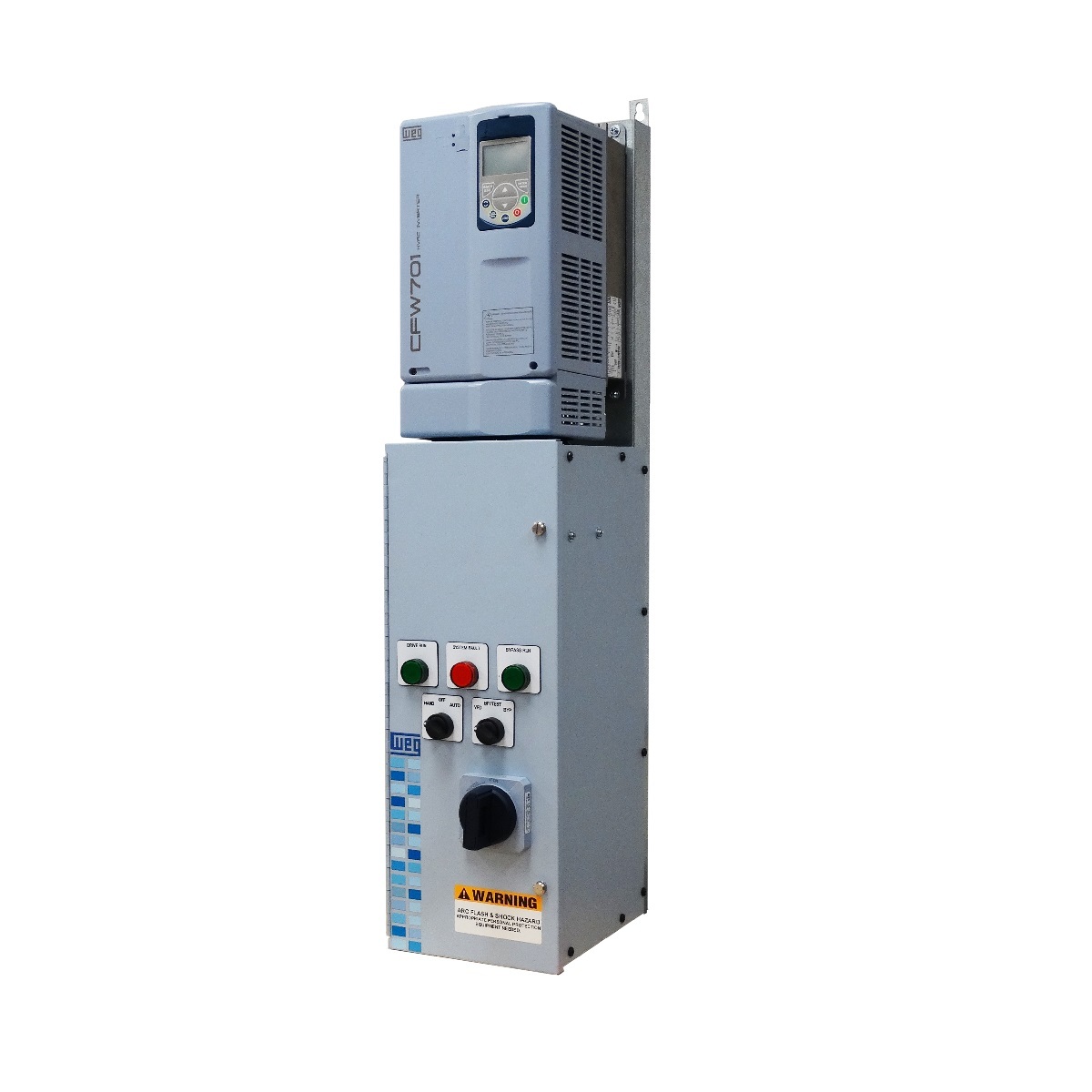

HVW701B033T2N01-J-X

STANDARD PANEL HVW701B033T2N01-J-X

WEG

SP1202-EZ

NIDEC SP1202-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 1, measuring H15.2" x W3.93" x D8.62" (H386mm x W100mm x D219mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The rated current is 6.8A under normal duty and 5.8A under heavy-duty conditions. This wall-mounted device can operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol, with a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP1202-EZ features 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). Analog inputs include 1 x (-9.8Vdc...9.8Vdc; differential) and 2 x (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended), with a 16-bit and 10-bit conversion resolution respectively. Analog outputs are 2 x (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. The rated active power is 1.5kW for normal duty and 1.1kW for heavy-duty, corresponding to 2HP and 1.5HP / 1-1/2HP respectively. It is designed for a 3-phase input network.

Nidec

I55AE137D1AV01000S

Lenze I55AE137D1AV01000S is a variable speed/frequency drive (VSD/VFD) also known as a compact inverter, part of the Drives sub-range. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. The design includes a safe torque off (STO) safety standard and I.O. conformal coating. Its dimensions are H155mm x W60mm x D130mm. This model does not have a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. The degree of protection is IP20. It supports both single-phase and three-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The inverter includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. It has a rated active power of 0.37kW and a rated power of 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

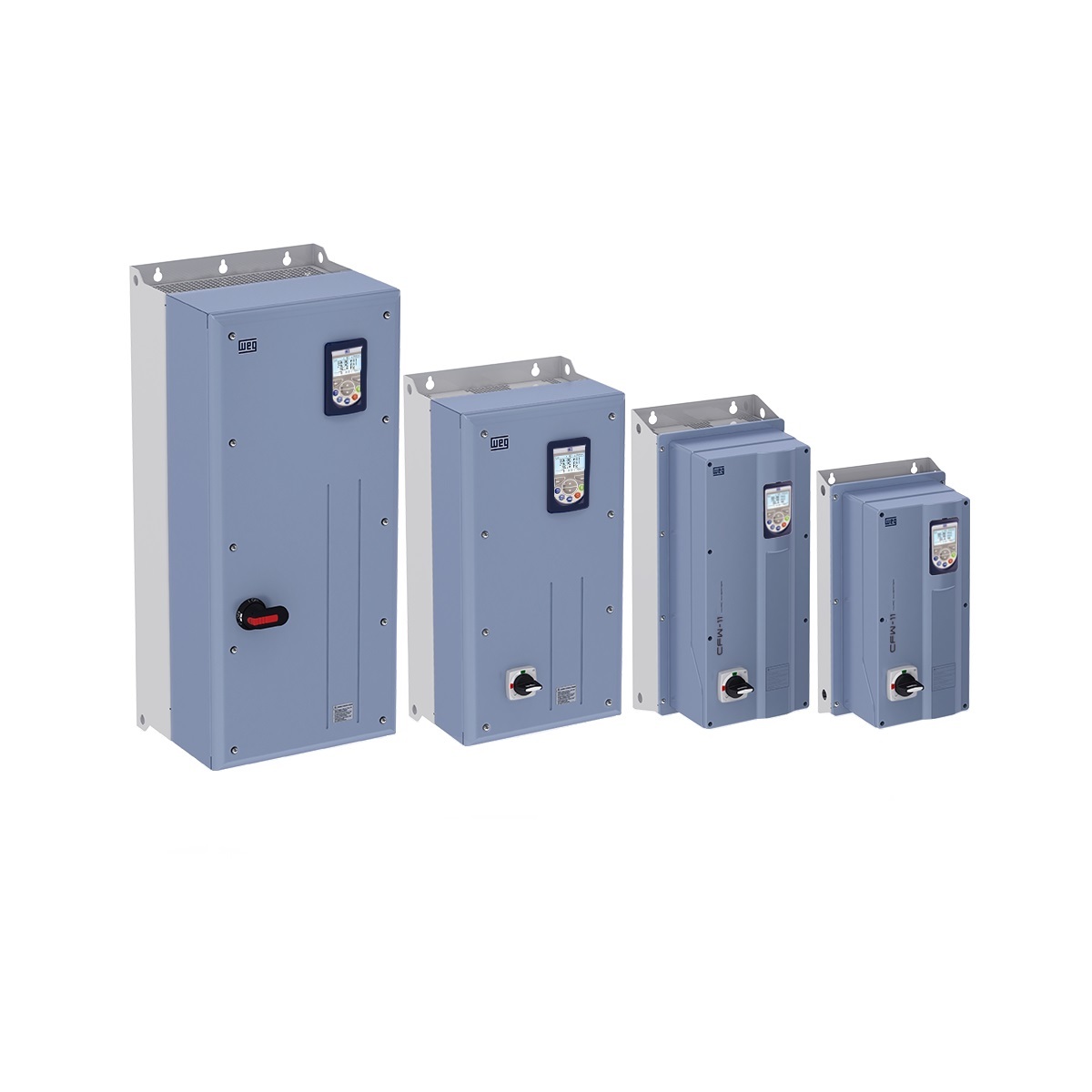

HVW701A007GN01000000

WEG HVW701A007GN01000000 - STANDARD PANEL HVW701A007GN01000000, HVAC Enclosed Drives (HVW)

WEG

M1205C

Lenze M1205C is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for water-tight and dust-tight applications, supporting Modbus communication protocol. It features thermal overload protection and solid state motor overload protection. The device operates with a rated current of 2.5A at 200Vac and 2.2A at 230Vac, with a supply voltage range of 200Vac-240Vac, accommodating 208Vac, 220Vac, and 230Vac. It is suitable for control cabinet or surface/wall mounting and can operate in ambient air temperatures ranging from -10 to +40°C. The M1205C offers NEMA 4 protection, is compatible with a 3-phase network, and operates at a network frequency of 48-62 Hz input and 0-120 Hz output. It includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, 2 digital outputs (NPN; sinking), 1 analog input (0-10Vdc), and 1 analog input (4-20mA). The rated active power is 0.37kW for 200-240Vac, and the rated power is 1/2HP for 200-240Vac.

Lenze

CFW110105T2O55DSZ

DRIVE CFW110105T2O55DSZ

WEG

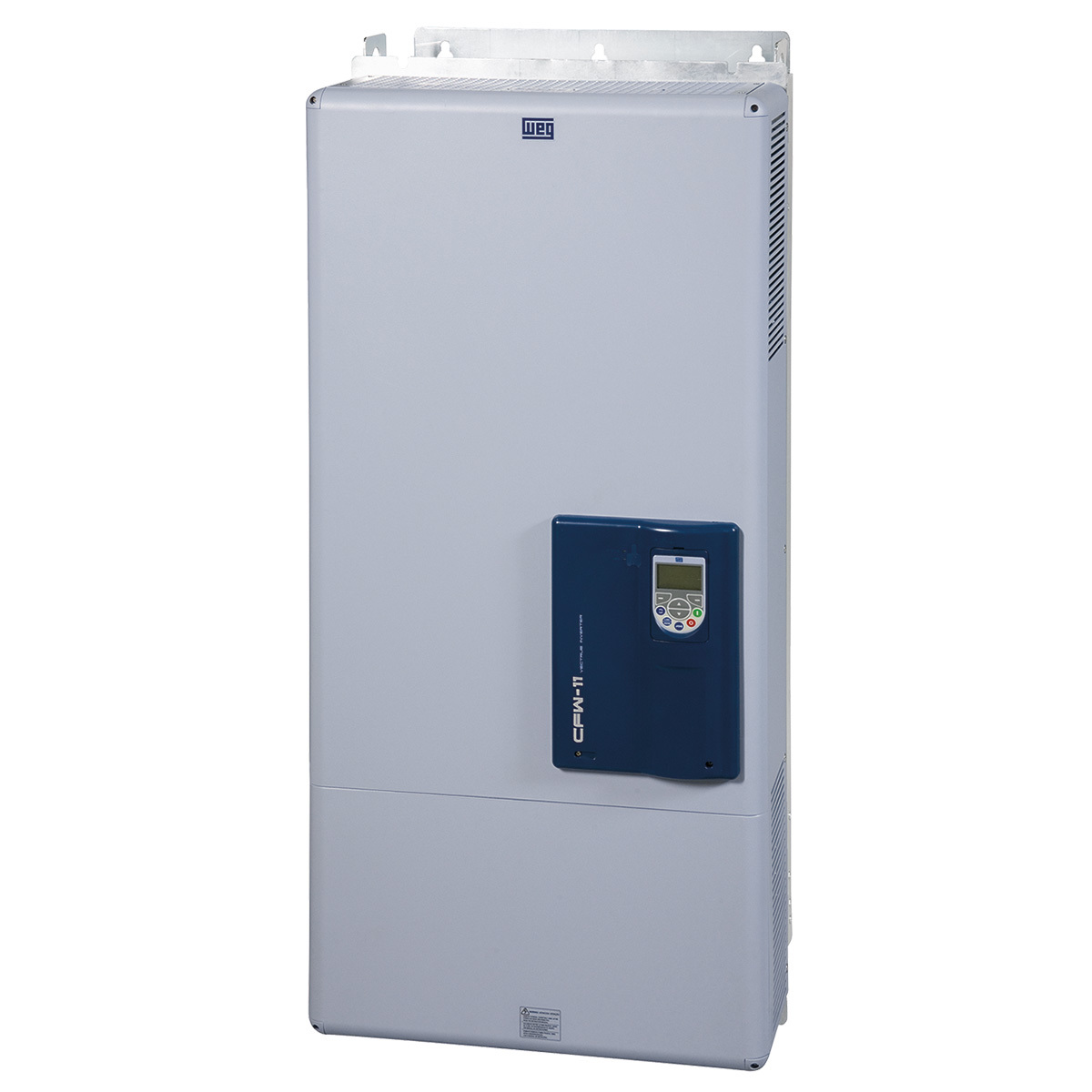

CFW110365T6OYZ

DRIVE CFW110365T6OYZ

WEG

I5DAE137B10V10000S

Lenze I5DAE137B10V10000S is a Variable Speed/Frequency Drive (VSD/VFD) or Inverter within the Power units sub-range, designed for control cabinet or surface/wall mounting. It features a built-in RFI filter and operates without a communication interface. This model is equipped with protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. The degree of protection provided is IP20, suitable for single-phase / 1P networks. The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

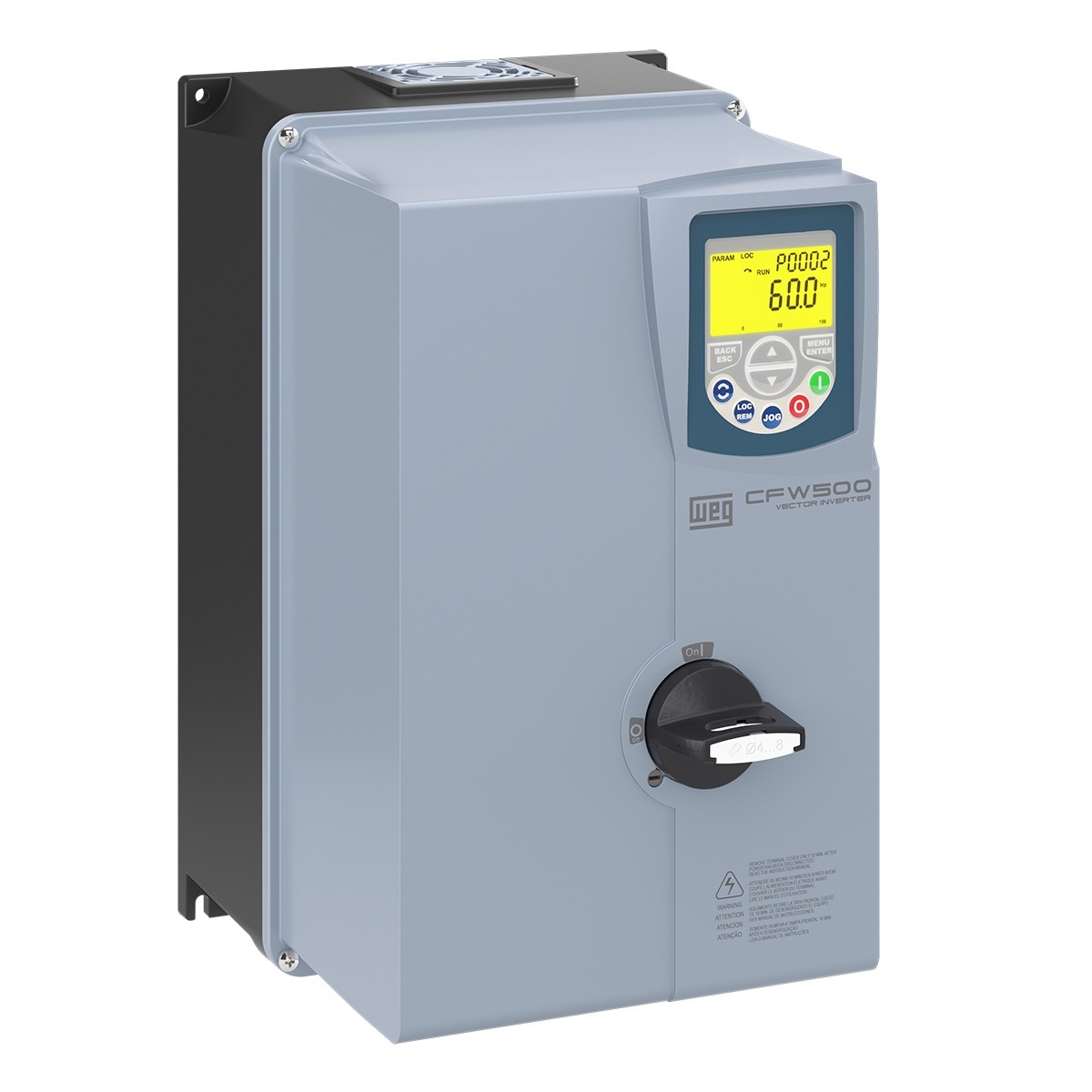

CFW500B31P0T4DB66DSG2

DRIVE CFW500B31P0T4DB66DSG2

WEG

3G3MX2-A2110-V2

MX2 Series Fast-Response Inverter for Machine Control

Omron

CFW300A02P6S1NB20

DRIVE CFW300A02P6S1NB20

WEG

HVW701B031T4N01-J-C

WEG HVW701B031T4N01-J-C - STANDARD PANEL HVW701B031T4N01-J-C, HVAC Enclosed Drives (HVW)

WEG

I55AE355F1AV11001S

Lenze I55AE355F1AV11001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter applications, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety application, I.O. conformal coating, and has dimensions of H536mm x W250mm x D265mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 132A (light-duty; 400Vac), 115A (light-duty; 480Vac), 110A (heavy-duty; 400Vac), and 96A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 x analog outputs, 7 x digital inputs with flexible functionality, 2 x digital outputs, and 2 x analog inputs, supporting a rated active power of 75kW (light-duty; 400-480Vac) and 55kW (heavy-duty; 400-480Vac), equivalent to 100HP (light-duty) and 75HP (heavy-duty).

Lenze
