Variable Frequency Drives (VFD)

EDP11S211DN1210000

STANDARD PANEL EDP11S211DN1210000

WEG

M1575B

Lenze M1575B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H238mm x W200mm x D159mm and utilizes the Modbus communication protocol. This part is equipped with thermal overload protection and solid state motor overload protection. It operates with a rated current of 9A at 460Vac / 575Vac and a supply voltage of 480Vac / 590Vac. The M1575B is suitable for control cabinet or surface/wall mounting and can operate in ambient air temperatures ranging from -10 to +50 °C. It offers a degree of protection of NEMA 1 and is designed for a 3-phase (3P / 3AC) network with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The device includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs (terminal 13A-13D), 1 digital input (terminal 12A START), 1 digital input (terminal 1 STOP), and 2 digital outputs (NPN; sinking) (terminal 14 and 15). Additionally, it has 1 analog input (0-10Vdc) (terminal 5A) and 1 analog input (4-20mA) (terminal 5B). The rated active power is 5.5kW at 480Vac / 590Vac, and the rated power is 7-1/2HP at 480Vac / 590Vac.

Lenze

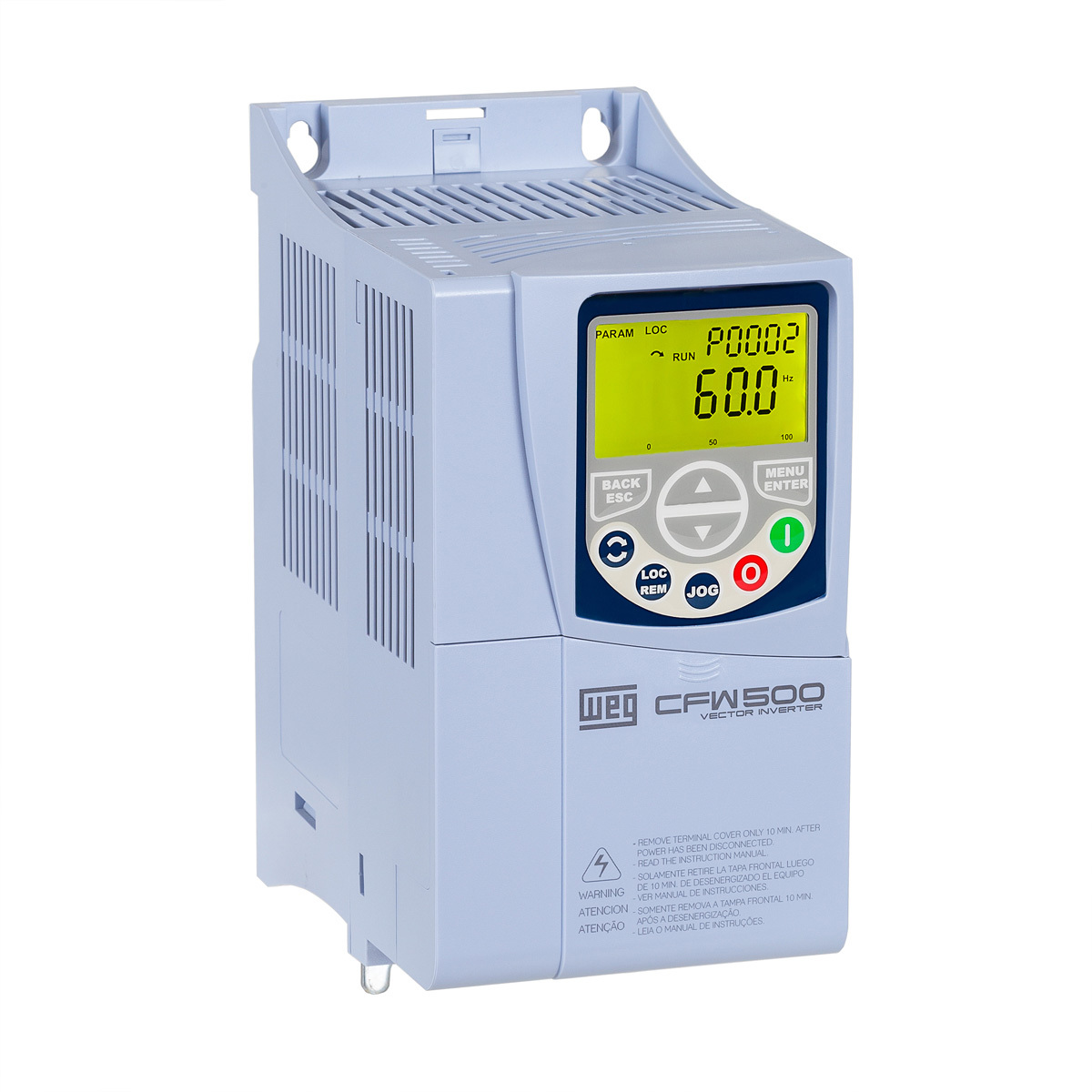

CFW500A07P0T2NB20

DRIVE CFW500A07P0T2NB20

WEG

M1575E

Lenze M1575E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a water-tight and dust-tight corrosion-resistant stainless steel housing. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device operates at a rated current of 9A for supply voltages of 480Vac / 590Vac and can be mounted in a control cabinet or on a surface/wall. It is designed to function within an ambient air temperature range of -10 to +40 °C and offers a degree of protection rated at NEMA 4X. The M1575E operates on a 3-phase network with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. The rated active power is 5.5kW, and the rated power is 7-1/2HP for both 480Vac and 590Vac.

Lenze

SM2150

Lenze SM2150 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed and frequency control. It has dimensions of H248mm x W170mm x D203mm and operates on a supply voltage of 200Vac-240Vac (208Vac / 220Vac / 230Vac) with a rated current of 48A at 208Vac and 42A at 230Vac. This part is suitable for control cabinet or surface/wall mounting and can operate within an ambient air temperature range of 0-40°C. It does not include a communication interface. The network frequency ranges from 48-62 Hz on input to 0-240 Hz on output. It features 1 digital output (normally open relay; contacts rated 3A at 250Vac), 1 digital output (current-sourcing; rated 50mA at 12Vdc), and 4 digital inputs (active-high) (terminal 1; 13A; 13B; 13E). The SM2150 supports a 3-phase network (3P / 3AC), with a rated active power of 11kW and a rated power of 15HP at 208Vac-240Vac.

Lenze

M702-11502850E10101AN100

NIDEC M702-11502850E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with dual Safe Torque Off (STO) and requires an external choke and air cooling. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm). This model supports Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT communication protocols. It operates with a rated current of 315A under normal duty and 285A under heavy-duty conditions. The supply voltage ranges from 500Vac to 575Vac, and it can function in ambient air temperatures from -20°C to +40°C. The degree of protection is IP20, NEMA 1, UL open, suitable for 3-phase input networks with a frequency of 45-66 Hz (supply input) and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 250kW under normal duty and 225kW under heavy-duty, equivalent to 350HP and 300HP respectively.

Nidec

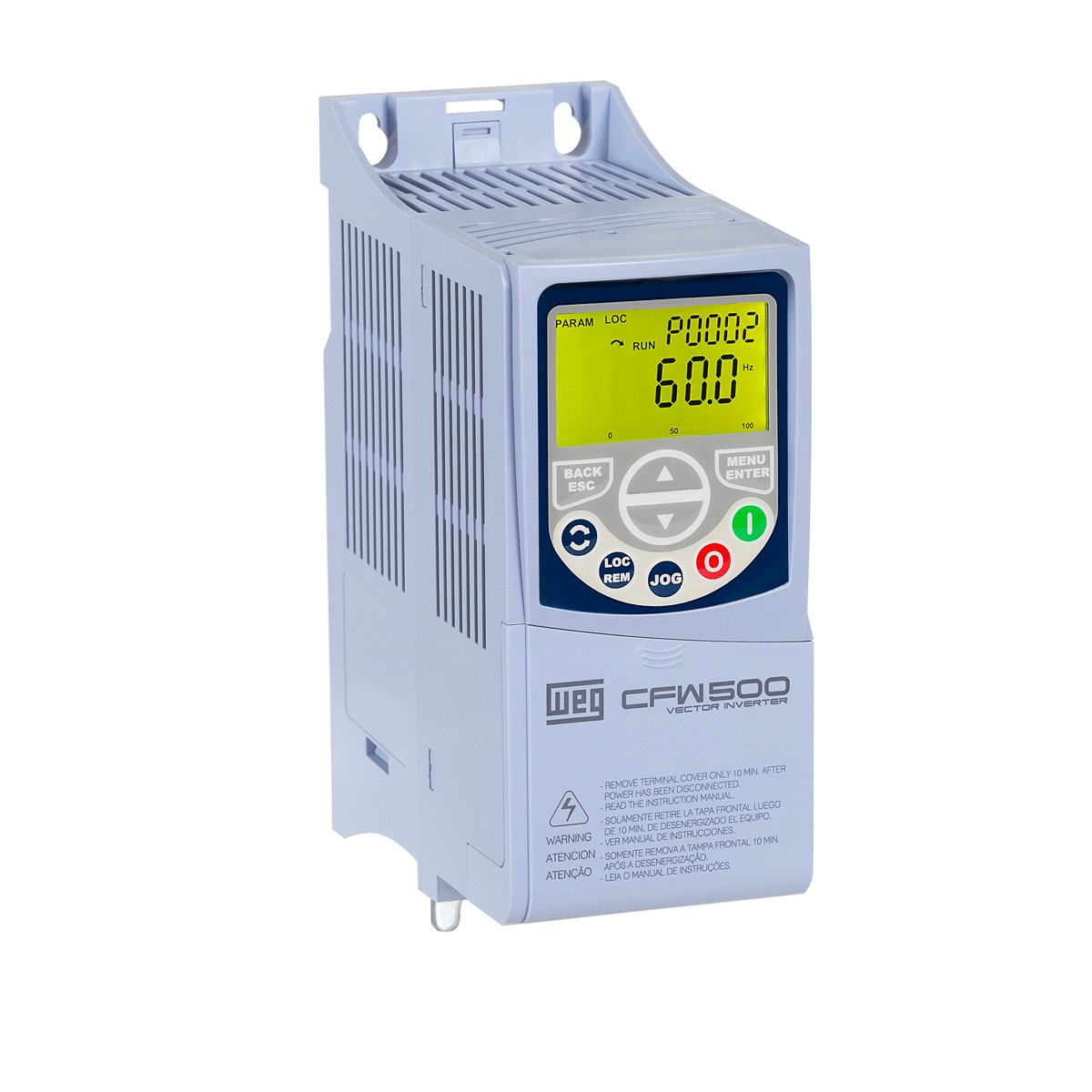

CFW500C16P0T4DB20

DRIVE CFW500C16P0T4DB20

WEG

I55AE125D1AV0100WS

Lenze I55AE125D1AV0100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H155mm x W60mm x D130mm. It supports Modbus TCP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. It can be used in single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 0.25kW and a rated power of 1/3HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE330F10V11002S

Lenze I55AE330F10V11002S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications with features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It has a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H450mm x W250mm x D230mm. It supports CANopen communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 73.2A (light-duty; 400Vac), 62.4A (light-duty; 480Vac), 61A (heavy-duty; 400Vac), and 52A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), multiple digital inputs with flexible functionality, 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) that can be optionally used as voltage or current inputs. The rated active power is 37kW (light-duty; 400-480Vac) and 30kW (heavy-duty; 400-480Vac), with rated power of 50HP (light-duty; 400-480Vac) and 40HP (heavy-duty; 400-480Vac).

Lenze

HVW701E142T4N12-I-X

WEG HVW701E142T4N12-I-X - STANDARD PANEL HVW701E142T4N12-I-X, HVAC Enclosed Drives (HVW)

WEG

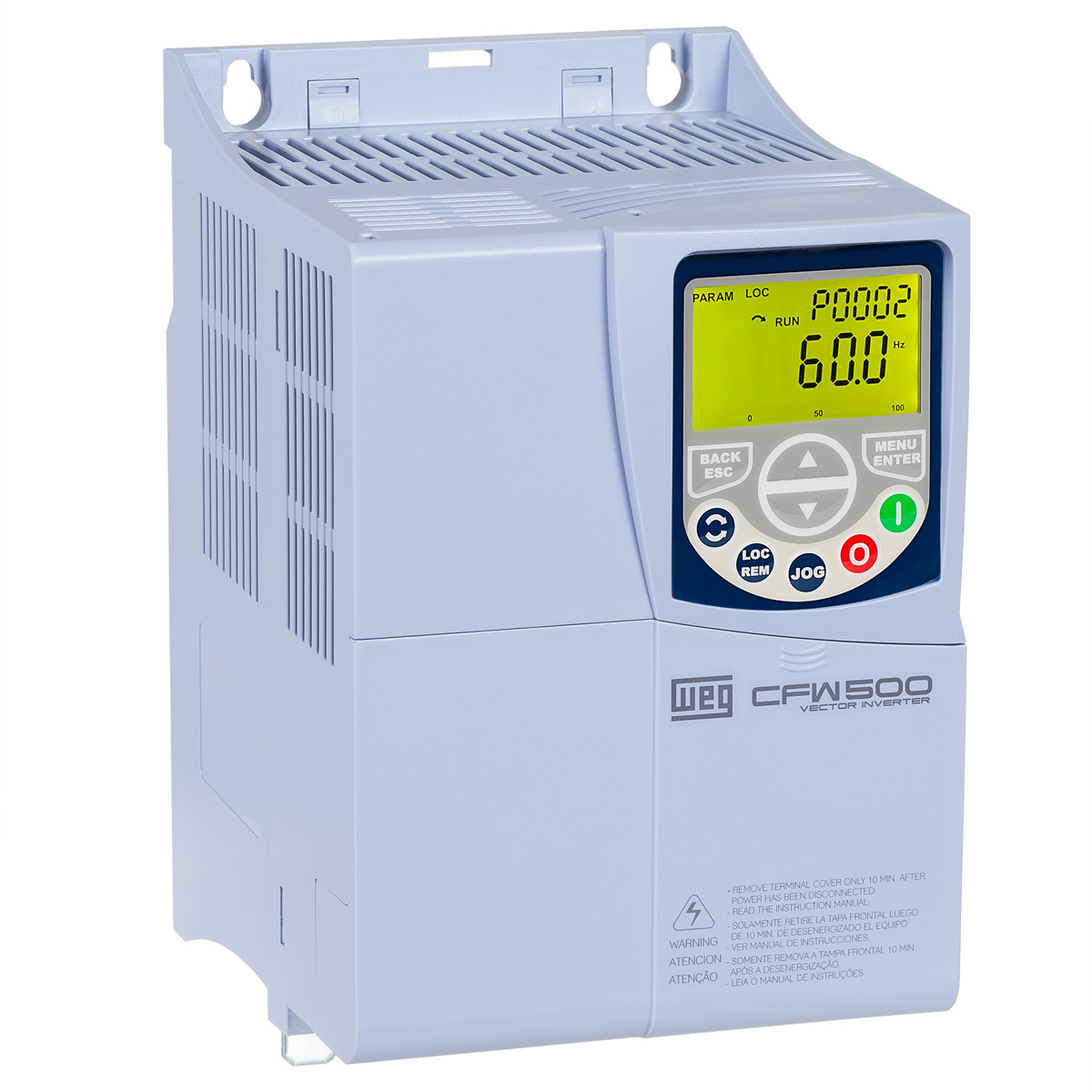

CFW500B16P0T2DB20G2

DRIVE CFW500B16P0T2DB20G2

WEG

EDP11S058GN1201000

STANDARD PANEL EDP11S058GN1201000

WEG

I51AE137B10V11000S

Lenze I51AE137B10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) also known as a compact inverter, designed for variable speed control and featuring DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It includes a built-in RFI filter, basic I/O, and conformal coating. The dimensions are H155mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range, with a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at 8kHz or 16kHz. The degree of protection is IP20, designed for a single-phase network with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It features 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (with options for frequency or encoder input), 1 digital output (max. 100mA), and 2 analog inputs (0-10Vdc; 0-20mA or 4-20mA) that can be optionally used as voltage or current inputs. The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE330F1AV11012S

Lenze I55AE330F1AV11012S is a Variable Speed/Frequency Drive (VSD/VFD) or Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and is designed for mounting in a control cabinet or on a surface/wall. The dimensions are H450mm x W250mm x D230mm. It supports Ethernet POWERLINK communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 73.2A for light-duty at 400Vac, 62.4A for light-duty at 480Vac, 61A for heavy-duty at 400Vac, and 52A for heavy-duty at 480Vac. It operates on a supply voltage of 400Vac / 480Vac, with an ambient air temperature for operation that depends on the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. The degree of protection is IP20, suitable for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. The rated active power is 37kW for light-duty and 30kW for heavy-duty, with corresponding rated power of 50HP and 40HP for 400-480Vac respectively.

Lenze

I55AE215D10V0100KS

Lenze I55AE215D10V0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports EtherCAT communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 x analog output, 5 x digital inputs with optional uses, 1 x digital output, and 2 x analog inputs with optional uses for voltage or current input. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE355F10V11012S

Lenze I55AE355F10V11012S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O. conformal coating, and dimensions of H536mm x W250mm x D265mm. This model supports Ethernet POWERLINK communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 132A (light-duty; 400Vac), 115A (light-duty; 480Vac), 110A (heavy-duty; 400Vac), and 96A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a protection degree of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and is rated for 75kW (light-duty; 400-480Vac) and 55kW (heavy-duty; 400-480Vac) in terms of active power, translating to 100HP (light-duty; 400-480Vac) and 75HP (heavy-duty; 400-480Vac) in horsepower ratings.

Lenze

QMP210A4-CC

NIDEC QMP210A4-CC is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 2 quadrant operation with a conformal coating on PCB and air cooling. It operates within an ambient air temperature range of 0°C to +55°C and has a rated current of 210A. This model supports a supply voltage range of 208Vac-480Vac, accommodating various standard voltages such as 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. The dimensions are frame size 1B, measuring H22.6" x W13" x D9.9" (H578mm x W330mm x D251mm), and it has a degree of protection rated at IP00. It is designed for a single-phase input (2P) network and uses the Modbus RTU communication protocol. The device features 3 x digital outputs (240mA / 0-24Vdc; source) and 2 x digital outputs (5A / 240Vac; source; relay contact type), along with 1 x analog input (-10Vdc...10Vdc; differential) and 2 x analog inputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended) with varying conversion resolutions. Additionally, it includes 3 x digital inputs (0-24Vdc), a rated active power of 75kW, rated power of 125HP, and 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; source; single-ended) with a 10-bit conversion resolution.

Nidec

I55AE155D10V01004S

Lenze I55AE155D10V01004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It has a standard I.O. conformal coating design, with dimensions of H180mm x W60mm x D130mm, and supports PROFIBUS communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. It is compatible with both single-phase and three-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 analog output, 5 digital inputs with optional uses for frequency or encoder input, 1 digital output, and 2 analog inputs that can be optionally used as voltage or current inputs. It has a rated active power of 0.55kW and a rated power of 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

UMI-0075EU-B5

UMI-0075EU-B5 Unitronics - Use UMI-0075EE-B1 or UMI-0075EU-B7

Unitronics

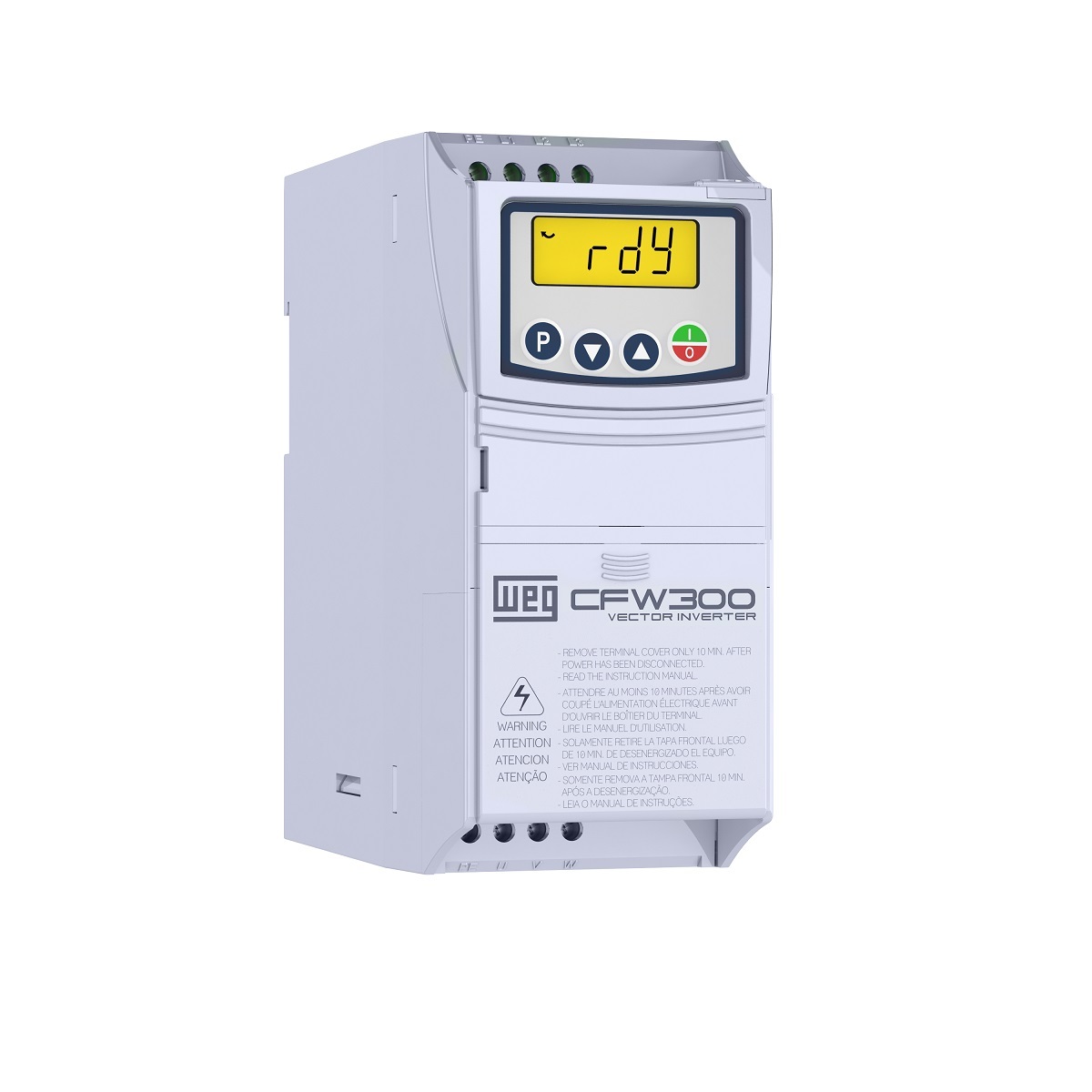

CFW300A06P0S1NB20

DRIVE CFW300A06P0S1NB20

WEG
