Variable Frequency Drives (VFD)

VFD185C63C-21

Variable Frequency Drive, 3 phase, 690 VAC Input, 15 HP, frame C, IP20, NEMA 1

Delta

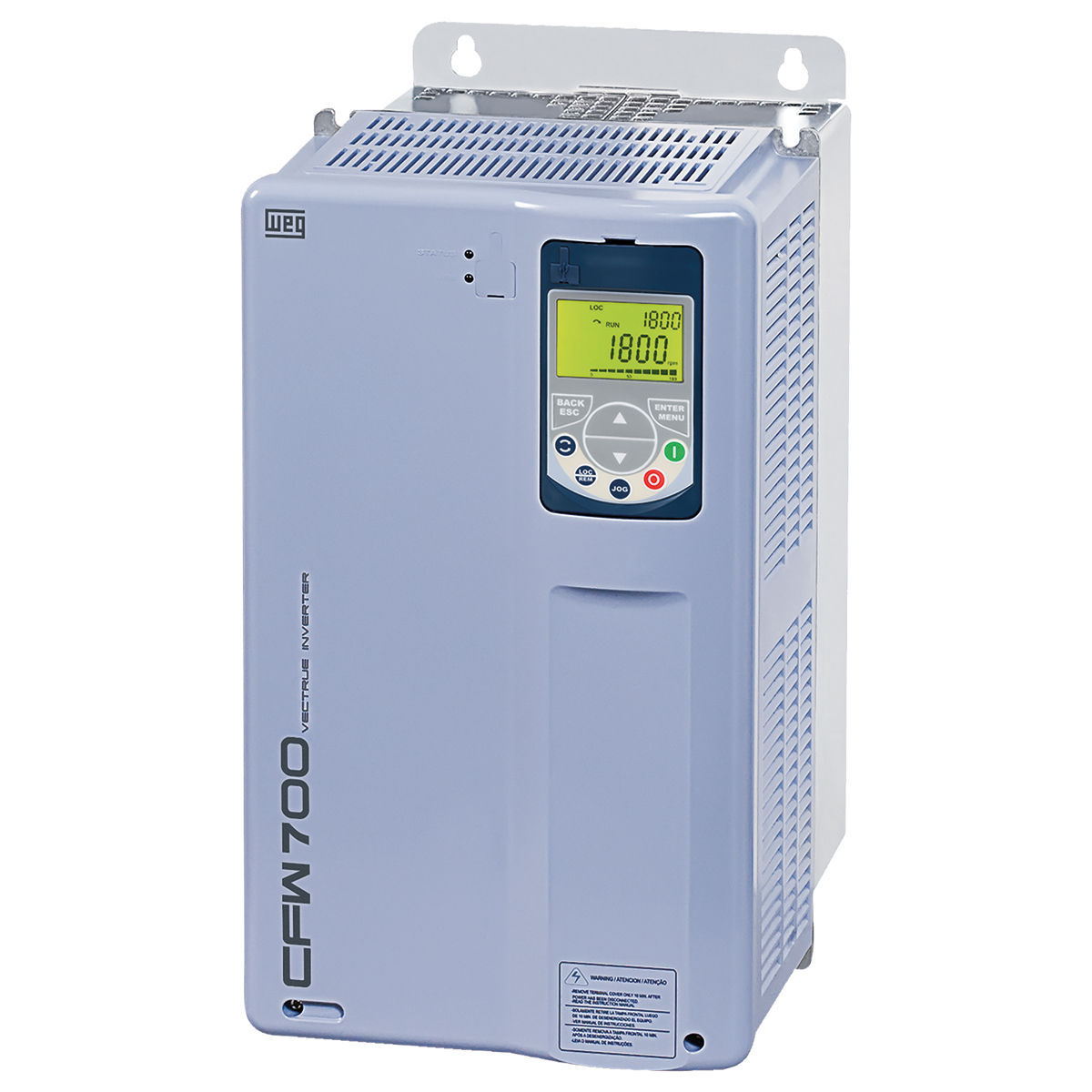

CFW700C58P5T4DB20

DRIVE CFW700C58P5T4DB20

WEG

VFD220C23C-21

Variable Frequency Drive, 3 phase, 230 VAC Input, 30 HP, frame C, IP20, NEMA 1

Delta

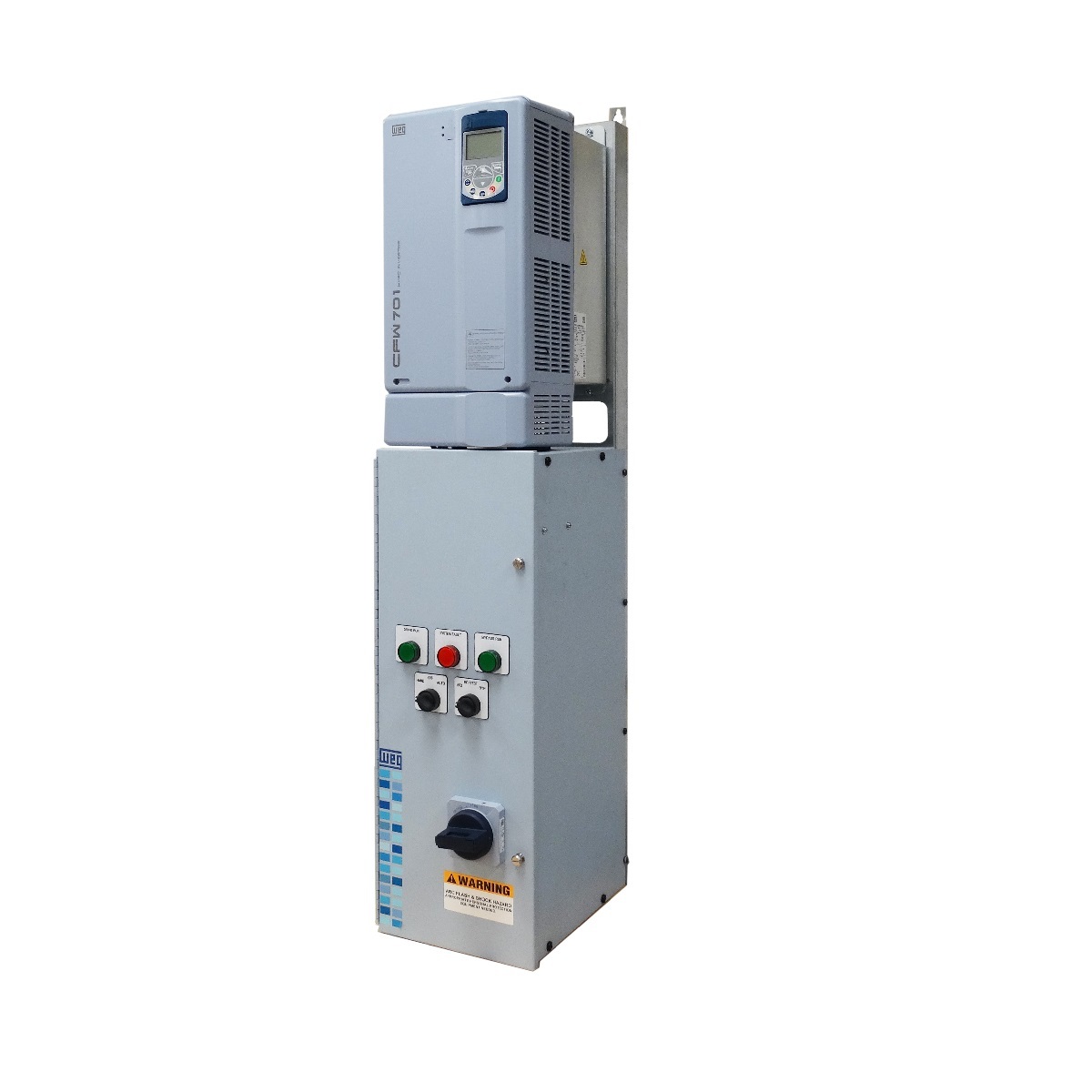

HVW701C070T2N01-J-X

STANDARD PANEL HVW701C070T2N01-J-X

WEG

GA80U4018ABM

GA80U4018ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 18 A, IP20, General Purpose GA800 Series

Yaskawa

GA80U2008ABM

GA80U2008ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 240 VAC, 8 A, IP20, General Purpose GA800 Series

Yaskawa

GA80U4371AWM

GA80U4371AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 371 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

CFW500A04P3S2NBN1

WEG CFW500A04P3S2NBN1 - DRIVE CFW500A04P3S2NBN1, CFW500/700 Drives

WEG

HVW701E142T2N12-J-X

WEG HVW701E142T2N12-J-X - STANDARD PANEL HVW701E142T2N12-J-X, HVAC Enclosed Drives (HVW)

WEG

QMP75A4R-CC

NIDEC QMP75A4R-CC is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 4 quadrant operation with a conformal coating on PCB and air cooling. It operates within an ambient air temperature range of 0°C to +55°C and has a rated current of 75A. This model supports a supply voltage range of 208Vac-480Vac, accommodating various standard voltages such as 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. The device's dimensions are frame size 1A, measuring H22.6" x W13" x D8.7" (H573mm x W330mm x D272mm), and it has a degree of protection rated at IP00. It is designed for a single-phase input (2P) network and uses the Modbus RTU communication protocol. The QMP75A4R-CC features 3 x digital outputs (240mA total including term.22 / 0-24Vdc; source) and 2 x digital outputs (5A / 240Vac; source; relay contact type), along with 1 x analog input (-10Vdc to 10Vdc; differential with 14-bit conversion resolution) and 2 x analog inputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; single-ended with 10-bit conversion resolution). Additionally, it has 3 x digital inputs (0-24Vdc) and is capable of delivering a rated active power of 27kW or 45HP. The device also includes 2 x analog outputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; source; single-ended with 10-bit conversion resolution).

Nidec

I55AE222B1AV11004S

Lenze I55AE222B1AV11004S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H250mm x W60mm x D130mm. The communication protocol supported is PROFIBUS. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum ambient temperature of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a single-phase / 1P network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 230-240Vac.

Lenze

HVW701C038GN01200001

WEG HVW701C038GN01200001 - STANDARD PANEL HVW701C038GN01200001, HVAC Enclosed Drives (HVW)

WEG

C200-07500550A10101AB100

NIDEC C200-07500550A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 7 H21.93" x W10.63" x D11.02" (H557mm x W270mm x D280mm), and offers a degree of protection of IP20 NEMA 1. The rated current is 73A for Normal duty and 55A for Heavy-duty applications. It supports Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 45kW for Normal duty and 37kW for Heavy-duty, with a rated power of 60HP for Normal duty and 50HP for Heavy-duty.

Nidec

VLB30022A480

VLB30022A480 Lovato - Variable speed drive, VLB3... type, three-phase supply 400-480VAC 50/60Hz. EMC suppressor built-in, Cat. C2, 2.2kW

Lovato Electric

HVW701C058T4N01-I-A

WEG HVW701C058T4N01-I-A - STANDARD PANEL HVW701C058T4N01-I-A, HVAC Enclosed Drives (HVW)

WEG

ATV61HC11Y

Schneider Electric ATV61HC11Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities with U/F ratio customization (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The design incorporates a built-in EMC filter of class C3, a built-in heatsink, and a coated version for enhanced chemical resistance. The degree of protection is rated at IP20 UL type 1, with dimensions of H1190mm x W340mm x D377mm. It supports wall mounting and uses Modbus and CANopen communication protocols. The output network frequency ranges from 0.1-500 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input, and 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact), alongside 2 analog inputs (-10...+10Vdc and 0-10Vdc / 0-20mA). The rated current varies with voltage: 136A at 500Vac, 125A at 575Vac and 690Vac, with a maximum current of 163.2A for 60 seconds. Current consumption is specified as 128A at 500Vac, 113A at 600Vac, and 117A at 690Vac. The rated active power is 110kW at 690Vac and 90kW at 500Vac, with a rated power of 125HP.

Schneider Electric

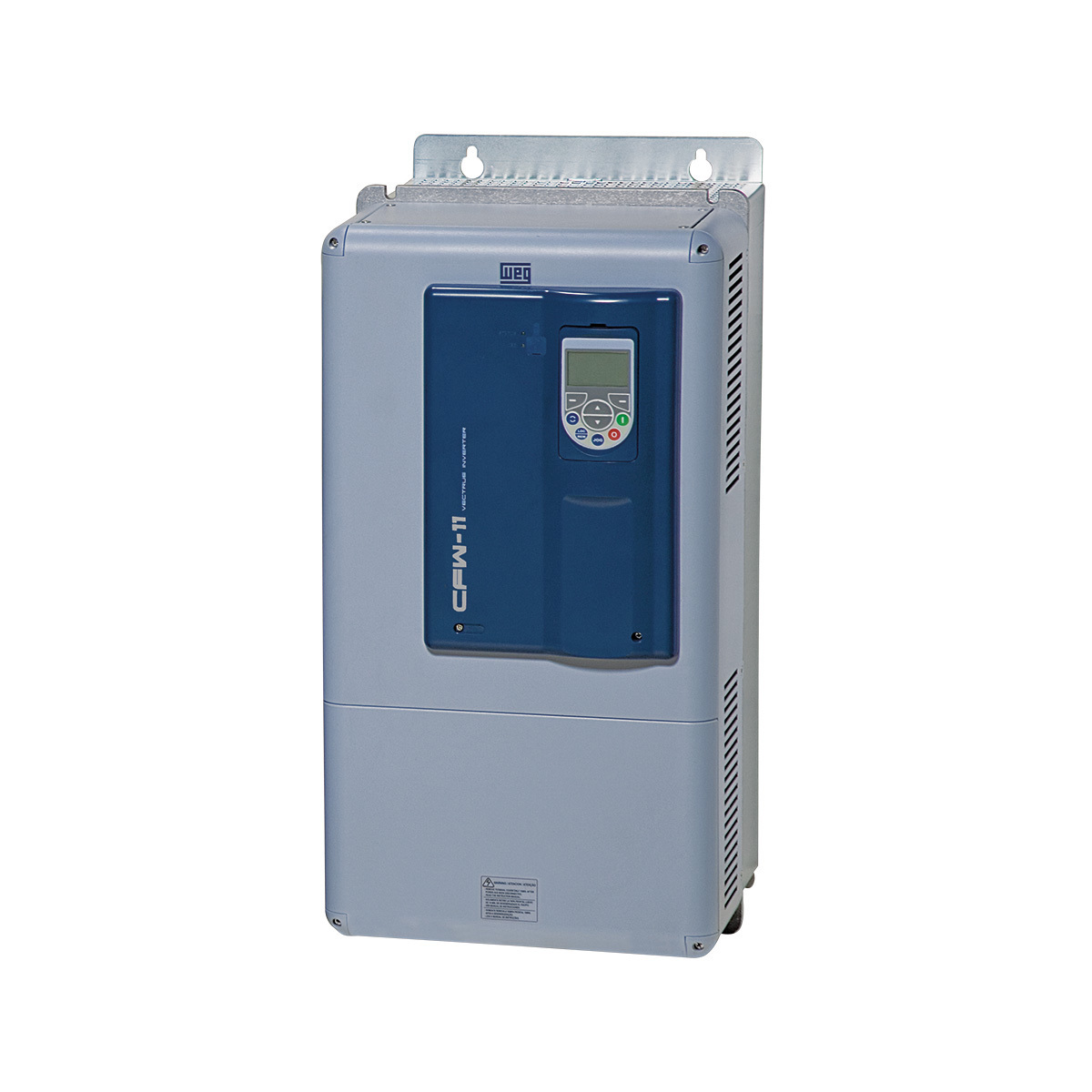

CFW110142T4ON1Z-PGS

DRIVE CFW110142T4ON1Z-PGS

WEG

I55AE240F10V11004S

Lenze I55AE240F10V11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, standard I.O., conformal coating, and supports PROFIBUS communication protocol. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 11.9A (light-duty; 400Vac), 9.8A (light-duty; 480Vac), 9.5A (heavy-duty; 400Vac), and 8.2A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can function in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase (3P / 3AC) network, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The unit includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 5.5kW (light-duty; 400-480Vac) and 4kW (heavy-duty; 400-480Vac), with a rated power of 7-1/2HP (light-duty; 400-480Vac) and 5HP (heavy-duty; 400-480Vac).

Lenze

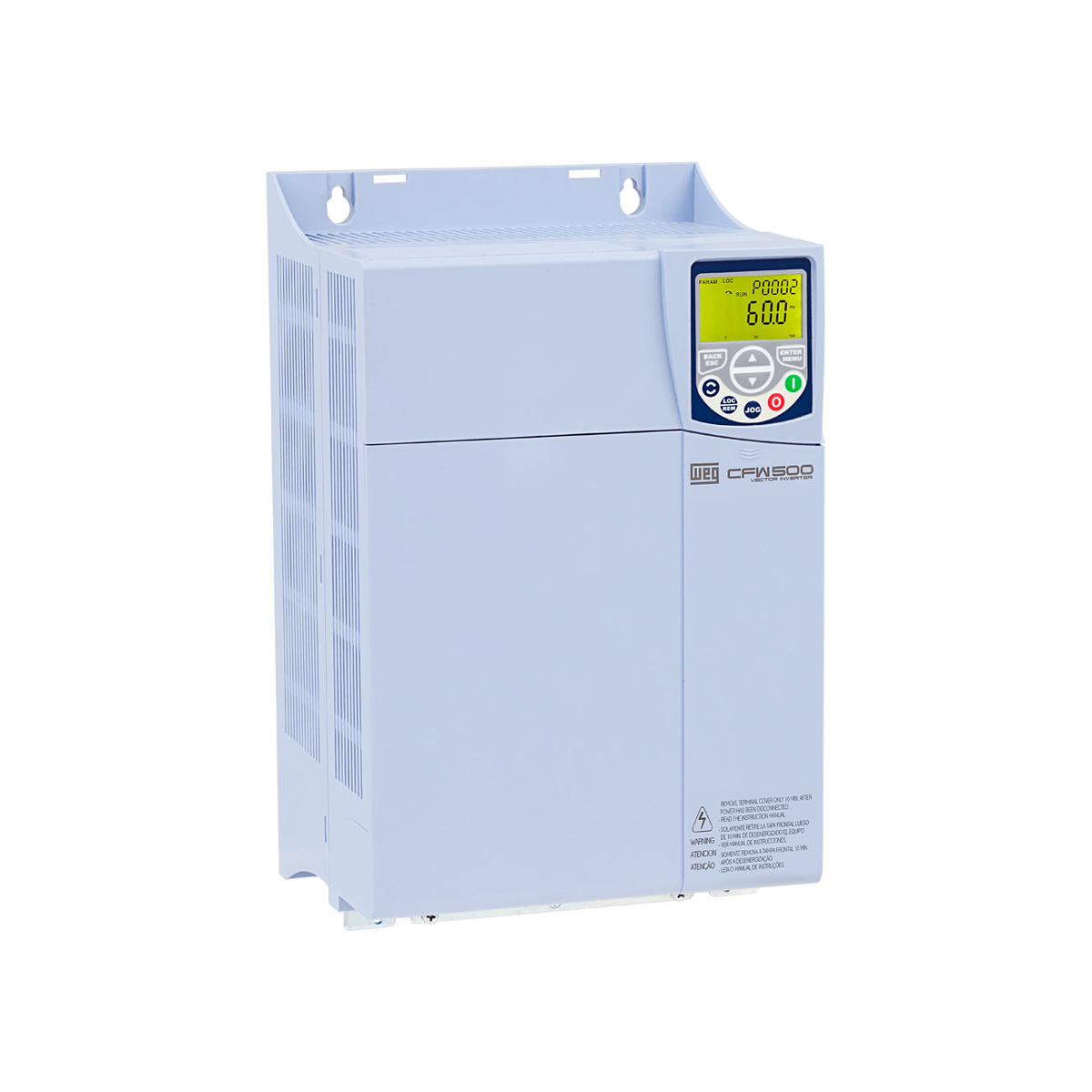

CFW500E56P0T2DB20

DRIVE CFW500E56P0T2DB20

WEG

ESV222N02YXC

ESV222N02YXC Lenze Variable Frequency Drive (VFD) - The SMV 3.0 hp (2.2 kW) drive features a 208 / 240 VAC 1Ø or 3Ø input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter

Lenze
