Variable Frequency Drives (VFD)

CFW110017T5ONFZ

DRIVE CFW110017T5ONFZ

WEG

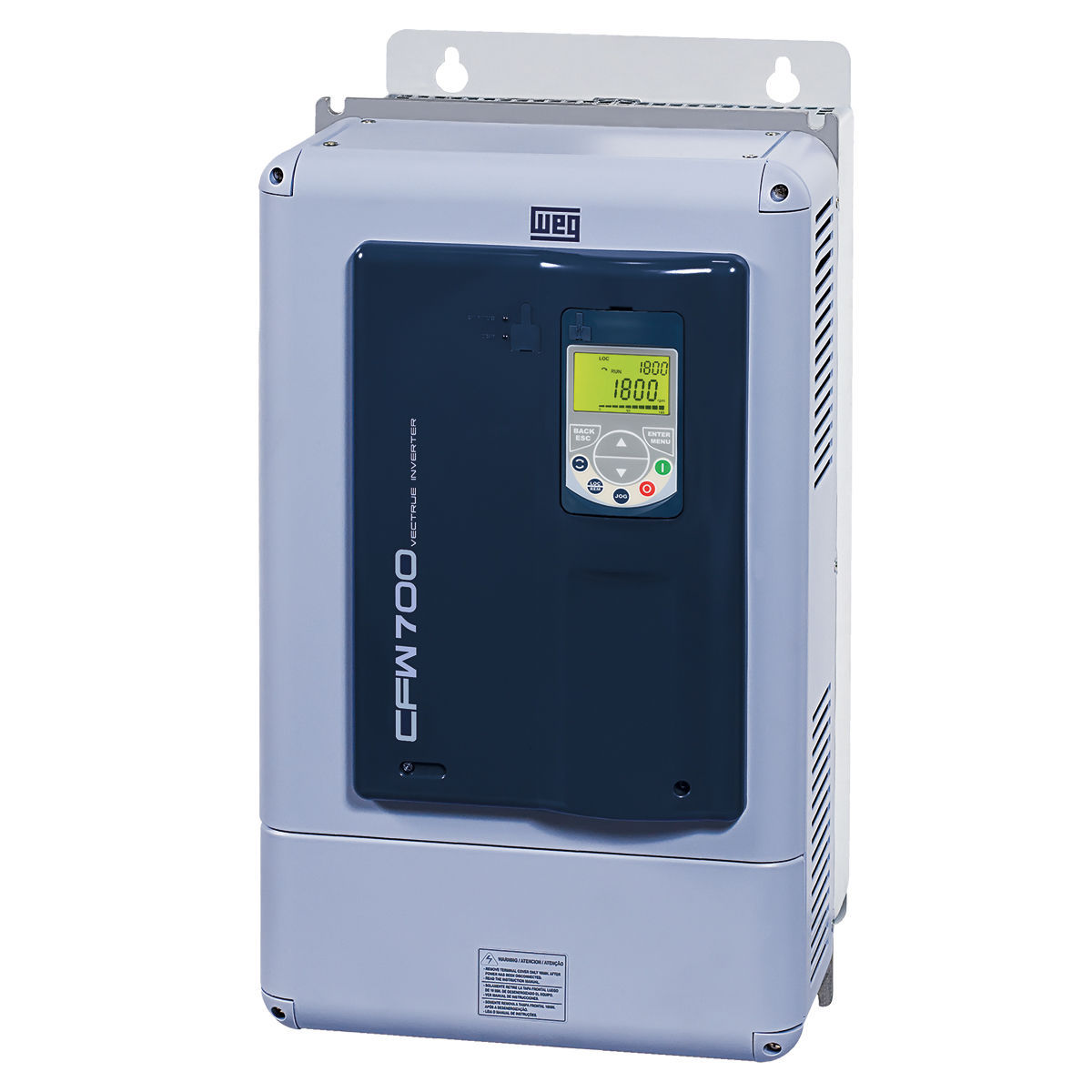

CFW700D88P0T4DBN1

DRIVE CFW700D88P0T4DBN1

WEG

M701-10501520E10101AN100

NIDEC M701-10501520E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed for variable speed control with a single Safe Torque Off (STO) and requires an external choke and air cooling for operation. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 200A under normal duty and 152A under heavy-duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can operate in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 analog inputs (1 x differential and 2 x single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 130kW under normal duty and 110kW under heavy-duty, with a rated power of 200HP (normal duty) and 150HP (heavy-duty).

Nidec

SP3202-HF

NIDEC SP3202-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a frame size 3, measuring H15.32" x W9.84" x D10.23" (H389mm x W250mm x D260mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The rated current is 54A under normal duty and 42A under heavy-duty conditions. This wall-mounted unit operates within an ambient air temperature range of 0°C to +40°C and offers a degree of protection of IP20 NEMA 1. Communication is facilitated via Modbus RTU RS-485, supporting a network frequency of 48-65 Hz on supply input and 0-3000 Hz on output. It includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x digital inputs (0-24Vdc). The analog interface comprises 1 x analog input (-9.8Vdc...9.8Vdc; differential) and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, along with 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. It is designed for a 3-phase input network and delivers a rated active power of 15kW under normal duty and 11kW under heavy-duty, equivalent to 20HP and 15HP respectively.

Nidec

I55AE125A1AV0100MS

Lenze I55AE125A1AV0100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm, and it supports Ethernet/IP communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current is 1.7A (heavy-duty; 120Vac) with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), and has an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW (heavy-duty; 120Vac), and the rated power is 1/3HP (heavy-duty; 120Vac).

Lenze

I5DAE175D10V00000S

Lenze I5DAE175D10V00000S is a variable speed/frequency drive (VSD/VFD) also known as an inverter, categorized under the sub-range of power units. This part is designed without a communication interface and is equipped with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor protection. It operates with a rated current of 4.2A for heavy-duty applications at a supply voltage of 230Vac / 240Vac. The I5DAE175D10V00000S is suitable for mounting in a control cabinet or on a surface/wall, featuring an IP20 degree of protection. It supports both single-phase (1P) and three-phase (3P / 3AC) networks, with a rated active power of 0.75kW and a rated power of 1HP for heavy-duty operations at 230-240Vac.

Lenze

M000-11602630TU0100AN100

NIDEC M000-11602630TU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter belonging to the M000 series. It features an AC to DC twin rectifier air cooling design. The dimensions of this part are frame size 11T, measuring H46.9" x W12.2" x D12.3" (H1190mm x W310mm x D312mm). It has a rated current of 263A for heavy-duty applications. The supply voltage (AC) requirement is 500Vac-690Vac, specifically 600Vac, with a network frequency (supply input) of 50 Hz. This part offers a degree of protection of IP20 NEMA 1. It is designed to deliver a rated active power ranging from 90kW to 250kW and a rated power of 125HP to 400HP for heavy-duty operations.

Nidec

CFW700E63P0T5DBN1C3

WEG CFW700E63P0T5DBN1C3 - DRIVE CFW700E63P0T5DBN1C3, CFW500/700 Drives

WEG

EDP11S007GN3R01000

STANDARD PANEL EDP11S007GN3R01000

WEG

I55AE137A1AV01001S

Lenze i55AE137A1AV01001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a safe torque off (STO) safety application and I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A (heavy-duty; 120Vac) and operates on a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a single-phase / 1P network with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. The drive includes 2 x analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 x digital inputs (PNP/NPN logic), 2 x digital outputs (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 0.37kW and a rated power of 1/2HP, both specified for heavy-duty applications at 120Vac.

Lenze

HVW701B024T4N01-J-C

WEG HVW701B024T4N01-J-C - STANDARD PANEL HVW701B024T4N01-J-C, HVAC Enclosed Drives (HVW)

WEG

HVW701B033T2N01-J-B

WEG HVW701B033T2N01-J-B - STANDARD PANEL HVW701B033T2N01-J-B, HVAC Enclosed Drives (HVW)

WEG

CFW701E0211T4NBN1C3

DRIVE CFW701E0211T4NBN1C3

WEG

I55AE125A1AV01001S

Lenze i55AE125A1AV01001S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a safe torque off (STO) safety application and I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.7A for heavy-duty applications at 120Vac and a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. The degree of protection is IP20, designed for a single-phase network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 digital inputs (PNP/NPN logic), 2 digital outputs (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 120Vac.

Lenze

F600-07400790A10101AB103

NIDEC F600-07400790A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 380Vac-480Vac, specifically 400Vac / 415Vac, and operates on a 60 Hz network frequency. It features a built-in brake transistor, an internal line choke, and utilizes air cooling for temperature management. The device is capable of operating within an ambient air temperature range of -20°C to +40°C. It offers a degree of protection rated at IP20 and has dimensions of frame size 7, measuring H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm). For connectivity, it includes 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), 3 additional digital inputs (0-24Vdc; configurable), and 2 digital outputs (240Vac; relay contact type). The F600 series drive supports Modbus RTU communication protocol, has a rated current of 79A for normal duty operations, and delivers a rated active power of 37kW (50HP) under normal duty conditions.

Nidec

HVW701C045T2N01-J-B

WEG HVW701C045T2N01-J-B - STANDARD PANEL HVW701C045T2N01-J-B, HVAC Enclosed Drives (HVW)

WEG

H300-05400300A10101AB653

NIDEC H300-05400300A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features frame size 5 with dimensions of H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). This model supports Modbus RTU communication protocol and operates with a rated current of 30A under normal duty. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP65, NEMA 4, UL type 12, and is suitable for 3-phase input networks with a supply input frequency of 60 Hz. It includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 2 digital outputs (relay contact type), alongside 2 analog inputs (1 for 4-20mA and 1 for 0-10Vdc). The rated active power is 15kW (normal duty), with a corresponding rated power of 20HP (normal duty).

Nidec

ACS35503U15A64J404

MACHINERY DRIVE, 10 HP, 15.6 A, 480 VAC, Voltage Range: 380-480V, UL TYPE OPEN (IP20), Cabinet-mounted, Basic Panel, 3-Phase Input, 3-Phase Output, Frame: R3

ABB Control

S100-02S21-0B0000

Nidec S100-02S21-0B0000

Nidec

CFW110105T4ON1Z-PGM

DRIVE CFW110105T4ON1Z-PGM

WEG
