Variable Frequency Drives (VFD)

C300-05500030A10101AB100

NIDEC C300-05500030A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 5 measuring H15.39" x W5.63" x D7.87" (H391mm x W143mm x D200mm) and offers a degree of protection rated at IP20 NEMA 1. The rated current is 3.9A under normal duty and 3A under heavy-duty conditions. It supports Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. This model features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) along with 1 x digital output (2A / 240Vac; source; relay contact type). It also includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 2.2kW under normal duty and 1.5kW under heavy-duty, with a rated power of 3HP (normal duty) and 2HP (heavy-duty).

Nidec

F600-07600360A10101AB103

NIDEC F600-07600360A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-690Vac, specifically at 600Vac, and operates at a network frequency of 60 Hz. It features a rated current of 36A and supports a rated active power of 30kW or 40HP under normal duty. The device is equipped with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), 3 additional digital inputs (0-24Vdc; configurable), and 2 digital outputs (240Vac; relay contact type). It is designed with a built-in brake transistor, an internal line choke, and utilizes air cooling for temperature management, ensuring operation within ambient air temperatures of -20°C to +40°C. The F600 series inverter comes with an IP20 degree of protection and has dimensions of frame size 7, measuring H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm). Communication is facilitated via the Modbus RTU protocol, enhancing its integration capabilities into various industrial settings.

Nidec

HVW701C045T4N01-J-X

WEG HVW701C045T4N01-J-X - STANDARD PANEL HVW701C045T4N01-J-X, HVAC Enclosed Drives (HVW)

WEG

M702-09402000E10101AB100

NIDEC M702-09402000E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features a frame size of 9E with dimensions of H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 221A under normal duty and 200A under heavy-duty conditions, and it is designed for a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C. It has an IP20, NEMA 1, and UL open degree of protection. The network type is a 3-phase input (3P) with a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc), with one terminal that can be configured as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 110kW under normal duty and 90kW under heavy-duty, with a rated power of 150HP for both conditions.

Nidec

ESV222N04TXB

ESV222N04TXB Lenze Variable Frequency Drive (VFD) - The SMV 3.0 hp (2.2 kW) drive features a 400 / 480 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

M000-10403200EU0100AB100

NIDEC M000-10403200EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in brake transistor and requires an external choke and air cooling for operation. It features a frame size of 10E with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model is rated for a heavy-duty current of 320A and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW, and the rated power is between 125HP and 400HP for heavy-duty applications.

Nidec

HVW701B031T4N01-J-B

WEG HVW701B031T4N01-J-B - STANDARD PANEL HVW701B031T4N01-J-B, HVAC Enclosed Drives (HVW)

WEG

M000-09501310TU0100AB100

NIDEC M000-09501310TU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor and air cooling. It features a frame size of 9T with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model has a rated current of 131A for heavy-duty applications and operates on a supply voltage of 500Vac-575Vac. It is equipped with an IP20 NEMA 1 degree of protection and is designed to work with a network frequency of 50 Hz. The rated active power ranges from 90kW to 250kW for heavy-duty operations, corresponding to a rated power of 125HP to 400HP.

Nidec

ESV552N06TXC

ESV552N06TXC Lenze Variable Frequency Drive (VFD) - The SMV 7.5 hp (5.5 kW) drive features a 480 / 600 VAC 3Ø input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter ideal

Lenze

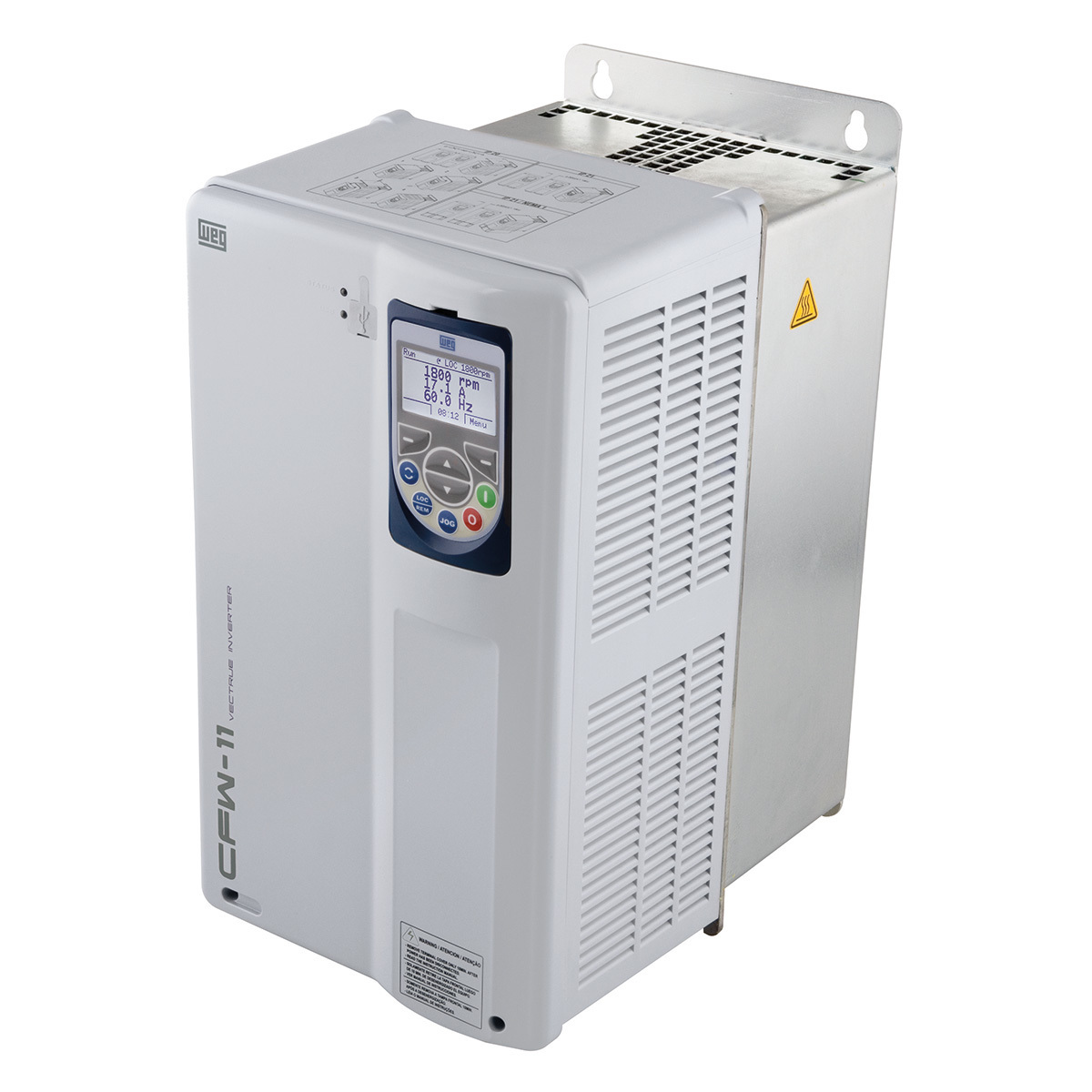

CFW110070T2ON1Z-PGS

DRIVE CFW110070T2ON1Z-PGS

WEG

I55AE137F10V1100MS

Lenze I55AE137F10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H155mm x W60mm x D130mm. This model supports Ethernet/IP communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.3A for heavy-duty applications at 400-480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 400-480Vac.

Lenze

I55AE155F10V11002S

Lenze I55AE155F10V11002S is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for precise control of motor speed and torque. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller for optimized process control. The design includes a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H180mm x W60mm x D130mm. It supports CANopen communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.8A for heavy-duty applications at 400Vac and 1.6A at 480Vac, with a supply voltage of 400Vac / 480Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting a wide range of control signals. The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 400-480Vac.

Lenze

I55AE211B1AV11002S

Lenze I55AE211B1AV11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H250mm x W60mm x D130mm. The communication protocol supported is CANopen, with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 6A (heavy-duty; 230-240Vac), with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum ambient temperature of 45°C (at 2kHz or 4kHz) and 40°C (at 8kHz or 16kHz). It has an IP20 degree of protection, operates on a single-phase / 1P network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 1.1kW (heavy-duty; 230-240Vac), with a rated power of 1-1/2HP (heavy-duty; 230-240Vac).

Lenze

EDP11S312GN1201000

STANDARD PANEL EDP11S312GN1201000

WEG

M701-10501900E10101AN100

NIDEC M701-10501900E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed for variable speed control with a single Safe Torque Off (STO) and requires an external choke and air cooling. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm), and operates with a communication protocol of RS-485 Modbus RTU. The rated current is 200A under normal duty and 190A under heavy-duty conditions, with a supply voltage range of 500Vac-575Vac. It is designed to operate in ambient air temperatures ranging from -20°C to +40°C and has a degree of protection rated at IP20 NEMA 1 UL open. This inverter supports a 3-phase input network with a frequency range of 45-66 Hz for supply input and 0-599 Hz for output. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying conversion resolutions. The rated active power is 150kW for normal duty and 132kW for heavy-duty, with a rated power of 200HP for both conditions.

Nidec

F600-03200066A10101AB653

NIDEC F600-03200066A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for a wide range of automation applications. It operates within an ambient air temperature range of -20°C to +40°C and offers a degree of protection rated at IP65. This model features a single analog output (0-10Vdc), two digital outputs (240Vac; relay contact type), and one analog input (4-20mA / 0-10Vdc; single-ended) alongside three digital inputs (24Vdc) that are configurable from 0-24Vdc. It is built with a frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), and incorporates a built-in brake transistor, internal line choke, and air cooling design for its operation. The F600 series drive accepts a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a network frequency of 60 Hz and supports Modbus RTU communication protocol. It is rated for a current of 6.6A under normal duty, with a rated active power of 1.1kW and a rated power of 1.5HP / 1-1/2HP, suitable for 3-phase input networks.

Nidec

H300-03400123A10101AB103

NIDEC H300-03400123A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), and operates on a 3-phase input network with a supply voltage of 380Vac-480Vac (400Vac / 415Vac). This model supports Modbus RTU communication protocol and is rated for a current of 12.3A under normal duty. It is designed to function within an ambient air temperature range of -20°C to +40°C and offers a degree of protection rated at IP20 NEMA 1 UL type 1. The device includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 2 digital outputs (relay contact type), alongside 2 analog inputs (1 for 4-20mA and 1 for 0-10Vdc). It provides a rated active power of 5.5kW and a rated power of 7.5HP under normal duty conditions, suitable for applications requiring precise control of motor speed and frequency.

Nidec

HVW701A003GN01200001

WEG HVW701A003GN01200001 - STANDARD PANEL HVW701A003GN01200001, HVAC Enclosed Drives (HVW)

WEG

CFW500B12P0T5DB66DS

DRIVE CFW500B12P0T5DB66DS

WEG

M400-09501310E10101AN100

NIDEC M400-09501310E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M400 series designed for variable speed control with a dual Safe Torque Off (STO) feature, requiring an external choke and air cooling. It has dimensions of frame size 9E, measuring H39.8" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 150A under normal duty and 131A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation ranges from -20°C to +55°C. It offers a degree of protection of IP20 and NEMA 1, with a 3-phase input network frequency of 45-66 Hz (supply input) and an output frequency range of 0-550 Hz. The device includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with an 11-bit conversion resolution. It provides a rated active power of 110kW under normal duty and 90kW under heavy-duty, equivalent to 150HP and 125HP respectively.

Nidec
