Variable Frequency Drives (VFD)

3G3MX2-A4007-V2

MX2 Series Fast-Response Inverter for Machine Control

Omron

CFW500B07P3B2DB20Y2

WEG CFW500B07P3B2DB20Y2 - DRIVE CFW500B07P3B2DB20Y2, CFW500/700 Drives

WEG

EDP11S045DN3R

STANDARD PANEL EDP11S045DN3R

WEG

I55AE330F10V1100MS

Lenze I55AE330F10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It comes with a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H450mm x W250mm x D230mm. It supports Ethernet/IP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 73.2A (light-duty; 400Vac), 62.4A (light-duty; 480Vac), 61A (heavy-duty; 400Vac), and 52A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, and 1 digital output. The rated active power is 37kW (light-duty; 400-480Vac) and 30kW (heavy-duty; 400-480Vac), with a rated power of 50HP (light-duty; 400-480Vac) and 40HP (heavy-duty; 400-480Vac).

Lenze

ATV71HU55M3S337

Schneider Electric ATV71HU55M3S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control with a U/F ratio of 2 points / 5 points. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model comes with a built-in EMC filter, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.) and has dimensions of H295mm x W175mm x D187mm. The drive is chemically resistant with a conformal coating (reinforced version) and has a degree of protection of IP20 UL type 1. It supports a rated current of 27.5A (230Vac; 4kHz; 3-phase), 17.5A (230Vac; 4kHz; single-phase), with maximum currents of 28.8A (single-phase; for 2s), 45.3A (3-phase; for 2s), and 26.3A (single-phase; for 60s), 413A (3-phase; for 60s). Designed for wall mounting, it uses Modbus and CANopen communication protocols and can operate on single-phase (1P) or 3-phase (3P) networks with an output frequency range of 0.1-599 Hz. The drive includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) programmable (LI1-LI5), 1 digital input programmable as discrete or PTC input (LI6), 1 PWR safety input, 1 digital output (C/O SPDT relay contact) (R1), and 2 digital outputs (NO relay contacts) (R2), along with 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). Its current consumption is specified as 34.9A (200Vac; 4kW; single-phase), 35A (200Vac; 5.5kW; 3-phase), 29.9A (240Vac; 4kW; single-phase), and 30.8A (240Vac; 5.5kW; 3-phase), with a rated active power of 5.5kW (3-phase) and 4kW (single-phase), equivalent to 7.5HP / 7-1/2HP (3-phase) and 5HP (single-phase).

Schneider Electric

M701-09201760E10101AN100

NIDEC M701-09201760E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a single Safe Torque Off (STO) and requires an external choke and air cooling for operation. It features dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20 NEMA 1 UL open, suitable for 3-phase input (3P) networks with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x additional digital inputs (0-24Vdc), and 3 x digital outputs (0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). The analog input configuration consists of 1 x analog input (0-20mA / 4-20mA / -10...+10Vdc; differential; 11-bit conversion resolution) and 2 x analog inputs (0-20mA / 4-20mA / -10...+10Vdc; single-ended; 11-bit conversion resolution). It has a rated active power of 55kW under normal duty and 45kW under heavy-duty, corresponding to 75HP and 60HP, respectively.

Nidec

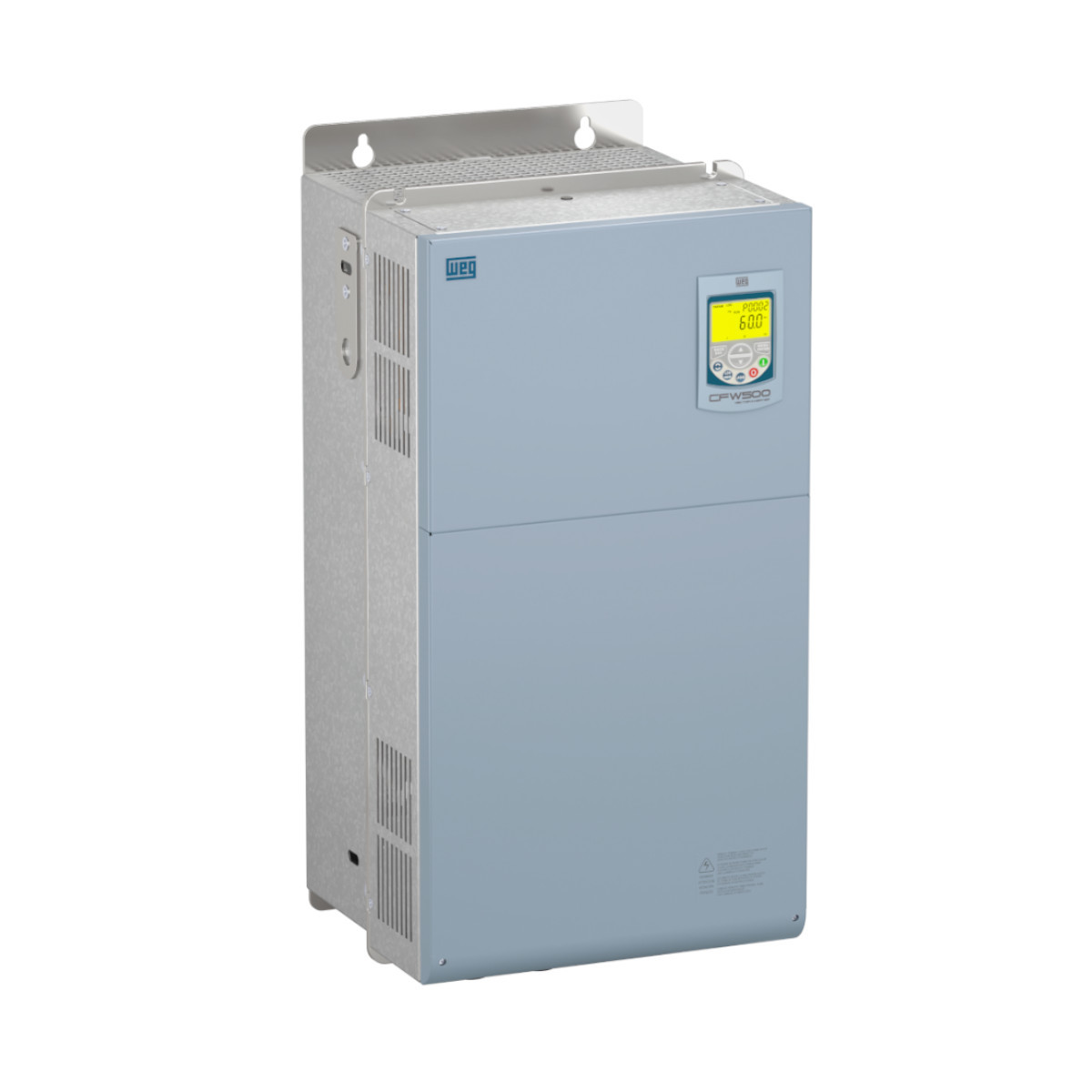

CFW500G0145T2DB20G2

DRIVE CFW500G0145T2DB20G2

WEG

ESV751N04TFC

ESV751N04TFC Lenze Variable Frequency Drive (VFD) - The SMV 1.0 hp (0.75 kW) drive features a 400 / 480 VAC 3Ø filtered input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line fi

Lenze

M1210SC

Lenze M1210SC is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for water-tight and dust-tight applications, supporting Modbus communication protocol. It features thermal overload protection and solid state motor overload protection. The device operates with a rated current of 4.6A at 200Vac and 4A at 230Vac, and it is suitable for supply voltages ranging from 200Vac to 240Vac (208Vac / 220Vac / 230Vac). It can be mounted in a control cabinet or on a surface/wall and is designed to operate in ambient air temperatures ranging from -10 to +40 °C. With a NEMA 4 degree of protection, it is compatible with single-phase networks and supports a network frequency of 48-62 Hz on input and 0-120 Hz on output. The M1210SC offers 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). It also includes 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. The rated active power is 0.75kW, and the rated power is 1HP for supply voltages between 200-240Vac.

Lenze

I51AE155D10V01000S

Lenze I51AE155D10V01000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for basic input/output operations with a conformal coating. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. This compact inverter has dimensions of H180mm x W60mm x D130mm and does not include a communication interface. It offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 3.2A for heavy-duty applications at 230-240Vac, and it supports a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, with an operational ambient air temperature range based on the switching frequency: max. 45°C at 2kHz or 4kHz and max. 40°C at 8kHz or 16kHz. The degree of protection is IP20, and it can operate on a single-phase or 3-phase network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The inverter includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional uses, and 1 digital output. It has a rated active power of 0.55kW and a rated power of 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

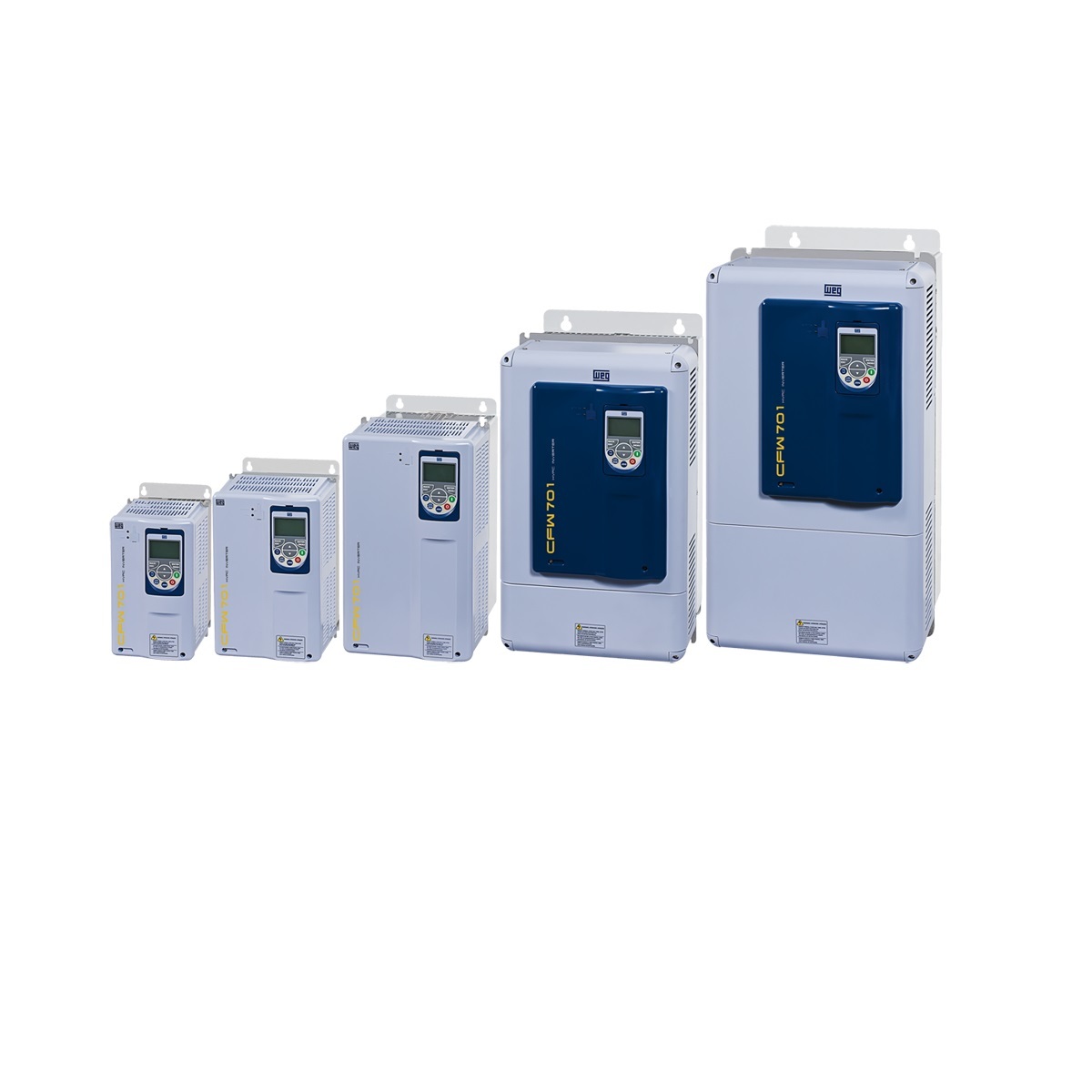

CFW701E0107T5NBN1C3

DRIVE CFW701E0107T5NBN1C3

WEG

SP3501-HF

NIDEC SP3501-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a frame size 3 with dimensions of H15.32" x W9.84" x D10.23" (H389mm x W250mm x D260mm), and operates on a supply voltage of 500Vac-575Vac. The rated current is 5.4A under normal duty and 4.1A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) with an output frequency range of 0-3000 Hz. The SP3501-HF includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). For analog interfacing, it offers 1 x analog input (-9.8Vdc...9.8Vdc; differential) and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, alongside 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. The rated active power is 3kW for normal duty and 2.2kW for heavy-duty, corresponding to a rated power of 3HP and 2HP respectively.

Nidec

ATV212WD37N4C

Schneider Electric ATV212WD37N4C is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 212 series designed for variable speed and frequency control with a U/F ratio (2 points / energy saving) and sensorless flux vector control (standard / energy saving), capable of delivering 120% of the nominal motor torque. It features a built-in EMC filter (class C1) within an enclosed assembly and operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.). The dimensions of this unit are H880mm x W284mm x D343mm, and it offers a degree of protection rated at IP55 UL type 1. Designed for wall mounting, it has a rated current of 79A (460Vac; 8kHz) and can reach a maximum current of 86.9A for 60 seconds. Communication is facilitated through Modbus, Metasys N2, Apogee FLN, and BACnet protocols over a 3-phase network with an output frequency range of 0.5-200 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 3 digital inputs (24Vdc; sink/source), 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact), and 2 analog inputs (0-10Vdc / 0-20mA / 4-20mA and 0-10Vdc / PTC). The current consumption is 68.9A at 380Vac and 54.4A at 480Vac, with a rated active power of 37kW and rated power of 50HP.

Schneider Electric

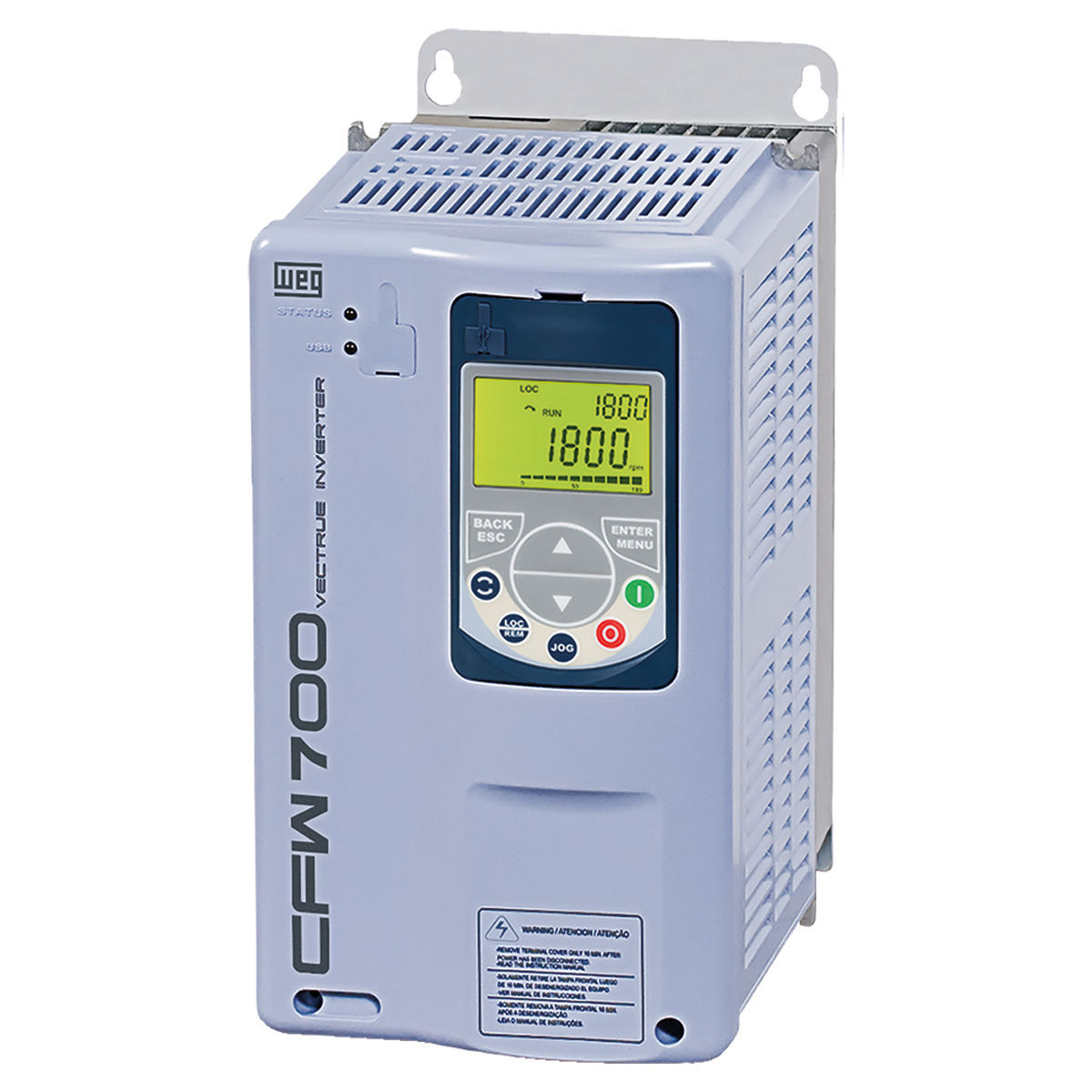

CFW700A06P0B2DB20

DRIVE CFW700A06P0B2DB20

WEG

EDP11S058GN12

STANDARD PANEL EDP11S058GN12

WEG

UMI-0110EE-B1

UMI-0110EE-B1 Unitronics - Unitronics VFD - B1 Casing, 380-480V, 3 Phase, 11kW, 15HP, STO included

Unitronics

CFW080027TGN4A1Z

WEG CFW080027TGN4A1Z - INVERTER USCFW080027T3848EON4A1Z, CFW08 / CFW500 Washdown Drives

WEG

I5DAE375F10V10000S

Lenze I5DAE375F10V10000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Power units sub-range, designed with a built-in RFI filter. This model does not include a communication interface. It features protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current specifications are 180A for light-duty at 400Vac, 149A for light-duty at 480Vac, 150A for heavy-duty at 400Vac, and 124A for heavy-duty at 480Vac. It operates on a supply voltage of 400Vac / 480Vac and is suitable for mounting in a control cabinet or on a surface/wall, with an IP20 degree of protection. This inverter is designed for a 3-phase (3P / 3AC) network, with a rated active power of 75kW and a rated power of 100HP for heavy-duty applications at 400-480Vac.

Lenze

M000-11403770EU0100AN100

NIDEC M000-11403770EU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed for heavy-duty applications. It requires an external choke for air cooling and comes in a frame size of 11E, with dimensions of H46.9" x W12.2" x D12.3" (H1190mm x W310mm x D312mm). This model has a rated current of 377A and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac), suitable for network frequencies of 50 Hz. It offers a degree of protection of IP20 NEMA 1 and supports rated active power ranging from 90kW to 250kW or 125HP to 400HP for heavy-duty operations.

Nidec

M15400B

Lenze M15400B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H400mm x W261mm x D212mm and supports Modbus communication protocol. The device offers thermal overload protection and solid state motor overload protection. It operates with a rated current of 41A at supply voltages of 480Vac / 590Vac and is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation ranges from -10 to +50 °C, and it has a NEMA 1 degree of protection. This VSD/VFD is compatible with a 3-phase network, accepting an input frequency of 48-62 Hz and providing an output frequency of 0-120 Hz. It includes 1 analog output proportional to speed, 1 analog output proportional to load, 4 digital inputs plus 1 for start and 1 for stop functions, and 2 digital outputs (NPN; sinking). Additionally, it features 1 analog input for 0-10Vdc and 1 for 4-20mA signals. The rated active power is 30kW, and the rated power is 40HP at 480Vac / 590Vac.

Lenze
