Variable Frequency Drives (VFD)

M400-02400032A10101AB100

NIDEC M400-02400032A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 3.2A for both normal and heavy-duty applications and requires a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +60°C, and it is designed with a degree of protection of IP20 NEMA 1. The M400-02400032A10101AB100 is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz. It includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with an 11-bit conversion resolution. The rated active power is 1.1kW, and the rated power is 1.5HP for both normal and heavy-duty operations.

Nidec

I55AE222B1AV11002S

Lenze I55AE222B1AV11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H250mm x W60mm x D130mm. The communication protocol supported is CANopen, with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a single-phase / 1P network with a frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It is rated at 2.2kW active power and 3HP for heavy-duty applications at 230-240Vac.

Lenze

GA80U4018AWM

GA80U4018AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 18 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

HVW701D086T2N12-X-X

WEG HVW701D086T2N12-X-X - STANDARD PANEL HVW701D086T2N12-X-X, HVAC Enclosed Drives (HVW)

WEG

SP3507

NIDEC SP3507 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a single Safe Torque Off (STO) and air cooling. It features a frame size 3 with dimensions of H15.32" x W9.84" x D10.23" (H389mm x W250mm x D260mm), and operates on a supply voltage of 500Vac-575Vac. The rated current is 27A under normal duty and 22A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol, with a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP3507 includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). Analog interface options include 1 x analog input (-9.8Vdc...9.8Vdc; differential) and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, along with 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. The rated active power is 18.5kW for normal duty and 15kW for heavy-duty, corresponding to a rated power of 25HP and 20HP, respectively. It is designed for a 3-phase input network.

Nidec

M000-09501310EU0100AB100

NIDEC M000-09501310EU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed with a built-in brake transistor and requires an external choke and air cooling for operation. It features a frame size of 9E with dimensions of H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model has a rated current of 131A for heavy-duty applications and operates on a supply voltage of 500Vac-575Vac. It is designed to work with a network frequency of 50 Hz and offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW, and the rated power is between 125HP and 400HP for heavy-duty operations.

Nidec

H300-06200500A10101AB103

NIDEC H300-06200500A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features dimensions of frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). This model supports Modbus RTU communication protocol and operates with a rated current of 50A under normal duty. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20, NEMA 1, UL type 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It includes 2 x analog outputs, 3 x digital inputs (24Vdc), 3 x digital inputs (24Vdc / configurable), 1 x digital input (0-24Vdc), and 2 x digital outputs (relay contact type), along with 1 x analog input (4-20mA) and 1 x analog input (0-10Vdc). The rated active power is 11kW under normal duty, equivalent to 15HP.

Nidec

SF4250

Lenze SF4250 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for precise control of motor speed and frequency. It features dimensions of H248mm x W170mm x D203mm and supports a supply voltage of either 400Vac or 480Vac, with rated currents of 39A at 400Vac and 34A at 460Vac. This device can be mounted in a cabinet or on a DIN rail and operates within an ambient air temperature range of 0 to +50 °C, with a derating of 2.5% per °C above +50°C. It utilizes RS-485 for communication and operates with a network frequency of 48-62 Hz on input and 0-240 Hz on output. The SF4250 includes 2 digital outputs (open-collector outputs; 50mA at 30Vdc) and supports a 3-phase network. It is equipped with 2 analog inputs (1 x 0-10Vdc and 1 x 4-20mA) and 2 analog outputs (both 0-10Vdc or adjustable within a specified range), which are proportional to output frequency or load. The rated active power is 18.5kW, and the rated power is 25HP for supply voltages between 400-480Vac.

Lenze

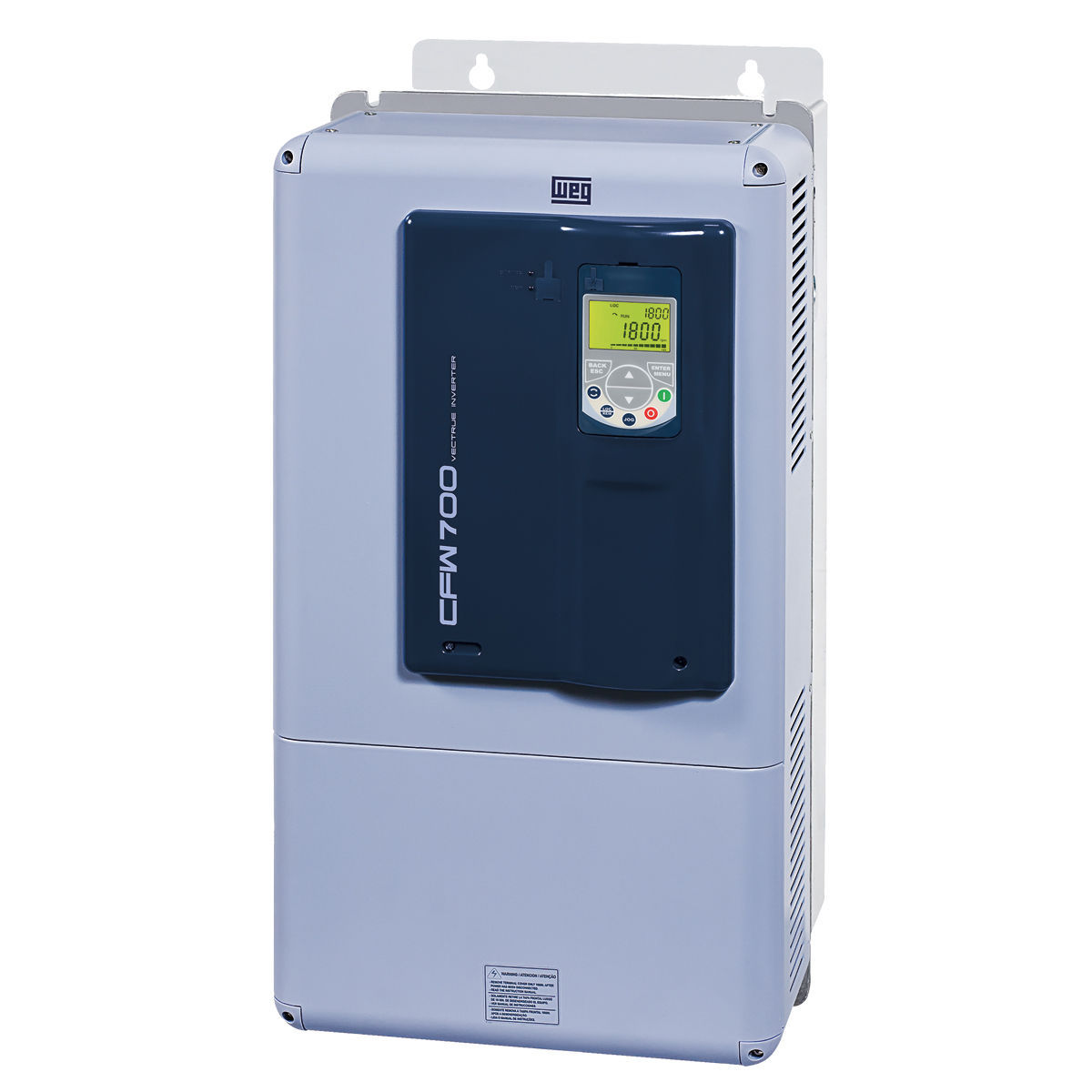

CFW700E180T4NBN1C3

WEG CFW700E180T4NBN1C3 - DRIVE CFW700E0180T4NBN1C3, CFW500/700 Drives

WEG

SF5100

Lenze SF5100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for precise control of motor speed and frequency. It features dimensions of H197mm x W128mm x D182mm and supports a supply voltage of either 480Vac or 590Vac with a rated current of 12.2A for both voltages. The SF5100 can be mounted in a cabinet or on a DIN rail and operates within an ambient air temperature range of 0 to +50°C, with a derating of 2.5% per °C above +50°C. It utilizes an RS-485 communication protocol and operates with a network frequency of 48-62 Hz on input and 0-240 Hz on output. This model includes 2 digital outputs (open-collector outputs; 50mA at 30Vdc) and supports a 3-phase network. It is equipped with 2 analog inputs (1 x 0-10Vdc and 1 x 4-20mA) and 2 analog outputs (both 0-10Vdc or adjustable within a specified range), which are proportional to output frequency or load. The SF5100 has a rated active power of 7.5kW and a rated power of 10HP for the specified voltage range.

Lenze

I55AE240C1AV01001S

Lenze I55AE240C1AV01001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a safe torque off (STO) safety application and I.O. conformal coating. The dimensions are H250mm x W90mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 20.6A for light-duty (230-240Vac) and 16.5A for heavy-duty (230-240Vac), and a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. The degree of protection is IP20, designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 x analog outputs, 7 x digital inputs with flexible functionality, 2 x digital outputs, and 2 x analog inputs. The rated active power is 5.5kW for light-duty and 4kW for heavy-duty, corresponding to 7-1/2HP and 5HP, respectively.

Lenze

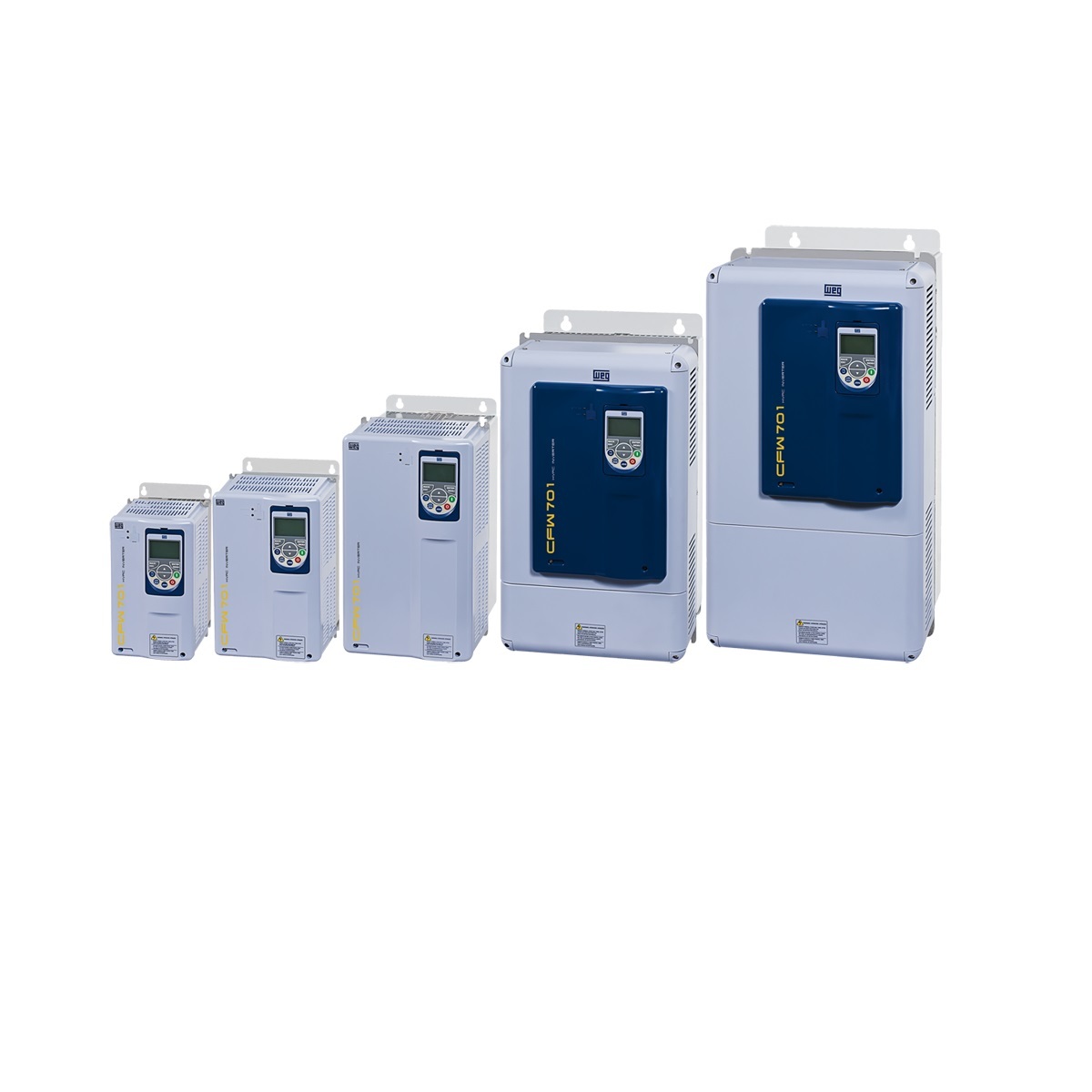

CFW701B17P0T4DBN1C3

DRIVE CFW701B17P0T4DBN1C3

WEG

EDP11S054DN3R01000

STANDARD PANEL EDP11S054DN3R01000

WEG

ESV223N06TXB

ESV223N06TXB Lenze Variable Frequency Drive (VFD) - The SMV 30.0 hp (22.0 kW) drive features a 480 / 600 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

CFW700E0180T2NB20C3

DRIVE CFW700E0180T2NB20C3

WEG

C300-06500100A10101AB100

NIDEC C300-06500100A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 6 H15.39" x W8.27" x D8.94" (H291mm x W210mm x D227mm), and offers a degree of protection rated at IP20 NEMA 1. The rated current is 12A for Normal duty and 10A for Heavy-duty applications. It supports Modbus RTU communication protocol over a 3-phase input network, with a network frequency of 45-66 Hz (Supply input) and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. This model features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 digital output (2A / 240Vac; source; relay contact type). It also includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 7.5kW for Normal duty and 5.5kW for Heavy-duty, with a rated power of 10HP for Normal duty and 7.5HP / 7-1/2HP for Heavy-duty.

Nidec

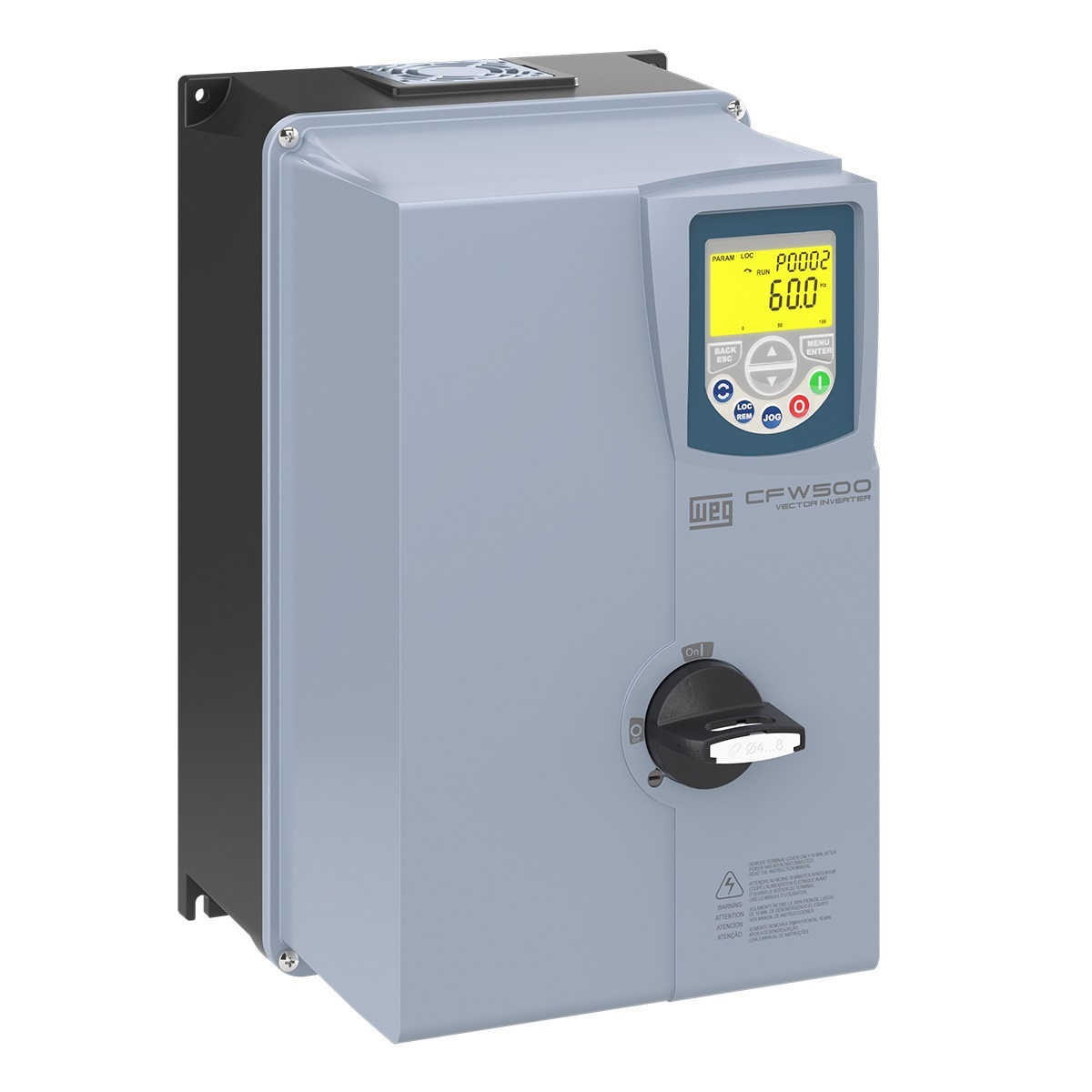

CFW500B28P0T2DB66DSG2

DRIVE CFW500B28P0T2DB66DSG2

WEG

M1230SB

Lenze M1230SB is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H191mm x W155mm x D130mm and supports Modbus communication protocol. The device offers thermal overload protection and solid state motor overload protection. It operates with a rated current of 11A at 200Vac and 9.6A at 230Vac, and it is suitable for supply voltages ranging from 200Vac to 240Vac (208Vac / 220Vac / 230Vac). The M1230SB can be mounted in a control cabinet or on a surface/wall and is designed to operate in ambient air temperatures ranging from -10 to +50 °C. It has a NEMA 1 degree of protection and is compatible with single-phase / 1P networks, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The unit includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs (terminal 13A-13D), 1 digital input (terminal 12A START), 1 digital input (terminal 1 STOP), and 2 digital outputs (NPN; sinking) (terminal 14 and 15). Additionally, it features 1 analog input (0-10Vdc) (terminal 5A) and 1 analog input (4-20mA) (terminal 5B). The rated active power is 2.2kW (200-240Vac), and the rated power is 3HP (200-240Vac).

Lenze

F600-06500220A10101AB103

NIDEC F600-06500220A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-575Vac and a network frequency of 60 Hz. It features a built-in brake transistor, an internal line choke, and air cooling for its design. The device operates within an ambient air temperature range of -20°C to +40°C and offers a degree of protection rated at IP20. It has dimensions of frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). For connectivity, it includes 1 x analog input (4-20mA / 0-10Vdc; single-ended), 1 x analog output (0-10Vdc), 3 x digital inputs (24Vdc), 3 x digital inputs (0-24Vdc; configurable), and 2 x digital outputs (240Vac; relay contact type). The F600 series drive supports Modbus RTU communication protocol, has a rated current of 22A (Normal duty), and provides rated active power and power of 15kW and 20HP (Normal duty), respectively.

Nidec

M701-09201760A10101AB100

NIDEC M701-09201760A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input (3P) network, with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 x digital inputs (0-24Vdc), and 4 x digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type). Additionally, it has 3 x analog inputs (1 x differential and 2 x single-ended; 11-bit conversion resolution). The rated active power is 55kW under normal duty and 45kW under heavy-duty, corresponding to 75HP and 60HP, respectively.

Nidec
