Variable Frequency Drives (VFD)

HVW701B028T2N01-X-C

WEG HVW701B028T2N01-X-C - STANDARD PANEL HVW701B028T2N01-X-C, HVAC Enclosed Drives (HVW)

WEG

I55AE375F10V11000S

Lenze I55AE375F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications with features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It has a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H536mm x W250mm x D265mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 180A for light-duty at 400Vac, 149A for light-duty at 480Vac, 150A for heavy-duty at 400Vac, and 124A for heavy-duty at 480Vac, with a supply voltage of 400Vac / 480Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, all supporting various signal types. The rated active power is 90kW for light-duty and 75kW for heavy-duty, with a rated power of 125HP for light-duty and 100HP for heavy-duty, both at 400-480Vac.

Lenze

SP4402-HF

NIDEC SP4402-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a frame size of 4 with dimensions H21.53" x W12.2" x D11.73" (H547mm x W310mm x D298mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The rated current is 83A under normal duty and 74A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol, with a network frequency of 48-65 Hz on the supply input and 0-3000 Hz on the output. The SP4402-HF includes 3 digital outputs (0-24Vdc; source), 1 digital output (2A / 240Vac; source; relay contact type), 3-phase input, 3 digital inputs (0-24Vdc), and analog inputs and outputs with varying specifications. The rated active power is 45kW under normal duty and 37kW under heavy-duty, with a rated power of 60HP for both conditions.

Nidec

I55AE137D1AV0100MS

Lenze I55AE137D1AV0100MS is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. The design incorporates a safe torque off (STO) safety standard and I.O. conformal coating. Its dimensions are H155mm x W60mm x D130mm, and it supports Ethernet/IP communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current is 2.4A (heavy-duty; 230-240Vac), with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, with an ambient air temperature for operation of max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz). The degree of protection is IP20, and it can operate on a single-phase / 1P or 3-phase (3P / 3AC) network, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW (heavy-duty; 230-240Vac), and the rated power is 1/2HP (heavy-duty; 230-240Vac).

Lenze

HS72-06400470A10101AB100

NIDEC HS72-06400470A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and dual Safe Torque Off (STO) functionality suitable for high-speed applications, alongside air cooling for temperature regulation. The device has dimensions of frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm), and supports Ethernet communication protocol. It operates with a rated current of 63A under normal duty and 47A under heavy-duty conditions, requiring a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it is designed with an IP20 NEMA 1 UL open degree of protection. This VSD/VFD is equipped for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 2 x digital outputs (100mA / 0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 30kW under normal duty and 22kW under heavy-duty, corresponding to a rated power of 40HP and 30HP, respectively.

Nidec

ESV222N04TFE

ESV222N04TFE Lenze Variable Frequency Drive (VFD) - The SMV 3.0 hp (2.2 kW) drive features a 400 / 480 VAC 3Ø filtered input in a convection cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated

Lenze

I55AE137A1AV0100MS

Lenze I55AE137A1AV0100MS is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications with features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and includes an I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports Ethernet/IP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 2.4A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting. The operational ambient air temperature ranges up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, is designed for single-phase / 1P networks with a frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 120Vac.

Lenze

M000-11602100DU0100AN100

NIDEC M000-11602100DU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in DC to AC inverter featuring air cooling. It has dimensions of frame size 11D, measuring H31.7" x W12.2" x D12.3" (H804mm x W310mm x D312mm). This model is rated for a heavy-duty current of 210A and operates on a supply voltage of 500Vac-690Vac (600Vac), with a network frequency supply input of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 250kW for heavy-duty applications, equivalent to 125HP to 400HP.

Nidec

HS30-02200024A10101AB100

NIDEC HS30-02200024A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS30 series designed for variable speed/frequency control with a rated frequency output of 0-3000Hz in open loop applications. It features a built-in brake transistor and dual Safe Torque Off (STO) functionality suitable for high-speed applications, utilizing air cooling for temperature management. The device has dimensions of frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). It supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. The rated current is 2.4A for both normal and heavy-duty operations, with a supply voltage range of 200Vac-240Vac (220Vac / 230Vac). It operates efficiently within an ambient air temperature range of -20°C to +55°C and offers a degree of protection rated at IP20 NEMA 1. This VSD/VFD can be connected to either a single-phase input (2P) or a 3-phase input (3P) network, with a network frequency of 45-66 Hz (supply input) and an output frequency range of 0-3000 Hz. It includes 1 analog output (10Vdc; source; single-ended), 5 digital inputs (0-24Vdc) plus 1 additional digital input (0-24Vdc), 1 digital output (100mA / 0-24Vdc; PWM; source) and 1 digital output (2A / 240Vac; source; relay contact type), along with 1 analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 analog input (0-10Vdc; single-ended; 11-bit; can be used as a digital input). The rated active power is 0.37kW for both normal and heavy-duty operations, with a rated power of 1/2HP for both duty types.

Nidec

M701-07401000A10101AB100

NIDEC M701-07401000A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 112A under normal duty and 100A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20 NEMA 1 UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device features 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 x digital inputs (0-24Vdc), 4 x digital outputs (including one 2A / 240Vac; source; relay contact type), and 3 x analog inputs with varying specifications and conversion resolutions. It has a rated active power of 55kW under normal duty and 45kW under heavy-duty, with a rated power of 75HP for both conditions.

Nidec

I55AE390F1AV1100WS

Lenze I55AE390F1AV1100WS is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H685mm x W258mm x D304mm. This model supports Modbus TCP communication protocol and offers protection against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 216A (light-duty; 400Vac), 187A (light-duty; 480Vac), 180A (heavy-duty; 400Vac), and 156A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C (at 2kHz or 4kHz switching frequency) or 40°C (at 8kHz or 16kHz switching frequency), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with optional uses, 1 digital output, 2 analog inputs with optional uses, and delivers a rated active power of 110kW (light-duty; 400-480Vac) and 90kW (heavy-duty; 400-480Vac), equivalent to 150HP (light-duty) and 125HP (heavy-duty).

Lenze

EDP11S515GN1211000

STANDARD PANEL EDP11S515GN1211000

WEG

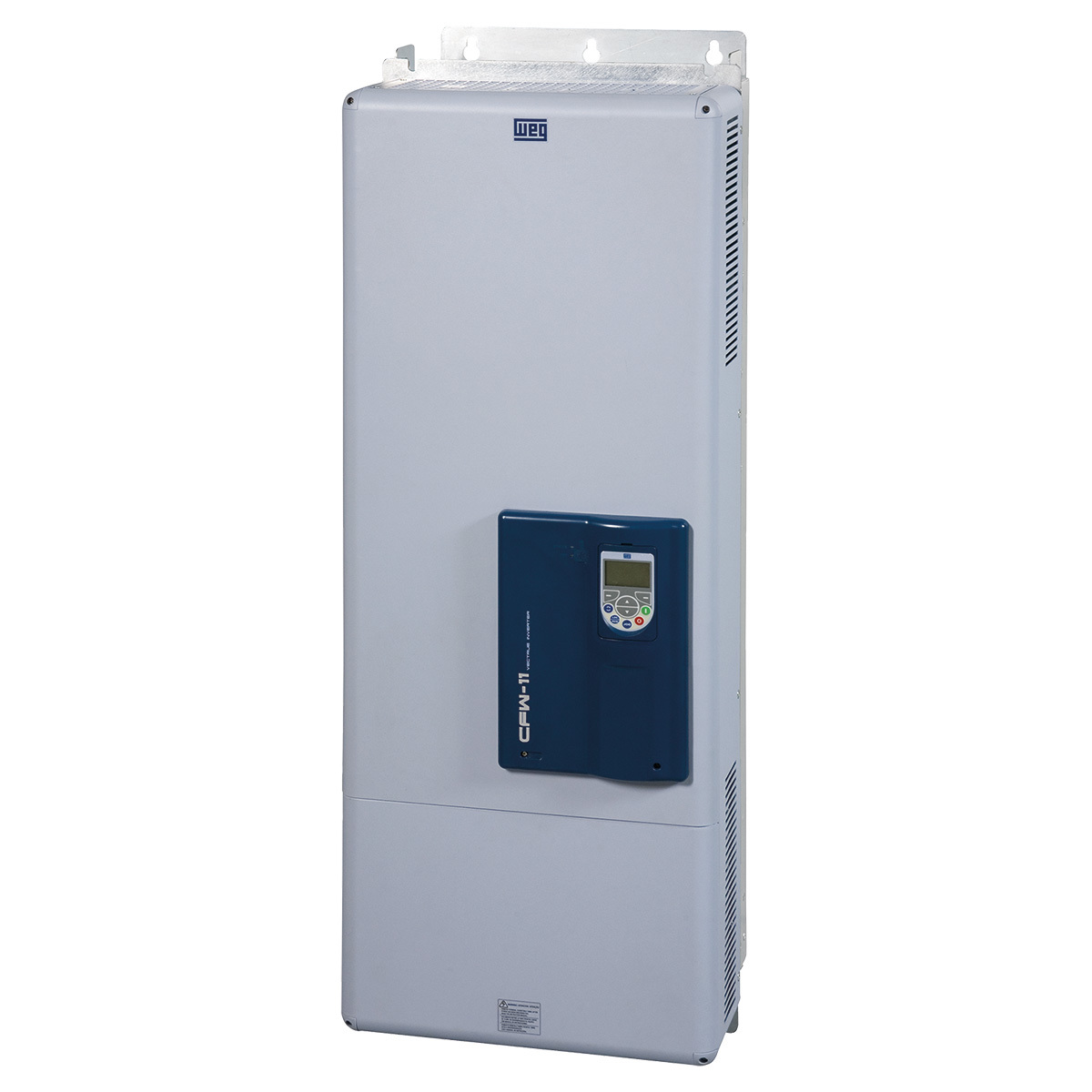

CFW110242T4ODCZ

WEG CFW110242T4ODCZ - INVERTER NACFW110242T4ODCZ, CFW11 Drives

WEG

I55AE275F1AV11003S

Lenze I55AE275F1AV11003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports Modbus RTU communication protocol. The drive offers protection against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 23A (light-duty; 400Vac), 18.3A (light-duty; 480Vac), 16.5A (heavy-duty; 400Vac), and 14A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Designed for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with an IP20 degree of protection. The network is 3-phase (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with optional uses for two of them, 2 x analog inputs with optional voltage or current input, and 1 x digital output. The rated active power is 11kW (light-duty; 400-480Vac) and 7.5kW (heavy-duty; 400-480Vac), with a rated power of 15HP (light-duty; 400-480Vac) and 10HP (heavy-duty; 400-480Vac).

Lenze

M702-08600630A10101AB100

NIDEC M702-08600630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 86A under normal duty and 63A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. The device is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 75kW under normal duty and 55kW under heavy-duty, corresponding to a rated power of 100HP and 75HP, respectively.

Nidec

HS70-05400270A10101AB100

NIDEC HS70-05400270A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling. The dimensions are frame size 5, measuring H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). It supports Ethernet communication protocol and operates with a rated current of 30A under normal duty and 27A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. The degree of protection is IP20 NEMA 1 UL open. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of up to 3000 Hz. It offers 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type), and analog inputs including 1 x differential (0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution) and 2 x single-ended (0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 15kW for normal duty and 11kW for heavy-duty, with a rated power of 20HP for both normal and heavy-duty applications.

Nidec

M400-07200610A10101AB100

NIDEC M400-07200610A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H21.9" x W10.6" x D11" (H556mm x W270mm x D280mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 75A under normal duty and 61A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +55°C. The degree of protection provided is IP20 NEMA 1. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The device includes 2 analog outputs (0-20mA / 4-20mA / 0-10Vdc/ 0-24Vdc; single-ended; source; can also function as digital outputs), 5 digital inputs plus 1 additional digital input and 2 more digital inputs (all 0-24Vdc), and 2 digital outputs (200mA / 0-24Vdc; PWM; source) plus 1 digital output (2A / 240Vac; source; relay contact type). It also features 1 analog input (0-20mA / 4-20mA / -10...+10Vdc; single-ended; 11-bit conversion resolution) and another analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit; can also be used as a digital input). The rated active power is 18.5kW under normal duty and 15kW under heavy-duty, with a rated power of 25HP (normal duty) and 20HP (heavy-duty).

Nidec

CFW110312T4OYZ

DRIVE CFW110312T4OYZ

WEG

I55AE155D1AV01002S

Lenze I55AE155D1AV01002S is a variable speed/frequency drive (VSD/VFD) also known as a compact inverter, part of the Drives sub-range. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. Designed with the safe torque off (STO) safety standard and I.O. conformal coating, it measures H180mm x W60mm x D130mm. The communication protocol supported is CANopen. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range, with a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at 8kHz or 16kHz. The degree of protection is IP20. It supports both single-phase and three-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output, 5 digital inputs with flexible functionality, and 2 analog inputs, all supporting various configurations. The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

EDP11S477GN3R

STANDARD PANEL EDP11S477GN3R

WEG
