Variable Frequency Drives (VFD)

I55AE411F10V11004S

Lenze I55AE411F10V11004S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter applications, DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit, a PID controller, a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H685mm x W258mm x D304mm. It supports the PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 254A (light-duty; 400Vac), 216A (light-duty; 480Vac), 212A (heavy-duty; 400Vac), and 180A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, 5 x digital inputs (with options for frequency or encoder input), 1 x digital output, and 2 x analog inputs (with options for voltage or current input). The rated active power is 132kW (light-duty; 400-480Vac) and 110kW (heavy-duty; 400-480Vac), with a rated power of 180HP (light-duty; 400-480Vac) and 150HP (heavy-duty; 400-480Vac).

Lenze

M15150E

Lenze M15150E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a water-tight and dust-tight corrosion-resistant stainless steel housing. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device has a rated current of 17A for supply voltages of 480Vac / 590Vac and is suitable for control cabinet or surface/wall mounting. It operates within an ambient air temperature range of -10 to +40 °C and offers a degree of protection of NEMA 4X. The M15150E is designed for a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input (0-10Vdc) and 1 analog input (4-20mA). The rated active power is 11kW, and the rated power is 15HP for both 480Vac and 590Vac.

Lenze

EDP11S720GN12-PGS

WEG EDP11S720GN12-PGS - STANDARD PANEL EDP11S720GN12-PGS, Enclosed Drive Packages (EDP)

WEG

CFW701A03P6T4DBN1C3

DRIVE CFW701A03P6T4DBN1C3

WEG

I55AE222B10V11003S

Lenze I55AE222B10V11003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H250mm x W60mm x D130mm. The communication protocol supported is Modbus RTU. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a single-phase / 1P network with a frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 230-240Vac.

Lenze

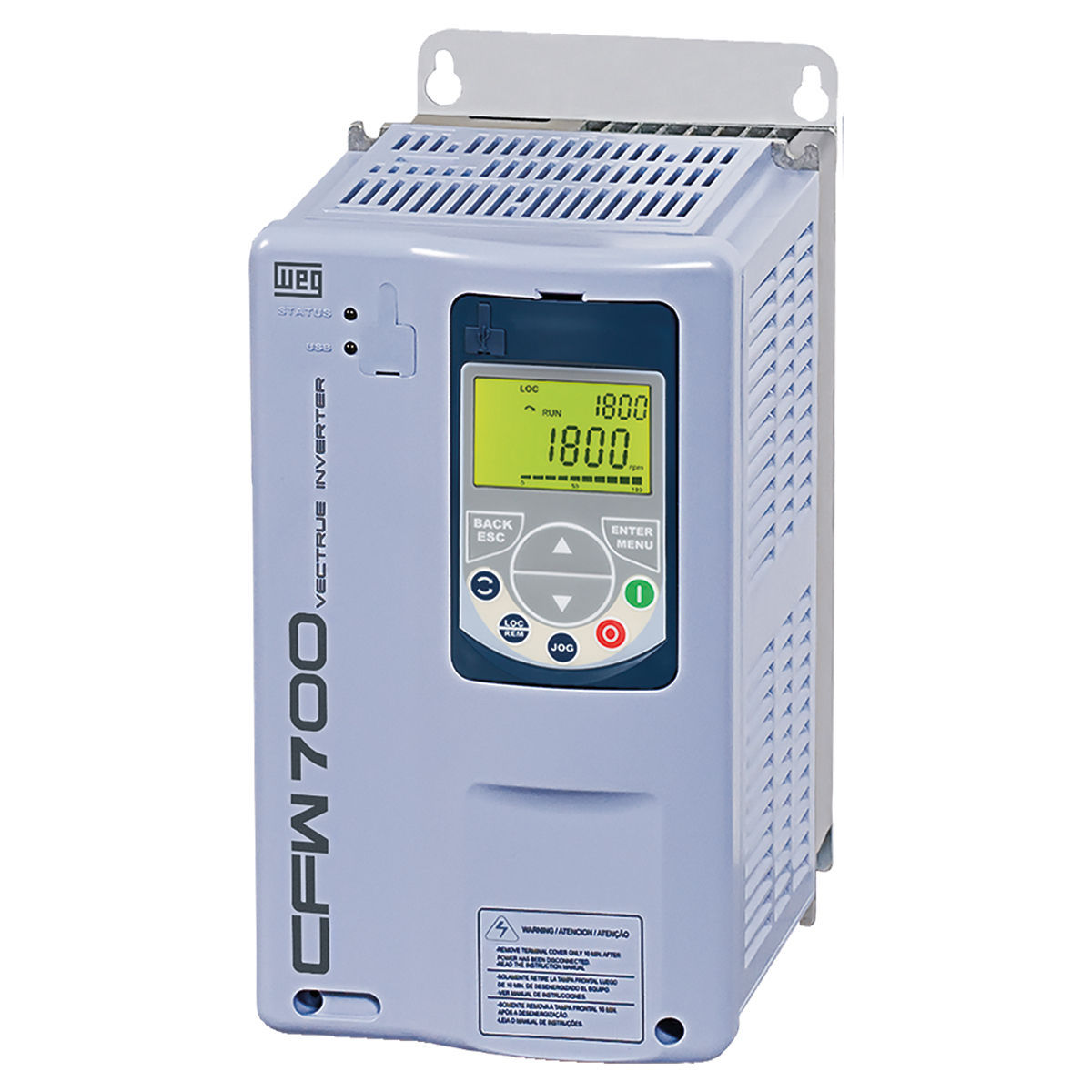

CFW700A13P5T4DB20

DRIVE CFW700A13P5T4DB20

WEG

SP0404-EZ

NIDEC SP0404-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 0, measuring H12.677" x W2.441" x D8.898" (H322mm x W62mm x D226mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) with a rated current of 3A for heavy-duty applications. This wall-mounted unit is designed to function within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) with an output frequency range of 0-550 Hz. The SP0404-EZ features 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). It also includes 1 x analog input (-9.8Vdc...9.8Vdc; differential) with a 16-bit conversion resolution and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, alongside 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. The rated active power is 1.1kW for both normal and heavy-duty operations, with a rated power of 1.5HP / 1-1/2HP for the same.

Nidec

ATV61HD45Y

Schneider Electric ATV61HD45Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, accommodating 480Vac, 500Vac, 600Vac, and 690Vac nominal voltages, and has dimensions of H630mm x W320mm x D290mm. The drive is chemically resistant with a conformal coating (reinforced version) and has an IP20 UL type 1 degree of protection. It supports a rated current of 59A at 500Vac, 52A at 575Vac, 54A at 690Vac, with a maximum current of 70.8A for 60 seconds. Wall mounting is the prescribed mounting mode, and it communicates via Modbus and CANopen protocols. Designed for a 3-phase network with an output frequency range of 0.1-599 Hz, it includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input. It also features 1 digital output (C/O SPDT relay contact) and 1 digital output (NO relay contact), alongside 2 analog inputs for comprehensive control. The current consumption stands at 62A for 500Vac, 51A for 600Vac, and 55A for 690Vac, with rated active power of 45kW at 690Vac and 37kW at 500Vac, equivalent to 50HP.

Schneider Electric

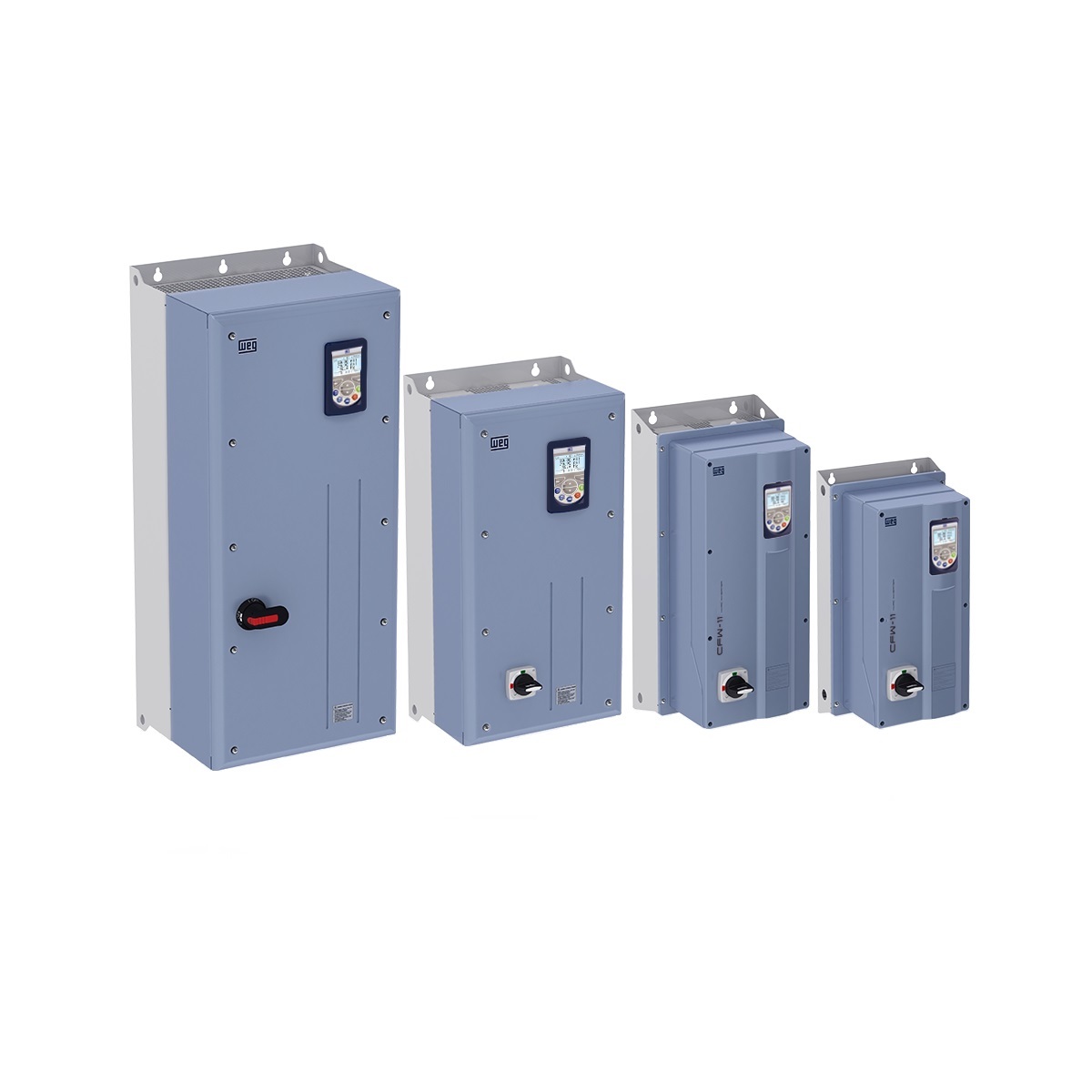

HVW701E180T4N12-X-X

WEG HVW701E180T4N12-X-X - STANDARD PANEL HVW701E180T4N12-X-X, HVAC Enclosed Drives (HVW)

WEG

H300-05400300A10101AB103

NIDEC H300-05400300A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling system, with documentation provided separately. It features frame size 5 with dimensions of H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). This model supports Modbus RTU communication protocol and operates with a rated current of 30A under normal duty. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20, NEMA 1, UL type 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 2 digital outputs (relay contact type), alongside 2 analog inputs (1 for 4-20mA and 1 for 0-10Vdc). The rated active power is 15kW, and the rated power is 20HP under normal duty conditions.

Nidec

M400-02200056A10101AB100

NIDEC M400-02200056A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 5.6A for both normal and heavy-duty applications and requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +60°C, and it is designed with an IP20 NEMA 1 degree of protection. It accommodates both single-phase input (2P) and 3-phase input (3P) with a network frequency of 45-66 Hz (supply input) and 0-550 Hz (output). The device includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with an 11-bit conversion resolution. It has a rated active power of 1.1kW and a rated power of 1.5HP / 1-1/2HP for both normal and heavy-duty operations.

Nidec

I55AE137B1AV11004S

Lenze I55AE137B1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H155mm x W60mm x D130mm. This model supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz. The degree of protection is IP20, designed for single-phase / 1P networks with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

M000-11502540EU0100AN100

NIDEC M000-11502540EU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed for heavy-duty applications. It requires an external choke and utilizes air cooling for its operation. The dimensions of this model are frame size 11E, measuring H46.9" x W12.2" x D12.3" (H1190mm x W310mm x D312mm). It has a rated current of 254A and operates on a supply voltage of 500Vac-575Vac. This model is designed with a degree of protection of IP20 NEMA 1 and a network frequency (supply input) of 50 Hz. It supports a rated active power range of 90kW-250kW and a rated power range of 125HP-400HP, suitable for heavy-duty applications.

Nidec

I55AE255C10V01001S

Lenze I55AE255C10V01001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for application I.O. with conformal coating. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. This compact inverter has dimensions of H250mm x W90mm x D130mm and does not include a communication interface. It offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 27.6A for light-duty (230-240Vac) and 23A for heavy-duty (230-240Vac) applications, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 digital inputs (PNP/NPN logic), 2 digital outputs (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 7.5kW for light-duty and 5.5kW for heavy-duty applications, with a rated power of 10HP for light-duty and 7-1/2HP for heavy-duty applications.

Lenze

GA80U2008AWM

GA80U2008AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 240 VAC, 8 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

CFW110028T2O55DSZ

DRIVE CFW110028T2O55DSZ

WEG

HVW701B024T4N01-I-X

WEG HVW701B024T4N01-I-X - STANDARD PANEL HVW701B024T4N01-I-X, HVAC Enclosed Drives (HVW)

WEG

I55AE311F10V1100WS

Lenze I55AE311F10V1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, standard I.O. conformal coating, and supports Modbus TCP communication protocol. Protection functions cover overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is specified as 28.2A for light-duty at 400Vac, 25.2A for light-duty at 480Vac, 23.5A for heavy-duty at 400Vac, and 21A for heavy-duty at 480Vac. It operates on a supply voltage of 400Vac / 480Vac, suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is capped at a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection rated at IP20. It is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The unit features 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). Rated active power is 15kW for light-duty and 11kW for heavy-duty, both at 400Vac / 480Vac, with rated power of 20HP for light-duty and 15HP for heavy-duty, at the same voltages.

Lenze

I51AE222D10V01000S

Lenze I51AE222D10V01000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for compact inverter applications, featuring DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It has a basic I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and lacks a communication interface. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates at a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it can operate within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting both voltage and current signals. The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE137D1AV0100MS

Lenze I55AE137D1AV0100MS is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. The design incorporates a safe torque off (STO) safety standard and I.O. conformal coating. Its dimensions are H155mm x W60mm x D130mm, and it supports Ethernet/IP communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current is 2.4A (heavy-duty; 230-240Vac), with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, with an ambient air temperature for operation of max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz). The degree of protection is IP20, and it can operate on a single-phase / 1P or 3-phase (3P / 3AC) network, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW (heavy-duty; 230-240Vac), and the rated power is 1/2HP (heavy-duty; 230-240Vac).

Lenze
