Variable Frequency Drives (VFD)

M702-09601310A10101AB100

NIDEC M702-09601310A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT communication protocols. It operates with a rated current of 155A under normal duty and 131A under heavy-duty conditions. The supply voltage required is 500Vac-690Vac (600Vac), and it can function in ambient air temperatures ranging from -20°C to +40°C. The degree of protection is IP20 NEMA 1 UL open, and it is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 2 x digital outputs (100mA / 0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 132kW under normal duty and 110kW under heavy-duty, corresponding to 175HP and 150HP, respectively.

Nidec

ACS35503U05A64J404

MACHINERY DRIVE, 3 HP, 5.6 A, 480 VAC, Voltage Range: 380-480V, UL TYPE OPEN (IP20), Cabinet-mounted, Basic Panel, 3-Phase Input, 3-Phase Output, Frame: R1

ABB Control

M701-11602380E10101AB100

NIDEC M701-11602380E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor, single Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm), and operates with a communication protocol of RS-485 Modbus RTU. The rated current is 275A under normal duty and 238A under heavy-duty conditions, with a supply voltage range of 500Vac-690Vac (600Vac). It is designed to operate within an ambient air temperature range of -20°C to +40°C and has a degree of protection rated at IP20 NEMA 1 UL open. This VSD/VFD supports a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), and analog inputs comprising 1 x (0-20mA / 4-20mA / -10...+10Vdc; differential; 11-bit conversion resolution) and 2 x (0-20mA / 4-20mA / -10...+10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 250kW under normal duty and 200kW under heavy-duty, with rated power of 300HP (Normal duty) and 250HP (Heavy-duty).

Nidec

F600-11602250E10101AN103

NIDEC F600-11602250E10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-690Vac, specifically at 600Vac, and operates efficiently within an ambient air temperature range of -20°C to +40°C. It features an IP20 degree of protection and is equipped with one analog output (0-10Vdc), two digital outputs (240Vac; relay contact type), one analog input (4-20mA / 0-10Vdc; single-ended), and three digital inputs (24Vdc) that are configurable for 0-24Vdc. The unit is part of the F600 series and is designed with an external line choke air cooling system. Its dimensions are frame size 11E, measuring H48.9" x W12.2" x D12.3" (H1242mm x W310mm x D312mm). This model supports Modbus RTU communication protocol, operates on a network frequency of 60 Hz, and is rated for a current of 225A under normal duty. It delivers a rated active power of 200kW and a rated power of 250HP under normal duty conditions.

Nidec

I55AE137B10V11004S

Lenze I55AE137B10V11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H155mm x W60mm x D130mm. It supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 2.4A for heavy-duty applications at 230-240Vac, and it is designed for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a single-phase / 1P network with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. The device includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

UMI-3500EU-B7

UMI-3500EU-B7 Unitronics - Unitronics VFD - B7 Series, 380-480V, 3 Phase, 350kW, 470HP, STO included

Unitronics

3G3MX2-A2022-ECHN

Omron 3G3MX2-A2022-ECHN - Drive,spare from OEE

Omron

CFW700A07P0B2DB20

DRIVE CFW700A07P0B2DB20

WEG

EDP11S003GN1210000

STANDARD PANEL EDP11S003GN1210000

WEG

M400-09402240E10101AN100

NIDEC M400-09402240E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M400 series designed for variable speed control with a dual Safe Torque Off (STO) feature, requiring an external choke and air cooling. It has dimensions of frame size 9E, measuring H39.8" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 255A under normal duty and 211A under heavy-duty conditions, and it is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac). The ambient air temperature range for operation is -20°C to +55°C, and it comes with an IP20 and NEMA 1 degree of protection. The network is a 3-phase input (3P) with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 analog outputs, 8 digital inputs, and 3 digital outputs, along with 2 analog inputs. The rated active power is 132kW for normal duty and 110kW for heavy-duty, corresponding to 200HP and 150HP, respectively.

Nidec

I55AE222D1AV0100KS

Lenze I55AE222D1AV0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H250mm x W60mm x D130mm. It supports EtherCAT communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It can be used in single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output, 5 digital inputs with optional uses for frequency or encoder input, 1 digital output, and 2 analog inputs with optional uses as voltage or current input. It has a rated active power of 2.2kW and a rated power of 3HP for heavy-duty applications at 230-240Vac.

Lenze

M000-11502850DU0100AN100

NIDEC M000-11502850DU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series, designed with a built-in DC to AC inverter featuring air cooling. It has dimensions of frame size 11D, measuring H31.7" x W12.2" x D12.3" (H804mm x W310mm x D312mm). This model is rated for a heavy-duty current of 285A and operates on a supply voltage of 500Vac-575Vac. It is equipped with a degree of protection IP20 NEMA 1 and accepts a network frequency (supply input) of 50 Hz. The rated active power ranges from 90kW to 250kW for heavy-duty applications, corresponding to a rated power of 125HP to 400HP.

Nidec

HS72-06200330A10101AB100

NIDEC HS72-06200330A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for high-speed applications. It features variable speed/frequency drive capabilities with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop. The design includes a built-in brake transistor, dual Safe Torque Off (STO), and air cooling. Its dimensions are frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). The drive supports Ethernet communication protocol, operates with a rated current of 50A under normal duty and 33A under heavy-duty, and requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac). It is designed to operate in ambient air temperatures ranging from -20°C to +40°C and has a degree of protection of IP20 NEMA 1 UL open. This VSD/VFD is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of up to 3000 Hz. It includes 2 x digital inputs (0-24Vdc), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 11kW under normal duty and 7.5kW under heavy-duty, with a rated power of 15HP under normal duty and 10HP under heavy-duty.

Nidec

I55AE411F10V11002S

Lenze I55AE411F10V11002S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. The design incorporates a built-in RFI filter, standard I.O., and conformal coating. Its dimensions are H685mm x W258mm x D304mm. It supports CANopen communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 254A (light-duty; 400Vac), 216A (light-duty; 480Vac), 212A (heavy-duty; 400Vac), and 180A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), multiple digital inputs with flexible functionality, 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) that can be optionally used as voltage or current inputs. The rated active power is 132kW (light-duty; 400-480Vac) and 110kW (heavy-duty; 400-480Vac), with a rated power of 180HP (light-duty; 400-480Vac) and 150HP (heavy-duty; 400-480Vac).

Lenze

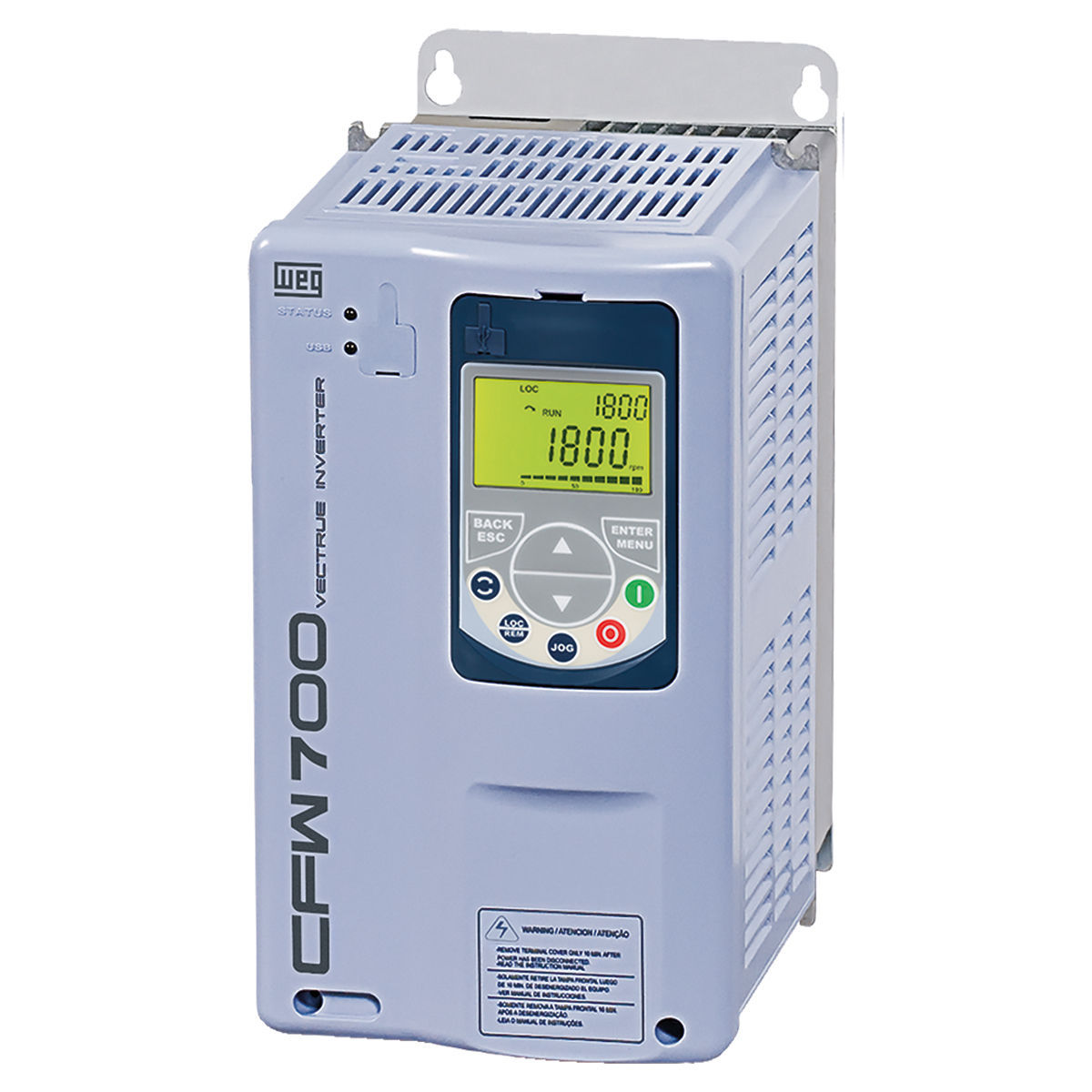

CFW700D32P0T5DBN1

WEG CFW700D32P0T5DBN1 - DRIVE CFW700D32P0T5DBN1, CFW500/700 Drives

WEG

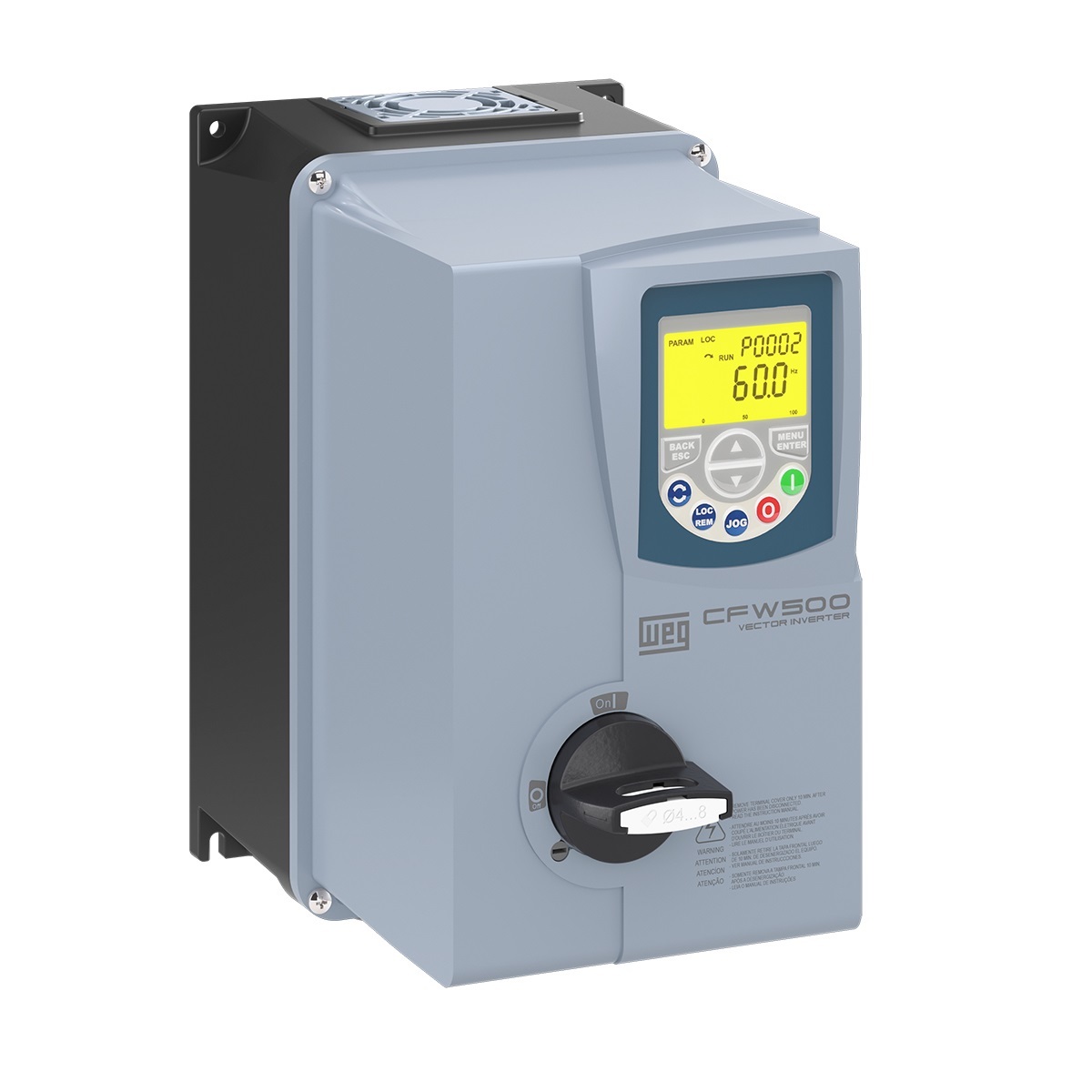

CFW500A10P0T4DB66DSG2

DRIVE CFW500A10P0T4DB66DSG2

WEG

I55AE222B10V1100MS

Lenze I55AE222B10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. The design incorporates a built-in RFI filter, standard I.O., and conformal coating. Its dimensions are H250mm x W60mm x D130mm, and it supports Ethernet/IP communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current is 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a single-phase / 1P network, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 2.2kW and a rated power of 3HP for heavy-duty applications at 230-240Vac.

Lenze

GA80U4002ABM

GA80U4002ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 2 A, IP20, General Purpose GA800 Series

Yaskawa

M400-09201760E10101AB100

NIDEC M400-09201760E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It has dimensions of frame size 9E, measuring H39.8" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it can function within an ambient air temperature range of -20°C to +55°C. The device offers a degree of protection of IP20 NEMA 1 and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs capable of 11-bit conversion resolution. The rated active power is 55kW for normal duty and 45kW for heavy-duty, corresponding to 75HP and 60HP, respectively.

Nidec

ESV153N02TXB

ESV153N02TXB Lenze Variable Frequency Drive (VFD) - The SMV 20.0 hp (15.0 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze
