Variable Frequency Drives (VFD)

SP0405-EZ

NIDEC SP0405-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module and a single Safe Torque Off (STO) feature, utilizing air cooling. This part is specifically designed for wall-mounted installations and operates within an ambient air temperature range of 0°C to +40°C. It has a frame size of 0, with dimensions of H12.677" x W2.441" x D8.898" (H322mm x W62mm x D226mm), and is protected by an IP20 NEMA 1 enclosure. The SP0405-EZ supports a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and is rated for a current of 4.2A in heavy-duty applications. It features a 3-phase input network, with a supply input frequency of 48-65 Hz and an output frequency range of 0-550 Hz. Communication is facilitated through a Modbus RTU RS-485 protocol. The device includes 3 digital outputs (0-24Vdc; source), 1 digital output (2A / 240Vac; source; relay contact type), 3 digital inputs (0-24Vdc), and analog inputs comprising 1 differential input (-9.8Vdc...9.8Vdc; 16-bit) and 2 single-ended inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; 10-bit conversion resolution). Additionally, it provides 2 analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source; 10-bit conversion resolution). The rated active power is 1.5kW for both normal and heavy-duty operations, with a corresponding rated power of 2HP for each.

Nidec

UMI-0150EU-B7

UMI-0150EU-B7 Unitronics - Unitronics VFD - B7 Series, 380-480V, 3 Phase, 15kW, 20HP, STO included

Unitronics

ATV312H075M3

Schneider Electric ATV312H075M3 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed with sensorless flux vector control and an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in heatsink, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), and has dimensions of H145mm x W72mm x D132mm. This model offers an IP21 degree of protection, a rated current of 4.8A (200Vac; 4kHz) with a maximum current of 7.2A for 60 seconds, and supports wall mounting. Communication is facilitated through Modbus and CANopen protocols, and it is designed for a 3-phase (3P) network with an output frequency range of 0.1-500 Hz. The ATV312H075M3 includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source) (LI1-LI6), 1 digital output (C/O SPDT relay contact) (R1), 1 digital output (NO relay contact) (R2), and 3 analog inputs for versatile connectivity. It has a current consumption of 6.4A (200Vac; Isc = 5kA) and 5.6A (240Vac), with a rated active power of 750W / 0.75kW and a rated power of 1HP. Power dissipation/losses are calculated at 55 W.

Schneider Electric

CFW701A06P0S2DBN1C3

DRIVE CFW701A06P0S2DBN1C3

WEG

I55AE230F10V11001S

Lenze I55AE230F10V11001S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, application I.O. conformal coating, but does not include a communication interface. The protection functions cover overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It supports rated currents of 8.8A for light-duty at 400Vac, 7.6A for light-duty at 480Vac, 7.3A for heavy-duty at 400Vac, and 6.3A for heavy-duty at 480Vac, with a supply voltage of 400Vac / 480Vac. Designed for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. It accommodates a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 2 analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 digital inputs (PNP/NPN logic), 2 digital outputs (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 4kW for light-duty and 3kW for heavy-duty at 400-480Vac, corresponding to 5HP and 4HP, respectively.

Lenze

M000-11404170TU0100AN100

NIDEC M000-11404170TU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter belonging to the M000 series. It features an AC to DC twin rectifier air cooling design. The dimensions of this part are frame size 11T, measuring H46.9" x W12.2" x D12.3" (H1190mm x W310mm x D312mm). It has a rated current of 417A for heavy-duty applications. The supply voltage required is 380Vac-480Vac (with specific ratings at 400Vac / 415Vac), and it operates at a network frequency of 50 Hz. This part offers a degree of protection of IP20 NEMA 1. Its rated active power ranges from 90kW to 250kW for heavy-duty operations, equivalent to 125HP to 400HP.

Nidec

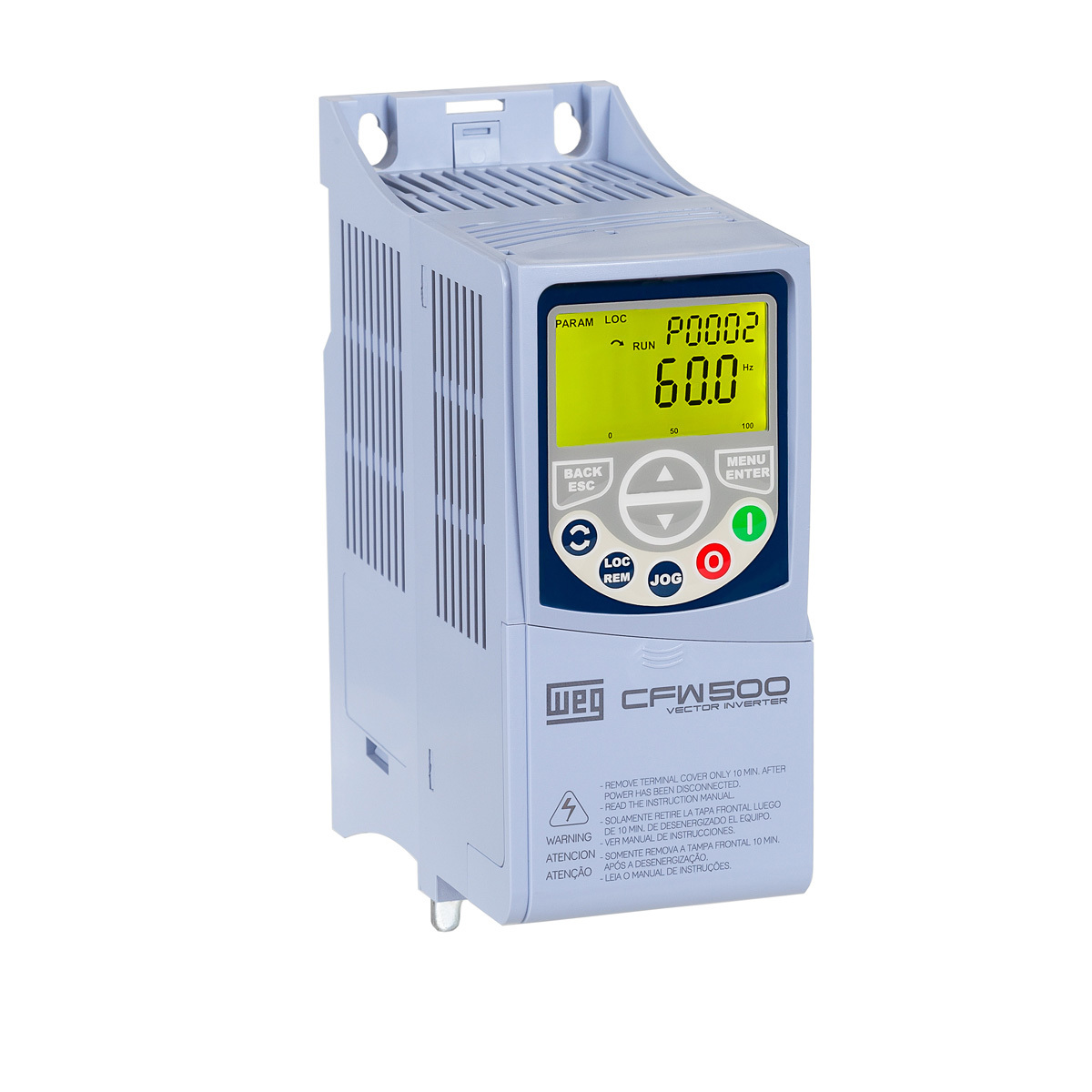

CFW500B07P3B2DBN1

WEG CFW500B07P3B2DBN1 - DRIVE CFW500B07P3B2DBN1, CFW500/700 Drives

WEG

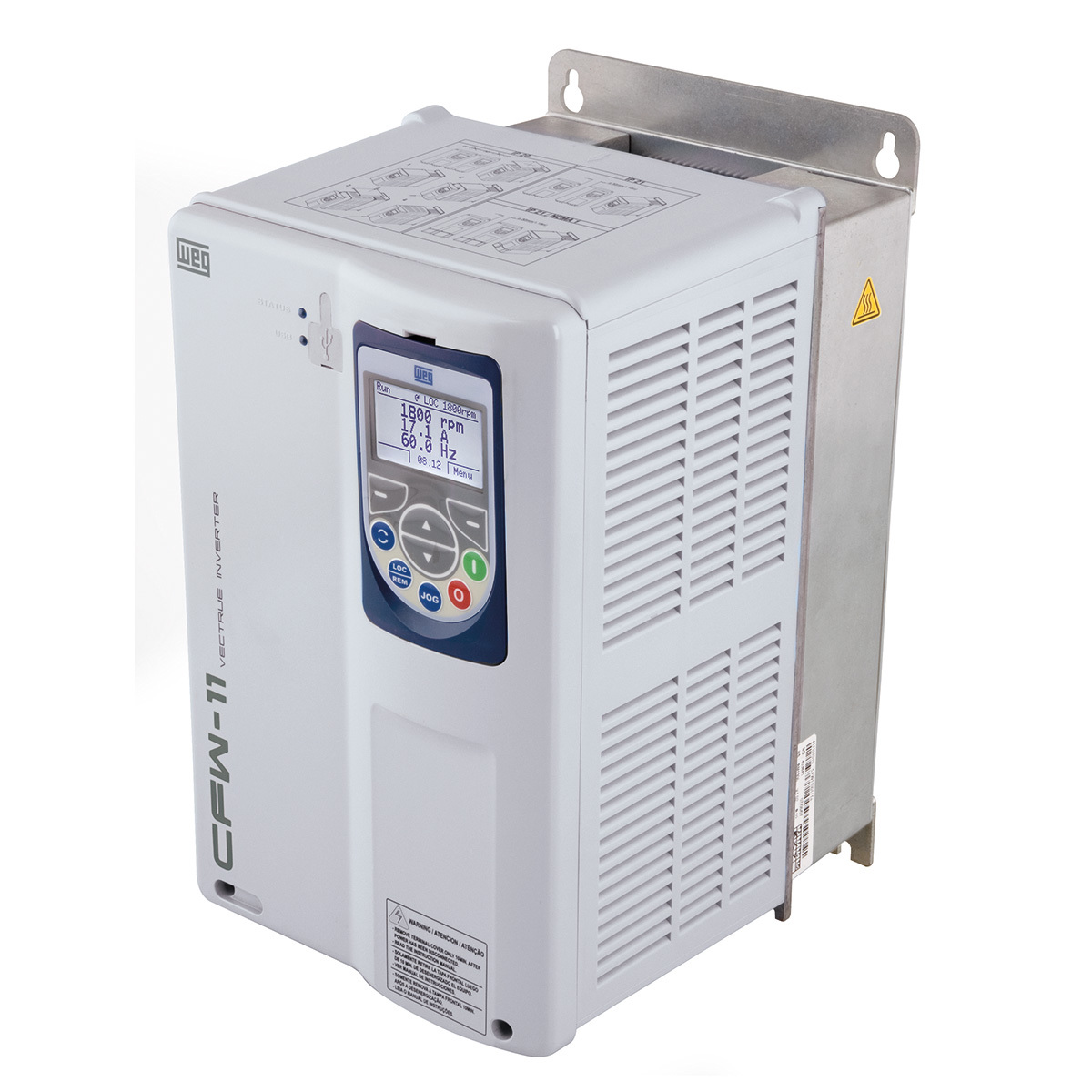

CFW110031T4OYZ

DRIVE CFW110031T4OYZ

WEG

F600-06400480A10101AB103

NIDEC F600-06400480A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 380Vac-480Vac, specifically 400Vac / 415Vac, and operates on a 60 Hz network frequency. It features a rated current of 48A and supports a rated active power of 22kW or 30HP under normal duty. The device is equipped with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), 3 additional digital inputs (0-24Vdc; configurable), and 2 digital outputs (240Vac; relay contact type). It is designed with a built-in brake transistor, an internal line choke, and air cooling for efficient operation. The F600 series inverter has an IP20 degree of protection and comes in a frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). It is capable of operating in ambient air temperatures ranging from -20°C to +40°C and utilizes Modbus RTU for communication.

Nidec

SP3504-HF

NIDEC SP3504-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a frame size 3 with dimensions of H15.32" x W9.84" x D10.23" (H389mm x W250mm x D260mm), and operates on a supply voltage of 500Vac-575Vac. The rated current is 11A under normal duty and 9.5A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) with an output frequency range of 0-3000 Hz. The SP3504-HF includes 3 digital outputs (0-24Vdc; source), 1 digital output (2A / 240Vac; source; relay contact type), 3-phase input (3P), 3 digital inputs (0-24Vdc), and analog inputs comprising 1 differential input (-9.8Vdc...9.8Vdc; 16-bit) and 2 single-ended inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; 10-bit conversion resolution). Additionally, it features 2 analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source; 10-bit conversion resolution). The rated active power is 7.5kW for normal duty and 5.5kW for heavy-duty, with corresponding rated power of 10HP and 7.5HP / 7-1/2HP, respectively.

Nidec

I55AE240F1AV1100KS

Lenze I55AE240F1AV1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports EtherCAT communication protocol. The device offers protection functions against overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It operates at a rated current of 11.9A (light-duty; 400Vac), 9.8A (light-duty; 480Vac), 9.5A (heavy-duty; 400Vac), and 8.2A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can operate in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with flexible functionalities, 1 x digital output, and 2 x analog inputs, all supporting various configurations. The rated active power is 5.5kW (light-duty; 400-480Vac) and 4kW (heavy-duty; 400-480Vac), with a rated power of 7-1/2HP (light-duty; 400-480Vac) and 5HP (heavy-duty; 400-480Vac).

Lenze

H300-10403610E10101AN103

NIDEC H300-10403610E10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed for variable speed control with an external choke, requiring separate documentation and featuring air cooling. It has dimensions of frame size 10E, measuring H42.1" x W12.2" x D11.4" (H1069mm x W310mm x D290mm). This model uses the Modbus RTU communication protocol and operates with a rated current of 361A under normal duty. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20, NEMA 1, UL type 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It features 2 analog outputs, 6 digital inputs (3 at 24Vdc and 3 at 24Vdc/configurable, plus 1 at 0-24Vdc), 2 digital outputs (relay contact type), and 2 analog inputs (1 at 4-20mA and 1 at 0-10Vdc). The rated active power is 200kW, and the rated power is 300HP under normal duty conditions.

Nidec

3G3MX2-A4015-ECHN

Omron 3G3MX2-A4015-ECHN - Drive,spare from OEE

Omron

CFW500A06P1T4NB20

DRIVE CFW500A06P1T4NB20

WEG

I55AE222D10V01003S

Lenze I55AE222D10V01003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports Modbus RTU communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, a digital output, a rated active power of 2.2kW, and a rated power of 3HP for heavy-duty applications at 230-240Vac.

Lenze

M1215SC

Lenze M1215SC is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for water-tight and dust-tight applications, supporting Modbus communication protocol. It features thermal overload protection and solid state motor overload protection. The device operates with a rated current of 6A at 200Vac and 5.2A at 230Vac, and it is suitable for supply voltages ranging from 200Vac to 240Vac (208Vac / 220Vac / 230Vac). It can be mounted in a control cabinet or on a surface/wall and is designed to operate in ambient air temperatures ranging from -10 to +40 °C. With a NEMA 4 degree of protection, it is compatible with single-phase networks and supports a network frequency of 48-62 Hz on input and 0-120 Hz on output. The M1215SC offers 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs (terminal 13A-13D), 1 digital input for START (terminal 12A), 1 digital input for STOP (terminal 1), and 2 digital outputs (NPN; sinking) (terminal 14 and 15). It also includes 1 analog input for 0-10Vdc (terminal 5A) and 1 analog input for 4-20mA (terminal 5B). The rated active power is 1.1kW for 200-240Vac, and the rated power is 1-1/2HP for 200-240Vac.

Lenze

I55AE275F1AV11012S

Lenze I55AE275F1AV11012S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports Ethernet POWERLINK communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 23A for light-duty at 400Vac, 18.3A for light-duty at 480Vac, 16.5A for heavy-duty at 400Vac, and 14A for heavy-duty at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network is 3-phase (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, and 1 digital output. The rated active power is 11kW for light-duty and 7.5kW for heavy-duty, with rated power of 15HP for light-duty and 10HP for heavy-duty, both at 400-480Vac.

Lenze

I55AE330F1AV1100MS

Lenze I55AE330F1AV1100MS is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and is designed for control cabinet or surface/wall mounting. The dimensions are H450mm x W250mm x D230mm. It supports Ethernet/IP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 73.2A (light-duty; 400Vac), 62.4A (light-duty; 480Vac), 61A (heavy-duty; 400Vac), and 52A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac, with an ambient air temperature for operation that depends on the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. The degree of protection is IP20, suitable for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, all supporting various configurations. The rated active power is 37kW (light-duty; 400-480Vac) and 30kW (heavy-duty; 400-480Vac), with a rated power of 50HP (light-duty; 400-480Vac) and 40HP (heavy-duty; 400-480Vac).

Lenze

C300-07500550A10101AB100

NIDEC C300-07500550A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 7 H21.93" x W10.63" x D11.02" (H557mm x W270mm x D280mm), and offers a degree of protection rated at IP20 NEMA 1. The rated current is 73A under normal duty and 55A under heavy-duty conditions. It supports Modbus RTU communication protocol over a 3-phase input network, with a network frequency of 45-66 Hz for supply input and 0-550 Hz for output. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 analog output (10Vdc; source; single-ended), 5 digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and one 2A / 240Vac; source; relay contact type). Additionally, it includes 2 analog inputs (one 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution and one 0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 45kW under normal duty and 37kW under heavy-duty, with a rated power of 60HP and 50HP, respectively.

Nidec

ESV153N02TXB

ESV153N02TXB Lenze Variable Frequency Drive (VFD) - The SMV 20.0 hp (15.0 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze
