Variable Frequency Drives (VFD)

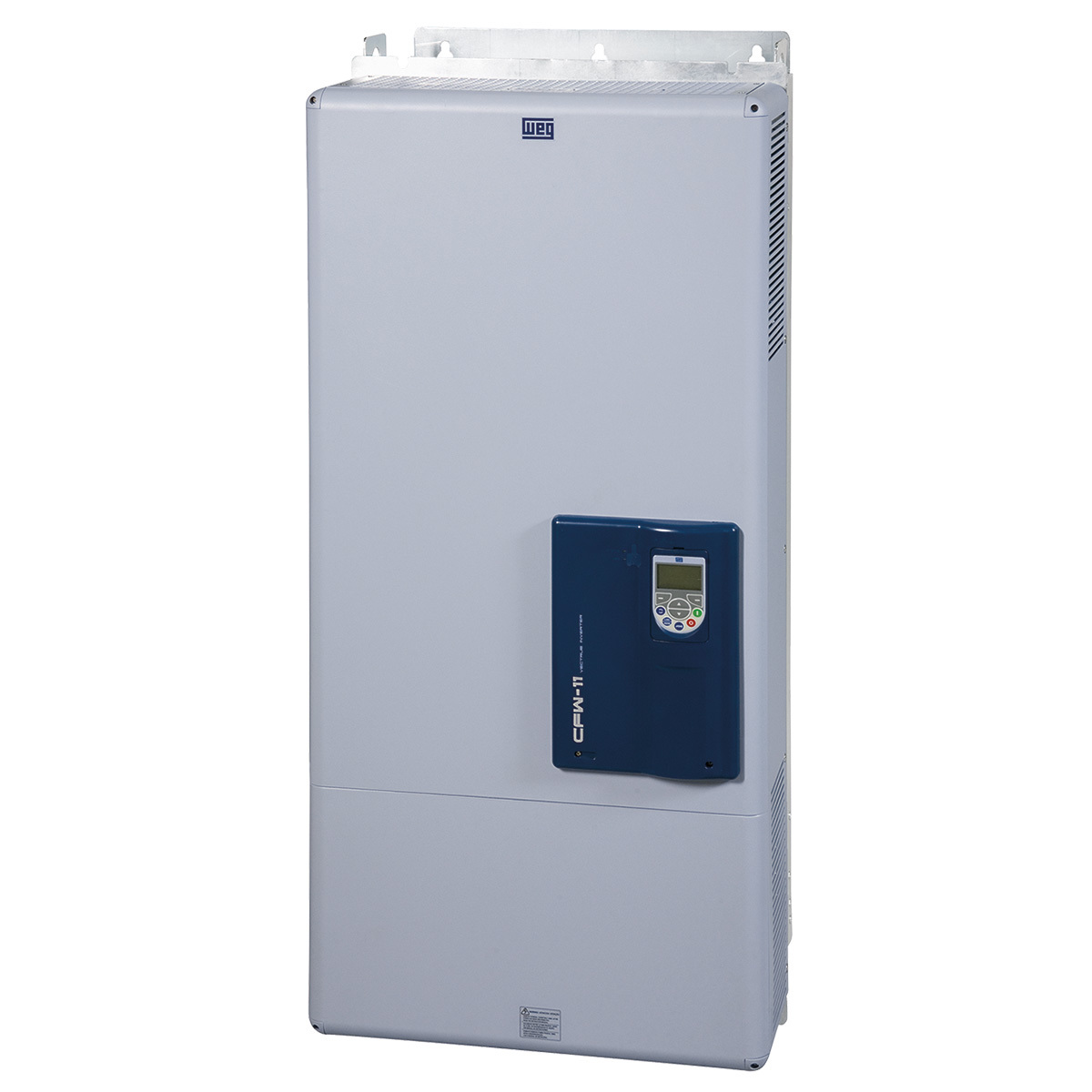

CFW110720T4SZ

DRIVE CFW110720T4SZ

WEG

I55AE155D10V01000S

Lenze I55AE155D10V01000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It has a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and lacks a communication interface. Its protection functions cover overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. It supports both single-phase and three-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (with options for frequency or encoder input), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA), with a rated active power of 0.55kW and rated power of 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

C200-08500630A10101AB100

NIDEC C200-08500630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 8 H31.65" x W12.21" x D11.42" (H804mm x W310mm x D290mm), and offers a degree of protection of IP20 NEMA 1. The rated current is 86A for Normal duty and 63A for Heavy-duty applications. It supports Modbus RTU communication protocol over a 3-phase input network, with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 55kW for Normal duty and 45kW for Heavy-duty, corresponding to 75HP and 60HP, respectively.

Nidec

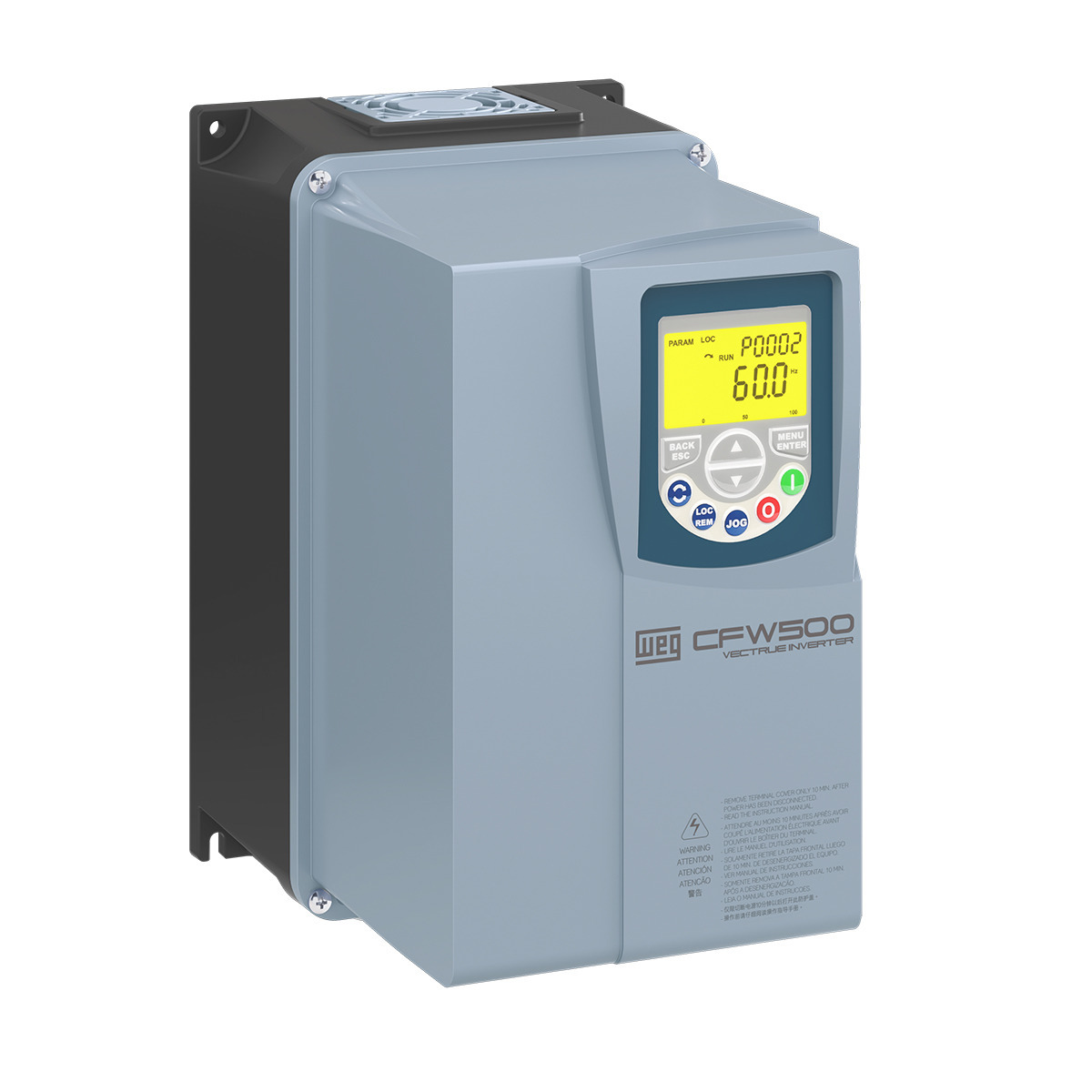

CFW500A02P6B2DB66G2

DRIVE CFW500A02P6B2DB66G2

WEG

H300-06500340A10101AB653

NIDEC H300-06500340A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and utilizes air cooling for temperature management. It features dimensions of frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). This model supports Modbus RTU communication protocol and operates with a rated current of 34A under normal duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP65, NEMA 4, UL type 12, making it suitable for various industrial environments. It is compatible with a 3-phase input network (3P) and a supply input frequency of 60 Hz. The VSD/VFD includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 1 digital input that ranges from 0-24Vdc, alongside 2 digital outputs of relay contact type. Additionally, it features 1 analog input for 4-20mA and another for 0-10Vdc signals. The rated active power is 22kW, and the rated power is 30HP under normal duty conditions.

Nidec

HS72-04400150A10101AB100

NIDEC HS72-04400150A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and dual Safe Torque Off (STO) functionality suitable for high-speed applications, utilizing air cooling for temperature management. The device has dimensions of frame size 4, measuring H15.4" x W4.9" x D7.9" (H391mm x W124mm x D200mm), and supports Ethernet communication protocol. It operates with a rated current of 18.5A under normal duty and 15A under heavy-duty conditions, requiring a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it is designed with an IP20 NEMA 1 UL open degree of protection. This VSD/VFD is equipped for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It includes 2 x digital inputs (0-24Vdc), with one terminal configurable as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source relay contact type). The rated active power is 7.5kW under normal duty and 5.5kW under heavy-duty, with a rated power of 10HP for both conditions.

Nidec

ATV61HU22S6X

Schneider Electric ATV61HU22S6X is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed with a built-in heatsink. It operates on a supply voltage of 425-660Vac, including nominal voltages of 440Vac, 480Vac, 500Vac, and 600Vac. This model features dimensions of H295mm x W210mm x D213mm and offers an IP20 UL type 1 degree of protection. It has a rated current of 4.5A at 500Vac (4kHz), 3.9A at 575Vac (4kHz), and can handle a maximum current of 5.4A for up to 60 seconds. The ATV61HU22S6X supports wall mounting and uses Modbus and CANopen communication protocols. It is designed for a 3-phase network with an output frequency range of 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) that are programmable, plus an additional digital input programmable as discrete or PTC input, and another for PWR safety. It also features 1 digital output (C/O SPDT relay contact) and 1 digital output (NO relay contact), alongside 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The current consumption is rated at 7.6A for 500Vac and 6.7A for 600Vac, with a rated active power of 2.2kW and a rated power of 3HP.

Schneider Electric

ESV223N04TMD

ESV223N04TMD Lenze Variable Frequency Drive (VFD) - The SMV 30.0 hp (22.0 kW) drive features a 400 / 480 VAC 3Ø input with input disconnect in a fan cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated

Lenze

HS72-03200080A10101AB100

NIDEC HS72-03200080A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for high-speed applications. It features variable speed/frequency drive capabilities with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop. The design includes a built-in brake transistor, dual Safe Torque Off (STO), and utilizes air cooling for temperature management. This model has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), and supports Ethernet communication protocol. It operates with a rated current of 11A under normal duty and 8A under heavy-duty conditions, requiring a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it is designed with an IP20 NEMA 1 UL open degree of protection. The device accommodates a 3-phase input network with a frequency of 45-66 Hz on the supply input and can output 0-3000 Hz. It includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 2 x digital outputs (100mA / 0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 2.2kW under normal duty and 1.5kW under heavy-duty, equivalent to 3HP and 2HP respectively.

Nidec

M702-09201760A10101AB100

NIDEC M702-09201760A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 55kW under normal duty and 45kW under heavy-duty, corresponding to 75HP and 60HP, respectively.

Nidec

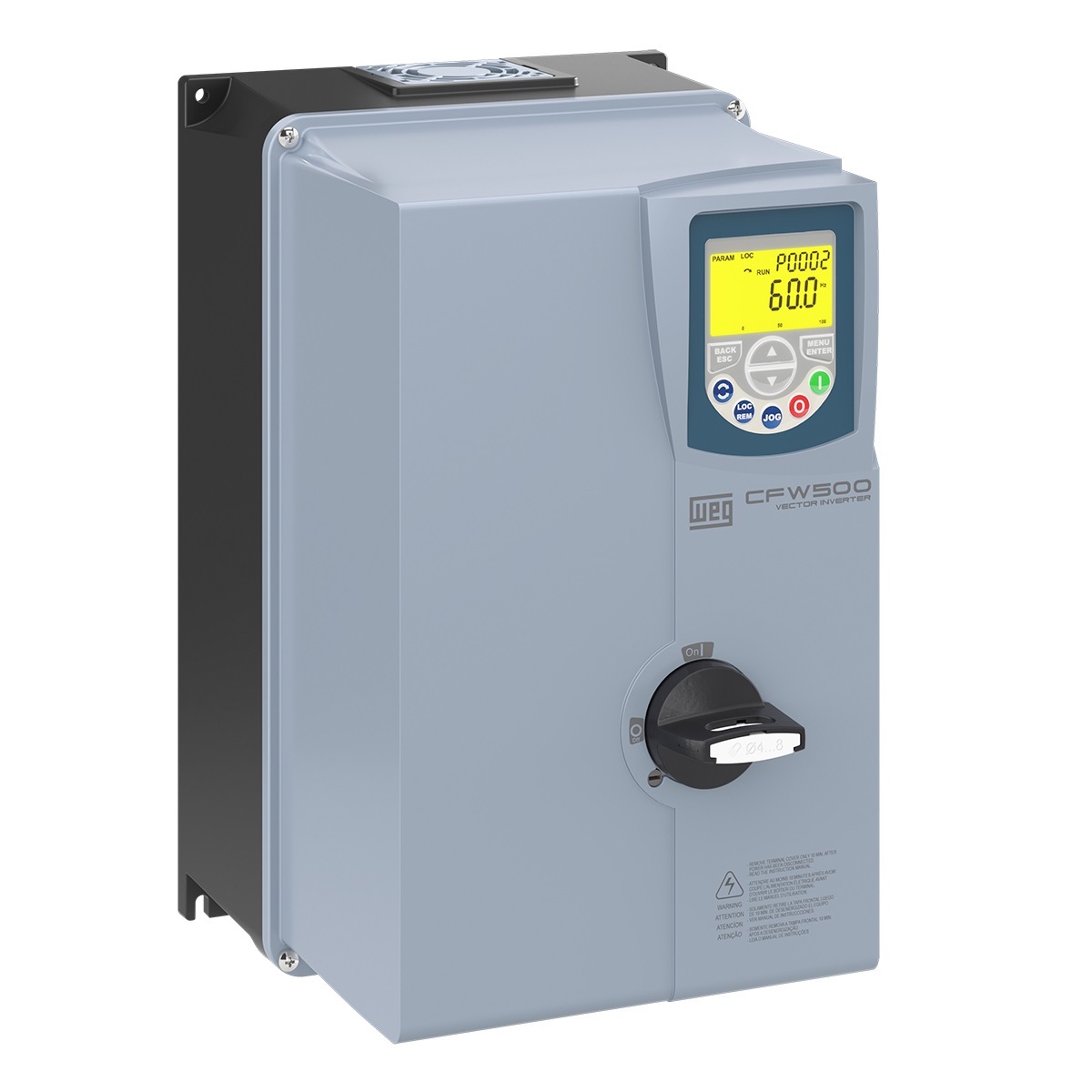

CFW500B14P0T4DB66DSG2

DRIVE CFW500B14P0T4DB66DSG2

WEG

C200-05500040A10101AB100

NIDEC C200-05500040A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 500Vac-575Vac and has dimensions of frame size 5 H15.39" x W5.63" x D7.87" (H391mm x W143mm x D200mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 6.1A under normal duty and 4A under heavy-duty conditions. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 analog output (10Vdc; source; single-ended), 5 digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and another 2A / 240Vac; source; relay contact type). Additionally, it includes 2 analog inputs (one 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution and another 0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 4kW for normal duty and 2.2kW for heavy-duty, with corresponding rated power of 5HP and 3HP, respectively.

Nidec

I55AE125D10V01004S

Lenze I55AE125D10V01004S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a standard I.O. with conformal coating, dimensions of H155mm x W60mm x D130mm, and supports PROFIBUS communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting both voltage and current input/output configurations. The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 230-240Vac.

Lenze

I55AE318F10V11004S

Lenze I55AE318F10V11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It is equipped with a built-in RFI filter, standard I.O. conformal coating, and has dimensions of H347mm x W204.5mm x D222mm. This model supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 48A (light-duty; 400Vac), 40.8A (light-duty; 480Vac), 40A (heavy-duty; 400Vac), and 34A (heavy-duty; 480Vac), and can be supplied with either 400Vac or 480Vac. Suitable for control cabinet or surface/wall mounting, it functions optimally within an ambient air temperature range, with a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at a switching frequency of 8kHz or 16kHz. The device has an IP20 degree of protection, is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and delivers a rated active power of 22kW (light-duty; 400-480Vac) and 18.5kW (heavy-duty; 400-480Vac), equivalent to 30HP (light-duty) and 25HP (heavy-duty).

Lenze

HVW701A016T2N01-I-C

WEG HVW701A016T2N01-I-C - STANDARD PANEL HVW701A016T2N01-I-C, HVAC Enclosed Drives (HVW)

WEG

M000-09601040EU0100AN100

NIDEC M000-09601040EU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M000 series designed for heavy-duty applications. It requires an external choke and utilizes air cooling for its operation. The dimensions of this VSD/VFD are frame size 9E, measuring 39.7 inches in height, 12.2 inches in width, and 11.4 inches in depth (1010mm x 310mm x 290mm). It has a rated current of 104A and operates on a supply voltage ranging from 500Vac to 690Vac, with a standard voltage of 600Vac. This model is designed with a degree of protection of IP20 NEMA 1 and is compatible with a network frequency of 50 Hz. The rated active power for this device ranges from 90kW to 250kW, and its rated power in horsepower ranges from 125HP to 400HP, making it suitable for a variety of industrial applications.

Nidec

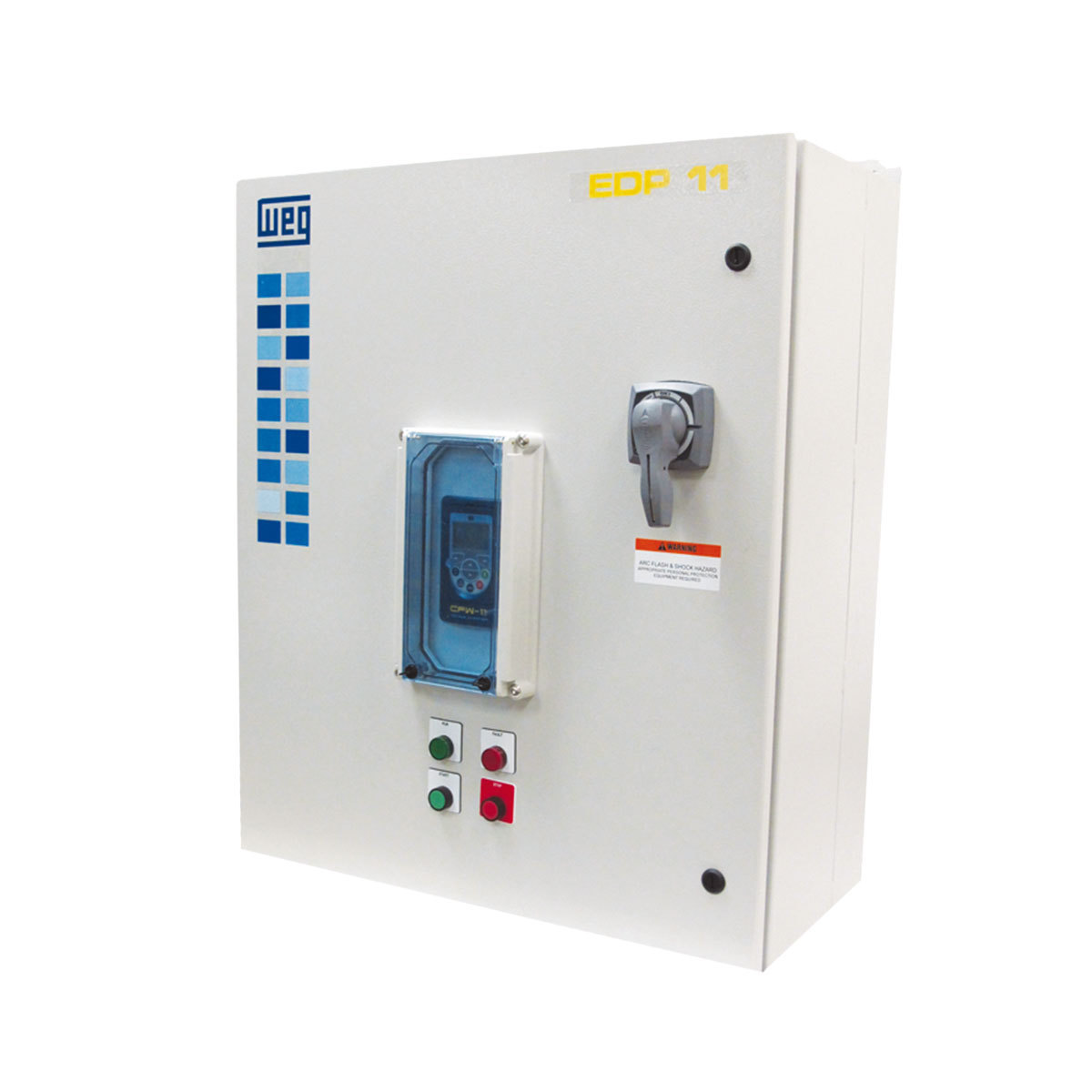

EDP11S070GN1210000

STANDARD PANEL EDP11S070GN1210000

WEG

EDP11S180GN3R01000

STANDARD PANEL EDP11S180GN3R01000

WEG

GA80U2082AWM

GA80U2082AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 240 VAC, 82 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

ESV153N02TXB

ESV153N02TXB Lenze Variable Frequency Drive (VFD) - The SMV 20.0 hp (15.0 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze
