Contactors

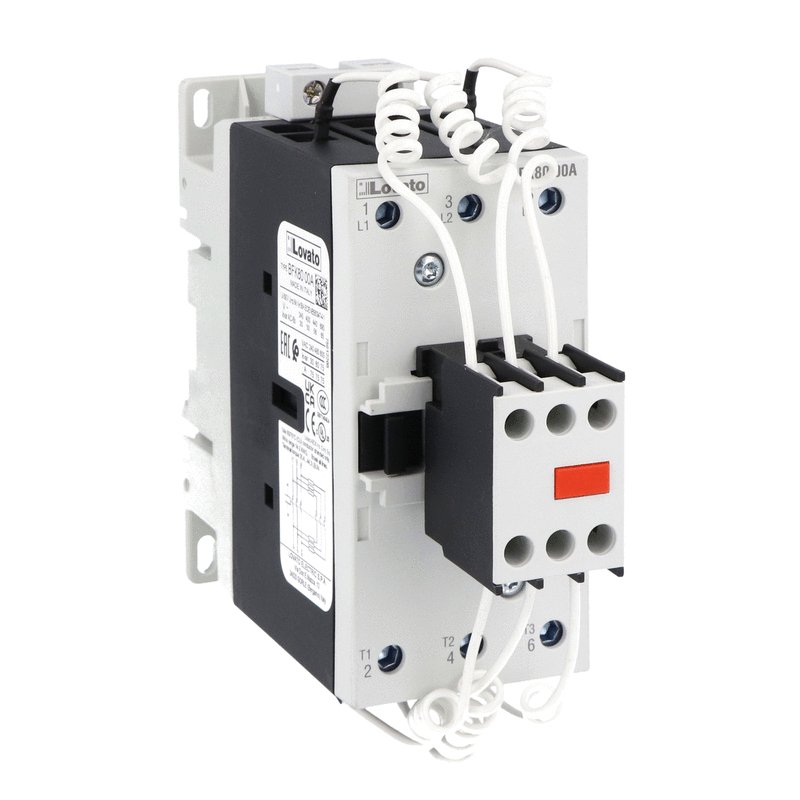

BFK8000A110

BFK8000A110 Lovato - Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 50kvar, coil 110VAC 50/60Hz

Lovato Electric

CWB32-11-30C02

WEG CWB32-11-30C02 - CONTACTOR CWB32-11-30C02, Contactors (CWB)

WEG

LC2D12JD

Schneider Electric LC2D12JD is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring a mechanical interlock and screw connections. It has 2 x 3-poles (2x3P; 2x3NO) with a rated current of 25A (AC-1) and 12A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (DC) of 9-15Vdc (12Vdc nom.; 0.75...1.25 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. The rated active power (kW) spans from 3kW at 220-230Vac to 7.5kW at 660-690Vac, all within AC-3 classification. It also features 1NO+1NC instantaneous auxiliary contacts per contactor. The rated power (HP) ranges from 0.5HP at 115Vac to 10HP at 575-600Vac, accommodating various single-phase and 3-phase configurations under UL/CSA standards. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

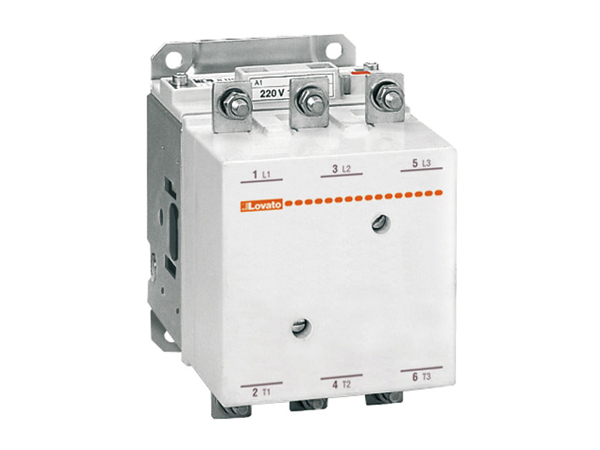

11B630L00110110

11B630L00110110 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 630A, AC/DC coil, already fitted with mechanical latch (G495), 110...125VAC/DC, mechanical latch 110...125VAC

Lovato Electric

CWM80-00-30C40

WEG CWM80-00-30C40 - CONTACTOR CWM80-00-30C40, Contactors (CWM)

WEG

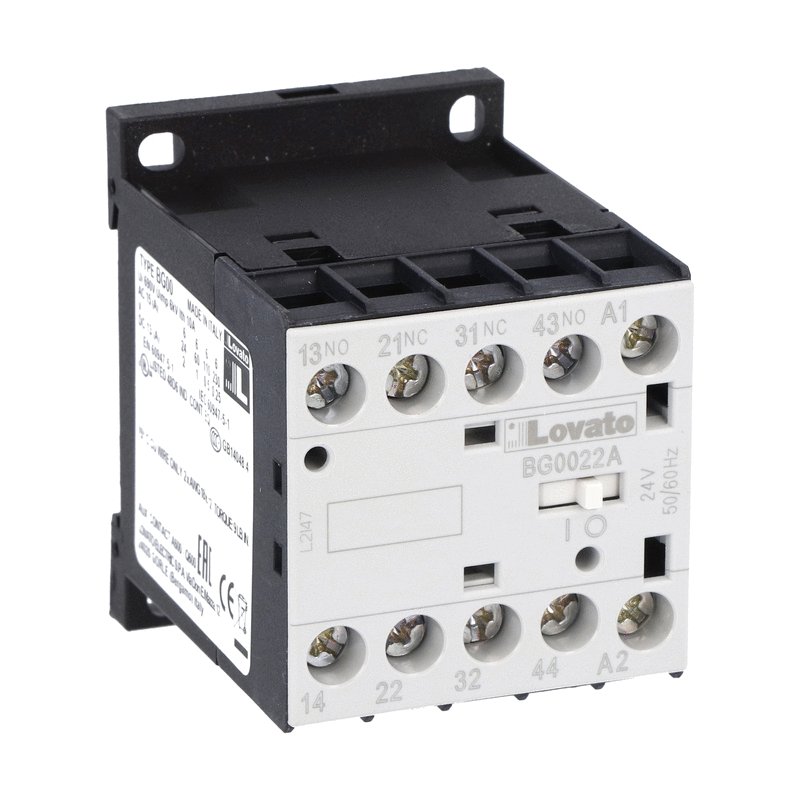

11BG0022A12060

11BG0022A12060 Lovato - Control relay with AC coil 60Hz, 120VAC, 2NO and 2NC

Lovato Electric

AF2611-CMA

ABB Control - AF2611-CMA

ABB Control

LP4K09017BW3

Schneider Electric LP4K09017BW3 is a magnetic contactor within the K sub-range, featuring Faston spade connections and a 3-pole (3P; 3NO) configuration. It has a rated current of 20A under AC-1 conditions and 9A at 440Vac under AC-3 conditions. This contactor is designed with an IP20 degree of protection and operates with a control voltage (DC) range of 16.8-31.2Vdc, nominally at 24Vdc. The rated operating voltage (Ue) is 690 V, and it comes with 0 Normally Open (NO) auxiliary contacts and 1 Normally Closed (NC) auxiliary contact. The rated active power varies with voltage, offering 2.2kW at 220-230Vac, and 4kW across 380-415Vac, 440Vac, 500Vac, and 660-690Vac, all under AC-3 conditions. Its mechanical durability is rated at 30 million operations at no load, with a phase-to-phase rated voltage (AC) of 690 V and a power consumption of 1.8 W.

Schneider Electric

AF091F2-CM1A

ABB Control - AF091F2-CM1A

ABB Control

AF301F2-BV2

ABB Control - AF301F2-BV2

ABB Control

AF261B2-CS3D

ABB Control - AF261B2-CS3D

ABB Control

AF305-30-22-31

AF305-30-22-31 ABB Control - 3P, 400A, 24-60V 50/60HZ,20-60VDC,2/2

ABB Control

LC1DT80A3CD

Schneider Electric LC1DT80A3CD is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a robust installation. This 4-pole (4NO) contactor is designed to handle a rated current of 80A (AC-1) and can be mounted on a DIN rail. The unit has a net width of 70 mm and offers a degree of protection rated at IP20. It operates with a control voltage (DC) range of 27-45Vdc, with a nominal voltage of 36Vdc, and requires 0.75 to 1.25 times the control voltage (Uc) for optimal performance. The LC1DT80A3CD includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both of the instantaneous type (1NO+1NC). It boasts a mechanical durability of 6 million operations at no load and can handle rated impulse voltages up to 6 kV. The rated voltage for phase-to-phase connections is up to 690 V AC.

Schneider Electric

AF09-30-10K-14

AF09-30-10K-14 ABB Control - AF09K,3P,1NO0NC,250-500VAC/DC

ABB Control

GJL1211201R0001

ABB GJL1211201R0001 is a magnetic mini contactor from the B6 contactors sub-range, designed with screw-clamp connections and equipped with 4-poles (4NO). It has a rated current of 20A at 380-400Vac (40°C; AC-1), 16A at 380-400Vac (55°C; AC-1), 6A at 690Vac (40°C; AC-1), 6A at 690Vac (55°C; AC-1), 4A at 24-120Vac (AC-15), 4A at 220-240Vac (AC-15), 3A at 380-400Vac (AC-15), and 2A at 500Vac (AC-15). For UL/CSA FLA, it is rated at 5.8A for 115Vac (single-phase), 4.8A for 200Vac (3-phase), 6.8A for 220-240Vac (3-phase), 4.9A for 230Vac (single-phase), 4.8A for 440-480Vac (3-phase), and 1.7A for 550-600Vac (3-phase). The contactor has a rated insulation voltage of 690 V (IEC/VDE) and 600 V (UL/CSA), with a mounting mode on the plate. Its dimensions are 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. The current consumption is 3.5VA inrush and holding (coil) with a control voltage of 24Vac (40Hz-450Hz). The rated operating voltage (Ue) is 690 V, with 0 normally open (NO) auxiliary contacts and a rated impulse voltage (Uimp) of 6 kV. The rated active power is 2.2kW at 220-240Vac (AC-3), 4kW at 380-440Vac (AC-3), 4kW at 500Vac (AC-3), and 3kW at 690Vac (AC-3), with 0 normally closed (NC) auxiliary contacts. The rated power (HP) is 2HP at 220-240Vac (3-phase; UL/CSA), 3HP at 440-480Vac (3-phase; UL/CSA), and 1HP at 550-600Vac (3-phase; UL/CSA). The operating rate is 300 cycles/hour (AC-1), 600 cycles/hour (AC-3), 360 cycles/hour (AC-15), 600 cycles/hour (DC-1), 360 cycles/hour (DC-13), and 600 cycles/hour (DC-3).

ABB Control

AF091F2-3P1F

ABB Control - AF091F2-3P1F

ABB Control

AF261B2-CE13A2

AF16,NR,3PH,CB,N3R/4/12,480/120V

ABB Control

CA7-72-00-480

Sprecher + Schuh CA7-72-00-480 - CA7 Contactor, 72A, 440V 50Hz / 480V 60Hz AC,

Sprecher + Schuh

LC1DT80A6T7

Schneider Electric LC1DT80A6T7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design for ring-lugs connections. This 4-pole (4P; 4NO) contactor is designed for a rated current of 80A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection of IP20. The control voltage for AC ranges from 384-528Vac (480Vac nominal; 50Hz; 0.8...1.1 x Uc) to 408-528Vac (480Vac nominal; 60Hz; 0.85...1.1 x Uc). It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts, with a contacts type of 1NO+1NC instantaneous auxiliaries. The rated impulse voltage (Uimp) is 6 kV, and it has a mechanical durability of 6,000,000 operations at no load. The rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

CA7-23E-01-24E

Sprecher + Schuh CA7-23E-01-24E - CA7 Contactor, 23A, 24V DC Elec. Coil, 1NC

Sprecher + Schuh
