Contactors

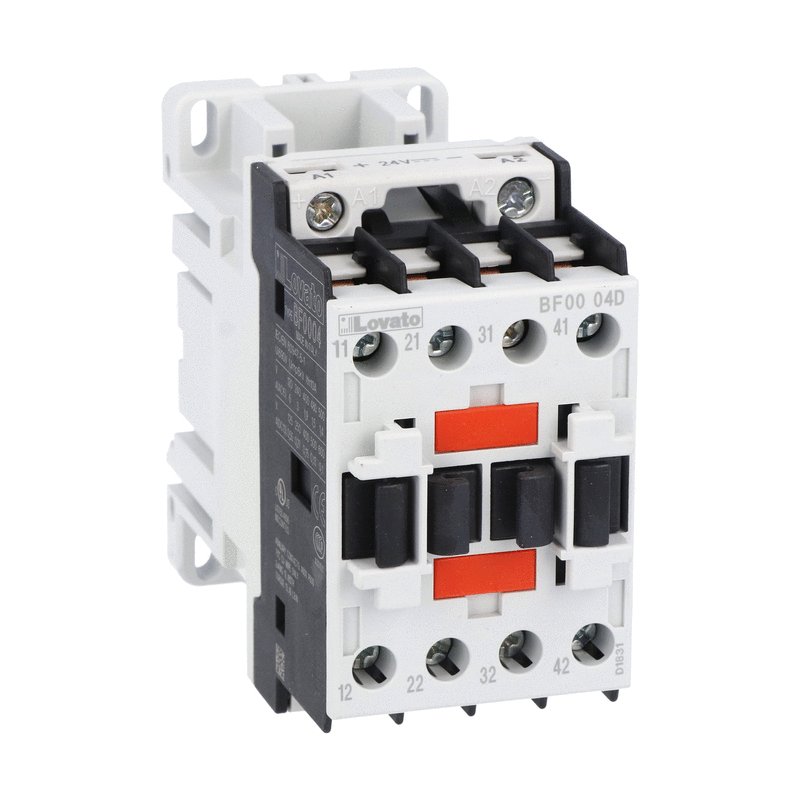

BF0004D220

BF0004D220 Lovato - Control relay with DC coil, 220VDC, 4NC

Lovato Electric

AF2612-2E1F

AF26,NR,3PH,NC,N3R/4/12,100-250V

ABB Control

AF305-30-11-31

AF305-30-11-31 ABB Control - 3P, 400A, 24-60V 50/60HZ,20-60VDC,1/1

ABB Control

AF2611-2UA

ABB Control - AF2611-2UA

ABB Control

CWB25-11-30D33

WEG CWB25-11-30D33 - CONTACTOR CWB25-11-30D33, Contactors (CWB)

WEG

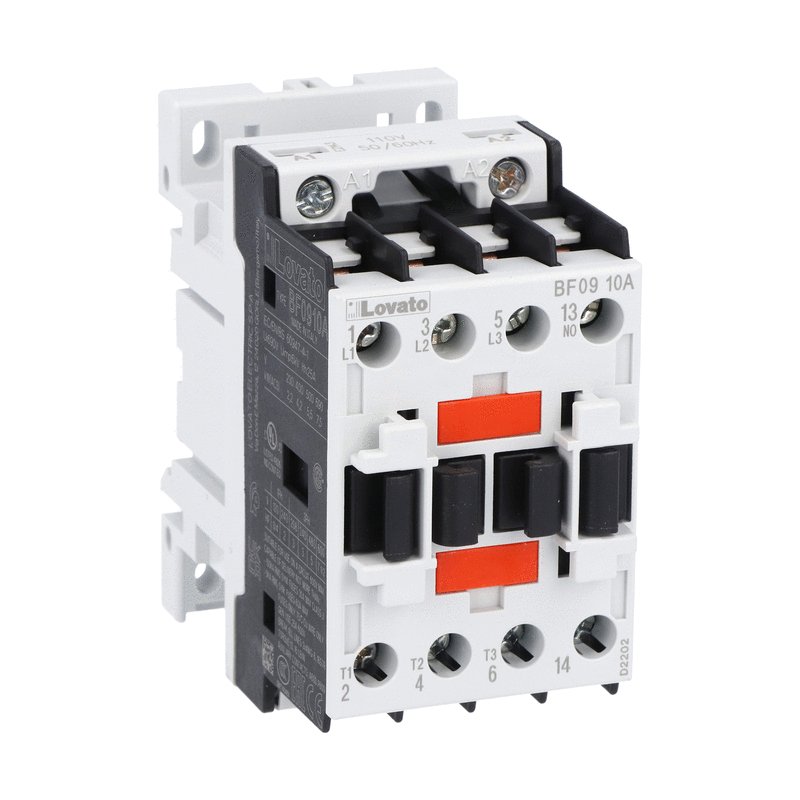

BF0910A230V260

BF0910A230V260 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 230VAC, 1NO auxiliary contact - IEC/EN/BS 60335-1

Lovato Electric

AF301N2-CVA

ABB Control - AF301N2-CVA

ABB Control

CWCI07-01-30V10

WEG CWCI07-01-30V10 - MINICONTACTOR BU CWCI07-01-30V10, Miniature Contactors (CWC)

WEG

AF26M-30-02-13

MI,3P,25.3A,100-250VAC/DC,2NC

ABB Control

1SFL487102R1200

ABB 1SFL487102R1200 is a magnetic contactor designed for mounting on plate with lugs/bars connections. It features a rated current of 275A at 690Vac for AC-1 design, with auxiliary contacts rated at 250A for AC-1 and 200A for resistance operations. The contactor operates with a supply voltage of AC-1 and a control voltage range of 48Vdc-130Vdc, specifically 110Vdc. It has a rated impulse voltage (Uimp) of 8 kV and is equipped with 4 poles (4P) and 4 normally open (NO) contacts, with a short circuit breaking rating for 48Vac-130Vac across 50Hz/60Hz frequencies. The dimensions are specified as 196 mm in color, 140 mm in cross-section, and 153 mm in connection capacity. The device supports a primary current for AC-3 operations at various power levels, including 55kW at 220-240Vac, up to 132kW at 690Vac. It is designed for a 3-phase network with a frame current rating for 50Hz/60Hz operations and offers a cable category of 175VA inrush and 4VA holding for AC, with 130W inrush and 2.5W holding for DC. The contactor is capable of 300 cycles/hour at no load and under AC-1 conditions.

ABB Control

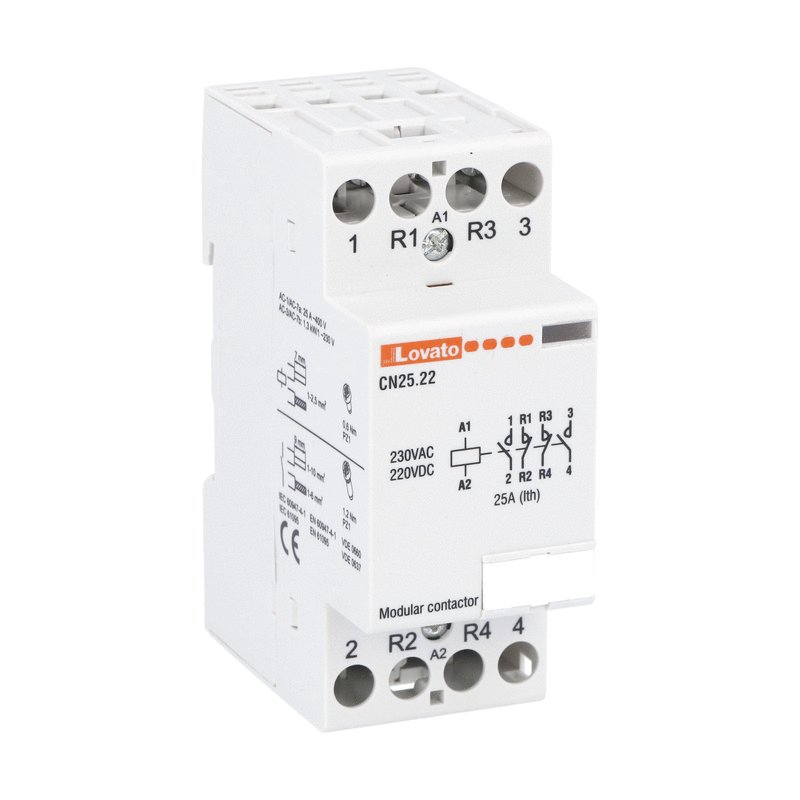

CN2522220

CN2522220 Lovato - Modular contactor, three-pole or four-pole, 25A AC1, 220...230VAC (2NO+2NC)

Lovato Electric

CWM50-00-30V47

WEG CWM50-00-30V47 - CONTACTOR CWM50-00-30V47, Contactors (CWM)

WEG

LC2D65A3U7

Schneider Electric LC2D65A3U7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal power connections with an Everlink mechanical interlock. It has spring connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 80A (AC-1) and 65A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 192-264Vac (240Vac nominal; 50Hz; 0.8...1.1 x Uc) and 204-264Vac (240Vac nominal; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. The contactor supports a rated active power (kW) of 18.5kW (220-230Vac; AC-3) up to 37kW (660-690Vac; AC-3), and it has 1NO+1NC instantaneous auxiliary contacts per contactor. The rated power (HP) ranges from 5HP (115Vac; single-phase; 50Hz/60Hz; UL/CSA) to 50HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA), with a rated voltage (AC) - phase-to-phase of 690 V.

Schneider Electric

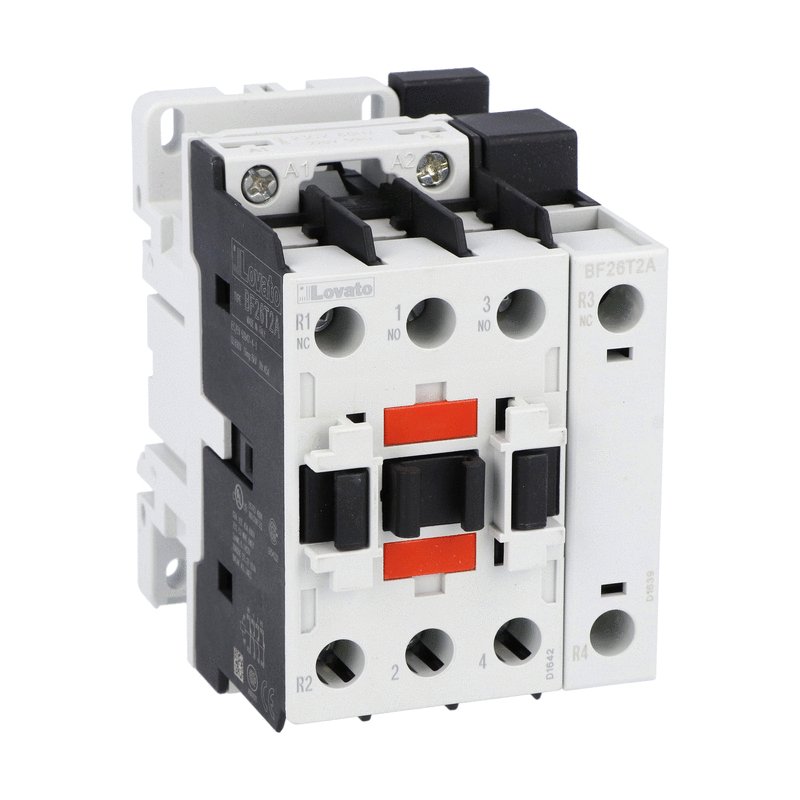

BF26T2A02460

BF26T2A02460 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 45A, AC coil 60Hz, 24VAC, 2NO and 2NC

Lovato Electric

AF140-30-00B-31

AF140-30-00B-31 ABB Control - 3P BAR,200A,24-60V 50/60HZ,20-60VDC,0/0

ABB Control

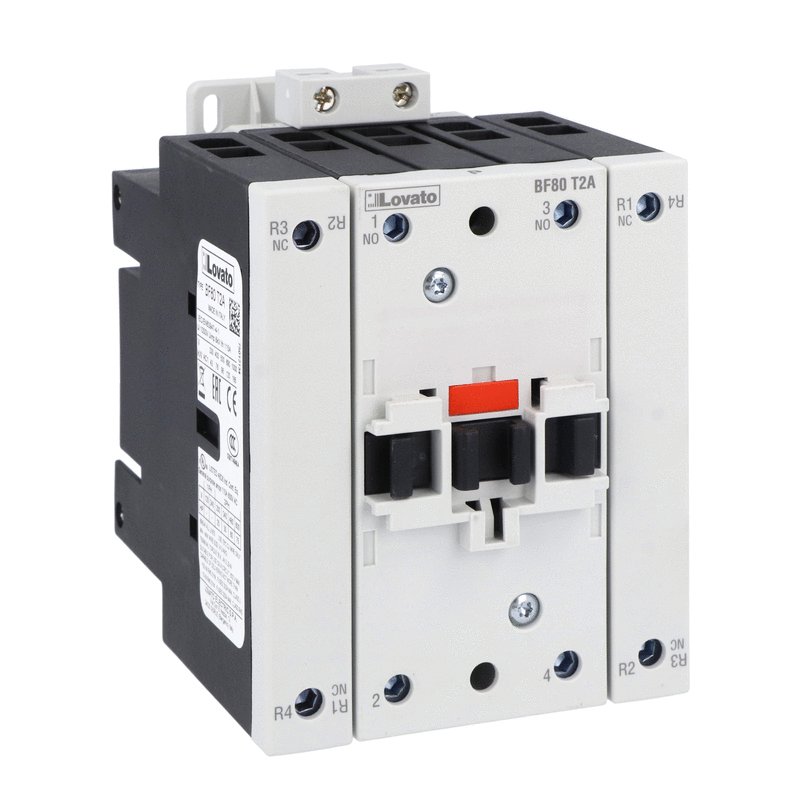

BF80T2A46060

BF80T2A46060 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 115A, AC coil 60Hz, 460VAC

Lovato Electric

AF261BX-CL1Q

ABB Control - AF261BX-CL1Q

ABB Control

AF301B2-CV7J

ABB Control - AF301B2-CV7J

ABB Control

AF3032-BE1E2M

AF30,2S1W,3PH,NC,N3R/4/12,240/120V

ABB Control

LP4K06015BW3

Schneider Electric LP4K06015BW3 is a magnetic contactor within the K sub-range, featuring solder pins connections and a 3-pole (3P; 3NO) configuration. It has a rated current of 6A at 440Vac under AC-3 utilization category and offers a degree of protection rated at IP20. The control voltage (DC) ranges from 16.8-31.2Vdc, with a nominal value of 24Vdc (0.7...1.3 x Uc). Its rated operating voltage (Ue) reaches up to 690 V. This model includes 0 normally open (NO) auxiliary contacts and 1 normally closed (NC) auxiliary contact. The rated active power varies with voltage, providing 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all under AC-3. It boasts a mechanical durability of 30,000,000 operations at no load and has a power consumption of 1.8 W. The rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric
