30018XT3G449T WEG AC Motors
Part#:30018XT3G449T
Manufacturer:WEG
Alt. Part#:7892304607268
Product Lifecycle:Active
Get a quick Quote!

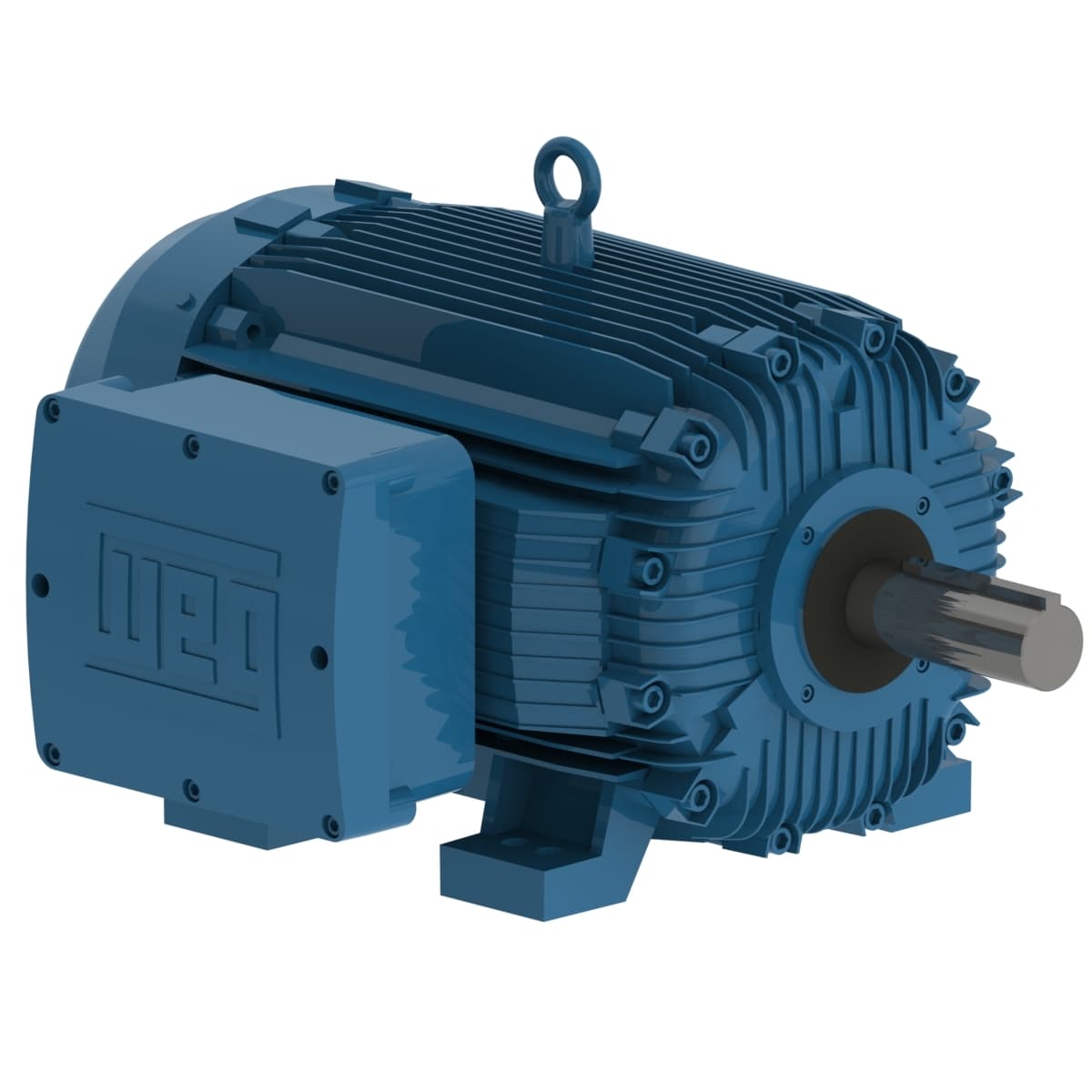

W21 Explosion-proof Motor NEMA Premium Efficiency 300 HP 4P 449T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 30018XT3G449T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed1785 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Output 300 HP (220 kW)
- Service factor 1.15
- Insulation Class F
- Approx. weight³ 3244 lb
- L. R. Amperes 2870 A
- Locked rotor torque 280 %
- Moment of inertia (J) 89.6 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Frame 449T
- Number of Poles 4
- Locked rotor time 25s (cold) 14s (hot)
- Voltage 460 V
- Rated speed 1785 rpm
- Breakdown torque 280 %
- Ambient temperature -20°C to +40°C
- Enclosure IC411 - TEFC
- Rated torque 883 ft.lb
- No load current 123 A
- Noise level² 80.0 dB(A)
- Number of poles 4
- Rated current 338 A
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- LRC 8.5x(Code J)
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Slip 0.83 %
- Starting Method Direct On Line
- Output rating 300 HP
- Rated voltage 460 V
- Design A
- Standard NEMA MG-1
- Flange Without
- Frequency 60 Hz
- Degree of Protection IP55
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30018XT3G449T Specs
