30018ET3X5009-W50MV WEG AC Motors
Part#:30018ET3X5009-W50MV
Manufacturer:WEG
Alt. Part#:7909265845391
Product Lifecycle:Active
Get a quick Quote!

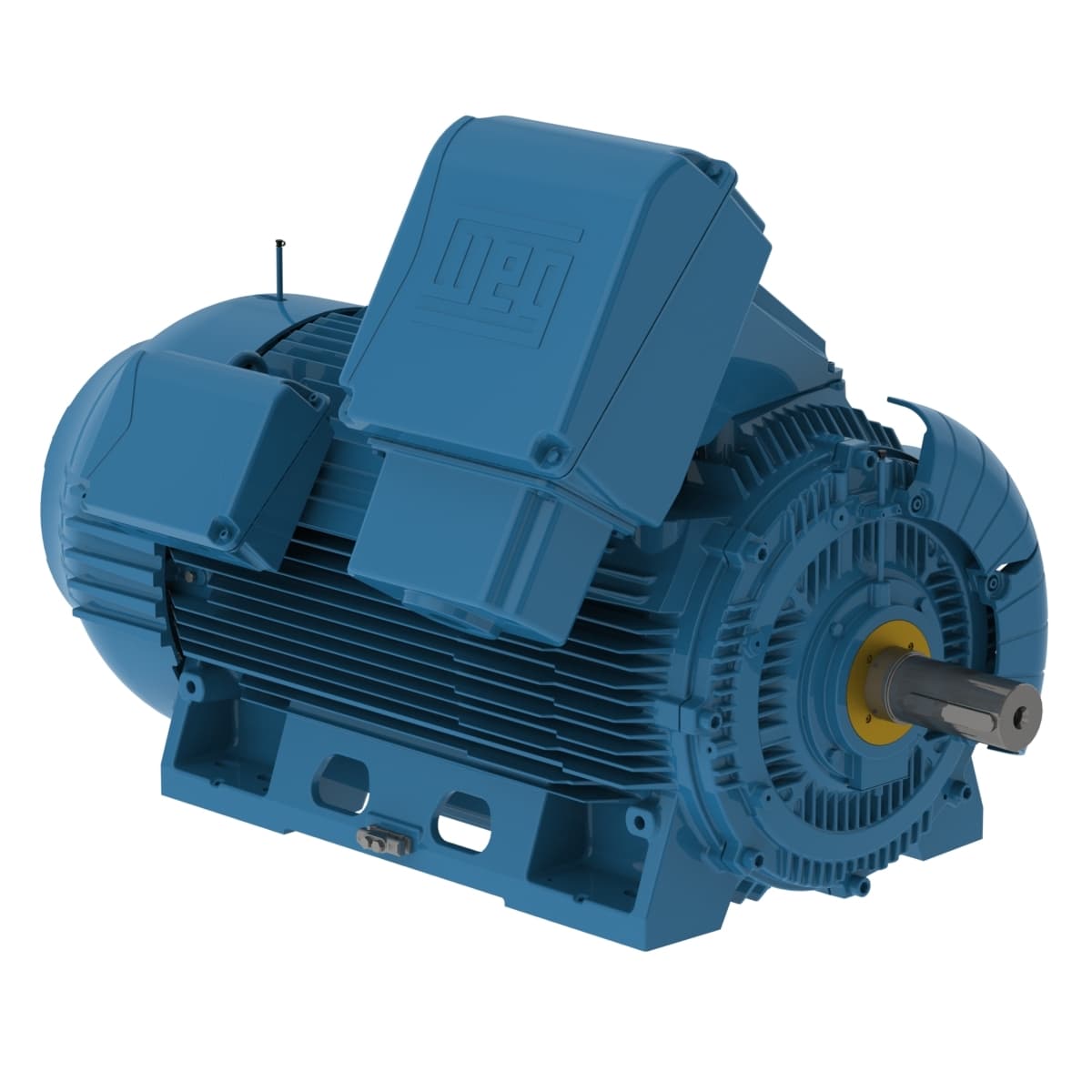

W50 300 HP 4P 5009/10 3Ph 2300/4160 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 30018ET3X5009-W50MV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed1782 rpm
- Number of Poles4 Pole
- Voltage2300 V
- Flange TypeWithout
- Rated current 68.4 A
- Output 300 HP (220 kW)
- Locked rotor torque 140 %
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Flange Without
- Slip 1.00 %
- Moment of inertia (J) 114 sq.ft.lb
- Noise level² 79.0 dB(A)
- Output rating 300 HP
- LRC 6.2x(Code G)
- Duty Cycle Cont.(S1)
- Voltage 2300/4160 V
- Rated voltage 2300 V
- Design A
- Degree of Protection IP55
- Number of Poles 4
- Locked rotor time 36s (cold) 20s (hot)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Frequency 60 Hz
- Breakdown torque 210 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Rated speed 1782 rpm
- Rated torque 884 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- L. R. Amperes 424 A
- Enclosure IC411 - TEFC
- Number of poles 4
- Frame 5009/10
- No load current 22.0 A
- Service factor 1.00
- Mounting F-1
- Temperature rise 80 K
- Approx. weight³ 3797 lb
