30018ET3G449TC-W22 WEG AC Motors
Part#:30018ET3G449TC-W22
Manufacturer:WEG
Alt. Part#:7909322212838
Product Lifecycle:Active
Get a quick Quote!

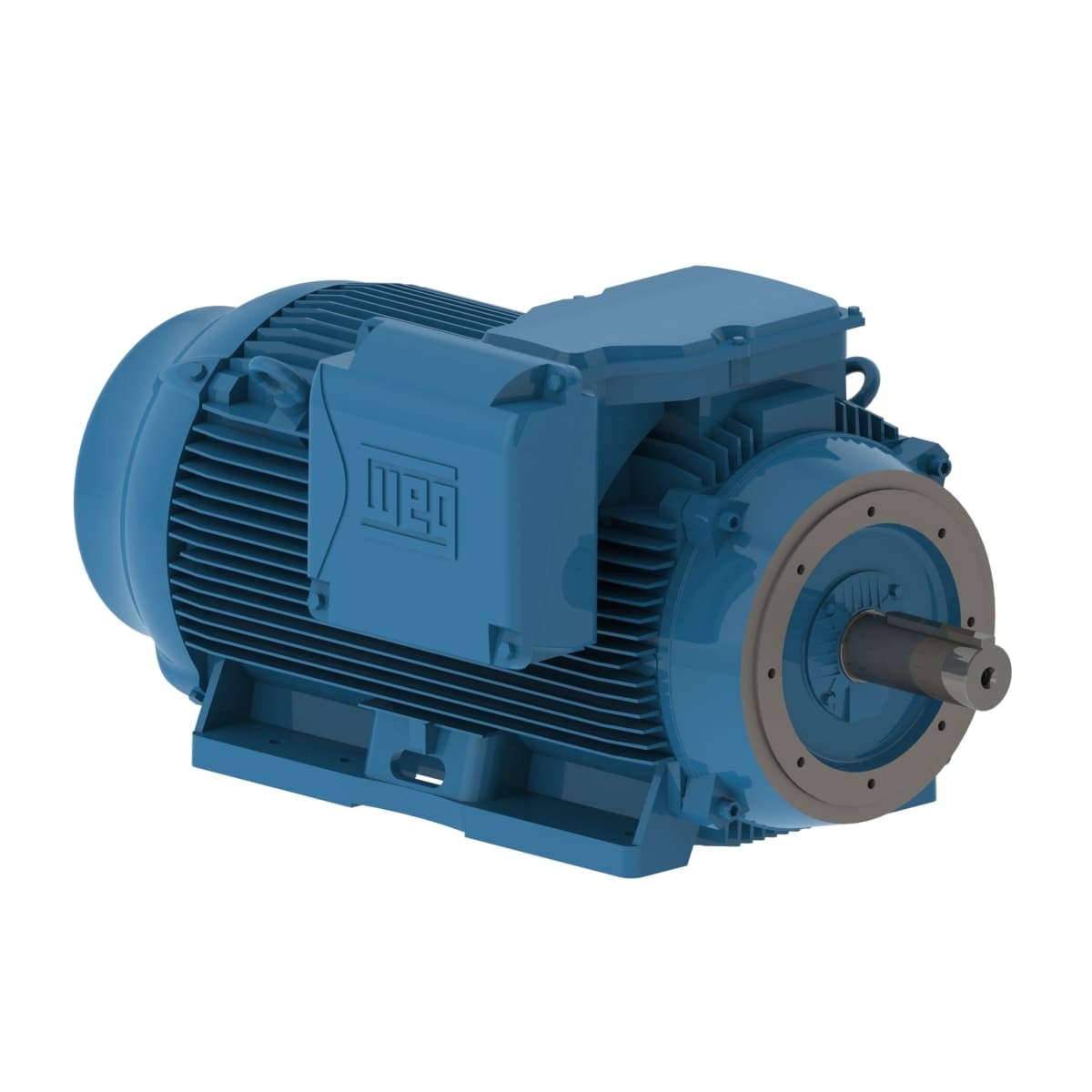

W22 NEMA Premium Efficiency 300 HP 4P 447/9TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 30018ET3G449TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeC
- Output 300 HP (220 kW)
- Moment of inertia (J) 89.6 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Number of Poles 4
- Locked rotor torque 250 %
- Mounting F-1
- Slip 1.11 %
- Service factor 1.15
- No load current 105 A
- Approx. weight³ 2863 lb
- Rated current 330 A
- Breakdown torque 250 %
- Degree of Protection IP55
- Voltage 460 V
- L. R. Amperes 2145 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Rated speed 1780 rpm
- Altitude 1000 m.a.s.l.
- Design B
- Flange C
- Frequency 60 Hz
- Locked rotor time 28s (cold) 16s (hot)
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Rated torque 885 ft.lb
- Starting Method Direct On Line
- Output rating 300 HP
- Frame 447/9TC
- LRC 6.5x(Code G)
- Insulation Class F
- Standard NEMA MG-1
- Terminal box¹ Left position
- Rated voltage 460 V
- Duty Cycle Cont.(S1)
- Noise level² 75.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30018ET3G449TC-W22 Specs
