30018ST3HIERB449T-W2 WEG AC Motors
Part#:30018ST3HIERB449T-W2
Manufacturer:WEG
Product Lifecycle:Active
Get a quick Quote!

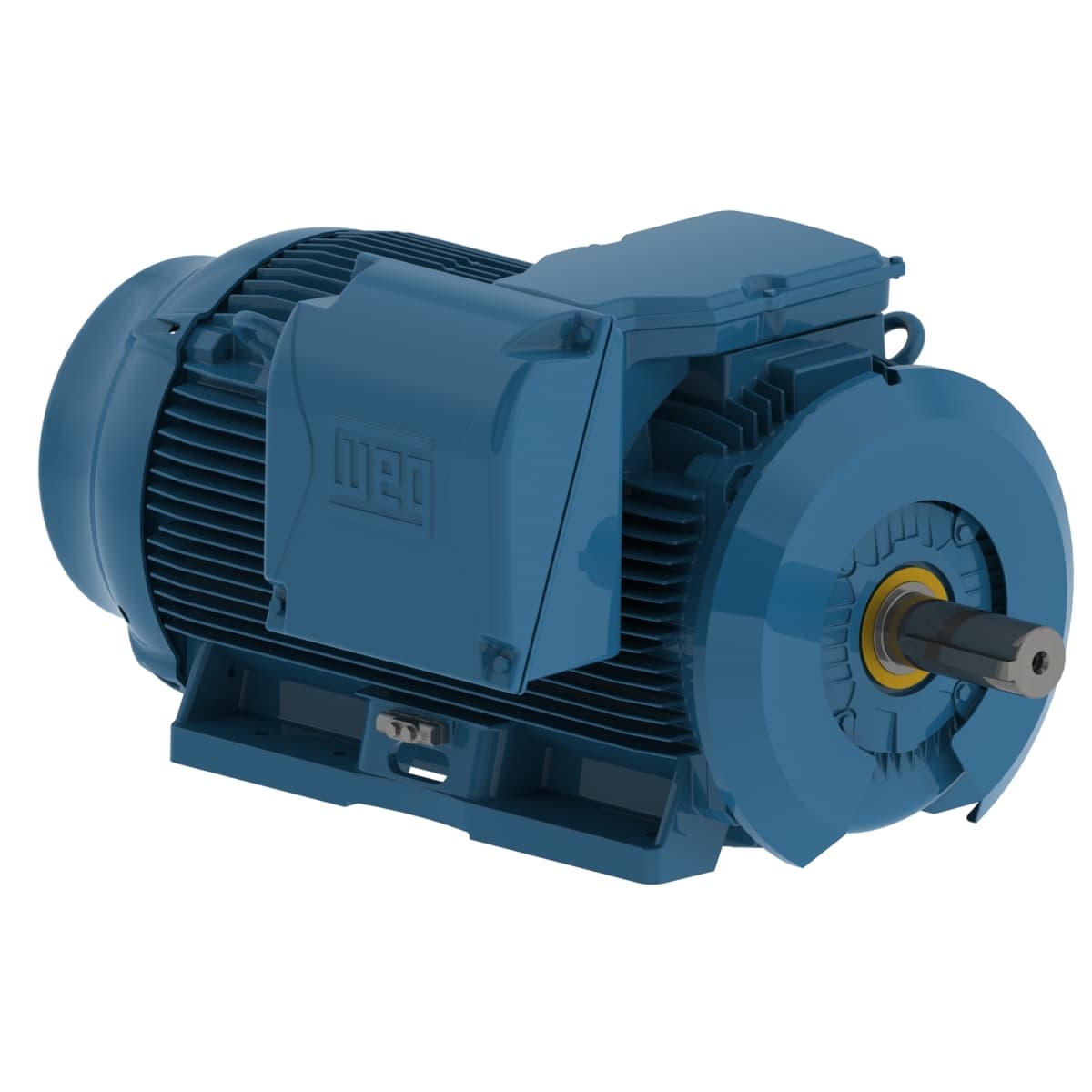

W22 IEEE 841 NEMA Premium Efficiency 300 HP 4P 447/9T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 30018ST3HIERB449T-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Slip 1.11 %
- Service factor 1.15
- Enclosure IC411 - TEFC
- Frame 447/9T
- Rated torque 885 ft.lb
- Degree of Protection IP56
- Voltage 575 V
- Number of Poles 4
- Locked rotor time 28s (cold) 16s (hot)
- Rotation¹ Both (CW and CCW)
- Flange Without
- Rated voltage 575 V
- Locked rotor torque 229 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 1800 rpm
- Rated current 264 A
- Insulation Class F
- Noise level² 75.0 dB(A)
- Terminal box¹ Left position
- L. R. Amperes 1716 A
- Breakdown torque 229 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Design B
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Rated speed 1780 rpm
- Moment of inertia (J) 89.6 sq.ft.lb
- Mounting F-1
- LRC 6.5x(Code G)
- Temperature rise 80 K
- Approx. weight³ 2966 lb
- Output 300 HP (220 kW)
- No load current 76.0 A
- Starting Method Direct On Line
- Output rating 300 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30018ST3HIERB449T-W2 Specs
