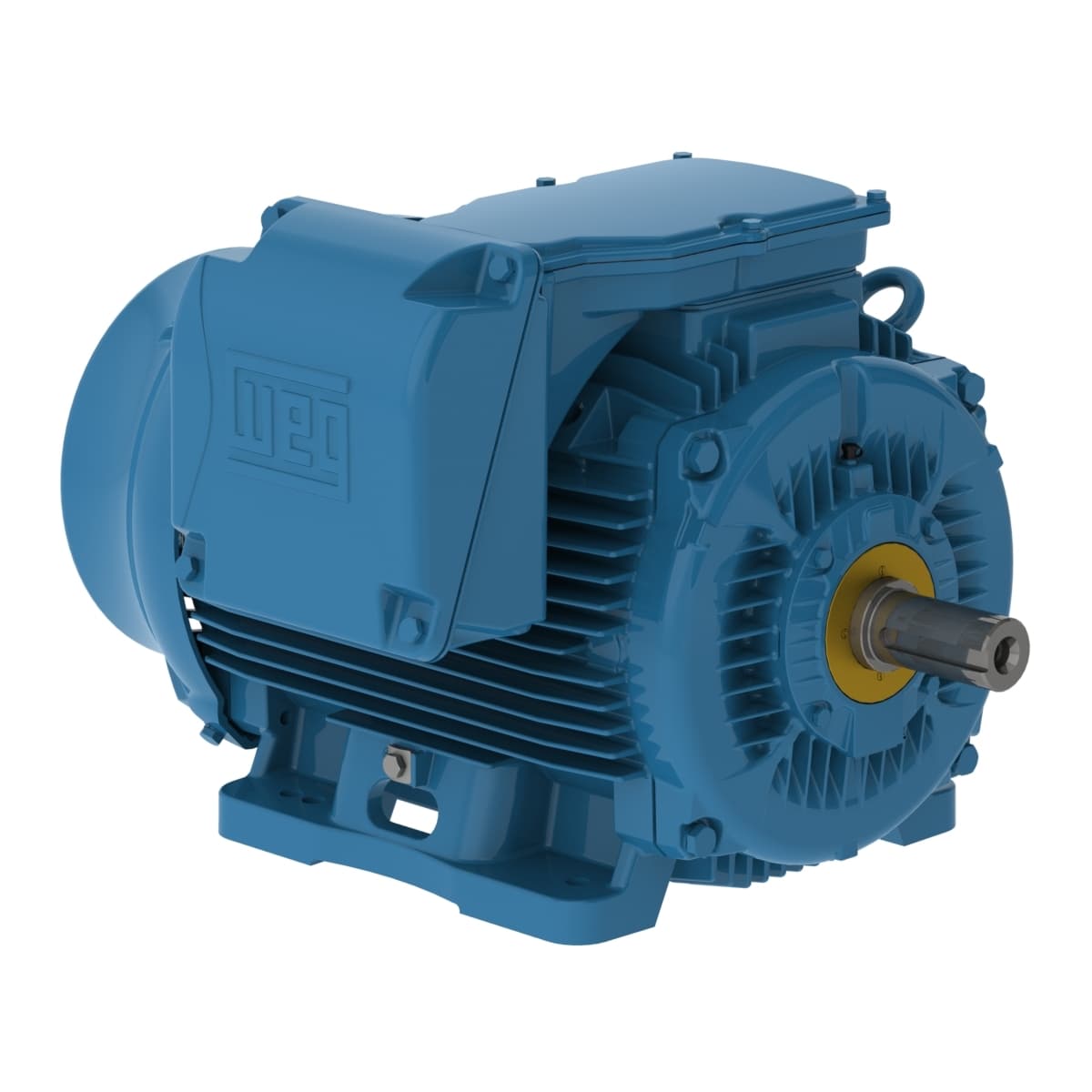

30012ET3GKD586/7-W22 WEG AC Motors
Part#:30012ET3GKD586/7-W22
Manufacturer:WEG
Alt. Part#:7909322281902
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 300 HP 6P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 30012ET3GKD586/7-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed1193 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- L. R. Amperes 2124 A
- Locked rotor time 54s (cold) 30s (hot)
- Starting Method Direct On Line
- Number of poles 6
- Frequency 60 Hz
- Moment of inertia (J) 278 sq.ft.lb
- Noise level² 77.0 dB(A)
- Rated current 360 A
- LRC 5.9x(Code G)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Rated voltage 460 V
- Insulation Class F
- Mounting F-1
- Terminal box¹ Left position
- Rated speed 1193 rpm
- Breakdown torque 250 %
- Degree of Protection IP55
- Output rating 300 HP
- Number of Poles 6
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Frame 586/7T
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Flange Without
- No load current 165 A
- Design A
- Enclosure IC411 - TEFC
- Output 300 HP (220 kW)
- Service factor 1.15
- Voltage 460 V
- Slip 0.58 %
- Rated torque 1320 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 3495 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
