30018EP3G449TS-W22 WEG AC Motors
Part#:30018EP3G449TS-W22
Manufacturer:WEG
Alt. Part#:7909265329761
Product Lifecycle:Active
Get a quick Quote!

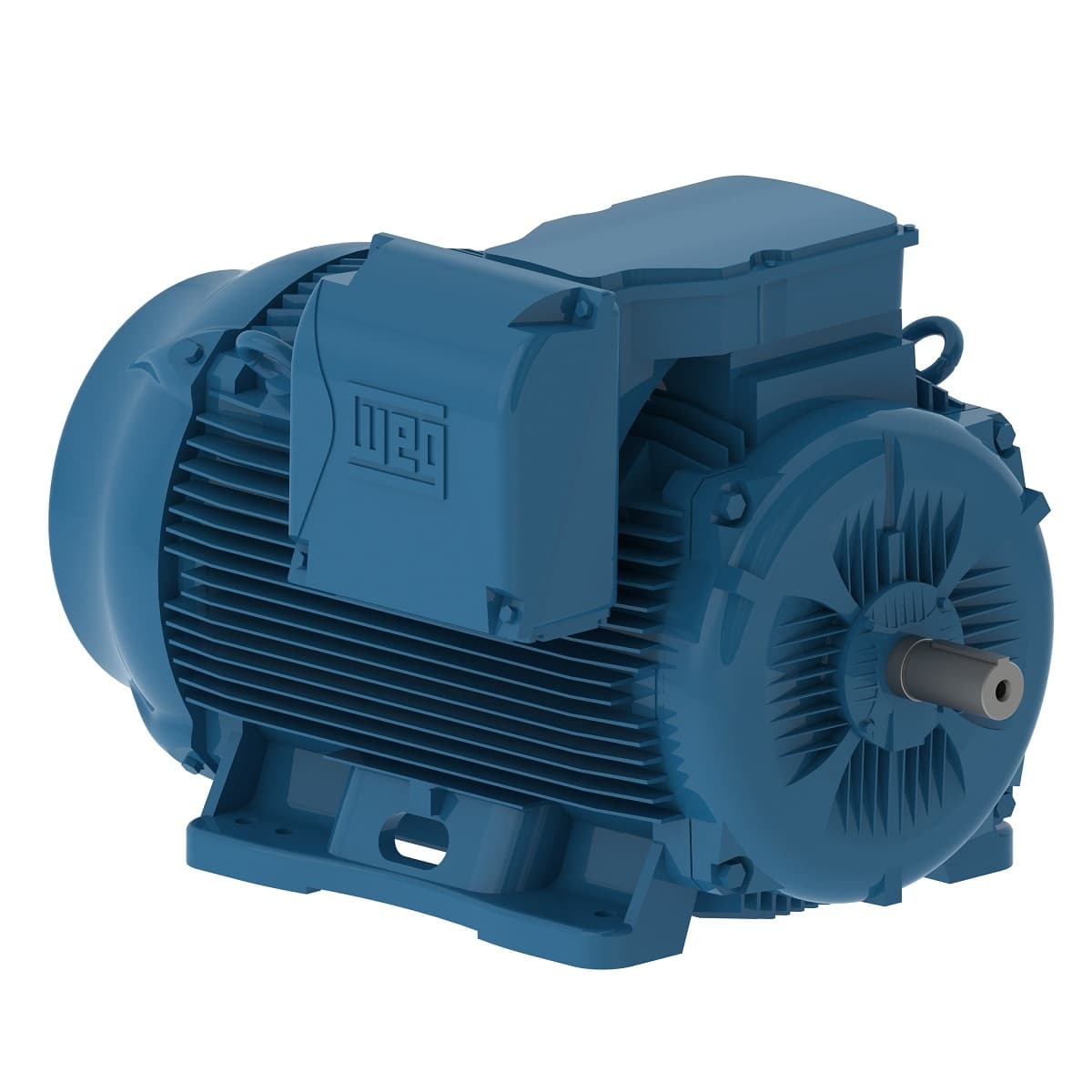

W22 High Efficiency 300 HP 4P 447/9TS 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 30018EP3G449TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Number of Poles 4
- Ambient temperature -20°C to +40°C
- Approx. weight³ 2615 lb
- L. R. Amperes 2191 A
- Slip 1.11 %
- Rated torque 885 ft.lb
- Duty Cycle Cont.(S1)
- Rated voltage 460 V
- Moment of inertia (J) 105 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- LRC 6.5x(Code G)
- Temperature rise 80 K
- Number of poles 4
- Rated current 337 A
- Design B
- Mounting F-1
- Output rating 300 HP
- Rated speed 1780 rpm
- Locked rotor torque 229 %
- Enclosure IC411 - TEFC
- Noise level² 75.0 dB(A)
- Frame 447/9TS
- No load current 105 A
- Service factor 1.15
- Voltage 460 V
- Output 300 HP (220 kW)
- Breakdown torque 229 %
- Degree of Protection IP55
- Terminal box¹ Left position
- Frequency 60 Hz
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Locked rotor time 25s (cold) 14s (hot)
- Starting Method Direct On Line
- Flange Without
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30018EP3G449TS-W22 Specs
