15018XT3H445T WEG AC Motors
Part#:15018XT3H445T
Manufacturer:WEG
Alt. Part#:7909322197296
Product Lifecycle:Active
Get a quick Quote!

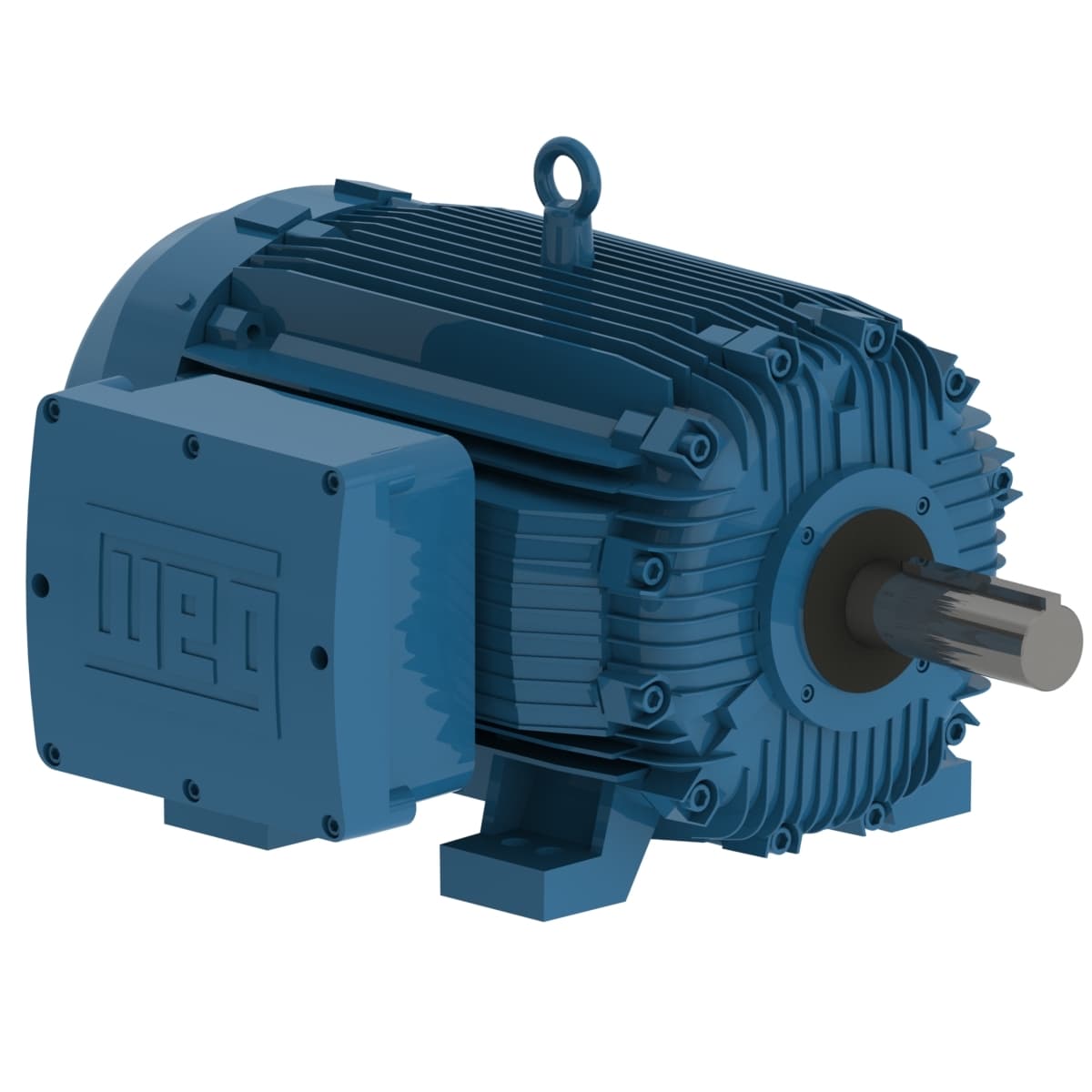

W21 Explosion-proof Motor NEMA Premium Efficiency 150 HP 4P 444/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 15018XT3H445T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed1783 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- L. R. Amperes 884 A
- Breakdown torque 220 %
- Mounting F-1
- Output rating 150 HP
- Frequency 60 Hz
- No load current 43.2 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Number of Poles 4
- Ambient temperature -20°C to +40°C
- LRC 6.5x(Code G)
- Service factor 1.15
- Synchronous speed 1800 rpm
- Slip 0.94 %
- Design B
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Frame 444/5T
- Locked rotor time 66s (cold) 37s (hot)
- Enclosure IC411 - TEFC
- Flange Without
- Rated speed 1783 rpm
- Moment of inertia (J) 66.7 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated current 136 A
- Rated torque 442 ft.lb
- Temperature rise 80 K
- Approx. weight³ 2111 lb
- Output 150 HP (110 kW)
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Noise level² 76.0 dB(A)
- Rated voltage 575 V
- Insulation Class F
- Degree of Protection IP55
- Voltage 575 V
