15018ST3HIERB445T-W2 WEG AC Motors
Part#:15018ST3HIERB445T-W2
Manufacturer:WEG
Alt. Part#:7909322477121
Product Lifecycle:Active
Get a quick Quote!

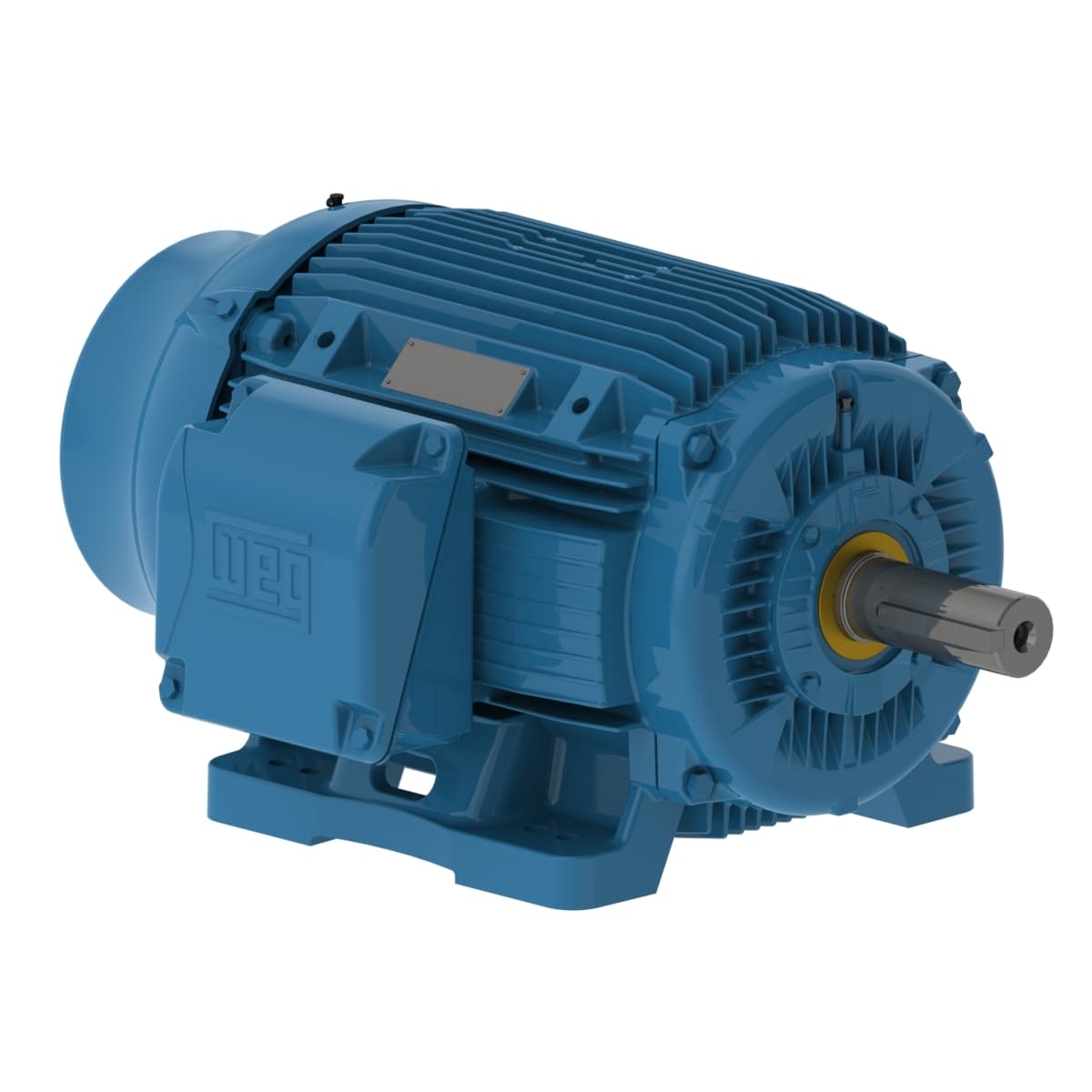

W22 IEEE 841 NEMA Premium Efficiency 150 HP 4P 444/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 15018ST3HIERB445T-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed1784 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Frequency 60 Hz
- Locked rotor time 39s (cold) 22s (hot)
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Frame 444/5T
- Temperature rise 80 K
- Approx. weight³ 1775 lb
- Rated current 136 A
- Design B
- Rotation¹ Both (CW and CCW)
- LRC 6.6x(Code G)
- Service factor 1.15
- Number of poles 4
- Number of Poles 4
- Moment of inertia (J) 66.7 sq.ft.lb
- Degree of Protection IP56
- Terminal box¹ Left position
- L. R. Amperes 898 A
- No load current 44.8 A
- Duty Cycle Cont.(S1)
- Noise level² 73.0 dB(A)
- Slip 0.89 %
- Rated torque 442 ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated voltage 575 V
- Breakdown torque 240 %
- Starting Method Direct On Line
- Output rating 150 HP
- Rated speed 1784 rpm
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Flange Without
- Output 150 HP (110 kW)
- Insulation Class F
- Mounting F-1
- Voltage 575 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
