15018OP3VFP444TS-W40 WEG AC Motors
Part#:15018OP3VFP444TS-W40
Manufacturer:WEG
Alt. Part#:7909492974789
Product Lifecycle:Active
Get a quick Quote!

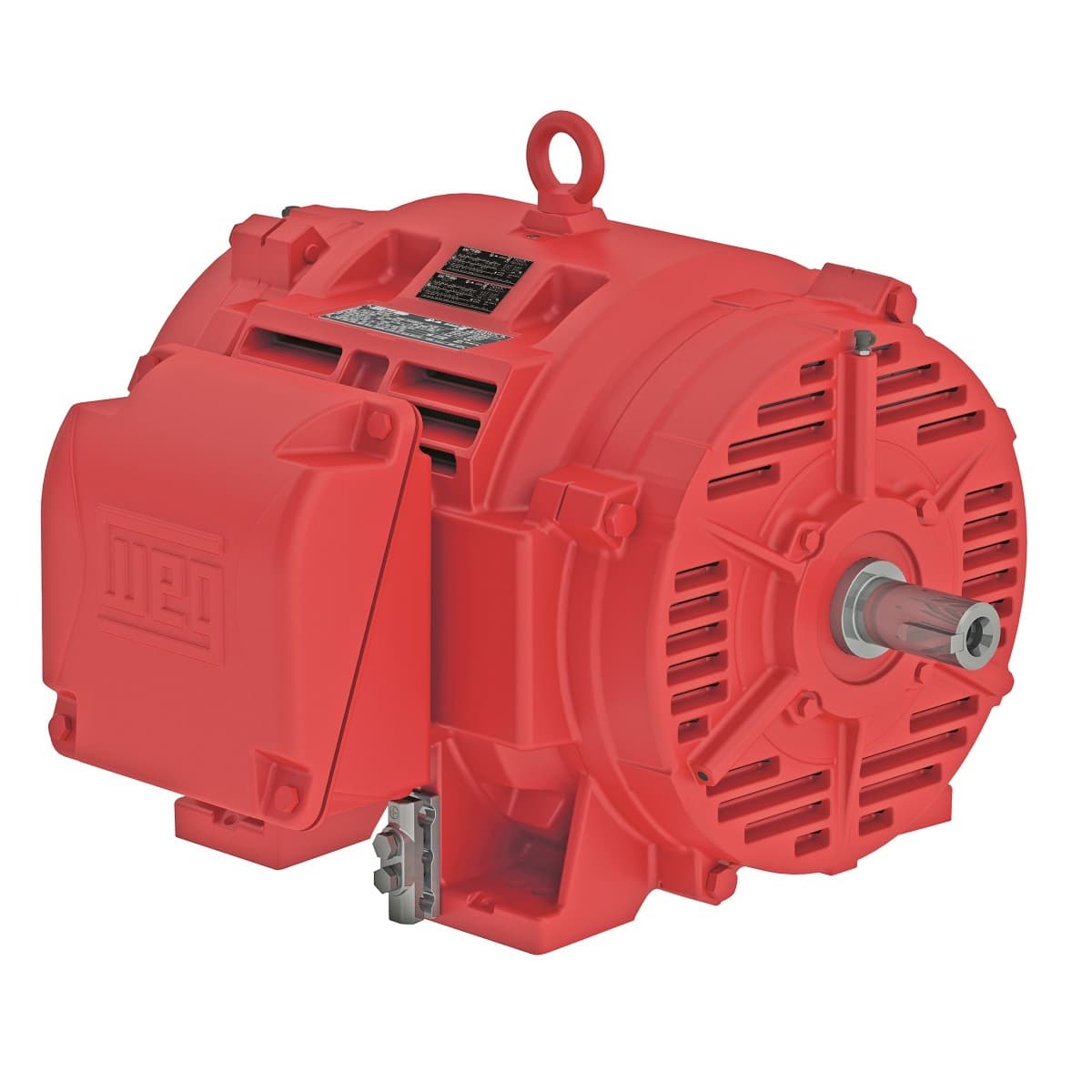

W40 High Efficiency 150 HP 4P 444/5TS 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 15018OP3VFP444TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeWithout
- Slip 1.11 %
- Rated current 389/194 A
- No load current 107/53.5 A
- Approx. weight³ 1291 lb
- Number of Poles 4
- Moment of inertia (J) 42.3 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- L. R. Amperes 2488/1244 A
- Insulation Class F
- Mounting F-1
- Rated voltage 200/400 V
- Duty Cycle Cont.(S1)
- Voltage 200/400 V
- Frequency 60 Hz
- Design B
- Starting Method Direct On Line
- LRC 6.4x(Code G)
- Degree of Protection IP23
- Number of poles 4
- Locked rotor time 36s (cold) 20s (hot)
- Rotation¹ Both (CW and CCW)
- Output rating 150 HP
- Rated speed 1780 rpm
- Rated torque 443 ft.lb
- Service factor 1.15
- Temperature rise 80 K
- Terminal box¹ Left position
- Output 150 HP (110 kW)
- Breakdown torque 200 %
- Altitude 1000 m.a.s.l.
- Flange Without
- Frame 444/5TS
- Locked rotor torque 190 %
- Enclosure IC01 - ODP
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
