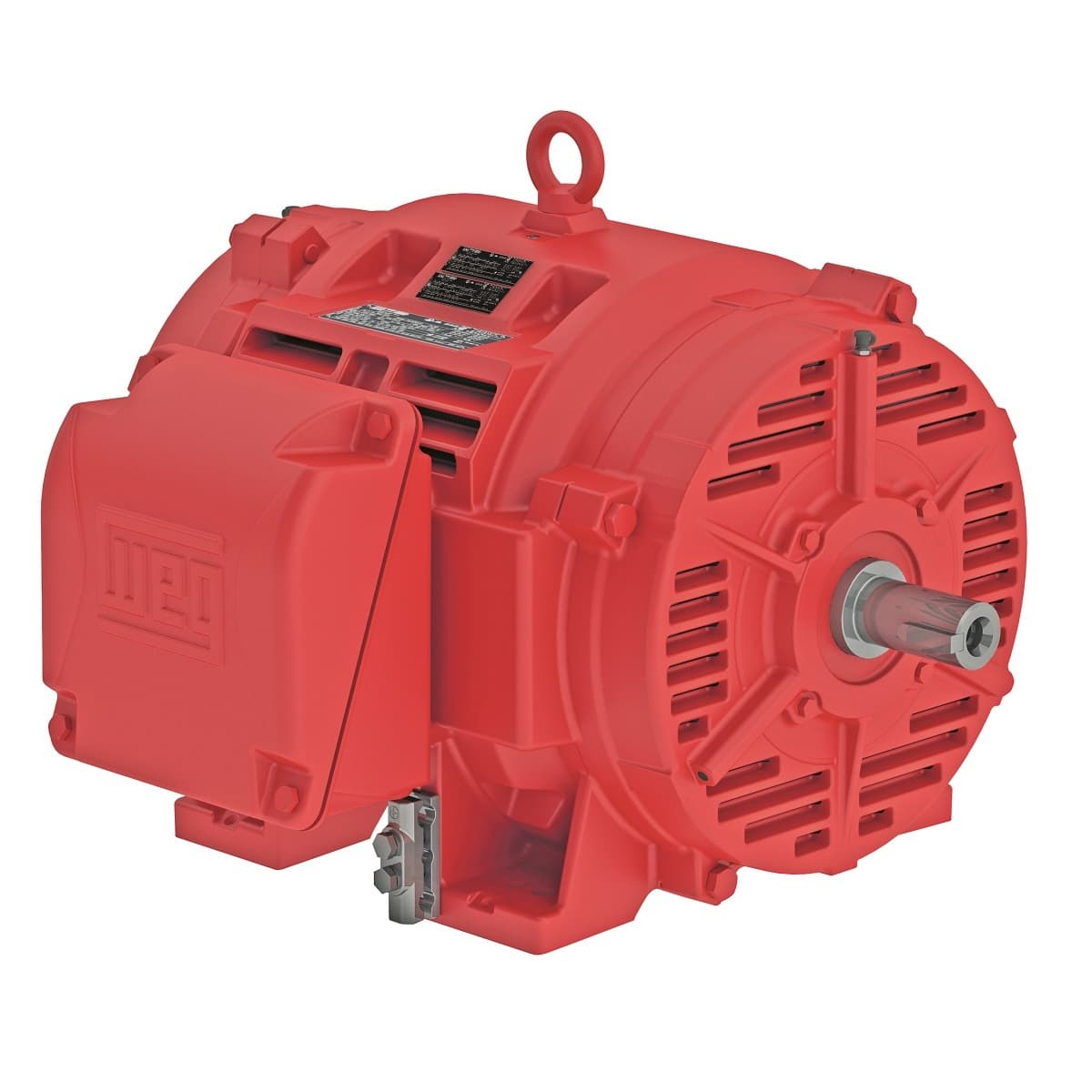

15018OP3GFP444TS-W40 WEG AC Motors
Part#:15018OP3GFP444TS-W40
Manufacturer:WEG
Alt. Part#:7909323929087
Product Lifecycle:Active
Get a quick Quote!
W40 High Efficiency 150 HP 4P 444/5TS 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 15018OP3GFP444TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Rated voltage 460 V
- Rated torque 443 ft.lb
- Starting Method Direct On Line
- Output rating 150 HP
- Frequency 60 Hz
- Locked rotor time 36s (cold) 20s (hot)
- Service factor 1.15
- Standard NEMA MG-1
- Output 150 HP (110 kW)
- Moment of inertia (J) 42.3 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Rated current 169 A
- Locked rotor torque 190 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 1082 A
- Breakdown torque 200 %
- Degree of Protection IP23
- Voltage 460//380 V
- Rated speed 1780 rpm
- Insulation Class F
- Enclosure IC01 - ODP
- Flange Without
- Frame 444/5TS
- Design B
- Approx. weight³ 1285 lb
- Number of Poles 4
- No load current 46.5 A
- Mounting F-1
- LRC 6.4x(Code G)
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Slip 1.11 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 15018OP3GFP444TS-W40 Specs
